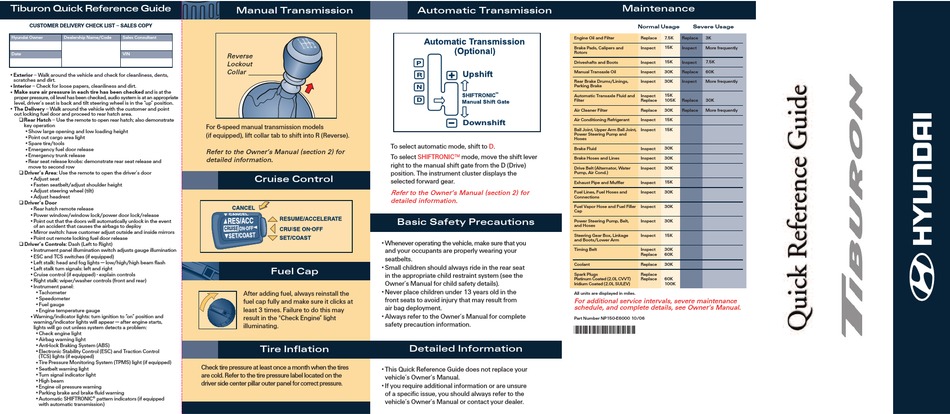

Tiburon Quick Reference Guide
CUSTOMER DELIVERY CHECK LIST – SALES COPY
Hyundai Owner Dealership Name/Code Sales Consultant
Date VIN
•
•
Exterior – Walk around the vehicle and check for cleanliness, dents,
• scratches and dirt.
Interior – Check for loose papers, cleanliness and dirt.
Make sure air pressure in each tire has been checked and is at the
•
proper pressure, oil level has been checked, audio system is at an appropriate
level, driver's seat is back and tilt steering wheel is in the "up" position.
The Delivery – Walk around the vehicle with the customer and point
out locking fuel door and proceed to rear hatch area.
•
K Rear Hatch – Use the remote to open rear hatch; also demonstrate
• key operation
• Show large opening and low loading height
• Point out cargo area light
• Spare tire/tools
• Emergency fuel door release
Emergency trunk release
Rear seat release knobs: demonstrate rear seat release and
•
move to second row
K Driver's Area: Use the remote to open the driver's door •
•
Adjust seat
•
Fasten seatbelt/adjust shoulder height
Adjust steering wheel (tilt)
•
Adjust headrest
•
K Driver's Door
•
Rear hatch remote release
Power window/window lock/power door lock/release
•
Point out that the doors will automatically unlock in the event
• of an accident that causes the airbags to deploy
Mirror switch: have customer adjust outside and inside mirrors
• Point out remote locking fuel door release
K Driver's Controls: Dash (Left to Right) •
• Instrument panel illumination switch adjusts gauge illumination
• ESC and TCS switches (if equipped)
• Left stalk: head and fog lights — low/high/high beam flash
• Left stalk turn signals: left and right
• Cruise control (if equipped) - explain controls
Right stalk: wiper/washer controls (front and rear) •
Instrument panel: •
• Tachometer
• Speedometer
• Fuel gauge
Engine temperature gauge
Warning/indicator lights: turn ignition to "on" position and
•
warning/indicator lights will appear — after engine starts,
lights will go out unless system detects a problem: •
• Check engine light
• Airbag warning light
Anti-lock Braking System (ABS)
•
Electronic Stability Control (ESC) and Traction Control
• (TCS) lights (if equipped)
• Tire Pressure Monitoring System (TPMS) light (if equipped)
• Seatbelt warning light
•
Turn signal indicator light
•
High beam
•
Engine oil pressure warning
Parking brake and brake fluid warning
Automatic SHIFTRONIC pattern indicators (if equipped
with automatic transmission)

Manual Transmission

Reverse
Lockout
Collar
For 6-speed manual transmission models
(if equipped), lift collar tab to shift into R (Reverse).
Refer to the Owner's Manual (section 2) for
detailed information.

Cruise Control

Fuel Cap
After adding fuel, always reinstall the
fuel cap fully and make sure it clicks at
least 3 times. Failure to do this may
result in the "Check Engine" light
illuminating.

Tire Inflation

Check tire pressure at least once a month when the tires
are cold. Refer to the tire pressure label located on the
driver side center pillar outer panel for correct pressure.

Automatic Transmission

To select automatic mode, shift to D.
To select SHIFTRONIC™ mode, move the shift lever
right to the manual shift gate from the D (Drive)
position. The instrument cluster displays the
selected forward gear.
Refer to the Owner's Manual (section 2) for
detailed information.

Basic Safety Precautions

• Whenever operating the vehicle, make sure that you
and your occupants are properly wearing your
• Small children should always ride in the rear seat
seatbelts.
in the appropriate child restraint system (see the
• Never place children under 13 years old in the
Owner's Manual for child safety details).
front seats to avoid injury that may result from
• Always refer to the Owner's Manual for complete
air bag deployment.
safety precaution information.
Detailed Information
• This Quick Reference Guide does not replace your
• If you require additional information or are unsure
vehicle's Owner's Manual.
of a specific issue, you should always refer to the
vehicle's Owner's Manual or contact your dealer.

Maintenance

Normal Usage Severe Usage
Engine Oil and Filter Replace 7.5K Replace 3K
Brake Pads, Calipers and Inspect 15K Inspect More frequently
Rotors
Driveshafts and Boots Inspect 15K Inspect 7.5K
Manual Transaxle Oil Inspect 30K Replace 60K
Rear Brake Drums/Linings, Inspect 30K Inspect More frequently
Parking Brake
15K
Automatic Transaxle Fluid and Inspect
Filter Replace 105K Replace 30K
Air Cleaner Filter Replace 30K Replace More frequently
Air Conditioning Refrigerant Inspect 15K
15K
Ball Joint, Upper Arm Ball Joint, Inspect
Power Steering Pump and
Hoses
Brake Fluid Inspect 30K
Brake Hoses and Lines Inspect 30K
Drive Belt (Alternator, Water Inspect 30K
Pump, Air Cond.)
Exhaust Pipe and Muffler Inspect 15K
Fuel Lines, Fuel Hoses and Inspect 30K
Connections
Fuel Vapor Hose and Fuel Filler Inspect 30K
Cap
Power Steering Pump, Belt, Inspect 30K
and Hoses
Steering Gear Box, Linkage Inspect 15K
and Boots/Lower Arm
Timing Belt Inspect 30K
Replace 60K
Coolant Replace 30K
Spark Plugs Replace
Platinum Coated (2.0L CVVT) Replace 60K
Iridium Coated (2.0L SULEV) 100K
All units are displayed in miles.
For additional service intervals, severe maintenance
schedule, and complete details, see Owner's Manual.
Part Number NP150-E6000 10/06
