SÉRIE DENSITÉ
VDA-1001

Introduction

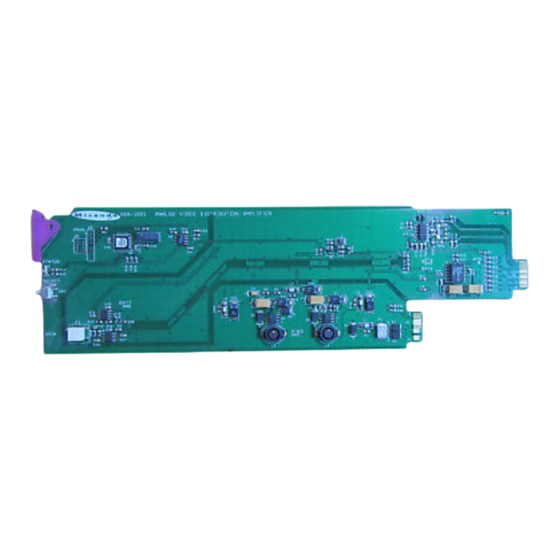

The VDA-1001 is an analogue video distribution amplifier with
a differential looping input and 8 outputs. Gain can be
controlled from the card edge. An input video signal status is
also available indicating the input signal presence. The
differential input provides rejection of hum and other artefacts
on incoming signals. The VDA-1001 is housed in a DENSITÉ
frame and requires a single or double rear connector panel.
INPUT
VIDEO
LT

Technical specifications

Input
Signal: ......................................... 1 Vpp nominal
Return loss: ................................. >45 dB up to 10 MHz
Coupling: ..................................... DC
Level:........................................... 0.3 to 1.5 Vcc
Impedance: ................................. 75 ohms
Common mode signal: ............... 28 Vcc
Common mode rejection: ............ >65 dB to 10 kHz
Output
Signal (8): ................................... 1 Vpp nominal, ajustable
Return loss: ................................. >45 dB up to 20 MHz
Impedance: ................................. 75 ohms
Phase match
between outputs: PAL -SECAM .. <0.1 ° @ 4.43 MHz
NTSC .............. <0.1 ° @ 3.58 MHz
Cross talk: ................................... > 40 dB @ 10 MHz
Response variation:..................... <0.1 dB,
.................................................... 1 to 8 loads, to 20 MHz
Specifications are subject to change without notice..
Detection
signal
Select
Status

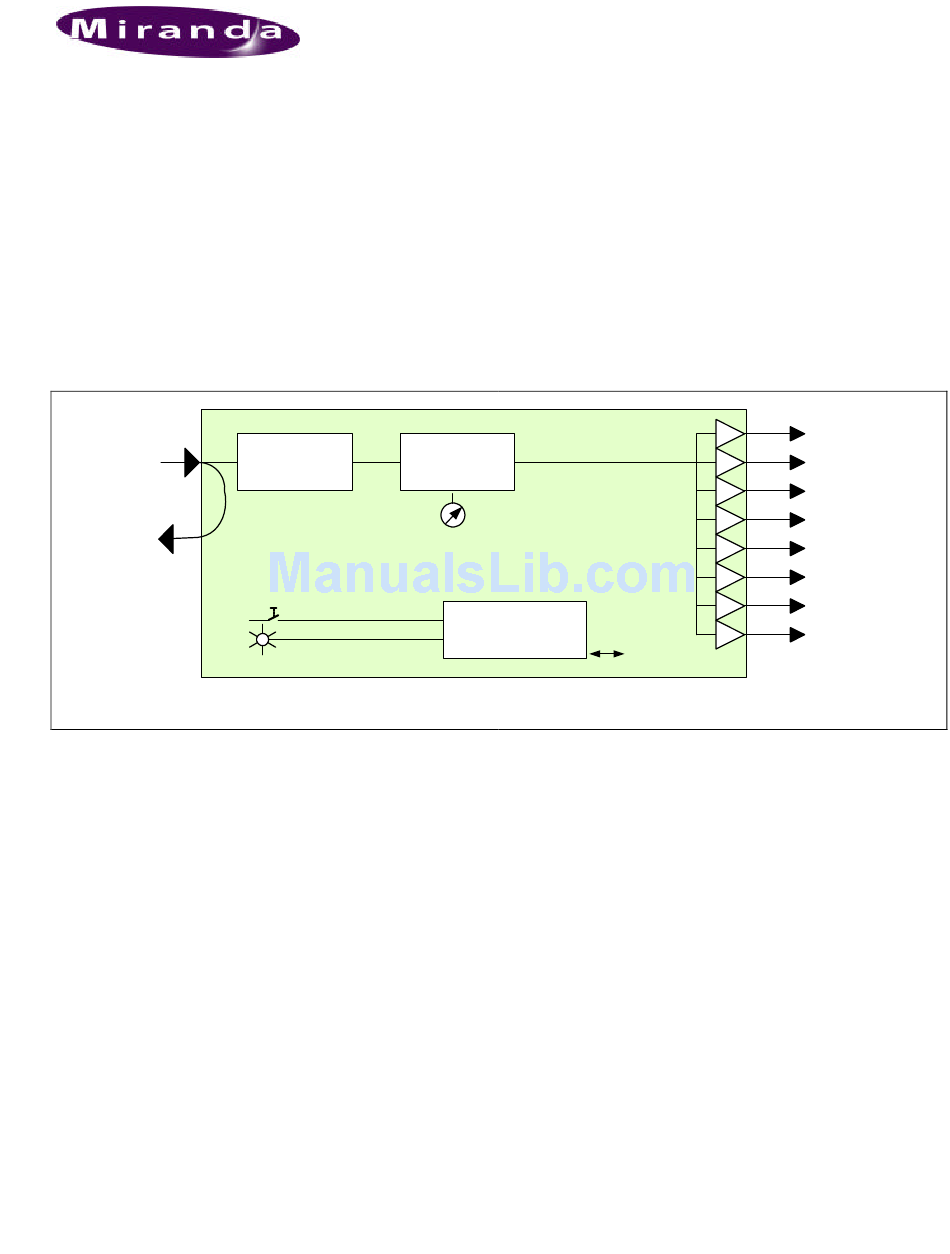

VDA-1001 Functional Block Diagram
VDA-1001 - Analogue Video Distribution Amplifier

Features

Analogue video differential input with passive loop-
through
8 x 75 Ohms outputs
Supports 525/625 lines
Supports PAL, SECAM and NTSC video standards
90 MHz analogue video bandwidth
Control of gain from the card edge
Status Led and remote reporting
Gain
Microcontroller
Processing Performance
Gain: ..................................±3 dB
Frequency response: .........±0.02 dB up to 5 MHz
............................................±0.1 dB up to 10 MHz
............................................-3 dB @ 90 MHz typically
Differential gain: ..................<0.15 %
Differential phase: ...............<0.15 ° with 8 loads
............................................<0.1° with 2 load
Horizontal tilt: ......................<0.25% coupling DC
Vertical tilt: ..........................<0.25 % coupling DC
S/N : ....................................>70 dB up to 15 MHz
............................................(rms noise/0.714V, unweighted)
Chroma/luma delay: ...........< ±1 ns
Chroma/luma gain: .............< ±0.02 dB
HUM: ..................................<1 mV
Processing delay ................15 ns
Power: .................................single 1.5 W
............................................double 2W
Operation and installation manual
Rem Control
M452-9900-100
February 2002
1
2
3
4
VIDEO
5
OUPUTS
6
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDA-1001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Miranda VDA-1001

  • Page 1: Technical Specifications

    • Supports PAL, SECAM and NTSC video standards on incoming signals. The VDA-1001 is housed in a DENSITÉ • 90 MHz analogue video bandwidth frame and requires a single or double rear connector panel.
  • Page 2 Exploitation Menu Introduction Parameters are accessed and changed via an easy-to-use menu. The flow chart below outlines the entire VDA-1001 menu path. Each menu is described throughout this section. The procedure and the operation mode are described in the common paragraph of the DENSITÉ Manual. The menu organisation is made out of a main menu and several sub-menus.
  • Page 3 VDA-1001 Operation and installation manual {CONFIGURE ALARM} {FACTORY DEFAUT} It is possible to associate the STATUS Led colour and/or a Set the module with the factory default RESTORE GPI relay activation to each detected error. parameters. Alarm relay activation depends of the ENABLE selection of the controller board menu GPI REPORT.
  • Page 4 GAIN AJUSTEMENT Trimmer for gain adjustment GAIN Connections VDA-1001 is used with the single rear panel VDA-1001-SRP that includes 1 input to 4 outputs or with the double rear panel VDA-1001-DRP that includes 1 input to 8 outputs VDA-1001-DRP VDA-1001-SRP...
