Dynali H3 EASYFLYER SPORT Flight Manual

Microlight helicopter
Hide thumbs Also See for H3 EASYFLYER SPORT:
Table of Contents

Advertisement

Quick Links

DYNALI HELICOPTER COMPANY
DYNALI HELICOPTER COMPANY
101, avenue Thomas Edison,1402 - Thines BELGIQUE
101, avenue Thomas Edison,1402 - Thines BELGIQUE
Tel : +32 (0) 67 55 29 98 Fax : +32 (0) 67 84 05 31
Tel : +32 (0) 67 55 29 98 Fax : +32 (0) 67 84 05 31
info@dynali.com
Mail : info@dynali.com
______________________________________________________________________
______________________________________________________________________

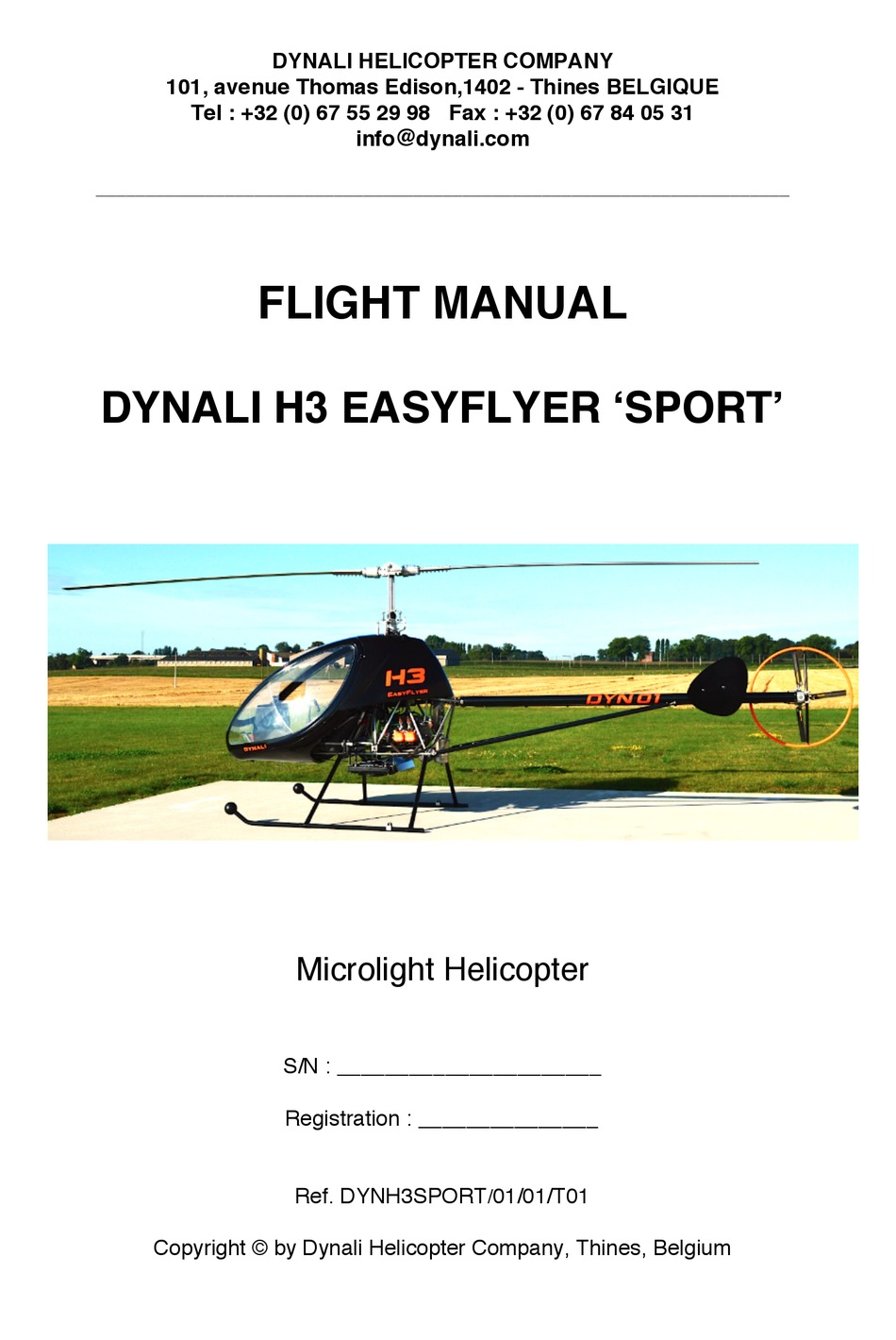

FLIGHT MANUAL
MANUEL DʼUTILISATION
DYNALI H3 EASYFLYER ʻSPORTʼ
DYNALI H3 EASYFLYER ʻSPORTʼ
Hélicoptère ultra-léger
Microlight Helicopter
S/N : ______________________
S/N : ______________________
Immatriculation : _____________
Registration : _______________
Ref. DYNH3SPORT
01/01/T01
Ref. DYNH3SPORT
01/01/T01
/
/
Copyright © by Dynali Helicopter Company, Thines, Belgium
Copyright © by Dynali Helicopter Company, Nivelles, Belgium
