RDL TX-1W User Manual

TX ™ SERIES

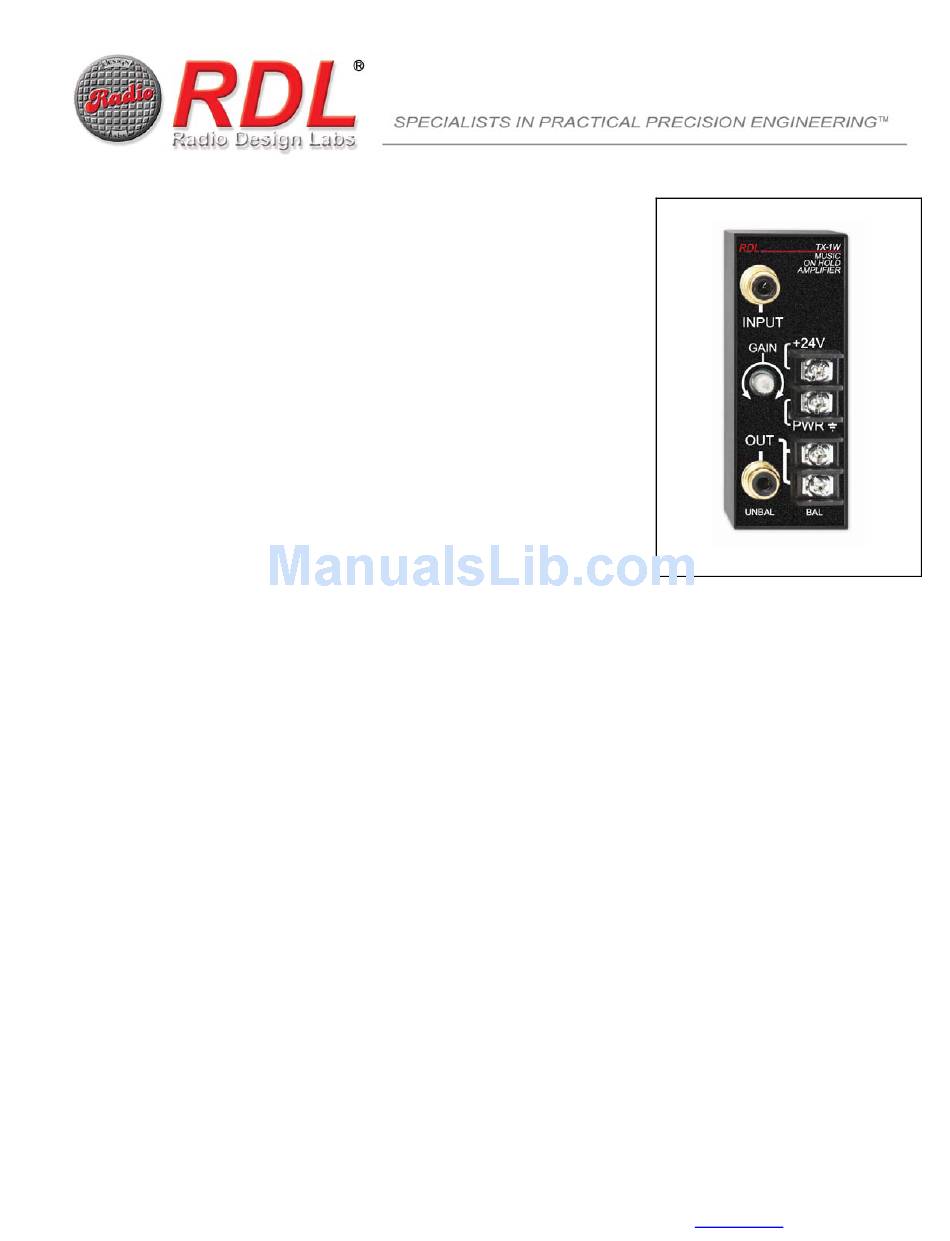

Model TX-1W
Music-on-Hold Amplifier
ANYWHERE YOU NEED...
•
To Feed Audio into Telephone Equipment
Music-on-Hold Input
•
Adjustable Audio Level
•
Optimized Sound Quality
•
Unbalanced Output up to 1 Watt
•
Balanced Transformer-driver Output
•
Ultra Compact Size
You Need The TX-1W!
The TX-1W is part of the group of versatile TX products from Radio-Design Labs. The TX series features
the advanced circuitry and high-quality connectors for which RDL products are known, combined with
durable, quality connectors. The ultra-compact TX series can be mounted in limited space using the
adhesive methods popularized by RDL's STICK-ON™ Series. The TX-1W may be mounted directly to a
backboard by removing the hole caps at each end, and fastening two mounting screws (provided) through
the TX case directly into the backboard.
APPLICATION: The TX-1W is the ideal choice in on-site installations where the telephone switching unit
(KSU) needs to be fed with music, voice or combined music/voice signals.
There are a wide variety of telephone instruments in use. When a caller is placed on hold, the audio
quality perceived is affected by the caller's own telephone, as well as the telephone lines, central switch
and on-site equipment. Due to these variations, conventional audio amplifiers used as music-on-hold
drivers frequently produce annoying artifacts at the caller's earpiece. Attempts to reduce listener fatigue
through high-frequency roll-off alone tend to produce a muffled, tired sound.
The TX-1W features a spectral response specifically characterized to match the broadest variations in
telephone audio distribution producing a lively, crisp, interesting sound without the annoying resonances

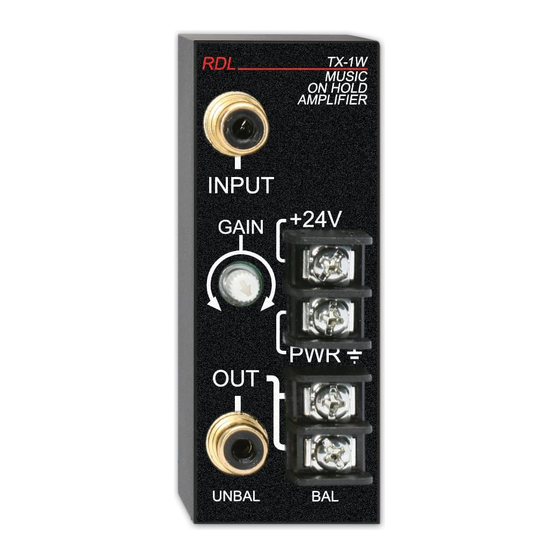

and distortions prone to creating listener fatigue. A single front-panel control is provided for audio level
adjustment.
The TX-1W provides an unbalanced input via a conventional phono jack. Two audio outputs are provided.
The unbalanced output can drive virtually any system input impedance. This output is intended to connect
to any phone system's unbalanced, connectorized input.
signals for typical (-10 dBV) inputs, but is capable of delivering up to 1 watt RMS into 8 Ohm inputs! For
systems with a 600 Ohm transformer input, the TX-1W provides an electronically balanced output through
the barrier block (a balancing transformer is required for feeding balanced 600 Ω telephone lines).
For music-on-hold installations of any input impedance or audio configuration, the TX-1W is the ideal
choice. Use the TX-1W individually, or combine it with other RDL RACK-UP
FLAT-PAK™ series products as part of a complete audio/video system.
•
RDL 659 N. 6
th •
St. Prescott, AZ., USA 86301
The TX-1W will deliver standard line-level
• •
(928) 443-9391 FAX (928) 443-9392
® ®
, STICK-ON , TX, or
•
www.rdlnet.com
