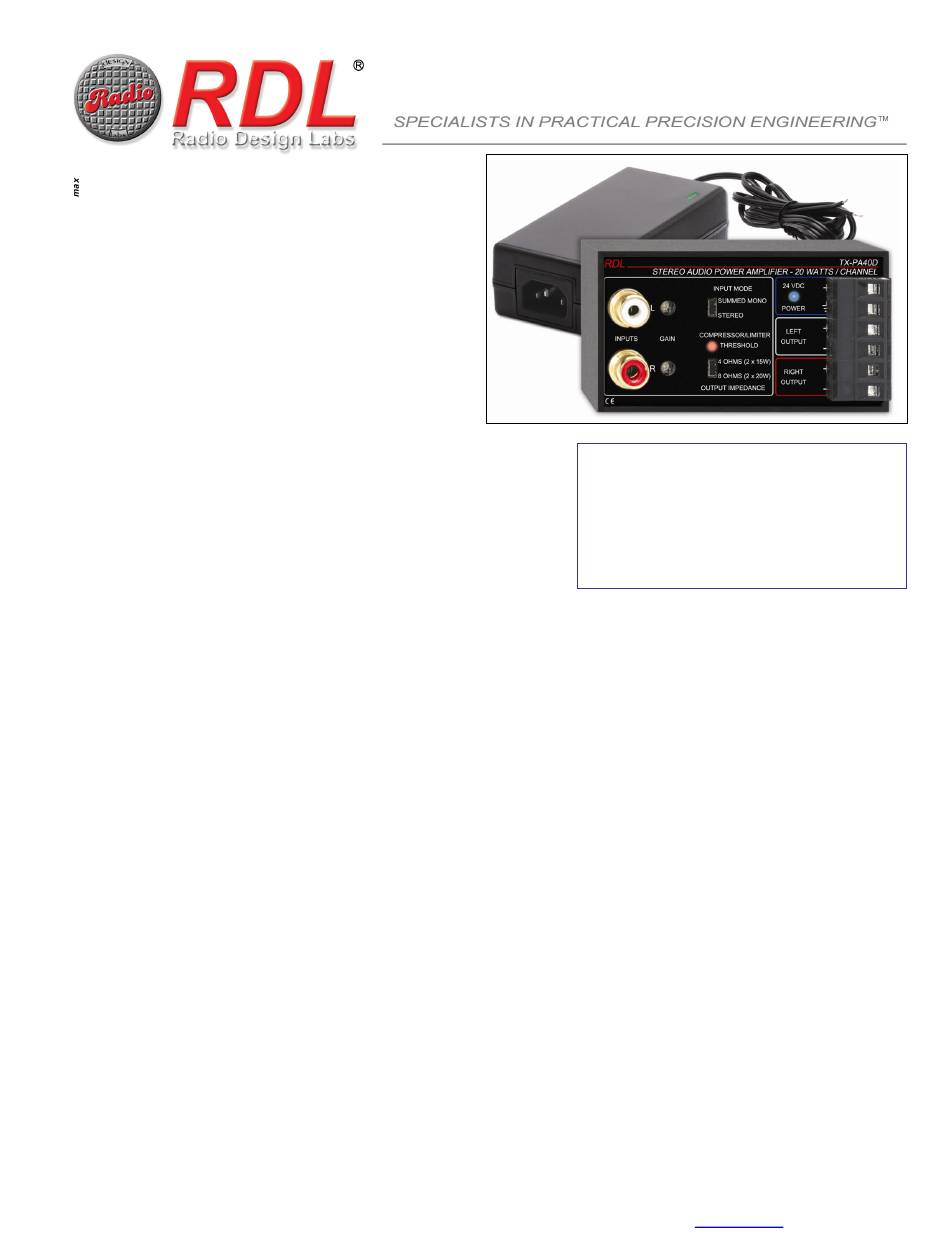

RDL TX Series Quick Start Manual

TX SERIES
™
Model TX-PA40D
40 W Stereo Audio Power Amplifier
with Power Supply
•
Stereo Audio Power Amplifier
• 20 W RMS / Channel into 8 Ω – 40 Watts Total
• 15 W RMS / Channel into 4 Ω – 30 Watts Total
•
Left and Right Unbalanced Phono Jack Inputs
•
Switch-Selectable Stereo or Mono Operation
•
Compressor/Limiter Controls Clipping
•
Studio Quality, Aurally Transparent Compressor/Limiter
•
Compressor Produces Maximized Average Output Power
•
Compression Enabled Using Input Level Adjustments
•
LED to Indicate Audio Compression Threshold
•
Outputs Drive 4 or 8 Ohm Speakers
•
High-Efficiency Class D Operation
•
Thermal and Short-Circuit Protection
The TX-PA40D is a utility power amplifier in the convenient line of Max-TX products. Max-TX modules are the large format members of the RDL
TX family, featuring the superior engineering and components common to RDL products. The durable adhesives provided with the TX-PA40D
permit permanent or removable mounting. The TX-PA40D may be rack or surface mounted with optional TX series accessories. The TX-PA40D
gives you the advantages of a quality, high efficiency stereo audio power amplifier with the added convenience of TXs!
APPLICATION:
The TX-PA40D is the ideal choice in many applications where a high quality, high-efficiency utility
amplifier is needed to drive a pair of 4 Ω or 8 Ω speakers. It is specifically suited to fixed-gain amplification applications
where gain is controlled by other equipment. Examples include projectors with variable audio outputs used in classrooms,
boardrooms and video conferencing.

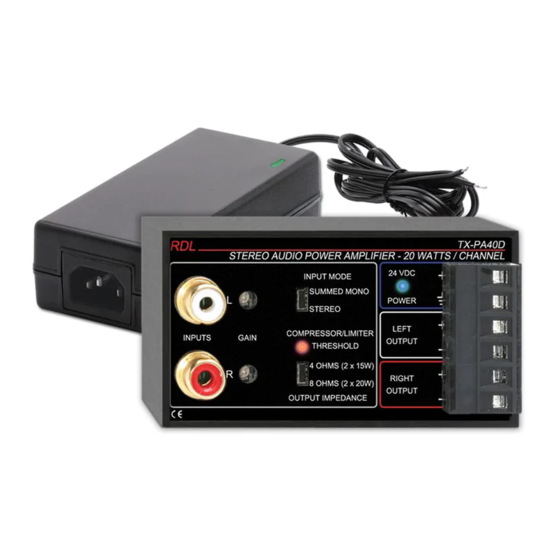

The TX-PA40D features two unbalanced line level inputs on high-reliability gold plated phono (RCA) jacks. A front-panel
recessed gain control trimmer permits setting the desired amplifier output level for each channel. The gain range
accommodates the range of typical unbalanced audio signal levels. Each of the two TX-PA40D outputs will drive a 4 Ω or
8 Ω speaker or multiple speakers connected to present a 4 Ω or 8 Ω load to the amplifier. The output impedance is
switch-selectable on the front panel of the module.
A front-panel switch is provided to sum the audio inputs to mono. In the STEREO mode, the TX-PA40D independently
amplifies each audio channel, left (L) and right (R). If speaker placement in the specified installation is incompatible with
stereophonic amplification, the INPUT MODE switch may be set to SUMMED MONO.
The TX-PA40D includes a stereo analog compressor/limiter for audio fidelity noticeably superior to conventional class D
amplifiers with digital limiting. The input GAIN settings determine whether the limiter alone is used for clipping suppression,
or if the full compressor/limiter will be used to substantially increase the average output power beyond that of a standard
40 W amplifier. A red front-panel LED flashes when the limiter is preventing output clipping. Normal audio level signals
remain unaffected by the compressor thereby preserving audio dynamics. If the input level is increased so the compressor
is active, the LED remains dimly lit between peak flashes. The audio is compressed according to three dynamic time
constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to
20 dB. The TX-PA40D, with compression, is capable of producing average audio output levels and clarity normally
expected from stereo amplifiers with a much higher output power rating.
A blue POWER LED illuminates when the TX-PA40D is powered from its external 24 Vdc power supply (included). The
module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stages
produce minimal heat for all levels of expected voice or music modulation. Continuous full-power operation with audio tones
will not damage the amplifier, but is not recommended.
Wherever an ultra-compact, high quality, high efficiency audio power amplifier is needed to provide reliability and
unsurpassed versatility, the TX-PA40D is the ideal choice. Use the TX-PA40D individually, or combine it with other RDL
products as part of a complete audio/video system.
•
RDL 659 N. 6
th
•
St. Prescott, AZ., USA 86301
TYPICAL APPLICATIONS:
► Projector-Mounted Amplification
► Boardrooms
► Classrooms
► Restaurant or Residential Patios
► Audio / Visual Carts
► Video Conferencing
► Localized Stereo Sound
• •
(928) 443-9391 FAX (928) 443-9392
•
www.rdlnet.com
