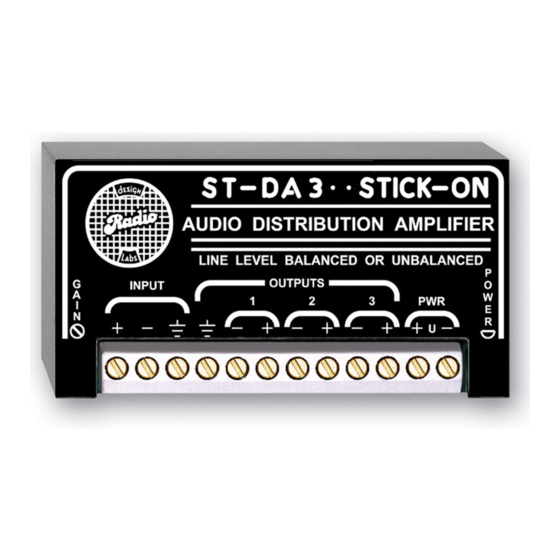

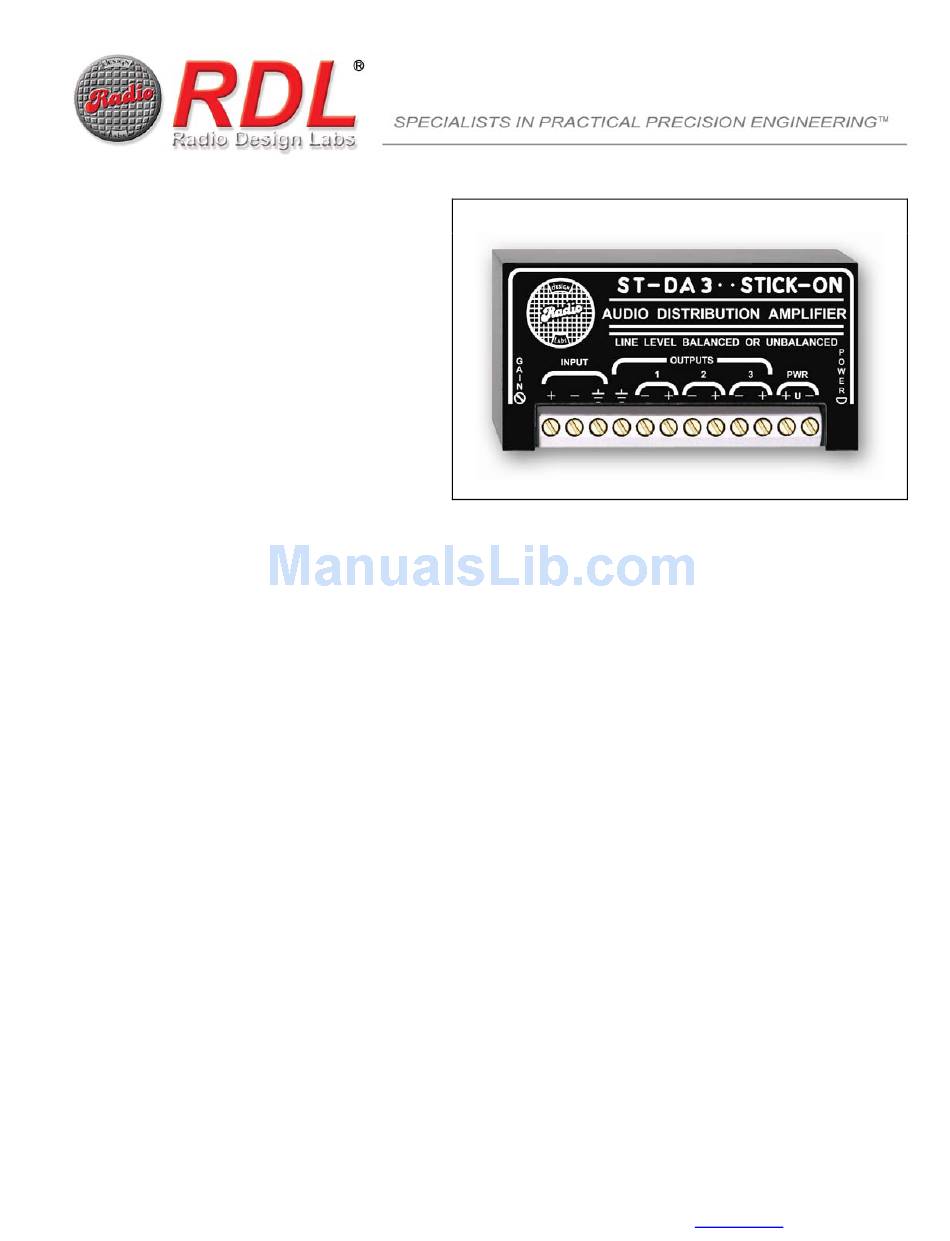

STICK-ON
®
Model ST-DA3
Distribution Amplifier
ANYWHERE YOU NEED...
Audio Distribution with Up To 3 Outputs
Balanced or Unbalanced Input and Outputs
To Bridge a Line for Local Distribution
Distribution with Impedance Conversion
Distribution with Gain or Loss
Ground-referenced or Floating Power
You Need The ST-DA3!
The ST-DA3 is part of the group of versatile STICK-ON products from Radio Design Labs, featuring the
advanced circuitry for which RDL products are known. The durable adhesives provided with the ST-DA3
permit permanent or detachable mounting. Numerous mounting accessories, brackets and rack-mount
chassis are optionally available to facilitate any system design.
APPLICATION: The ST-DA3 allows the bridging of any audio line, adjustment of the gain, and driving up
to three outputs. Each output is driven by a separate amplifier, and is isolated from both the input and
from the other outputs. The circuit design allows the input to accept either balanced or unbalanced
signals, of either high or low impedance; and each output may be connected either balanced or
unbalanced. The ST-DA3 features wideband circuitry that produces the unsurpassed pure clarity for
which RDL products are known. Some features are:
Functions as an electronic transformer
Provides isolation, gain, and three outputs
Wideband amplifiers produce impeccable audio
Operates from ground-referenced, floating or bipolar power supply
Ultra-low distortion
Ultra-low noise
Excellent phase response
Gain adjustment 17 dB above or below unity
Ample headroom at operating level
Recessed multi-turn audio taper gain trimmer for precise control
Input and outputs are RF protected
Full operation in either high or low impedance circuits
Outputs are short circuit protected
Positive connections via barrier block
Wherever an audio distribution amplifier is needed, the ST-DA3 is the ideal choice. Use the ST-DA3
combined with other RDL RACK-UP
of a complete audio/video system.
RDL
659 N. 6
SERIES
®
, STICK-ON, TX™, or FLAT-PAK™, RCX™ series products as part
th
St.
Prescott, AZ., USA 86301
(928) 443-9391
FAX (928) 443-9392
www.rdlnet.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the STICK-ON ST-DA3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RDL STICK-ON ST-DA3

  • Page 1 The ST-DA3 is part of the group of versatile STICK-ON products from Radio Design Labs, featuring the advanced circuitry for which RDL products are known. The durable adhesives provided with the ST-DA3 permit permanent or detachable mounting. Numerous mounting accessories, brackets and rack-mount chassis are optionally available to facilitate any system design.
  • Page 2 DO NOT GROUND NEGATIVE FOR FLOATING OR BIPOLAR POWER INSTALLATION OPTIONAL JUMPER (WHEN USING GROUND-REFERENCED POWER SUPPLY) GROUND NEGATIVE FOR GROUND- AUXILIARY RDL PS-24 24 Vdc REFERENCED BIPOLAR TYPE POWER POWER BIPOLAR SUPPLY SUPPLY SUPPLY INSTALLATION SOURCE TYPICAL PERFORMANCE Headroom: >...
