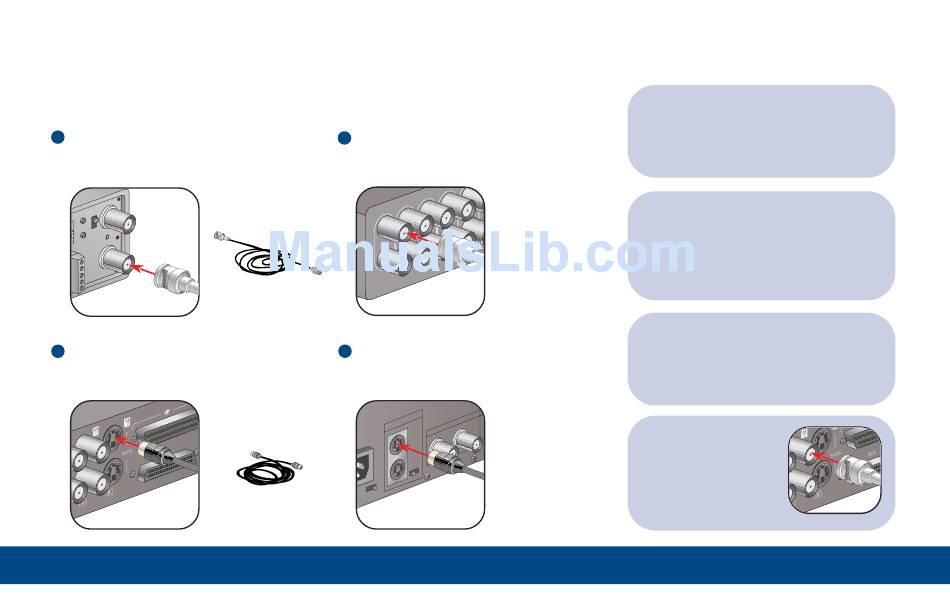

Connecting and Powering Up
Start by connecting your DVMRe to the monitor and camera(s).
1
Connect the coaxial camera cable to
the video output on the camera.
3
Connect the SVHS monitor cable to the
monitor A output on the DVMRe. (See
TIP at right if using coaxial cable.)
4
|
Connecting and Powering Up
2
Connect the coaxial camera cable to the top
Camera 1 input on the DVMRe.
4
Connect the SVHS monitor cable to
the video input on the monitor.
TIP:
Connection – Depending on the model,
you can connect as many as 4, 10, or 16
cameras to your DVMRe. Follow the same
instructions for each additional camera.
TIP:
Connection – You can connect to either
of the camera inputs for each camera.
The second input can be used to send
the camera signal to other devices if
necessary.
TIP:
Connection – To connect additional
components such as keypads or network
connections, see the User Manual.
TIP:
Connection – You may
also use coaxial cable
with your DVMRe, but
not at the same time
as SVHS cable.
