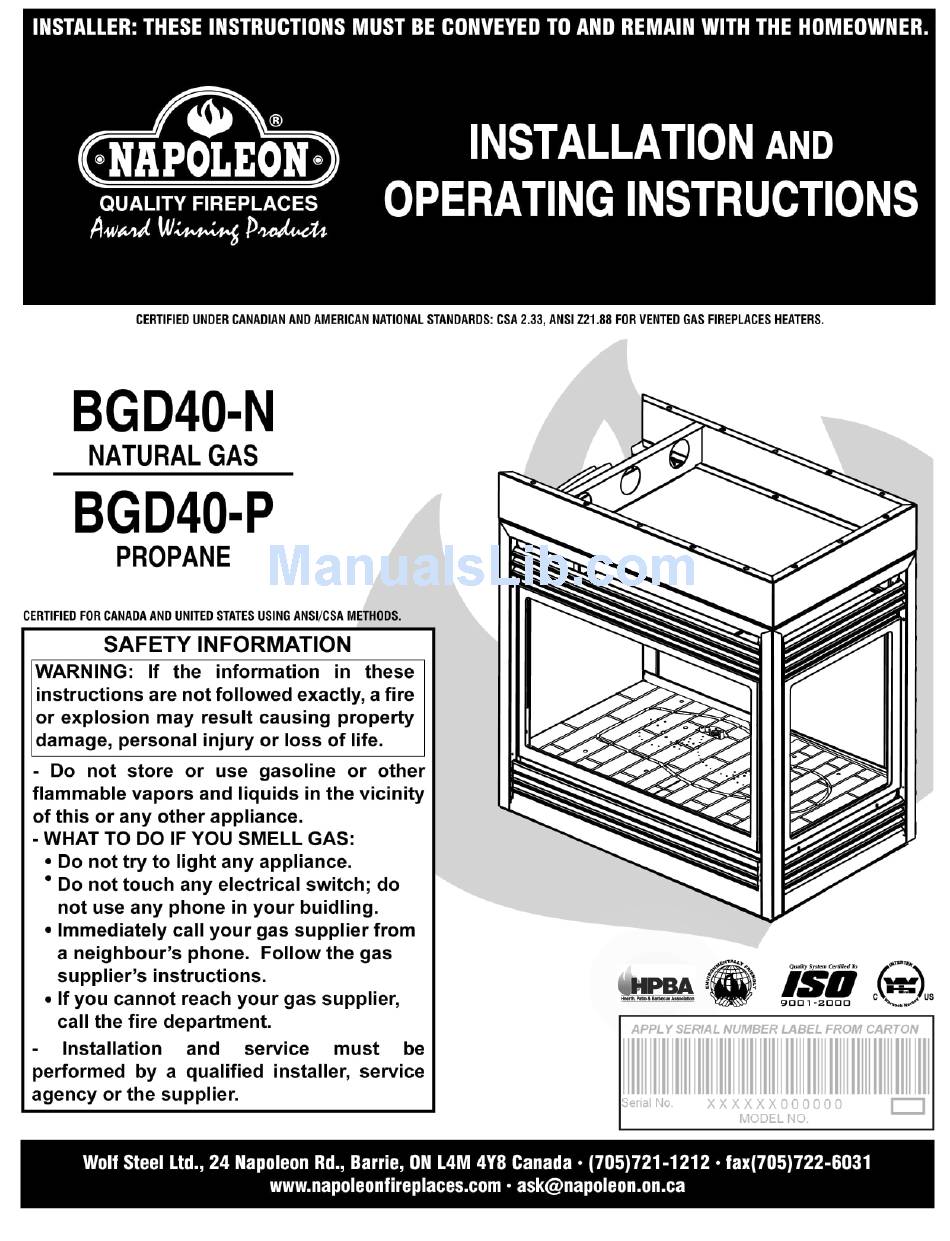

  • Page 1 W415-0299 / H / 10.16.07 W415-0299 / H/ 10.16.07 $10.00...

  • Page 2: Table Of Contents

    TABLE of CONTENTS Vertical Venting Installation Pg 3-5 INTRODUCTION Flexible Vent Components Warranty Fireplace Vent Connection General Instructions Rigid Vent Components General Information Care of Glass & Plated Parts Gas Supply Connection Dimensions 22-25 FINISHING 6-13 VENTING Mantle Installation and Enclosures Heatshield stand-off Vent Lengths Log Placement...
  • Page 3 After the fi rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses are not covered by this warranty.

  • Page 4: Introduction

    The glass is 3/16" tempered glass available closing the door. ® Under extreme vent configurations, allow several minutes from your Napoleon / Wolf Steel Ltd. dealer. Do not substitute materials. (5-15) for the flame to stabilize after ignition.

  • Page 5: Dimensions

    DIMENSIONS PENINSULA FIGURE 1a OPEN-END FIGURE 1b SEE-THRU FIGURE 1c W415-0299 / H / 10.16.07...

  • Page 6: Venting

    1 inch rise per foot when using be sealed using the black high temperature sealant Mill Pac. Napoleon flexible vent components. High temperature sealant must be ordered separately. A terminal shall not terminate directly above a sidewalk...

  • Page 7: Minimum Air Terminal Location Clearances

    MINIMUM AIR TERMINAL LOCATION CLEARANCES FIGURE 2 W415-0299 / H / 10.16.07...

  • Page 8: Venting Application Flowchart

    VENTING APPLICATION FLOWCHART VERTICAL HORIZONTAL TERMINATION TERMINATION vertical rise vertical rise vertical rise vertical rise is equal to is less than is less than is equal to or greater horizontal horizontal or greater t h a n t h e t h a n t h e horizontal horizontal...

  • Page 9: Typical Minimum And Maximum Vent Lengths

    TYPICAL MINIMUM AND MAXIMUM VENT LENGTHS FIGURE 3a When terminating verti- cally, the vertical rise is a minimum 34 inches and a maximum 40 feet above the fi replace. FIGURE 3b. When venting, the horizontal run must be kept to a maximum of 20 feet.
  • Page 10 DEFINITIONS ELBOW VENT LENGTH VALUES for the following symbols used in the venting calculations feet inches and examples are: 1° 0.03 > - greater than 15° 0.45 > - equal to or greater than 30° 11.0 < - less than 45°* 1.35 16.0...
  • Page 11 HORIZONTAL TERMINATION Example 2: when (H ) > (V 90° Simple venting confi guration (only one 45º and 90° elbow) FIGURE 8 FIGURE 7 See graph to determine the required 45° vertical rise V for the required hori- zontal run H 90°...
  • Page 12 VERTICAL TERMINATION when (H ) < (V Example 3: Simple venting confi gurations FIGURE 9 FIGURE10 90° 90° 45° 45° 90° See graph to determine the required vertical rise V for the required horizontal run H = 5 ft = 10 ft = 5 + 10 = 15 ft = 3 ft = 2.5 ft...
  • Page 13 VERTICAL TERMINATION when (H ) > (V = 1 ft Simple venting confi gurations = 1.5 ft = 1 + 1.5 = 2.5 ft FIGURE 11 = 6 ft = 2 ft = 6 + 2 = 8 ft = .03(one 45º elbow + three 90º elbows - 135º) = .03(45 + 90 + 90 + 90 - 135) = 5.4 ft = 8 + 5.4 = 13.4 ft = 13.4 + 2.5 = 15.9 ft...

  • Page 14: Peninsula Installation Procedure

    PENINSULA INSTALLATION PROCEDURE VENTING COUNTERTOP / BAR INSTALLATION Refer to pages 6-13. All venting must have a minimum clear- When fi nishing the fi replace, combustible material may rest ance of 2" to combustible material on the top and 1" to the directly on of the top extension.

  • Page 15: Brick Panel Installation

    FACING BRICK PANEL INSTALLATION Combustible materials may be installed fl ush with the front of Install the base panels as illustrated in steps 1-4 . The side the fi replace but must not cover any of the black face-areas panel sits under the bracket tab Holding the side panel in of the fi...

  • Page 16: Open End Installation Procedure

    OPEN-END INSTALLATION PROCEDURE VENTING Refer to pages 6-13. All venting must have a minimum clear- ance of 2" to combustible material on the top and 1" on the RETAINER sides and bottom. FRAMING See Page 18 for additional framing dimensions. Note: In order to avoid the possibility of exposed insula- tion or vapour barrier coming in contact with the DETAIL 6...

  • Page 17: See-Thru Installation Procedure

    SEE-THROUGH INSTALLATION PROCEDURE VENTING FACING Combustible materials may be installed fl ush with the front of Refer to pages 6-13. All venting must have a minimum clear- the fi replace but must not cover any of the black face-areas ance of 2" to combustible material on the top and 1" to the of the fi...

  • Page 18: Vent Framing Dimensions

    MINIMUM VENT FRAMING DIMENSIONS There must be a minimum of 2" clearance to combustible ma- terial on the top and 1" to the sides and bottom when framing around all venting options. See pages 10-13. FIGURE 26 FIGURE 27 Horizontal Vent Off Fireplace Vertical Vent Off Fireplace A = 43"...

  • Page 19: Wall And Ceiling Protection

    Use fi restop lation kits for various roof pitches are available from your spacer W010-1778 (supplied). Napoleon dealer. See Accessories to order the specifi c kit VERTICAL VENT SECTIONS: A minimum clearance of 1" required.
  • Page 20 For safe and proper operation of the fireplace, follow the vent- approximately every 3 feet for both vertical and horizontal runs. ing instructions exactly. Use Napoleon support ring assembly W010-0380 or equivalent Eight (8") inches is the minimum bend radius allowed for noncombustible strapping to maintain the minimum 1" clearance the 8"...

  • Page 21: Fireplace Vent Connection

    6. Aligning the seams of FIREPLACE VENT CONNECTION the terminal and air terminal connector, place the terminal over 1. Install the 5 inch diameter aluminum fl exible liner to the the air terminal connector making fi replace. Secure with 3 screws and fl at washers. Seal the sure the liner goes into the hole joint and screw holes using high FIGURE 41...

  • Page 22: Finishing

    FINISHING MINIMUM MANTEL AND ENCLO- HEAT SHIELD STAND-OFF SURE CLEARANCES REMOVAL (SEE THRU INSTALLATION ONLY) Combustible mantel clearance can vary according to the mantle depth. Use the graph to help evaluate the clearance needed. The three-sided top extension piece may be removed if non-combustible framing is faced with a non-combustible material.

  • Page 23: Log Placement

    LOG PLACEMENT PHAZER logs, glowing and charcoal embers, exclusive to Napoleon fi replaces, provide a unique and realistic glowing effect that is different in every installation. Take the time to carefully position the embers for a maximum glowing effect. Figures 49 A - H.

  • Page 24: Logo Placement

    Fine dust found in bottom of bag not to be used. PHAZ- logs, and embers glow when exposed to direct fl ame. Use only certifi ed PHAZER logs, glowing embers and charcoal embers available from your Napoleon / Wolf Steel Ltd. dealer. GLOWING EMBERS HOOD...

  • Page 25: End Door Installation

    END DOOR INSTALLATION Ensure that the door is properly STEEL LIP clipped onto the DOOR steel lip to pre- vent overheat- ing, glass break- age and / or dis- colouration of the upper trim. FIGURE 53 To install the door(s), hook it over the steel lip located above the door opening.

  • Page 26: Optional Blower Installation

    OPTIONAL BLOWER INSTALLATION Remove the "Z" shaped INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER mounting bracket secured and must be electrically connected and grounded in accord- to the burner, by the pilot. ance with local codes. In the absence of local codes, use Remove the thermodisc from the current CSA C22.1 C in Canada...

  • Page 27: Operation / Maintenance

    A 5 to 10 second total light-up period is combustion and ventilation air must not be obstructed. satisfactory. If ignition takes longer, consult your Napoleon® 1. In order to properly clean the burner and pilot assembly, dealer / distributor.

  • Page 28: Adjustments

    ADJUSTMENTS PILOT BURNER ADJUSTMENT RESTRICTING VERTICAL VENTS Adjust the pilot screw to provide properly sized fl ame. Turn Vertical installations may display a very active fl ame. If this appearance is not desirable, the vent exit must be restrict- in a clockwise direction to reduce the gas fl ow. using the optional restrictor vent kit, RP40-KT.

  • Page 29: Replacements

    Contact your dealer for questions concerning prices and avail- When ordering replacement parts always give the following ability of replacement parts. Normally all parts can be ordered information: through your Napoleon dealer or distributor. 1. M & S ODEL ERIAL UMBER OF FIREPLACE 2.
  • Page 30 W415-0299 / H / 10.16.07...

  • Page 31: Accessories

    ACCESSORIES W010-0516 BLACK SIDE DOOR c/w GLASS 16 EHOISS-2 END HERITAGE ORNAMENTAL INSETS - BRUSHED STAINLESS STEEL 17 DOIG-1 DIAMOND ORNAMENTAL INSET - # PART No. DESCRIPTION GOLD PLATED 17 DOIKG-1 DIAMOND ORNAMENTAL INSET - BLACK GOLD PLATED W690-0001 MILLIVOLT THERMOSTAT 17 DOIBC-1 DIAMOND ORNAMENTAL INSET - BRUSHED COPPER PLATED...

  • Page 32: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN SYMPTOM PROBLEM TEST SOLUTION M a i n b u r n e r Blockage in vent. - remove blockage.
  • Page 33 SYMPTOM PROBLEM TEST SOLUTION Pilot burning; no Themostat or switch is de- - connect a jumper wire across the wall switch terminals; if main burner gas to main burn- fective. lights, replace switch / thermostat. er; gas knob is on Wall switch wiring is defec- - disconnect the switch wires from the valve &...
  • Page 34 W415-0299 / H / 10.16.07...
  • Page 35 NOTES W415-0299 / H / 10.16.07...
  • Page 36 NOTES W415-0299 / H / 10.16.07...
