Summary of Contents for Nakamichi NA85

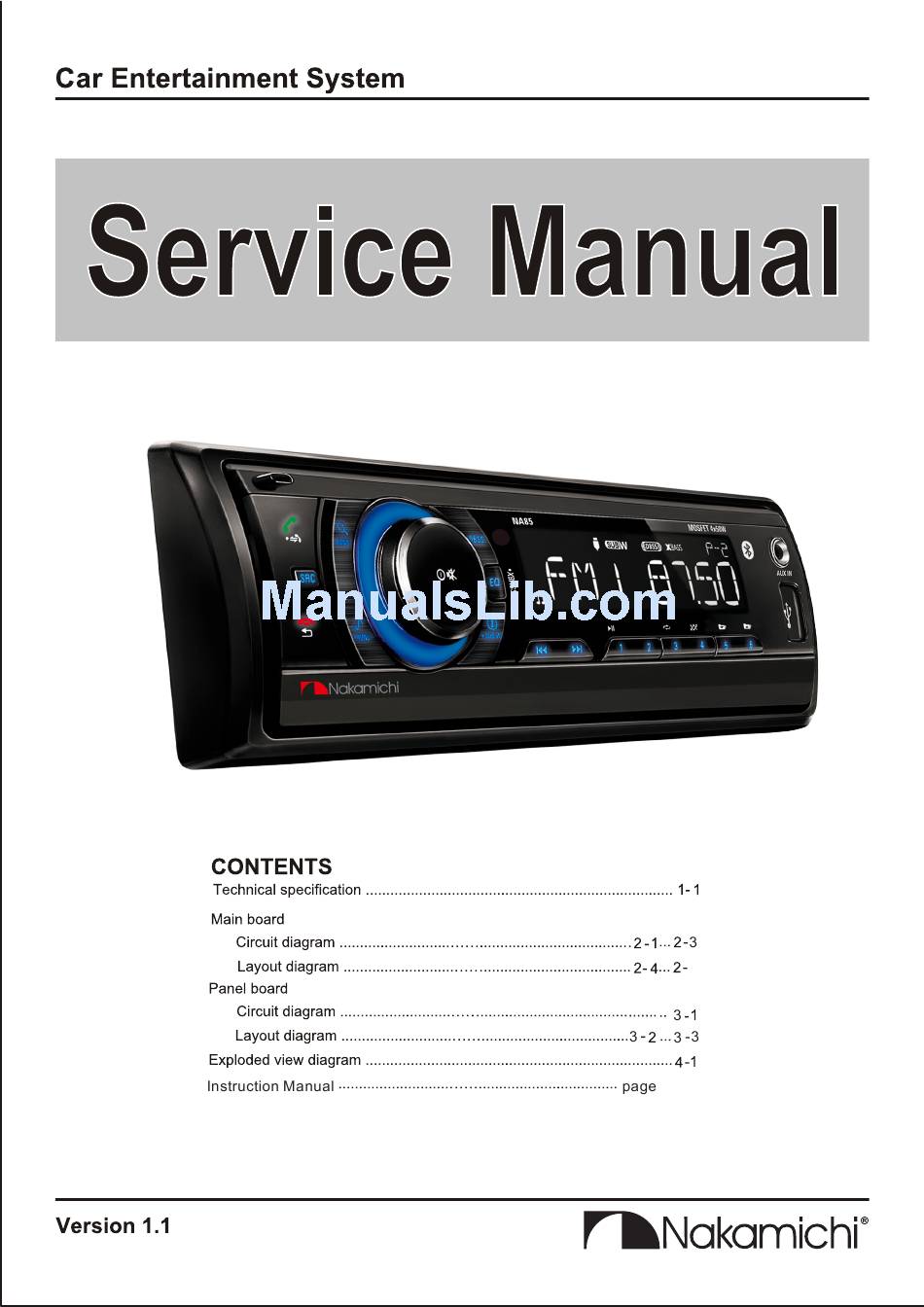

  • Page 1 NA85 12-23...

  • Page 2: Product Information

    Product Information General Bluetooth Power Supply: 12V DC (10.5-14.4V), negative ground Output power: Class 2 Frequency band: 2.4000GHz-2.4835GHz ISM Band Fuse: 15A Suitable Speaker Impedance: 4 -8 Range: 3 meters (free space) Aux-In level: 500mV Standard: Bluetooth 2.0 specification Audio Section About Audio file Maximum Power Output: Mosfet 50W x 4 Channels Continous Power Output: 22W x 4 RMS...
  • Page 3 MAIN BOARD-CIRCUIT DIAGAM...
  • Page 4 MAIN BOARD-CIRCUIT DIAGAM...
  • Page 5 MAIN BOARD-CIRCUIT DIAGAM...
  • Page 8 PANEL BOARD-CIRCUIT DIAGAM...
  • Page 9 PANEL BOARD-LAYOUT DIAGAM...
  • Page 10 PANEL BOARD-LAYOUT DIAGAM...
  • Page 12 NA85 Car Audio System Player INSTRUCTION MANUAL MP3 WMA USB SD AUX-IN BT...

  • Page 13: What's In The Box

    Nakamichi dealer. When you purchase external components, check with your Check and identify the contents of your package: Nakamichi dealer to make sure that they work with your model and in your area. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth.

  • Page 14: Installation / Connection

    Insulate unconnected wires with vinyl tape or other similar material. To safety’s sake, leave this work to professionals. prevent a short circuit, do not remove the caps on the ends of the If you experience problems during installation, consult your Nakamichi unconnected wires or the terminals. dealer.

  • Page 15: Installing The Unit

    Installing the unit Bend the appropriate Sleeve tabs to hold the sleeve firmly in place. Trim plate Control panel Before attaching, make sure the direction of the escutcheon is correct. (Wider hooks on the Dashboard bottom side.) Screw ( not included in this packing ) Sleeve Trim plate Control panel...

  • Page 16: Basic Operation

    Basic Operation Rotary Volume Knob Display Window DBSS BAND MENU SUB-W Detaches the Power / Mute Aux-In jack control panel USB terminal Push open the cover When you press or hold the following button(s)... Main unit General operation Select the available sources (Radio, USB, SD, BT AUDIO or MP3-LINK ), if the power is turned on. Rotate it to increase or decrease the volume.

  • Page 17: Function Settings

    Function Settings 1 Press to access into the [AUDIO MENU] mode, press and hold to enter into the [MENU] mode. MENU 2 Press repeatedly to select the item to be adjusted. MENU 3 Turn the encoder volume knob to select a value / option. [AUDIO MENU]...

  • Page 18: Listening To The Radio

    Listening to the Radio DBSS BAND MENU SUB-W Hold for about 2 seconds to memorize the current station . ■ Press briefly to recall memorized station. ■ 1 Press BAND repeatedly to a band ( FM1, FM2, FM3, AM1(MW1) or AM2 (MW2)). Press and hold to activate the Auto Store function.

  • Page 19: Listening To The Other External Components

    Listening to a USB/SD device Detaches the Press to select a track / file. Press to repeat one track, ■ control panel press again repeat a folder. USB terminal Press and hold for fast forward / backward. ■ DBSS BAND MENU SUB-W Press into search mode...

  • Page 20: Getting Started

    2 Search for other bluetooth device with your device. 1 If there is incoming call, the phone number is displayed. if the incoming call has no phone number, [PHONE IN] is displayed. 3 Select “NAKAMICHI” in the pairing list. 4 Input the password “0000” 2 Press to answer / accept the call.

  • Page 21: Remote Control Operation

    Remote Control Operation AUDIO When you press or hold the following button(s)... Main unit General operation Turn mute or restore volume. Press turn the unit on or off. Press increas the volume. Press decreas the volume. Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek ■...

  • Page 22: Product Information

    Product Information General Bluetooth Output power: Class 2 Power Supply: 12V DC (10.5-14.4V), negative ground Frequency band: 2.4000GHz-2.4835GHz ISM Band Fuse: 15A Suitable Speaker Impedance: 4 -8 Range: 3 meters (free space) Aux-In level: 500mV Standard: Bluetooth 2.0 specification Audio Section About Audio file Maximum Power Output: Mosfet 50W x 4 Channels USB or memory file system: FAT16, FAT32...
  • Page 23 www.nakamichicaraudio.com...
