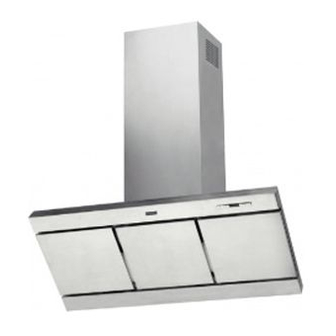

- Page 1 Instructions for use and installation Cooker Hood Istruzioni per l’uso e l’installazione Cappa Mode d’emploi et installation Hotte de Cuisine Bedienungsanleitung und Einrichtung Dunstabzugshaube Kullanım ve montaj talimatları Davlumbaz FMY 917 XS-CH...
- Page 2 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................8 MAINTENANCE ..................................9 INDICE CONSIGLI E SUGGERIMENTI............................12 CARATTERISTICHE................................13 INSTALLAZIONE ................................. 14 USO...................................... 17 MANUTENZIONE ................................18 SOMMAIRE CONSEILS ET SUGGESTIONS............................21 CARACTERISTIQUES................................. 22 INSTALLATION..................................23 UTILISATION ..................................
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Min. Min. 450mm 450mm Components 14.1 Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, 7.2.1 Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. - Page 5 INSTALLATION Wall drilling and bracket fixing 7.2.1 Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. •...
- Page 6 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the...
- Page 7 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
-
Page 8: Control Panel
Control panel Button Function Display Turns the suction motor on and off at speed one. Displays the set speed Decreases the working speed. Displays the set speed Increases the working speed. Displays the set speed Activate intensive speed from any other speed, Displays HI and the time remaining once very second. -
Page 9: Maintenance
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type (not included). • Do not place the remote control near to heat sources. •... - Page 10 Metal grease filters They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive. Resetting the alarm signal •...
-
Page 11: Installation
Activated Charcoal Filter (Recirculation Version) It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on. Activating the alarm signal •... - Page 12 Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it 436005146_ver1...
Need help?
Do you have a question about the FMY 917 XS-CH and is the answer not in the manual?
Questions and answers
Har rengjort filterna i Franke FMY 917 men får inte de tillbaka på plats. INGA INSTRUKTIONER
To reinstall the filters in a Franke FMY 917 XS-CH:
1. Open the Comfort panels by pulling on the recess.
2. Insert the new charcoal filter and secure it in place using the fixing hooks.
3. Reinstall the Metal grease filters.
4. Close the Comfort panels.
