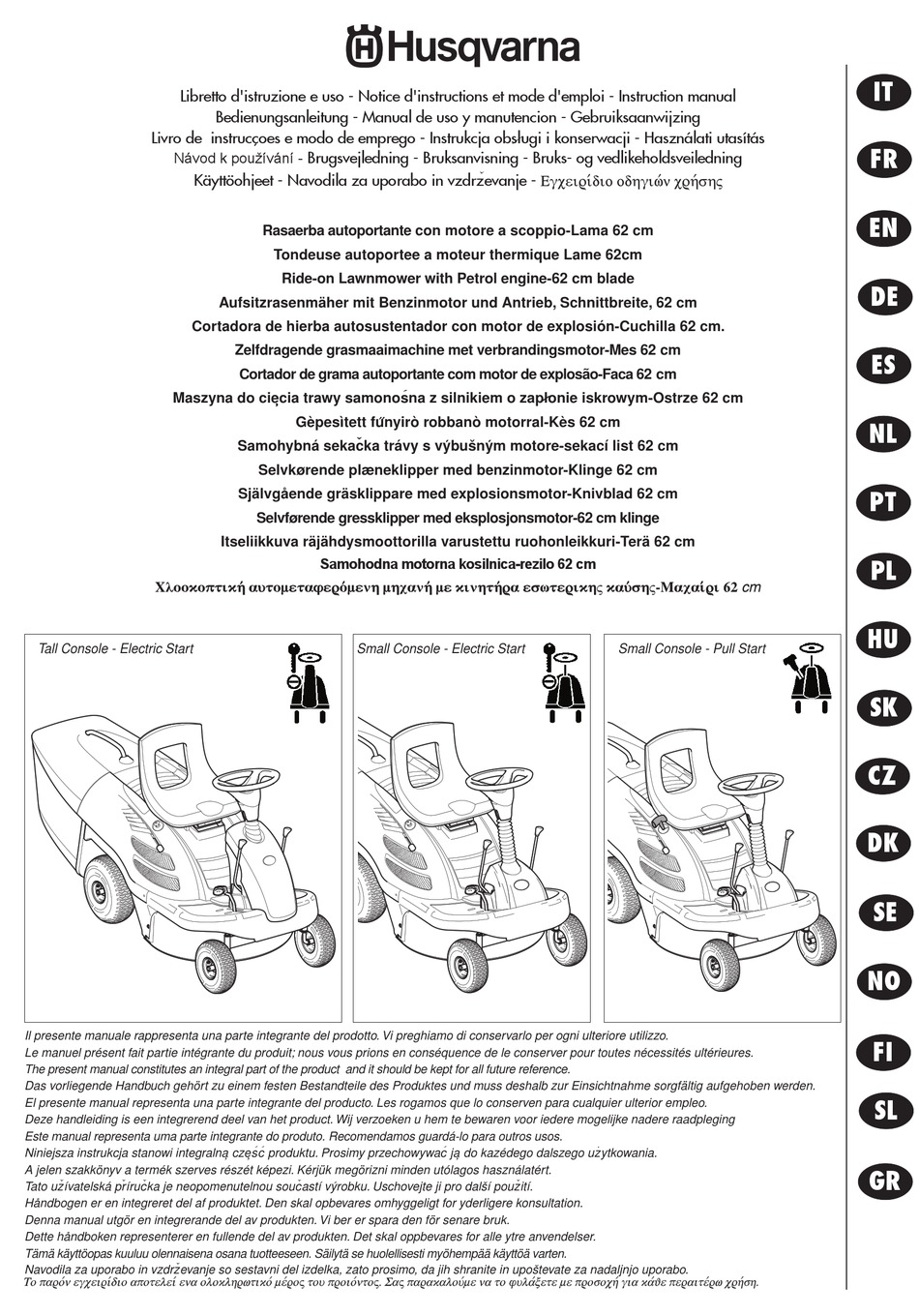

  • Page 1 Rasaerba autoportante con motore a scoppio-Lama 62 cm Tondeuse autoportee a moteur thermique Lame 62cm Ride-on Lawnmower with Petrol engine-62 cm blade Aufsitzrasenmäher mit Benzinmotor und Antrieb, Schnittbreite, 62 cm Cortadora de hierba autosustentador con motor de explosión-Cuchilla 62 cm.
  • Page 2 La ringraziamo per la fiducia accordataci con l'acquisto del nostro rasaerba. Siamo certi che avrà modo di apprezzare nel tempo e con soddisfazione la qualità del nostro prodotto. La preghiamo di leggere attentamente questo manuale predisposto appositamente per informarla circa il suo uso corretto in conformità ai requisiti essenziali di sicurezza. Nous vous remercions de la préférence que vous nous avez accordée en choisissant notre tondeuses.
  • Page 3 Attenzione! Leggere il manuale di istru- Atención! Leer el manual de instrucciones Figyelem! Elolvasni az utasìtàsokat Advarsel! Les bruksveiledningen før zioni prima dell'uso antes del uso. a hasznàlat elott. bruk. Huomio! Lue käyttöopas huolellisesti Attention! Lire le manuel d’instructions Pas op! De gebruiksaanwijzing voor het ennen laitteen käyttöönottoa.
  • Page 4 SIMBOLOGIA SULLA MACCHINA - SIGLES SUR L’APPAREIL - SYMBOLS ON THE MACHINE - SYMBOLE AM GERÄT - SIMBOLOGÍA EN LA MÁQUINA - SYMBOLEN OP DE MACHINE - SIMBOLOS SOBRE A MAQUINA - SYMBOLE NA MASZYNIE - GEPEN LEVO JELZESEK - SYMBOLY NA STROJI - MASKINSYMBOLER - MASKINSYMBOLER - SYMBOLER PÅ...
  • Page 5 SIMBOLOGIA SULLA MACCHINA - SIGLES SUR L’APPAREIL - SYMBOLS ON THE MACHINE - SYMBOLE AM GERÄT - SIMBOLOGÍA EN LA MÁQUINA - SYMBOLEN OP DE MACHINE - SIMBOLOS SOBRE A MAQUINA - SYMBOLE NA MASZYNIE - GEPEN LEVO JELZESEK - SYMBOLY NA STROJI - MASKINSYMBOLER - MASKINSYMBOLER - SYMBOLER PÅ...
  • Page 6 SIMBOLOGIA SULLA MACCHINA - SIGLES SUR L’APPAREIL - SYMBOLS ON THE MACHINE - SYMBOLE AM GERÄT - SIMBOLOGÍA EN LA MÁQUINA - SYMBOLEN OP DE MACHINE - SIMBOLOS SOBRE A MAQUINA - SYMBOLE NA MASZYNIE - GEPEN LEVO JELZESEK - SYMBOLY NA STROJI - MASKINSYMBOLER - MASKINSYMBOLER - SYMBOLER PÅ...
  • Page 7: Safety Rules

    ENGLAND SAFETY RULES 1)All persons operating the ride-on lawnmower must be familiar with the 17)Take the greatest care during the mowing operations. Risk of injury!! operating instructions. Keep fingers and limbs away from the area of the cutting deck and bodywork.
  • Page 8 ENGLAND ASSEMBLY OF THE GRASS COLLECTION BAG (starts at page 119) The grass collection bag is included with all models as a standard feature. For assembly the following parts and tools are required: Tools required: - Phillips head screwdriver - Wrench Ø 8 Parts: - 4 screws M5x30 UNI 7688 - 4 M5 self-locking nuts...
  • Page 9: Operation

    ENGLAND OPERATION ADJUSTING THE CUTTING HEIGHT Before the cutting height is adjusted, the engine must be switched off and the blade must have come to a complete standstill. ADJUSTMENT (starts at page 120) 1 - Push the adjustment lever (12) outwards in order to release it from its seat. 2 - Push the lever into the required notch for the cutting height (no.5 positions for the same number of cutting positions) 3 - Release the lever slowly until it locates in the notch.
  • Page 10: Engine Start

    ENGLAND STARTING UP Before starting up check the oil and petrol levels. Do not smoke during the oil and petrol refuelling and checking operations. Top up with petrol or oil if necessary (as described in detail in the previous chapter). Starting up (engine start) must be carried out as described in detail under the heading “initial starting up”.
  • Page 11: Maintenance

    ENGLAND OPERATING CUTTING DECK MECHANISM The cutting system can be enabled only if the engine is on, lever (7) is positioned on (full throttle) , the operator is sitting on board the tractor and the grass collecting bag is installed. ENGAGING THE MOWER MECHANISM (starts at page 122) 1 - Engage the brake (9) 2 - Set the lever (10) on START position...
  • Page 12 ENGLAND OIL CHANGE (starts at page 123) Remove engine compartment access case,as described in D2. Remove oil cap. Using the syringe supplied, suck out the oil. Repeat until the engine is empty of oil. CAUTION! In order to prevent any pollution to the water-table, used oil must not be drained into the sewer system or waterworks. Most garages have used oil deposits, or use the authorized deposits according to your local authority regulations.
  • Page 13: Troubleshooting

    ENGLAND ROUTING BELTS (starts at page 124) Only use genuine parts see below. Failure to use genuine parts could 1 - If the deck or drive belt come off the pulley, please see the diagram to result in malfunction or damage to the tractor. correctly reroute the belt.
  • Page 14 A A A A A B B B B B C C C C C...
  • Page 15 D D D D D D D D D D 2 2 2 2 2 1 1 1 1 1 M6 x 45 D D D D D E E E E E 3 3 3 3 3 1 1 1 1 1 E E E E E 2 2 2 2 2...
  • Page 16 F F F F F 1 1 1 1 1 F F F F F 2 2 2 2 2 G G G G G...
  • Page 17 H H H H H H H H H H 1 1 1 1 1 2 2 2 2 2 H H H H H H H H H H 3 3 3 3 3 4 4 4 4 4 I I I I I 1 1 1 1 1 I I I I I...
  • Page 18 L L L L L N N N N N M M M M M O O O O O 24 h...
  • Page 19 P P P P P Q Q Q Q Q...
  • Page 20: Certificato Di Garanzia

    GARANZIA - GARANTIE - GUARANTEE - GARANTIE - GARANTIA - GARANTIE - GARANTIA - GWARANCJA - GARANCIA ZÁRUKA - REKLAMATIONSRET - GARANTI - GARANTI - TAKUU - GARANCIJSKI LIST - - - - - EGGUHSH CERTIFICATO DI GARANZIA Vi consigliamo di verificare immediatamente dopo l'acquisto che il Resta inteso che la garanzia viene automaticamente a decadere La ditta costruttrice garantisce le macchine da essa prodotte per prodotto risulti visivamente in buono stato.
  • Page 21 GARANZIA - GARANTIE - GUARANTEE - GARANTIE - GARANTIA - GARANTIE - GARANTIA - GWARANCJA - GARANCIA ZÁRUKA - REKLAMATIONSRET - GARANTI - GARANTI - TAKUU - GARANCIJSKI LIST - - - - - EGGUHSH GARANTIE Wij raden u aan direct na aankoop te controleren of het produkt er De garantie is automatisch als vervallen te beschouwen indien op De fabrikant garandeert zijn produkten gedurende 24 maanden gaaf uitziet en vo o r h e t gebruik aandachtig het...
  • Page 22: Garancijski List

    GARANZIA - GARANTIE - GUARANTEE - GARANTIE - GARANTIA - GARANTIE - GARANTIA - GWARANCJA - GARANCIA ZÁRUKA - REKLAMATIONSRET - GARANTI - GARANTI - TAKUU - GARANCIJSKI LIST - - - - - EGGUHSH REKLAMATIONSRET Vi råder dig til at kontrollere produktets tilstand øjeblikkelig efter - Skader forårsaget af forkert montering eller anvendelse i forhold købet.
  • Page 23 HUSQVARNA OUTDOOR PRODUCTS ITALIA S.P.A. Headquarters: Via Como 72 - 32868 - VALMADRERA (LC) - ITALY- Tel. +39 0341 203111 - Fax +39 0341 581671 COD. 99991462 - 531213068 ED. 01/2006 Q.TY 1000 PRINTED IN ITALY...
