LEX Lighting LexIcon User Manual page 2

Congratulations on purchasing your new lighting effect
from Lexlighting. Reading through this manual will ensure
trouble free and long life operation of the unit.
Features:
- 256 LED's (Red, Green, Blue & White)
- Sound To Light (Inbuilt Microphone)
- Full DMX (2 or 8 Channels) *selectable*
- Master/Slave Mode
- Digital Settings Display
Contents:
- Light Unit LexIcon
- IEC Mains Cable UK Plug
- User Manual

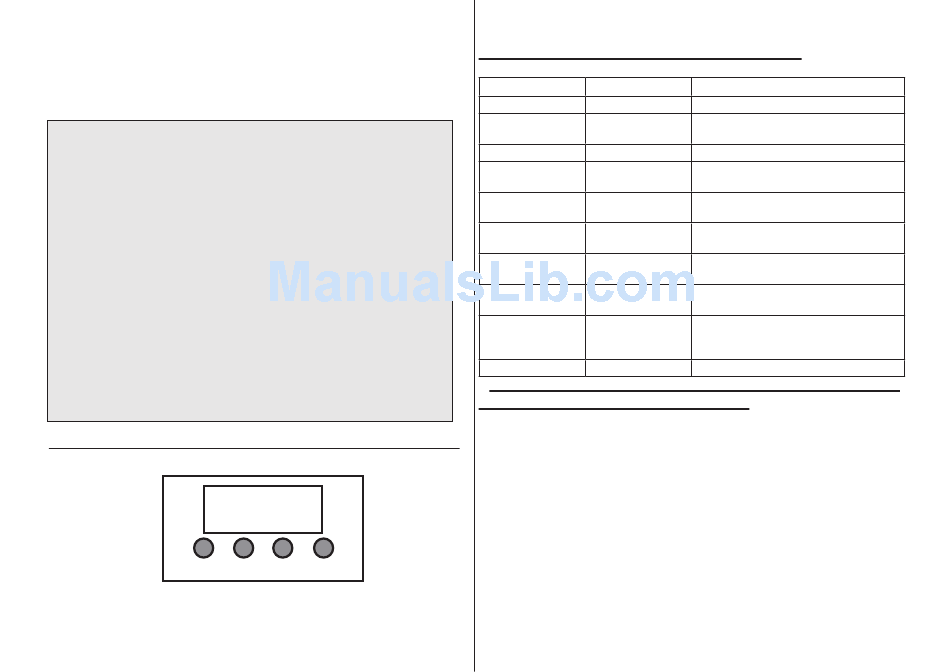

MODE
UP DOWN ENTER
MENU Configuration Chart - Digital Display
Menu Sub Menu
Addr A001-A512
SPEE SP00 - SP99
COLO C001 - C015
FLSH FL00 - FL51
CHND 2CH or 8CH
AUTO SH00 - SH12
SOUN none
BLND YES or NO
dISP YES or NO
SLA none
Sound to Light / Sound Active Mode
To put your icon into sound active mode simply follow the steps below:
1. Press MENU
2. Scroll through using UP and DOWN buttons until "SOUN" is
displayed
3. Press ENTER
4. Adjust the Sensitivity Dial as required.
Your fixture is now in Sound Active mode and will go through all of its
internal patterns one by one activated by the sound from its in-built
microphone.
Function
Sets the fixture DMX Address
Sets the speed of the Auto Run Patterns
(SP00 = Slow / SP99 = Fast
Sets the LED Colours
Sets the Flash/Strobe Speed. (FL00 =
Slow / FL51 = Fast
Sets the fixture to have 2 DMX channels
or 8 DMX Channels
Selects 1 of the Auto Run Patterns
pre-programmed to the fixture.
This simply puts the unit into Sound-
Light Mode using the inbuilt-Microphone
Turns off all LED's. YES = All Off / NO
= ON
Allows you to alter which way the Digital
Display is displayed. NO = Normal / Yes
= Upside down
Simply makes your ICON a slave
