Summary of Contents for Stealth DIGI-TIG200PD

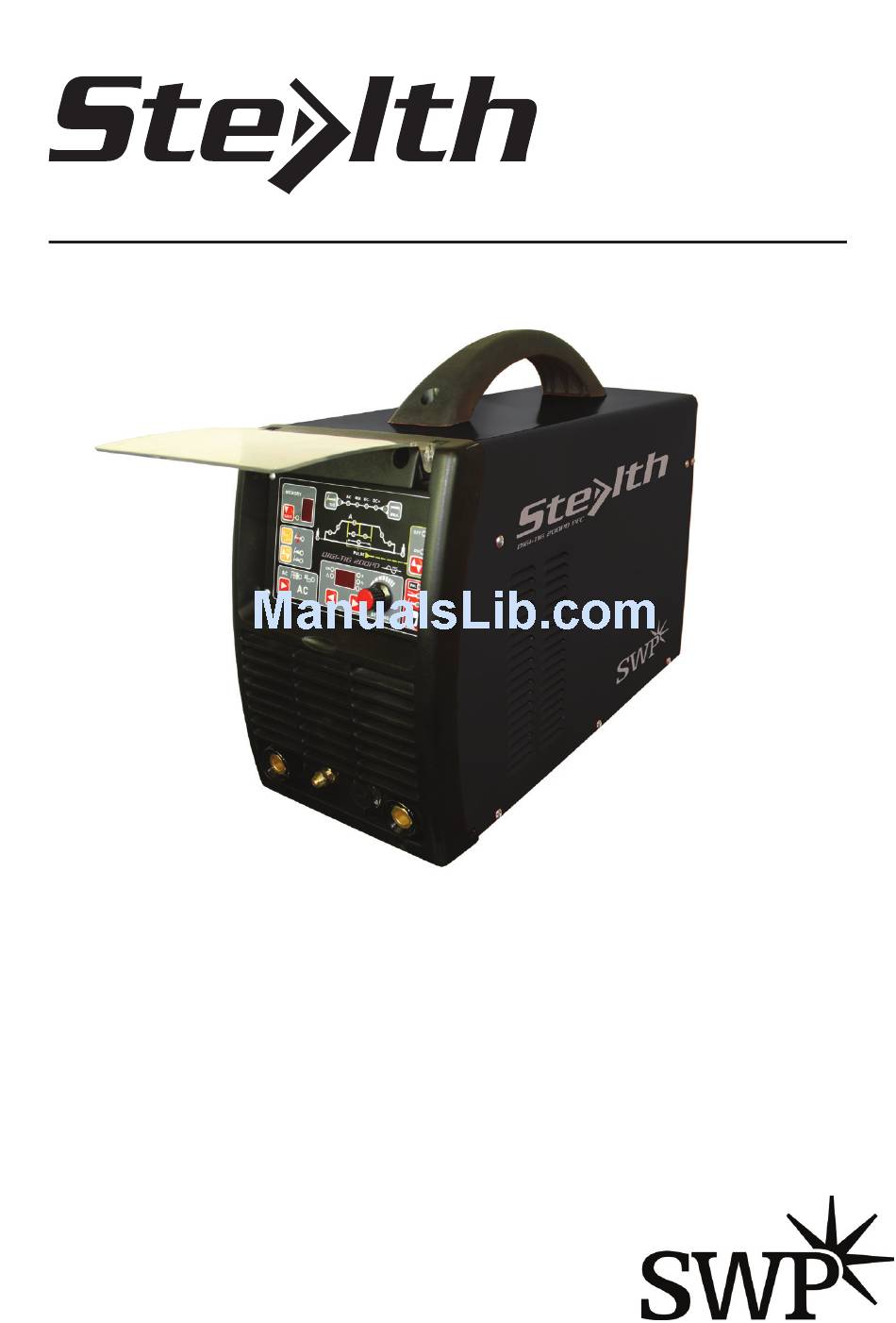

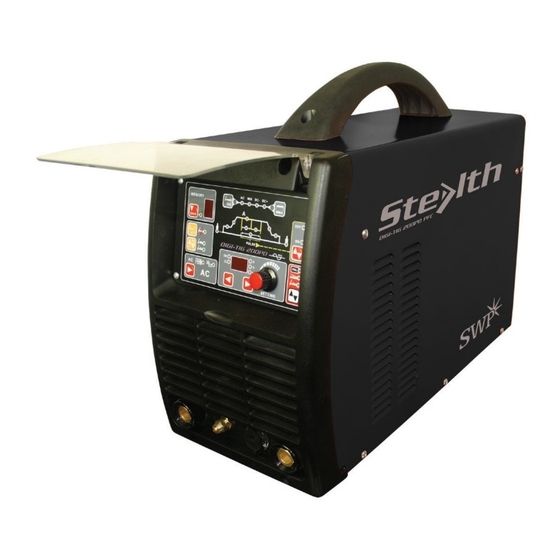

- Page 1 DIGI-TIG200PD DC INVERTER • AC TIG / DC TIG • DC MMA • WELDING MACHINE Part No. 9011 Suitable for 110V or 240V OPERATING INSTRUCTIONS...
-
Page 2: Safety Precautions
STEALTH DIGI-TIG200PD SAFETY PRECAUTIONS Follow these precautions carefully. Improper use of any welder can result in injury or death. 1. ONLY CONNECT WELDER TO A POWER SOURCE FOR WHICH IT WAS DESIGNED. THE SPECIFICATION PLATE ON THE MACHINE LISTS THIS INFORMATION. WHEN WELDING OUTDOORS ONLY USE AN EXTENSION CORD INTENDED FOR SUCH USE. -
Page 3: Technical Specifications
STEALTH DIGI-TIG200PD MAIN USE AND RANGE STEALTH DIGI-TIG200PD welding machine has three functions and can be used as DC MMA, AC TIG, or DC/PULSE TIG welder. All metals: copper, aluminium, titanium and stainless steel materials etc, can be welded in all positions. The welding current is stable with stepless adjustments. The machine is compact, lightweight and easily transported. -
Page 4: Front Panel
Operating in rain is not allowed. STEALTH DIGI-TIG200PD DESCRIPTION OF THE ERECTION OPERATING CONDITIONS AND WORK SURROUNDINGS efore welding, the operator should read the operation instructions . 3.1 OPERATING CONDITIONS Voltage of power source: 1~AC 110V or AC 240V Frequency: 50/60Hz eck the welder appearance for deformation and damage. - Page 5 STEALTH DIGI-TIG200PD Memory chanel LED 2. Data Display meter 3. Parameter Select function 4.indicating light of power 1. Memory channel LED 11. TIG selector: DC TIG / AC TIG S -- unit of up & downslope time & pre& post flow time 2.
- Page 6 STEALTH DIGI-TIG200PD Ⅵ.METHOD OF THE OPERATION MACHINE OPERATION 1.ARGON ARC WELDING(TIG) 6.1 ARGON ARC WELDING (TIG) a. FRONT OF WELDER b. BACK OF WELDER FRONT PANEL BACK PANEL switch flow meter gas inlet pipe argon bottle torch workpiece 1.1 CLEARING BEFORE WELDING 6.2 CLEANING BEFORE WELDING...
- Page 7 ⑦ .Releasing the switch of the torch, welding current will reduce gradually (time is adjustive) STEALTH DIGI-TIG200PD and arc extinguishes.The welding torch can not be removed as soon as the arc extinguishing. Let 6.3.7 Release the switch of the torch and the welding current will reduce...
-
Page 8: Product Description
5. The Method of the welding same as 1.1 2.Hand welding with electrode STEALTH DIGI-TIG200PD ① .selector "9" onto the position " DC+ " or "DC-" ② . select right welding current 6.6 SELECTION OF WELDING PARAMETERS Except for pulse current and the width time (width ratio) as well as pulse frequency, select empiric formula:I=40d, d is dia. -
Page 9: Troubleshooting
STEALTH DIGI-TIG200PD TROUBLESHOOTING Problems Causes Solutions Power lamp not light 1. No electricity input 1. Check incoming line 2. Switch of welder fails 2. Replace the switch Fan not rotating 1. Fan power line is off 1. Reconnect the line 2. - Page 10 STEALTH DIGI-TIG200PD Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el...
- Page 11 STEALTH DIGI-TIG200PD Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or WARNING Use ventilation or exhaust to guards off. remove fumes from breathing zone. Spanish Los humos fuera de la zona de res-...
- Page 12 STEALTH DIGI-TIG200PD Specialised Welding Products Ltd Unit 1, Farringdon Industrial Centre, Farringdon, Nr Alton, Hampshire GU34 3DD, UK tel: +44 (0)1420 588180 • fax: +44 (0)1420 588184 • email: sales@swp.uk.net...
