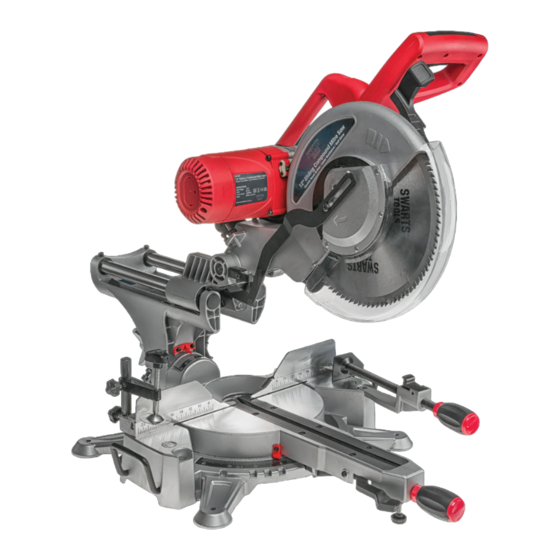

305mm double bevel sliding compound mitre saw

Advertisement

INSTRUCTION BOOKLET
305mm
Double Bevel Sliding Compound Mitre Saw
Part No. SW1045
PLEASE READ CARE AND SAFETY INSTRUCTIONS BEFORE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW1045 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swarts Tools SW1045

  • Page 1 INSTRUCTION BOOKLET 305mm Double Bevel Sliding Compound Mitre Saw Part No. SW1045 PLEASE READ CARE AND SAFETY INSTRUCTIONS BEFORE USE...
  • Page 2: Warranty

    WARRANTY The product is warranted to be free from defects in materials and workmanship under normal use and service for a period of 36 months from the date of sale. This warranty covers defective parts and workmanship provided that the product is shipped pre-paid to the seller within 36 months of purchase of goods.
  • Page 3: Specification

    SPECIFICATION  Model Number: SW1045 Voltage/Frequency: 240V 50Hz Input Power: 2000W No load speed: 4500 RPM Saw Blade: 305 x 25.4mm Mitre Table Angles: 45 Degrees to the Left & Right Straight Cut: 340 x 102mm 0 x 0 Degrees Mitre Cut:...
  • Page 4: Safety Instructions

    Make sure the saw blade is kept sharp and clean at all times. Please follow all service instructions very accurately. Do not attempt to service this tool. Take it to a licensed repairer or contact Swarts Tools. BEFORE EACH USE: Check the saw.
  • Page 5: Pre-Operation Steps

    blade teeth should direct downwards towards the front of machine. Make sure that the saw blade is sharp, undamaged and properly set up. With the machine unplugged, push the saw head downwards. Turn the saw blade with your hand to check whether the movement is free. Turn the saw head to the position at an angle of 45°...
  • Page 6: Additional Safety Rules For Mitre Saws

    ADDITIONAL SAFETY RULES FOR MITRE SAWS Ensure that the lighting is adequate. Do not use the saw unless the guards are in place. Do not use the saw to cut metal or masonry. Keep the area free of tripping hazards. Do not let anyone under 18 years of age operate this saw.
  • Page 7 cut-offs. Always use stands to provide support for long work pieces that overhang the turntable. Feed workpiece into a blade/cutter against the direction of rotation of the blade/cutter, not with it. WARNING! We recommend the use of a residual current rating of 30mA or less 1.
  • Page 8: Safety Rules For Laser Lights

    SAFETY RULES FOR LASER LIGHTS WARNING! Do not stare directly at the laser beam. WARNING! It may be more difficult to see the laser line in conditions of bright sunshine and on certain surfaces. A hazard may exist if you deliberately stare into the beam, please observe the following laser safety rules. 1.
  • Page 9 INSTRUCTION BOOKLET INSTRUCTION BOOKLET...
  • Page 10: Dust Bag

    DUST BAG The dust bag (15) fits in the dust extractor port. For efficient operation, empty the dust bag when it is no more than half full. This allows better air flow through the bag. Setting the Table Square with the Blade Make sure that the electrified plug is removed from the power point.
  • Page 11: Using The Laser Line Generator

    Switch on the laser lights with the on/off switch (2) The laser is factory set to emit a laser line along the middle of the blade. It cannot be adjusted by the user. USING THE LASER LINE GENERATOR WARNINGS! Do not stare directly at the laser beam Never aim the beam at any person or an object other than the work piece.
  • Page 12: Cross-Cutting (Without Slide Action)

    NORMAL CUTTING OPERATION Connect the plug to the power point. Switch on the laser light on/off switch (2). Clamp the work piece in position using the laser line to align the blade with the pencil mark on the work piece and switch on the motor.
  • Page 13: Cross-Cutting (With Slide Action)

    Use the clamp assembly (10) to secure the work piece wherever possible. It is possible to remove the clamp assembly (10) by loosening the clamp assembly lock (11) and moving it to the other side of the table. Make sure the clamp assembly lock is tight before using the clamp.
  • Page 14: Changing A Blade

    CHANGING A BLADE DANGER! Never try to use a blade larger than the stated capacity of the saw. It might come into contact with the blade guards. Never use a blade that is too thick, this will cause the outer blade washer to engage with the flats on the spindle. This prevents the blade screw from properly securing the blade on the spindle.
  • Page 15: Maintenance

    Have your power tool serviced by a qualified repairperson using only identical parts. This will ensure that the safety of the power tool is maintained. Swarts Tools will not be responsible for any damage or injury caused by unauthorised repair or mishandling of the tool 1) Power Maintenance If the supply cord needs replacing, the task must be carried out by the manufacturer, the manufacturer’s agent, or an...
  • Page 16 PLEASE READ CARE AND SAFETY INSTRUCTIONS BEFORE USE PLEASE READ CARE AND SAFETY INSTRUCTIONS BEFORE USE...
