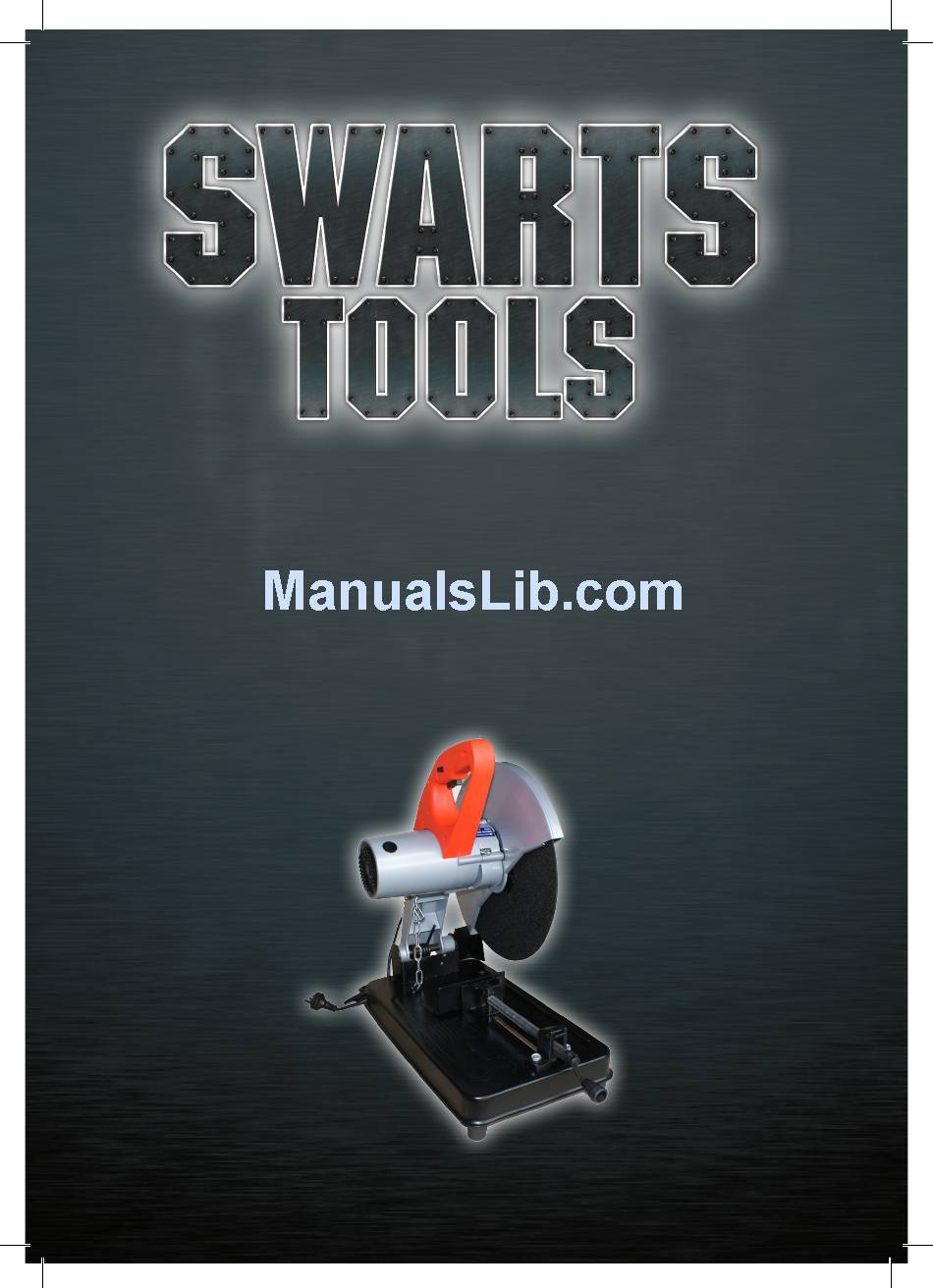

- Page 1 InstructIon booklet and warranty InformatIon 355mm metal cut off saw Part no.sw1720 Please read care and safety InstrctIons before use...
-
Page 3: Important Safety Instructions
ImPortant safety InstructIons WARNING: When using electric tools, machines or equipment basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. read all InstructIons before usInG tHIs tool KEEP WORK AREA CLEAN. Cluttered areas invite injuries. CONSIDER WORK AREA ENVIRONMENT. - Page 4 ImPortant safety InstructIons 12. DON’T FORCE THE TOOL. It will do the job better and more safely at the rate for which it was intended. 13. USE THE RIGHT TOOL. Don’t force a small tool or attachment to do the work of a larger industrial tool. Don’t use a tool for a purpose for which it was not intended.
-
Page 5: Specifications
sPecIfIcatIons • Voltage: 240V 50HZ • Current rating: 15 AMP • No load speed: 3800 RPM • 10-3/4” x 18-1/2” base • 25.4mm Arbor with lock for changing wheels • Adjustable pivoting scale vise stop • Adjustable depth stop • Quick release screw clamp Includes •... -
Page 6: Operating Procedures
oPeratInG Procedures Warning. Do not connect the saw to power source until assembly is complete. Failure to comply could result in accidental starting and possible serious injury. Warning. The recommended thickness of grinding wheel is 2.8mm, and diameter of wheel’s hole is 25mm. 3. The maximum cutting capacity of cut-off machine is 100mm. -
Page 7: Instructions For Use
InstructIons for use Warning. Always unplug the saw from power source before making adjustments or performing routine maintenance. Failure to heed this warning can result in serious injury. usInG tHe adjustable statIonary vIse. The adjustable stationary vise is located on the base of your cut-off saw. This vise can be rotated to attain cutting angles from 0 to 45 degrees and moved rearward to allow greater cutting widths. -
Page 8: Power Supply
InstructIons for use adjustable PosItIve dePtH stoP The adjustable depth stop is threaded into the base of the saw at the rear. By raising and lowering the depth stop bolt with a wrench you can control how far the abrasive wheel travels when the saw handle is depressed. Power suPPly Before operating the cut-off saw, check the power supply and make sure it meets the requirements listed on the nameplate. -
Page 9: Maintenance
maIntenance Warning. Provide adequate ventilation when using solvents. Do not use solvents to clean plastic parts. Make sure the tool operates properly. Periodically check screws and bolts for tightness. Apply dry lubricant monthly to the points listed to extend saw life. lubrIcatIon PoInts: Vise screw shaft Front vise clamp rotation clamp... -
Page 10: Warranty
warranty The product is warranted to be free from defects in materials and workmanship under normal use and service for a period of 24 months from the date of sale. This warranty covers defective parts and workmanship provided that the product is shipped pre-paid to the seller within 24 months of purchase of goods. - Page 12 Please read care and safety InstrctIons before use...
