KTI Networks KGD-600 Specification Sheet

KGD-600
Product Highlights :
Panel/Din-rail/Wall mountable

Wide operating temperature range

In-band management

Optional Fiber connectivity

802.1Q Tagged VLAN support

QoS WFQ support

802.1x authentication

Compact design

Panel Mounting
Din-Rail Mounting
Top LED Display

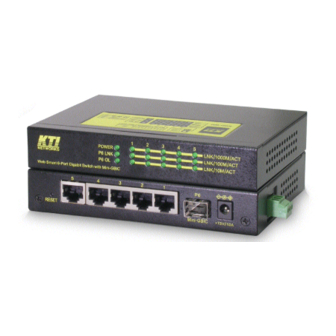

Industrial Managed 6-Port Gigabit Ethernet
Switch with 1 mini-GBIC Port
Key Features :
Provides 5 10/100/1000Mbps Gigabit Ethernet ports and 1 mini-GBIC port

Provides in-band web-based management interface

All copper ports support auto-negotiation and auto-MDI/MDI-X detection

Supports 802.3x flow control for full-duplex and backpressure for half-duplex

Provides port status, statistic monitoring and control function

Provides full wire speed forwarding

Supports port-based and 802.1Q Tag-based VLAN

Provides QoS function

Provies 802.1x authentication

Supports configuration backup and upload

Provides port mirroring function

Provides redundant ring function

Industrial-rated emission and immunity performance

Specifications :
Standard IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q
Network Ports 5 10/100/1000Mbps Gigabit copper ports
Shielded RJ-45, auto-negotiation, auto-MDI/MDI-X support
1 1000Mbps mini-GBIC SFP port
SFP supports standard SFP fiber transceiver installation
Network Cables 10/100Mbps : Cat.5 up to 100m, 1000Mbps : Cat.5e or higher up to 100m
MAC Address Table 8K entries
Buffer Memory 112KB
VLAN Port based VLAN, 8021Q Tag-based VLAN
Port Link Aggregation Trunking groups : 2 max., Ports/group : 2
QoS 4 priority queues, Classification : Port-based, 802.1p, IP DSCP
LED Indication Display on both top and front panels
Per unit : power
Per copper port : 1000M, 100M,10M speed/link/activity status
SFP port :
Management Support Web browser software, management VLAN ID
Management Objects System settings, port status/statistics, port control, VLAN, QoS,
802.1x, port mirroring, Firmware upgrade
7DC Power Input Screwed Terminal Block : +5VDC~+30VDC
DC IN Jack -D6.3mm/+D2.0mm, external power adapter rating +7.5V/1A
Power Consumption 3.6W max. @ +7.5V input
1000M speed/link/activity status, Optical link status
080110
