Ikelite 6242.90 Canon S90 ULTRAcompact Digital Housing Instruction Manual

Ikelite Digital Housing
i n s t r u c t i o n m a n u a l
# # 6 6 2 2 4 4 2 2 . . 9 9 0 0 C C a a n n o o n n S S 9 9 0 0
U U L L T T R R A A c c o o m m p p a a c c t t D D i i g g i i t t a a l l H H o o u u s s i i n n g g
C C a a m m e e r r a a S S e e t t u u p p
( ( c c o o n n t t . . ) )
- You can assign different camera functions such as ISO, WB,
Metering, AEL, and AFL to the "Short Cut" button and then
change those settings using the arrow buttons. Refer to your
camera owner's manual for additional information.
- In Manual mode, the Control Ring will operate the aperture
setting. Press the Ring Function button and set to +/- / Tv to
change shutter speed; set to "STD" to adjust aperture.
- Camera functions can be assigned to the Control RIng by
pressing the Ring Function button. Additional functions include
ISO, +/-Exp./Tv, MF Manual Focus, WB white balance, and
Step Zoom. Depress the Ring Function button until the desired
function is highlighted in the camera LCD screen. Once the
function is highlighted, it can be adjusted using the Control
Ring.

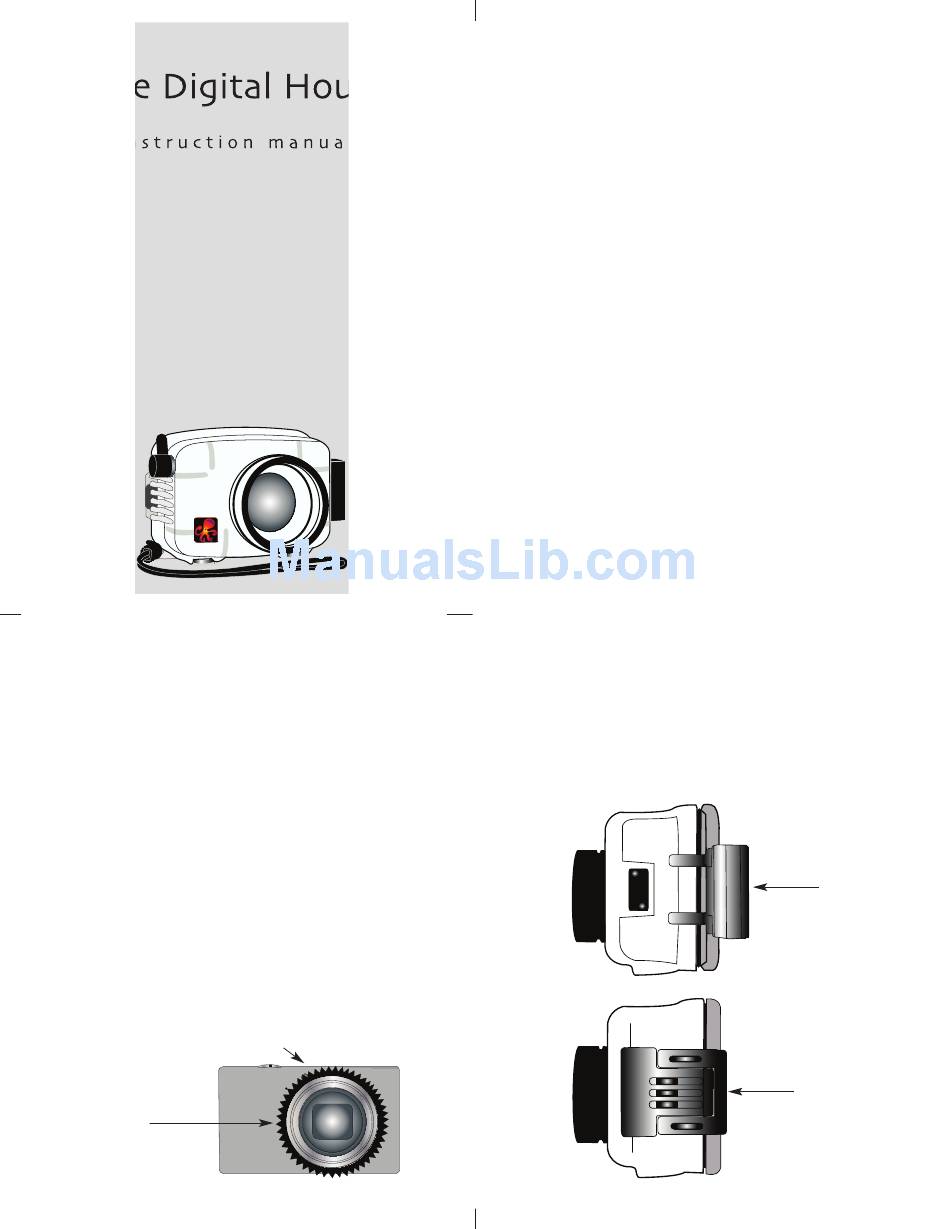

A A t t t t a a c c h h i i n n g g C C o o n n t t r r o o l l R R i i n n g g G G e e a a r r
Press the supplied Control Ring Gear over the camera's control
ring before installing the camera in housing. The gear is a "press
fit" and goes on either way. Make sure to test it's function once
installed.
When installling the camera in housing, make sure that the
Control Ring gear meshes properly with the housing gear.
Ring Function Button
Control Ring Gear
"properly installed"
f f o o r r
( ( s s e e e e i i l l l l u u s s t t r r a a t t i i o o n n b b e e l l o o w w ) )
Canon Canon
S90
3
Camera Illustration
P P l l e e a a s s e e R R e e a a d d
We suggest that you read this instruction booklet thoroughly
before use. If you are new to underwater photography be sure
to read the General and Photo Tips.
We also suggest that you read the camera manual thoroughly
to have a full understanding of where each camera control is
located and what function each control provides.
C C a a m m e e r r a a S S e e t t u u p p
- Set camera mode switch to "Av" Aperture Priority.
- Set White Balance to auto "AWB".
- Set Light Metering to "Center-Weighted Avg.".
- Set ISO to 80.
- Set Flash to forced ON (flash always fires) "Lightning Bolt".
- Set Review to "5 Seconds".
- Set AF-assist beam to "Off".
- Set Red-Eye Correction and Red-Eye Lamp to "Off".
- Set AF Frame to "Center" and Servo AF to "Off".
- Set AF-Point Zoom to "Off".
- If the "Shortcut/Print" button is n n o o t t assigned, functions of the
rear control dial can be accessed through the housing by
holding down the "Shortcut/Print" button and using the
left/right buttons of the rear control cluster.
- The camera does NOT operate with TTL "automated" flash
when in the "M" manual mode. "M" manual mode should NOT
be used with the AF35 strobe.
O O p p e e n n i i n n g g t t h h e e H H o o u u s s i i n n g g
1 . Depress opposing latch buttons simultaneously to open the
housing. Once the latch is unlocked, rotate the latch handle
away from the housing until it stops. This motion will also
break the housing o-ring seal and open the housing back
slightly. NOTE: Latch must be rotated to the fully open position
to assure easy opening of the back. Rotate the hinged back to
it's open position.
Latch Button
Latch Button
2
Latch in "open"
position
Latch in "closed"
position
4
