USER'S MANUAL Kchibo KK-9906S

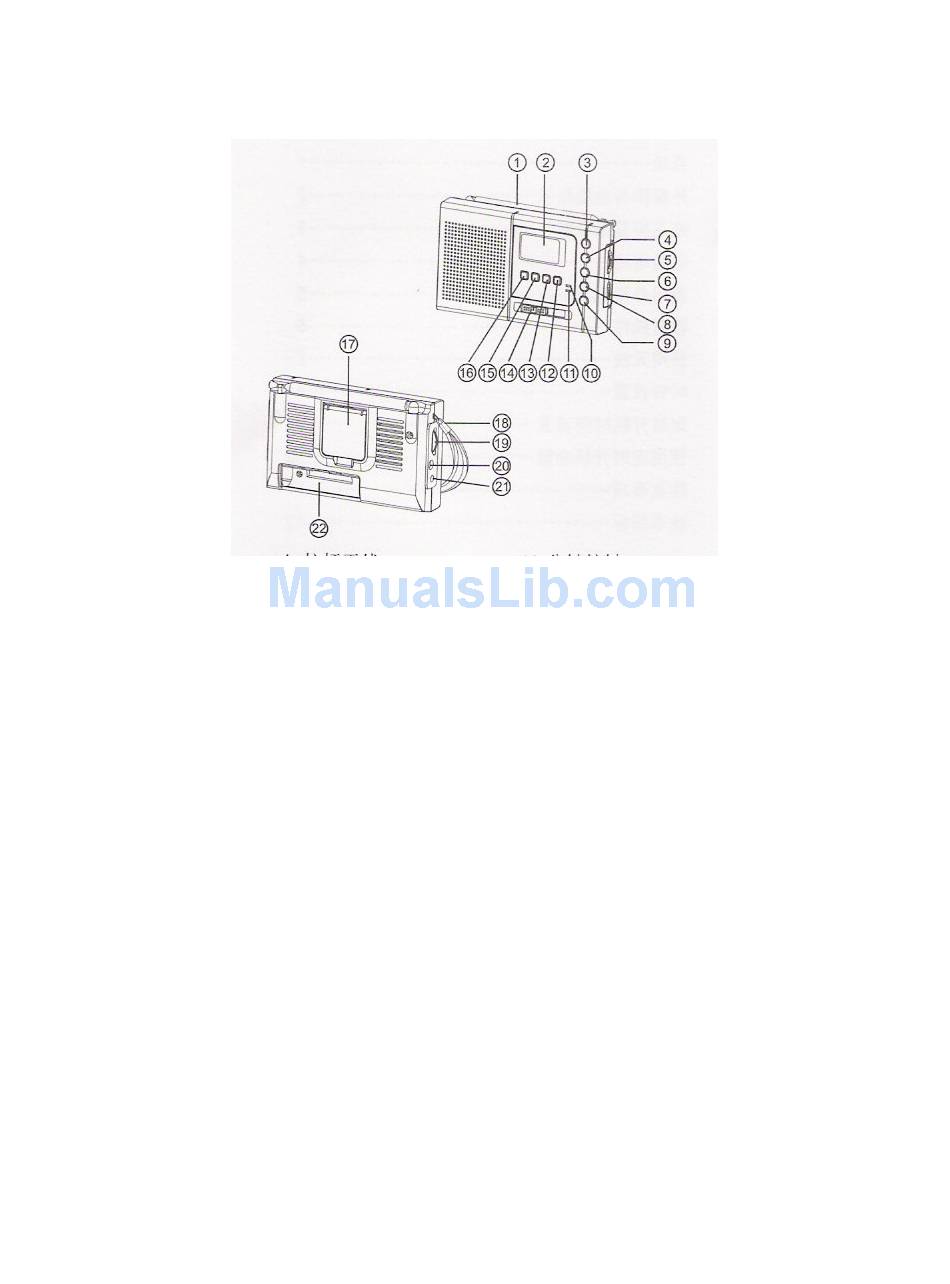

DIAGRAM & FUNCTION INDICATION
1.
2.
LCD Display
3.
Power Off
4.
FM / Power On
5.
Tuning Knob
6.
AM / Power On
7.
FM /FM 1 Switch
8.
AL. On/Off
9.
Night Light
10. Stereo Indicator
11. Tuning Indicator
INSTALL BATTERY
1.
The radio uses two AA1.5V batteries, please put the new batteries in the battery slot according to
the polarity.
2.
If the sound is distorted or volume is faint, please change the batteries.
12. Min
13. Hour
14. Band Selector
16. AL. Time Set
17. Supporting Rack
18. Hand Strap
19. Volume Control
20. Earphone Jack
21. External Power Jack
22. Battery Compartment
Advertisement
Table of Contents
Related Manuals for kchibo KK-9906S
Summary of Contents for kchibo KK-9906S
- Page 1 USER’S MANUAL Kchibo KK-9906S DIAGRAM & FUNCTION INDICATION Antenna 12. Min LCD Display 13. Hour Power Off 14. Band Selector FM / Power On 15. Time Set Tuning Knob 16. AL. Time Set AM / Power On 17. Supporting Rack FM /FM 1 Switch 18.
- Page 2 USE EXTERNAL POWER Please use output DC 3V 300mA regulating external direct current power, check the polarity. BASIC OPERATIONS 1. Press FM /Power On button (4) to receive the FM band program. Switch between FM and FM1 by pressing the button (7) . 2.
- Page 3 ALARM SET Under the radio-off mode , keep and AL. Set button (16) pressed. Press the Hour adjustment button (13) to adjust hour and press the Minute adjustment button (12) to adjust the minute. You can check the pre-set alarm time by pressing the AL. SET button (16) under the radio mode. WAKE-TO-RADIO Under the clock mode, press the AL On/Off switch button (8) once , the symbol of a clock displays on the screen, the wake-to-radio function begins to work.
