Gaswinkel HP24 Owner's Manual

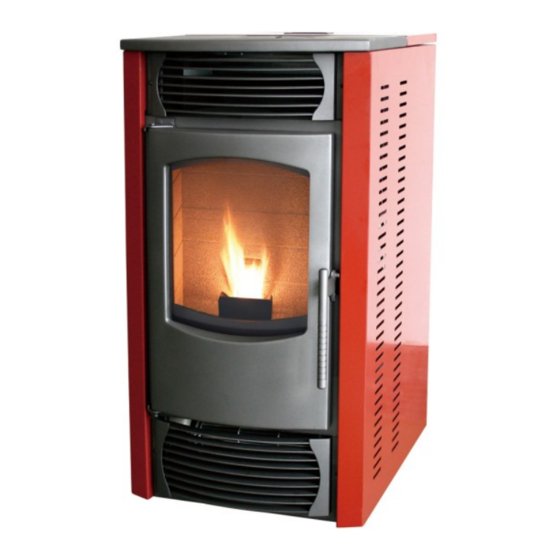

Gaswinkel pellet stove hp-24 7kw / hp-24g 9kw

Hide thumbs

Table Of Contents

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

HP-24

24G

7KW

9KW

PELLET STOVE

OWNER'S MANUAL

Contact your building or fire officials about restrictions and

installation inspection requirements in your area.

PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS

PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

THIS MANUAL IS PRINTED ON RECYCLED PAPER.

PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Page 1 / 19

Table of Contents

Need help?

Do you have a question about the HP24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gaswinkel HP24

Page 1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE HP-24 PELLET STOVE OWNER’S MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area. PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.
Page 2: Table Of Contents
Table of Contents Technical Specification------------------------------------------------ 2 Introduction-------------------------------------------------------------- 3 Product Performance--------------------------------------------------- 7 Installation--------------------------------------------------------------- 8 Operating Instructions ------------------------------------------------ 11 Caution------------------------------------------------------------------ 13 Safety Instructions----------------------------------------------------- 13 Maintenance------------------------------------------------------------ 16 Troubleshooting-------------------------------------------------------- 17 Warranty----------------------------------------------------------------- 18 Figure: Electricity control ------ ------------------------------------- 19 Technical Specification Stove Mass Nominal output (Maximum setting) Total Efficiency 92.3 % Nominal Heat Output...
Page 3: Introduction
Mean Flue Gas Temperature 139 °C Flue Gas Mass Flow 5.6 g/s Introduction ELLET UALITY Pellet quality is important, please read the following: Your pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.
Page 4 PELLET FEED RATES: Due to different fuel densities and sizes, pellet feed rates may vary. This may require an adjustment to the slider damper setting or to the auger feed trim setting on low. These modifications should be carried out during commissioning by a qualified installer.
Page 5 AFETY ARNINGS ECOMMENDATIONS Caution: Do not connect to any air distribution duct or system. Do not burn garbage or flammable fluids such as gasoline, naptha or engine oil. Unit is hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns.
Page 6 FLAMMABLE LIQUIDS: Never use Flammable Liquid such as gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up” a fire in the heater. Keep all such liquids well away from the heater while it is in use. SMOKE DETECTOR: Smoke detectors should be installed and maintained in the structure when installing and operating a pellet burning appliance.
Page 7: Product Performance
It will be shut off automatically by wrong burning or if out of fuel. Large heat output, quick heating and low fuel cost are its advantages. 1. Main performance Model HP24 Rating input BTU/h 30000BTU/H(9.4KW/HOUR) Rating fuel consumption kg/h 1.6 +_5%...
Page 8: Installation
Take care of the pellet. Do not damp or crush it or it will affect the efficiency and the dust will be collected on the door glass. Installation 1. Deciding where to Locate your Pellet Appliance: When installing this unit on a combustible floor (for example linoleum, hardwood flooring) a non-combustible hearth pad (15mm thickness) must be under the unit suitable to withstand the weight of the appliance.
Page 9 The information given below is for guidance only and it cannot be assumed that it complies with national and local regulations. Consider the total ventilation requirements for simultaneous operating with other heating appliances. For this appliance only, the room or space containing this appliance needs a permanent, unobstructed air opening of at least 825 mm to satisfy UK Building Regulations.
Page 10 Page 10 / 19...
Page 11: Operating Instructions
Operating Instructions Ⅰ ：BUTTON AND INDICATOR LIGHT： ON/OFF Infrared TIMER Receiver CONCEL POWER LIGHT DOWN ALARM MODE TRANSFER HOLD LIGHT BUTTON 1. POWER LIGHT 2. ALARM LIGHT 3. ON/OFF BUTTON 4. MODE TRANSFER BUTTON: Set the unit’s to one of three main modes settings: Manual, Temp, and Weekly.
Page 12 In weekly mode, if you want to prolong current running stage, you can simply press the "hold" button and it will hold that state of the stage until the hold button is pressed again. 7. SET BUTTON: Press set button to adjust some pre-established data, including CURRENT DATE AND TIME, WEEKLY PROGRAMMER, Temperature Units, Blower Voltage and Exhaust Voltage.
Page 13 Ⅲ ：DISPLAY TEMPERATURE DISPLAY ROOM FORMAT TEMPERATURE DATE and TIME TEMPERATU HEATING MAIN POWER MODE LEVEL WORK ADDITIONAL STAGE CONTROL COMPONENT MODE STATE DISPLAY AREA ON/OFF AUGER VACUUM IGNITOR STATE SWITCH COMBUSTION CONVECTION LIMIT BLOWER BLOWER SWITCH blower 1.DATE and TIME 2.
Page 14: Caution
6. ADDITIONAL CONTROL MODE 7. ON/OFF STATE 8. COMPONENT STATE DISPLAY AREA: As showed in the photo, there are six components indicator in the component state display area, including IGNITOR, COMBUSTION BLOWER, AUGER, CONVECTION BLOWER, VACUUM SWITCH and LIMIT SWITCH. Once the component starts running or its contact close, the corresponding indicator appears.
Page 15: Safety Instructions
standards. Ask your dealer for a recommended pellet type. 2. Please keep the door closed and sealed at all times during burning. This is for good effect and prevents hot ash flying out. As soon as the door is opened the auger stops feeding pellets and the appliance will go into shut-down mode.
Page 16: Troubleshooting
Use only parts recommended by the manufacturer Maintenance must be handled only when the stove is cold and with the power switched off. 1. Using a metal scraper, remove material that has accumulated or is clogging the grate bar’s holes (combustion retort). Then dispose of the ashes from the grate bar and from inside the burn box to ensure proper air flow through the grate bar.
Page 17 or overheat. When temperature is below 50˚C, the safety control system will stop the stove automatically. For general problems, the possible reasons and the solutions are as following After solving problems, start the stove again: problems reason solution 1. The blower doesn’t No power in stove or in Check the power and wires.
Page 18: Warranty
High temperature switch Cool the stove at least 1 hour then (93˚C) is wrong. operate again or change the high temperature switch (93˚C). 6. The blower still works temperature Change this switch. after the stove is cool switch (50˚C) is broken. and fuel feed stops.
Page 19 Page 19 / 19...
