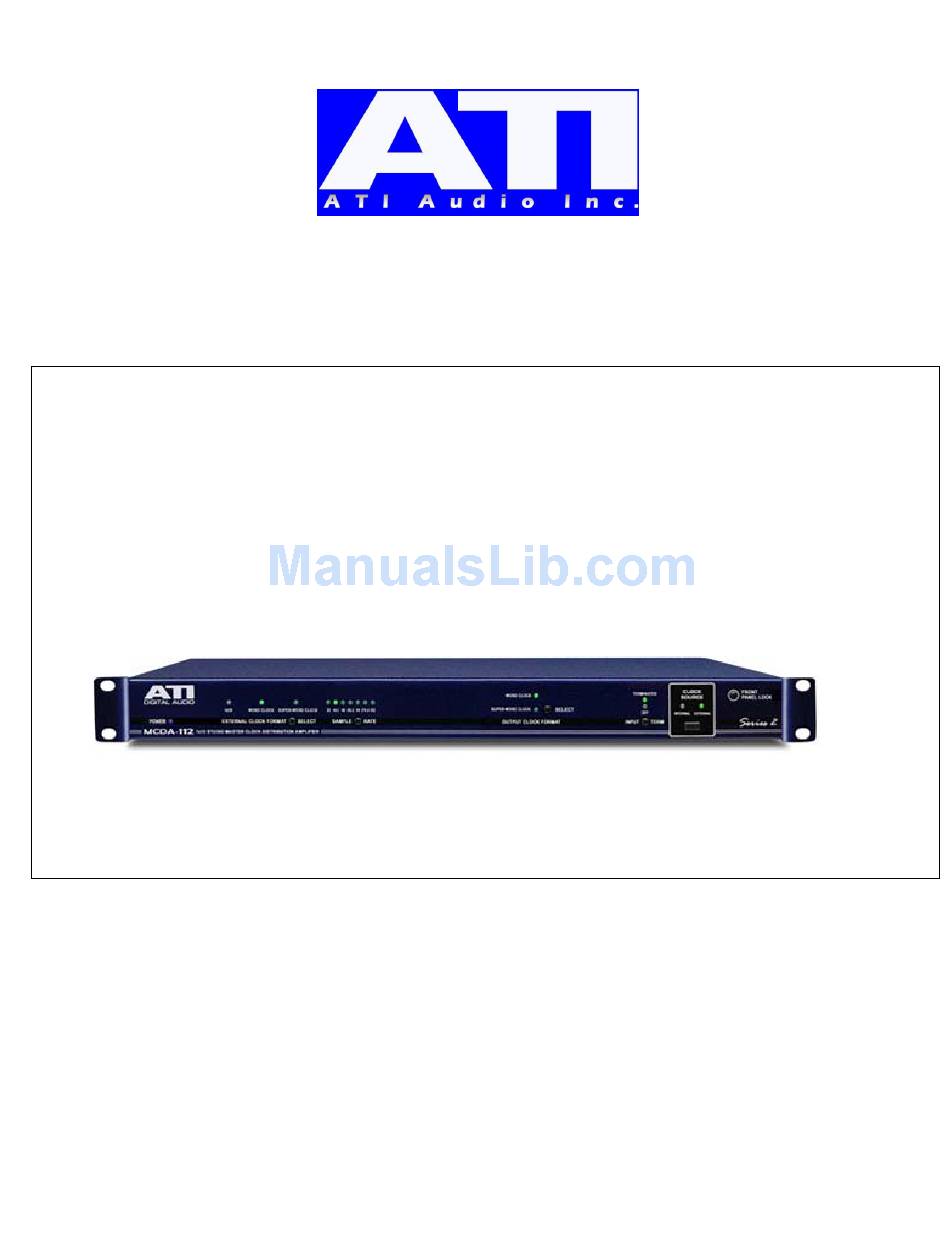

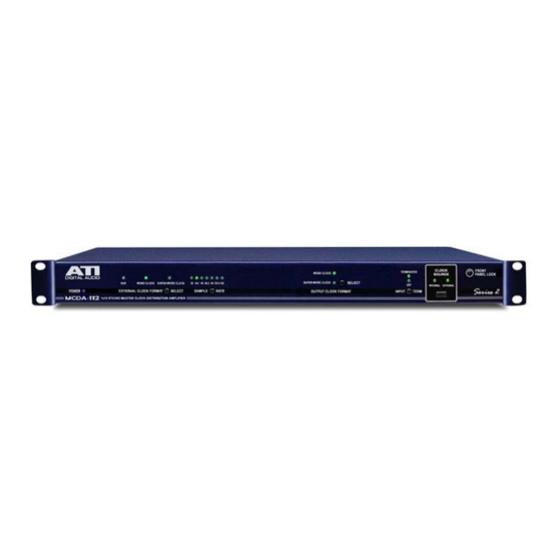

- Page 1 MCDA-112 Series 2 Ultra-Low-Jitter Studio Master Clock And 1x12 Clock Distribution Amplifier OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc.
-
Page 2: Table Of Contents
5 Rear Panel Connections & Switches 6 Installation 6 Specifications 7 Warranty 8 MCDA-112 FEATURES Switchable for use as master clock source or 1X12 clock DA Accepts AES3, AES11 Word and Super Word Clock inputs Generates standard sample rates of 44.1, 48, 88.2, 96, 176.4 or 192 kHz ... -
Page 3: Safety Information
Part 15 of the FCC Rules. CE Declaration of Conformity ATI Audio Inc., West Berlin, New Jersey 08091 USA, declares that all Model MCDA-112 units are in conformity with the following EU regulations and amendments: Low Voltage (LVD) 73/23/EEC and 93/69/EEC... -
Page 4: Description
12 of the MCDA’s individually isolated outputs. If you prefer to use another source for your reference clock, the MCDA-112 can function as a 1X12 clock distribution amplifier. It can accept an AES3 audio signal, an AES Word Clock, or a Super Word Clock as an input, and will output either Word Clock or Super Word Clock from its 12 BNC output connectors. - Page 5 Both XLR and BNC inputs contain loop-through outputs for the purpose of looping the input signal to additional equipment. If the MCDA-112 is the last (or only) device to be fed by your external clock source, be sure to terminate the input using the front panel INPUT TERM button.
-
Page 6: Installation
CLOCK SOURCE When set to Internal, the MCDA-112 generates the clock reference and applies it to all outputs. When set to External, the MCDA-112 accepts an external clock or AES input and applies this reference to all outputs. FRONT PANEL LOCK The FRONT PANEL LOCK button is a feature on all Series 2 products. -
Page 7: Specifications
75-ohm coax (RG59). Select a cable for losses less than 20dB at 12MHz (for data rates up to 96kHz) at the maximum distance you require. Keep cable length as short as possible, especially when working with Super Word clock rates. MCDA-112 SPECIFICATIONS INPUTS CONNECTORS... -
Page 8: Warranty
One Year Limited Warranty DaySequerra warrants ATI products to be free from defects in materials and workmanship to its original owner for one (1) year from the date of purchase. DaySequerra will repair or replace such product or part thereof that upon inspection by DaySequerra, is found to be defective in materials or workmanship subject to conditions contained herein.
