Page 1

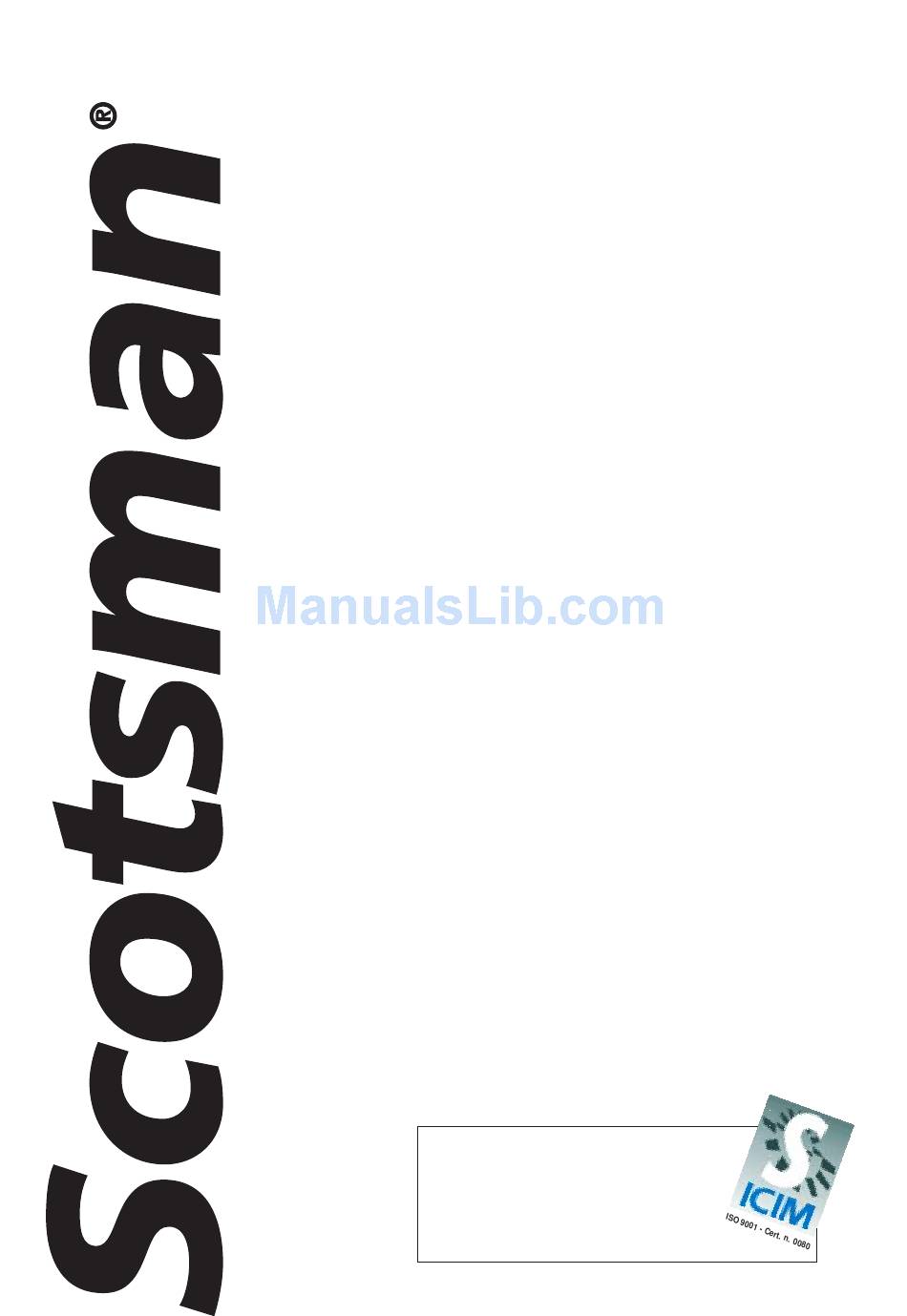

SERVICE MANUAL
MV 306
MV 426
MV 456
MV 606
MV 806
MV 1006
Electronic
modular cubers
SCOTSMAN EUROPE - FRIMONT SPA
Via Puccini, 22 - 20010 Pogliano M.se - Milano - Italy
Tel. +39-02-93960.1 (Aut. Sel.)- Telefax +39-02-93550500
Direct Line to Service & Parts:
Phone +39-02-93960350 - Fax +39-02-93540449
Website: www.scotsman-ice.com
E-Mail: scotsman.europe@frimont.it
Page 1
MS 1000.77 - REV. 02/2010
