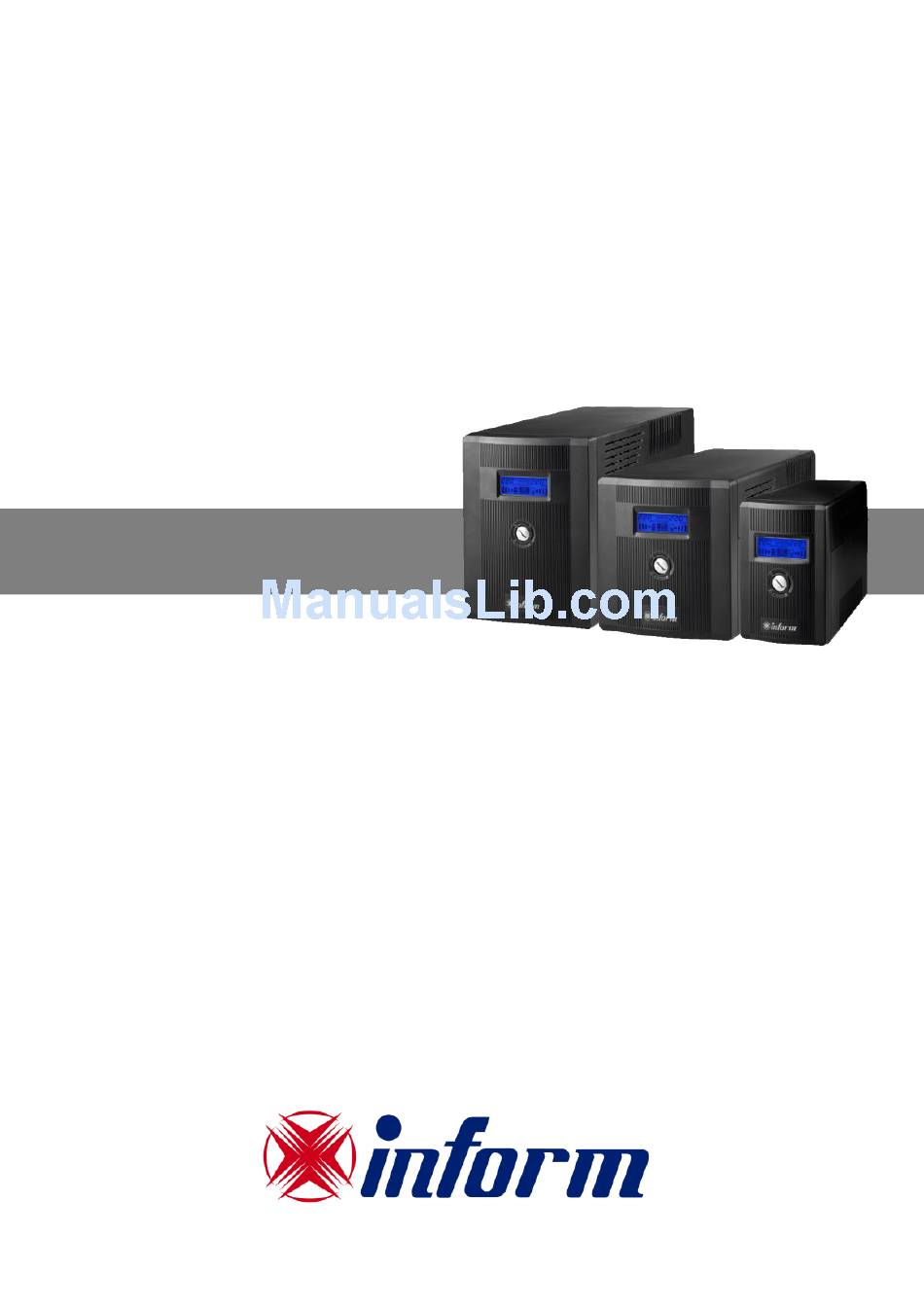

Page 1: User Manual

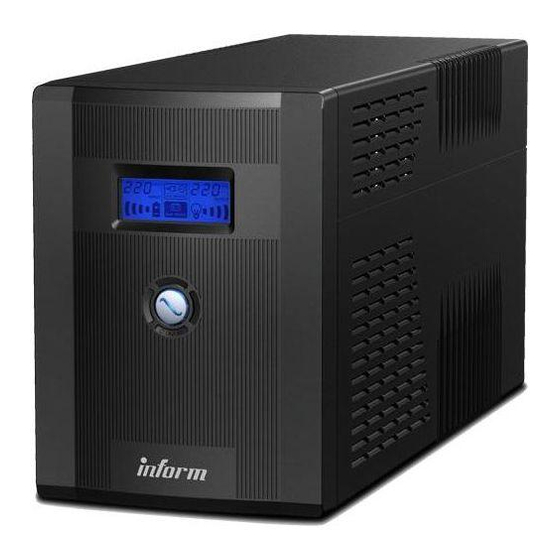

GUARDIAN Uninterruptible Power System 600VA - 2000VA USER MANUAL... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The utilized voltages by this UPS may be hazardous. Do not attempt to disassemble the unit. The unit contains no user replaceable parts. Only authorized service personnel may perform repairs. Internal battery voltage is 12V DC per one battery. Sealed, lead-acid, 6 cells battery. ... -
Page 3: Lcd Panel
INTRODUCTION GUARDIAN UPS is specially aimed for use with multi function personal computer. It is equipped with boost & buck AVR to stabilize the wide input voltage range. It also comes with high-efficient switch-mode battery charger. This charger design minimizes power loss to save charging time. - Page 4 Fault LED UPS status LED: AC mode: green lighting Battery mode: green flashing AC mode: indicating load level Battery mode: indicating battery capacity For 1500/2000 models 1. AC Input & AC fuse 2. Output receptacles 3. USB com. Port ( AP models ) 4.
-
Page 5: Troubleshooting
6) CONECTION OF COMMUNICATION UPS equipped with communication port allows monitoring and controlling from computer screen. Connect one end of a communication cable to your PC and the other to the com port at the rear of the UPS. Upsman pro is an UPS power management software, allowing users to control and monitor UPS straightly from PC monitor. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS GUARDIAN GUARDIAN GUARDIAN GUARDIAN GUARDIAN GUARDIAN 600A/AP 650A/AP 800 A/AP 1000 A/AP 1500 A/AP 2000 A/AP Model GUARDIAN GUARDIAN GUARDIAN GUARDIAN GUARDIAN GUARDIAN LCD 600A/ LCD 650A/ LCD 800A/ LCD 1500A/ LCD 2000A/ 1000A/ AP 600VA / 650VA /...
