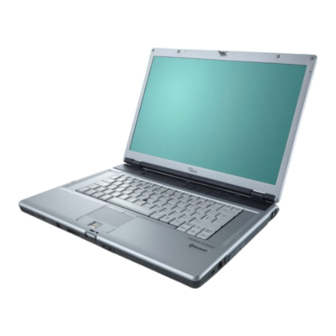

Page 1: Lifebook S Series
Professional Notebook / Workstation English EasyGuide CELSIUS H LIFEBOOK E Series LIFEBOOK S Series Downloaded from LpManual.com Manuals... - Page 2 Are there..any technical problems or other questions that you need help with? Please contact: • our Hotline/Help Desk (see the enclosed Help Desk List or the Internet: "www.fujitsu-siemens.com/support/" • Your sales partner • Your sales office Additional information is contained in the Help Desk list and the "Warranty" manual. The "Warranty"...
- Page 3 Downloaded from LpManual.com Manuals...
- Page 4 This manual was produced by Xerox Global Services Published by Fujitsu Siemens Computers GmbH AG 02/07 Edition 1 Order no.: A26391-K205-Z121-1-7619 Downloaded from LpManual.com Manuals...
-
Page 5: Table Of Contents
CELSIUS H / LIFEBOOK E Series / LIFEBOOK S Series EasyGuide Innovative technology… Notational conventions Important notes Ports and operating elements Removing and installing components during servicing Technical data Index Downloaded from LpManual.com Manuals... - Page 6 All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright © Fujitsu Siemens Computers GmbH 2007 All rights reserved, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole.
- Page 7 LIFEBOOK E Series/CELSIUS H ........
- Page 8 Contents A26391-K205-Z121-1-7619,edition1 Downloaded from LpManual.com Manuals...
-
Page 9: Innovative Technology
Innovative technology… Innovative technology… ... and an ergonomic design make your notebook a reliable, convenient mobile PC. This manual describes the CELSIUS H240 mobile workstation, the LIFEBOOK E8110, the LIFEBOOK E8210 and the LIFEBOOK S7110. Most of the sections in this manual apply to all models ‑... - Page 10 Innovative technology… You can find information on accessories for your notebook at "www.fujitsu-siemens.com/accessories". A26391-K205-Z121-1-7619, edition 1 Downloaded from LpManual.com Manuals...
-
Page 11: Notational Conventions
Notational conventions Notational conventions Pay particular attention to text marked with this symbol. Failure to observe this warning may endanger your health, cause the equipment to malfunction or lead to loss of data. The warranty does not cover defects of the equipment caused by failure to follow these instructions. -
Page 12: Important Notes
Important notes Important notes Take note of the safety hints provided in the "Safety" manual, in the "Professional Notebook" operating manual and in this manual. A26391-K205-Z121-1-7619, edition 1 Downloaded from LpManual.com Manuals... -
Page 13: Ports And Operating Elements
This chapter presents the individual hardware components of your notebook. You can obtain an overview of the ports and operating elements of the notebook. Please familiarise yourself with these components before you start to work with your notebook. Front view LIFEBOOK E Series/CELSIUS H Front View Built-in microphone (dependingon model) -
Page 14: Lifebook S Series
Ports and operating elements LIFEBOOK S Series Front View Built-in microphone Loudspeaker Statusindicator panel Easy Launchkeys ON/OFF switch TouchStick TouchStickbuttons Touchpad Scrollbarorfingerprintsensor Touchpadbuttons ON/OFF switchforradiocomponents (WirelessLAN/Bluetooth/UMTS) ExpressCardslot PCcardslot FireWire port Headphonesport Microphone port SVideoOutsocket(minijack) Monitorport DCINjack 1 = Built-in microphone 11 = ON/OFF switch for radio components (Wireless LAN/ Bluetooth/UMTS) 2 = Loudspeaker... -
Page 15: Rear View
Ports and operating elements Rear view LIFEBOOK E Series/CELSIUS H KensingtonLock Modem port Module USBport Serialport USBports KensingtonLock LANport SVideoOutsocket(video output) 1 = Kensington Lock 6 = USB ports 2 = Modem port 7 = Kensington Lock 3 = Module... -
Page 16: Lifebook S Series
2 = Modem port 6 = USB ports 3 = Module 7 = Kensington Lock 4 = USB port 8 = LAN port Underside LIFEBOOK E Series/CELSIUS H Battery Plugfordockingconnection Slotfor memoryexpansion Harddiskcompartment 1 = Battery 3 = Slot for memory expansion... -
Page 17: Lifebook S Series
Ports and operating elements LIFEBOOK S Series Battery Plugfordockingconnection Slotfor memoryexpansion Harddiskcompartment 1 = Battery 3 = Slot for memory expansion 2 = Plug for docking connection 4 = Hard disk compartment A26391-K205-Z121-1-7619, edition 1 Downloaded from LpManual.com Manuals... -
Page 18: Switching On The Notebook
Ports and operating elements Switching on the notebook ► Press the release button (1), and unfold the LCD screen upwards (2). ► Press the ON/OFF switch (1) to switch the notebook on. The power-on indicator of the notebook appears in the status indicator panel (2). Windows XP: You can configure the on/off button under Start - (Settings) - Control Panel - Performance and Maintenance - Power Options - Advanced. -
Page 19: Switching Off The Notebook
Ports and operating elements Switching off the Notebook ► Close all programs and shut down your operating system (please see operating system manual). If the notebook cannot be shut down properly, press and hold the ON/OFF button for approximately four seconds. The notebook will switch off. Any unsaved data may be lost. ►... -
Page 20: Status Indicator Panel
Ports and operating elements Status indicator panel Statusindicator panel The status indicator panel is a small LCD panel on which various symbols appear. These symbols provide information about the status of the power supply, the drives, and the keyboard functions. Power-on indicator CD/DVD indicator Power indicator... - Page 21 Ports and operating elements Battery charging indicator Batterychargingindicator Indicator • Indicator lights up: The battery is charging. • The indicator does not light up: The battery is either too hot or too cold to be charged. Battery indicators Indicator Indicator Battery The charging state of the batteries is shown by two battery indicators.
-
Page 22: Key Combinations
Ports and operating elements Key combinations The following description of key combinations refers to functions when using Microsoft Windows. Some of the following key combinations may not function in other operating systems and with some device drivers. Key combinations are entered as follows: ►... - Page 23 Ports and operating elements Volume increase Fn+F9 Volume This key combination raises the volume of the integrated loudspeakers. Toggle output screen Fn+F10 Toggleoutputscreen If an external monitor is connected, the monitor on which the output is to be displayed can be selected with this key combination. You can opt to use: •...
-
Page 24: Easy Launch Keys
Ports and operating elements Easy Launch keys Easy Launchkeys Your notebook is equipped with four Easy Launch keys. Key 1 This key might be preset. However, you can also configure this key as desired. Key 2 This key might be preset. However, you can also configure this key as desired. E key With the E key, you can easily activate and deactivate the energy saving functions (e.g. -
Page 25: Configuring Easy Launch Keys
Removing and installing the battery Notes Battery Only use batteries approved by Fujitsu Siemens Computers for your notebook. Never use force when inserting or removing a battery. Make sure that no foreign bodies get into the battery connections. Removing the battery ►... -
Page 26: Inserting The Battery
Ports and operating elements Inserting the battery ► Insert the battery in the battery compartment at an angle and push it in the direction of the arrow (1) until it locks into place. Battery ► Push the battery release latch in direction of the arrow (2). -
Page 27: Sim Card
Ports and operating elements SIM card Follow the instructions supplied by the provider of the SIM card. Inserting the SIM card ► Switch off your notebook. ► Close the LCD screen so that it locks into place. ► Remove the mains plug for the mains adapter from the mains socket. ►... -
Page 28: Removing A Sim Card
Ports and operating elements Removing a SIM card ► Switch off your notebook. ► Close the LCD screen so that it locks into place. ► Remove the mains plug for the mains adapter from the mains socket. ► Disconnect all cables connected to the notebook. ►... -
Page 29: Radio Components: Umts (Optional)/Wireless Lan/Bluetooth
Ports and operating elements Radio components: UMTS (optional)/wireless LAN/Bluetooth Wireless LAN Bluetooth UMTS The installation of a wireless LAN or UMTS module not approved by Fujitsu Siemens Computers GmbH will invalidate the permits (CE!, FCC) issued for this device. The modules for radio components are switched off during shipping. Switching the radio components on and off ►... -
Page 30: Removing And Installing Components During Servicing
Removing and installing components during servicing Removing and installing components during servicing Only qualified technicians should repair your notebook. Unauthorised opening or incorrect repair may greatly endanger the user (electric shock, fire risk) and will invalidate your warranty. Servicing Components You may remove and install the components described in this chapter yourself after consulting the Hotline/Help Desk. -
Page 31: Removing The Hard Disk
► Remove the battery (see "Removing the battery", Page 17). LIFEBOOK E Series/CELSIUS H LIFEBOOK S Series ► Remove the screws (1). ► Slide the cover of the hard disk compartment slightly forwards in the direction of the arrow (2) and lift up to remove (3). -
Page 32: Installing The Hard Disk
Installing the hard disk ► Push the hard disk as far as possible in the hard disk carrier. Harddisk LIFEBOOK E Series/CELSIUS H LIFEBOOK S Series ► Place the hard disk (1) into the hard disk compartment, flush with the left. -
Page 33: Removing And Installing Memory Modules
Removing and installing components during servicing Removing and installing memory modules Mainmemory Memoryexpansion Memoryupgrade System expansion The notebook will not start without memory modules, as no fixed main memory is installed. Your notebook supports dual-channel DDR2 technology. The dual-channel DDR2 technology can only be used with two identical memory modules. -
Page 34: Removing The Cover
Removing and installing components during servicing Removing the cover ► Remove the screws (1). ► Pull the cover off the notebook (2). Removing memory modules ► Carefully push the two mounting clips outwards (1). Memory expansion Memory module The memory module snaps upwards (2). ►... -
Page 35: Attaching The Cover
Removing and installing components during servicing Attaching the cover ► Place the cover in the correct mounting position (1). ► Secure the cover with the screws (2). ► Reinstall the battery (see "Inserting the battery", Page 18). ► Turn the notebook the right way up and place it on a flat surface. ►... -
Page 36: Technical Data
Technical data Technical data Celsius H240 Technicaldata Processor Intel Core™ Solo/Duo from 1.66 GHz Main memory Maximum 4 Gbyte DDR2 SDRAM 2 slots for 256, 512 Mbyte modules, 1 Gbyte or 2 Gbyte modules Possible modules: • Second battery • Second hard disk drive •... -
Page 37: Lifebook E Series
Technical data Ports S Video Out socket 7-pin mini DIN socket Monitor port 15-pin socket Modem port RJ11 socket LAN port RJ45 socket Parallel port 25-pin socket 9-pin plug Serial port Microphone port 3.5 mm mono mini-jack Headphones port/SPDIF 3.5 mm stereo mini jack FireWire port S400, 4-pin USB port... - Page 38 Technical data LCD screen Display diagonal 15 inch TFT XGA (1024 x 768) 15.4 inch TFT WXGA (1280 x 800) 15 inch TFT SXGA+ 15.4 inch TFT WXGA+ (1400 x 1050) (1680 x 1050) Display adapter Chip Integrated Graphics Intel GMA ATI MOBILITY™...
-
Page 39: Lifebook S7110
Technical data Environmental conditions Operation 5 °C ... 35 °C Transport -15 °C ... 60 °C LIFEBOOK S7110 Technicaldata Processor Intel Core™ Solo/Duo from 1.66 GHz Main memory Maximum 4 Gbyte DDR2 SDRAM 2 slots for 256, 512 Mbyte modules, 1 Gbyte or 2 Gbyte modules Possible modules: •... -
Page 40: Battery
The data sheet of this notebook contains further technical data. You will find the data sheet on your notebook or on the Internet at "www.fujitsu-siemens.com" or on the supplied "Drivers & Utilities" CD/DVD. Battery Technicaldata LIFEBOOK E LIFEBOOK S CELSIUS H/ Series Series 6-cell 6-cell rechargeable battery 8-cell rechargeable rechargeable... -
Page 41: Mains Adapter
Technical data Mains adapter Technicaldata Primary Rated voltage 100 V or 240 V (automatic) Rated frequency 50 Hz to 60 Hz (automatic) Secondary Rated voltage 19 V Max. rated current 4.22 A Additional mains adapters and an power cables are can be ordered at any time. A26391-K205-Z121-1-7619, edition 1 Downloaded from LpManual.com Manuals... -
Page 42: Index
Index Index Fn + F8 14 Alt+Tab 15 Fn + F9 15 Front 5–6 Full-screen mode 14 Back tab 15 Battery 8–9 important notes 17 Hard disk 22 indicator 13 installing 24 inserting 18 removing 23 Hard disk compartment 8–9 removing 17 Hard disk indicator 13 Battery charging indicator 13... - Page 43 Index Memory module indicator 13 installing 26 Serial port 7 Servicing 22 removing 26 Shift+Tab 15 Memory upgrade 25 Microphone port 5–6 Slot for memory expansion 8–9 Modem port 7–8 SmartCard reader 5 Module 7–8 Status indicator panel 5–6, 12 Monitor port 5–6 System expansion memory expansion 25...
