Successful Calibration - Traktor Kontrol S8 Manual

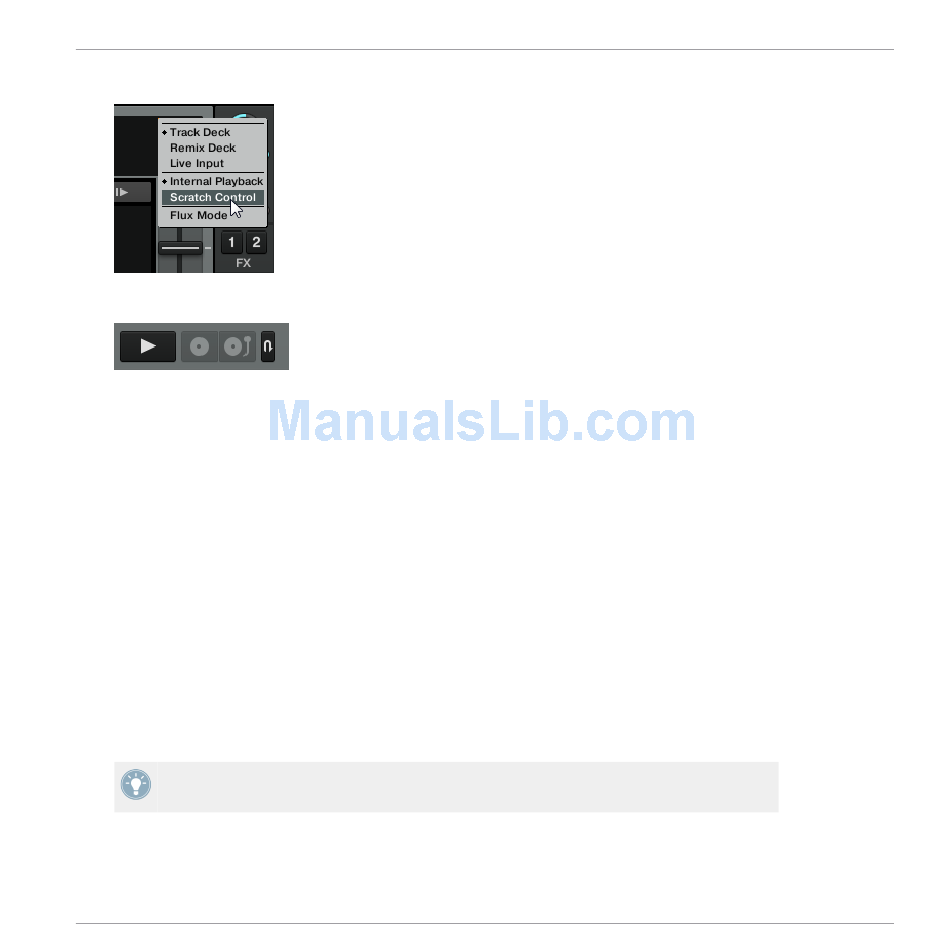

7. Select Scratch Control in the drop-down menu.
On TRAKTOR's Decks the
Relative Mode buttons.
8. Insert the Control CDs in your CD players.
9. Use the S8 to load tracks into the Decks you have just assigned to Scratch Control.
10. Trigger playback of the tracks using the CD players.
The calibration process is then performed automatically when you trigger playback for the
→
first time.
5.4.3

Successful Calibration

TRAKTOR detects which Timecode medium you are using, verifies the signal quality, and if the
signal quality is adequate completes the calibration phase. From then on, the software platters
will rotate at the speed of the turntables; and the motion of the record will be followed exactly.
In general, we recommend always checking the Scope panel when setting up TRAKTOR
SCRATCH PRO 2 to ensure Timecode control is working properly. This is especially important
if the deck platters do not follow the movement of your turntables or CD players as expected.
You can open the Scope panel by clicking on the platter, or, if the platter is not shown in the
software, by clicking on the small arrow (minimize button) above the Timecode quality meter.
The small arrow (minimize button) above the quality meter will also minimize the Scope
panel if you would rather have a larger view of the track waveform.
The diagram below shows an example of a successful calibration with control vinyl, and the
four useful indicators shown in the Scope panel:
CUE and CUP buttons will be exchanged by Absolute mode and
Integrating External Sources as TIMECODE Controls
TRAKTOR KONTROL S8 - Manual - 238
Common Setups
