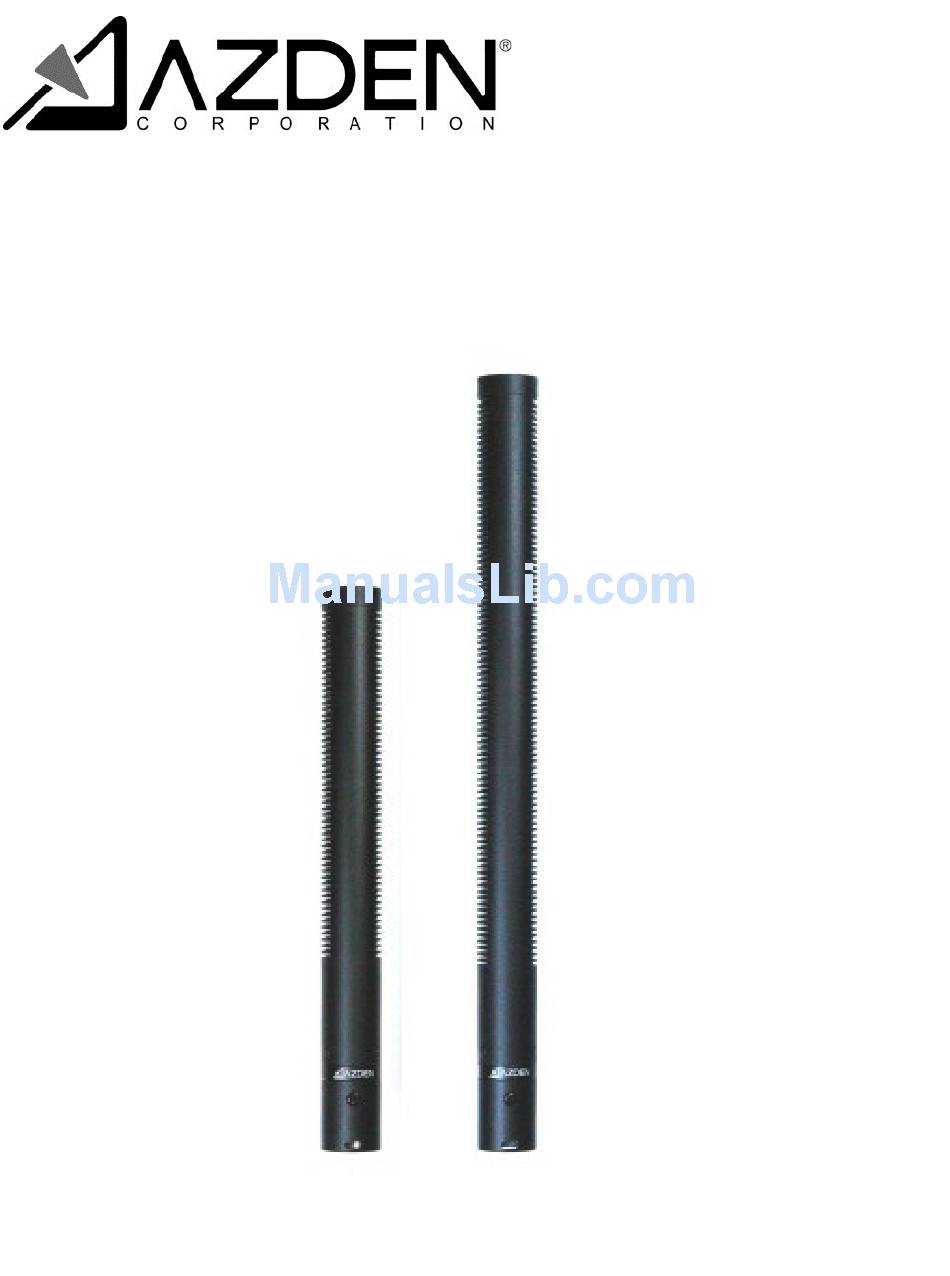

- Page 1 SGM-3416/3416L BROADCAST-SPEC SHOTGUN MICROPHONE OPERATING MANUAL...
- Page 2 POWER The SGM-3416/3416L is powered by external Phantom Power. To power the unit, connect an XLR cable (not included) to the microphone with a voltage source that supplies between 11 and 52 VDC.
- Page 3 SPECIFICATIONS SGM-3416 Type: Electret condenser Frequency response: 40—20,000Hz Sensitivity: Uni-directional, -33dB at 1kHz (0dB=1V/Pa) Impedance: 120Ω at 1kHz Max SPL input level: 115dB SPL (1kHz at 1% T.H.D) Signal to noise ratio: 78dB (1kHz at 1Pa) Power source: Phantom DC 11-52V Weight: 125g (4.4oz)
- Page 4 (at Azden’s sole discretion), within two years from the date of purchase. The cost to ship a failed product to and from Azden or to its dealer shall not be covered by this warranty. A dated receipt acts to establish the date of purchase.
