Summary of Contents for Azden SGM-250CX

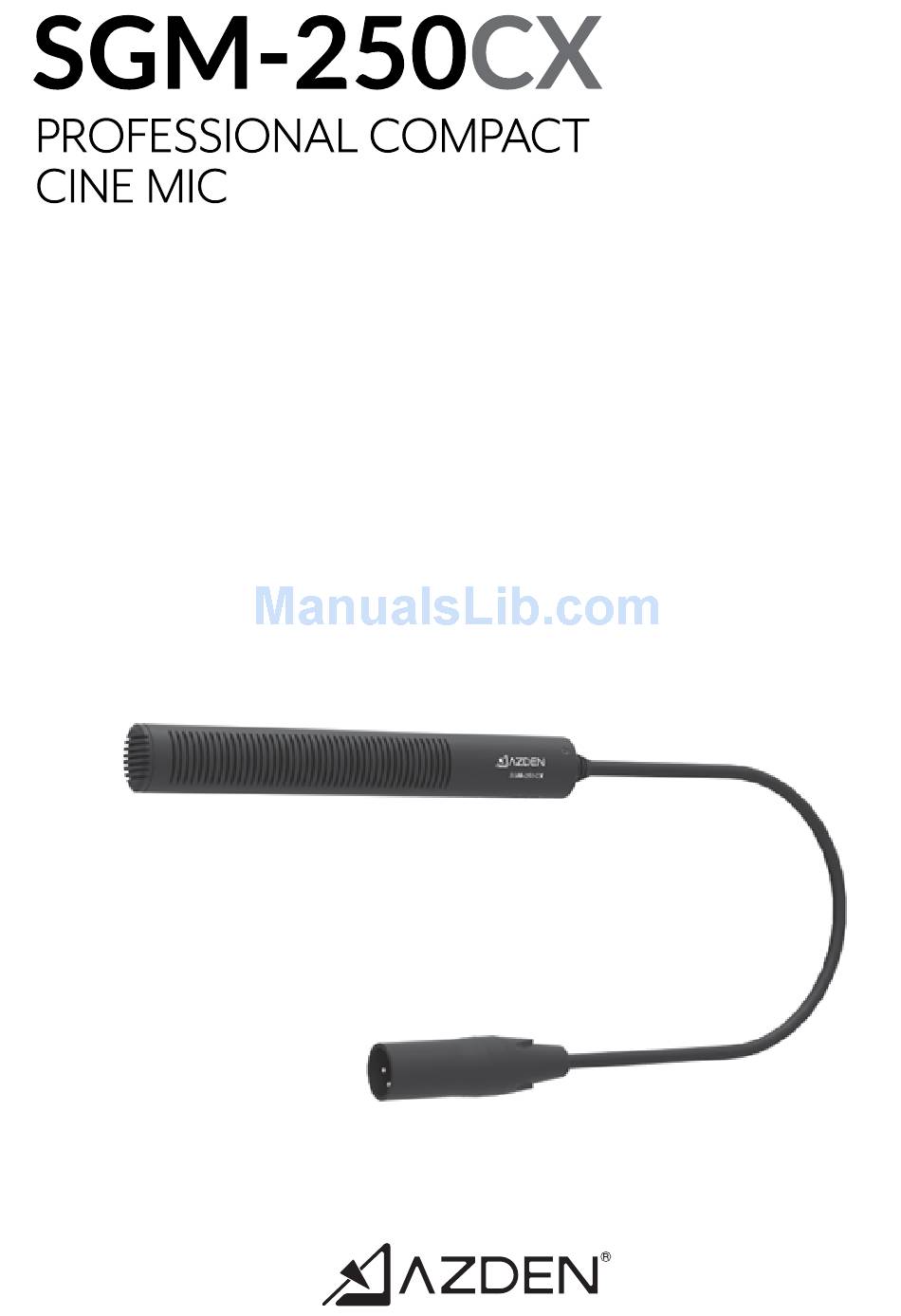

  • Page 1 Owner’s Manual...

  • Page 2: Product Highlights

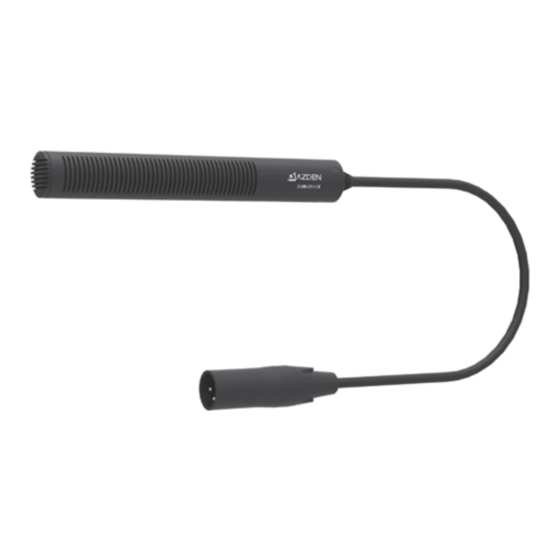

    • Gold plated, 3-pin XLR output connector with 33 cm wire extension Overview The SGM-250CX is a short length, condenser shotgun microphone that is ideal for mounting on compact digital cinema cameras, as well as DSLR and mirrorless cameras equipped with XLR adapters. As part of Azden’s 250 microphone model series, you can expect professional quality sound that preserves the natural characteristics of a speaking subject.
  • Page 3 Most commonly, phantom power is supplied at 48 V. This is the optimum voltage for the SGM-250CX. It is possible that your connecting equipment supplies a different voltage. The SGM-250CX is rated to work on a voltage between 11 and 50 V, however, performance will degrade with lower voltages and damage to the electronics could result when using voltages in excess of this range.

  • Page 4: Specifications

    English Specifications Freq. Response: 20 Hz – 20 kHz Polar Pattern: Super-cardioid Sensitivity: -33 dB at 1 kHz (0 dB = 1 V/Pa) Dynamic Range: 112 dB Impedance: 100 Ω (at 1 kHz) Max Input SPL: 130 dB SPL (1 kHz at 1% T.H.D.) S/N Ratio: 76 dB (1 kHz at 1 Pa) Power Requirement:...

  • Page 5: Frequency Response

    Frequency Response [ dB ] [ Hz ] Polar Pattern 0゜ -10dB -20dB 90゜ 270゜ 1kHz 250Hz 4kHz 180゜...

  • Page 6: Included Accessories

    Included Accessories Shock absorbing High quality foam windscreen camera-mount mic clip (SMH-X) Carrying pouch Rubber diameter expander sheets...
  • Page 7 (at Azden’s sole discretion), within two years from the date of purchase. A dated receipt is required to establish the date of purchase and no registration is necessary to receive warranty service under this two year limited warranty.
  • Page 8 CAUTION Do not attempt to open the casing or make any modification to the internal electrical components. Electric shock or injury may result. Any unauthorized modification to this product will void all applicable warranties. Do not store or operate this product near a heat source or in an environment of extreme temperatures.
