SGM-990+i ZOOM MICROPHONE INSTRUCTION MANUAL

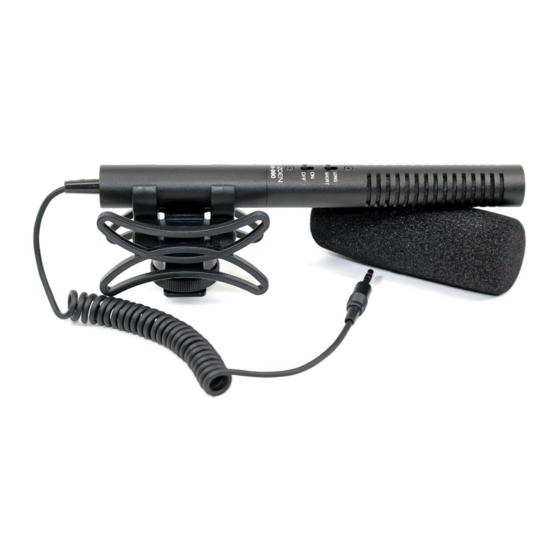

The Azden SGM-990+i is a directional "zoom" microphone with 2 switchable sound pick-up patterns,
"Long" and "Short." Use "Long" to focus on your sound source or to better pick up sound from a distance.
Use "Short" for when your sound source is close or covers a broader field. Both settings will provide
rejection of unwanted sound from the sides and the back.

BATTERY:

Unscrew the lower half of the microphone by turning the
case counter clockwise. Insert one AAA battery into the
case. Check for correct polarity. Replace the case and turn
clockwise to tighten. Do not over tighten or you may
damage the threads.

MICROPHONE HOLDER:

Snap the microphone into the holder towards the back of the case. Slide the holder onto the
shoe mount of the camera and tighten the wheel until snug. Do not over tighten or you may
damage the threads.

WINDSCREEN:

Slide the windscreen over the front end of the microphone and cover all the vents on the
case.

OUTPUT CABLE:

Plug the microphone's output cable into the "Ext. Mic" input jack on your camera.

ADAPTER CABLE:

Use the included TRRS adapter cable to make the microphone compatible with
smartphones and tablets.
POWER & POSITION SWITCHES:
Turn the microphone power switch to "ON" and turn the position switch to LONG or SHORT,
whichever is best for your application.
When not in use turn the microphone "OFF" to avoid draining the battery.

SPECIFICATIONS

Type:
Sensitivity:
Frequency Response:
Output Impedance:
Power Source:
Max. SPL:
Signal Noise Ratio:
Plug Cord Assembly:
Super-Cardioid Electret Condenser
Long: -33dB / Short: -43dB
(at 1 kHz 1 V/Pa)
150 – 18,000 Hz
Long: 1.7 kΩ / Short: 760 Ω
(at 1 kHz)
DC 1.5 V AAA size battery
100 dB
More than 40 dB
Coiled cord with φ 3.5 mm plug

POLAR PATTERNS

Long
0゜
15dB
15dB
15dB
270゜
90゜
15dB
180゜
Short
0゜
15dB
15dB
15dB
270゜
15dB
1kHz
180゜
90゜
