PDR1000TC ONLY

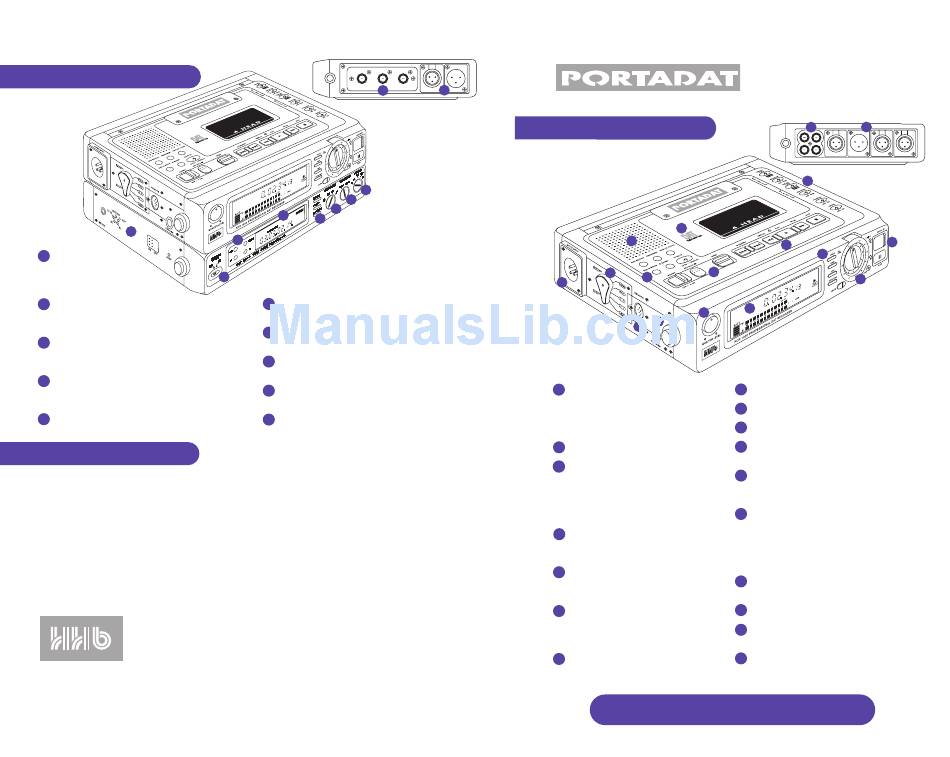

FEATURES & FUNCTIONS
1
1
MS1000 MASTER SYNC
MODULE (optional) with
lemo connectors for timecode
I/O. Allows 30DF and NDF pull up.
2
TIME CODE SOURCE selector sets timecode to be derived
either from the internal generator or from an external source
via the LTC IN socket.
3
TIMECODE GENERATOR CONTROL PANEL enables the user
bits to be set, reset, incremented or decremented. It is also
used to set the internal timecode generator.
4
BACK-LIT DISPLAY showing timecode and user bits, frame
rate, sync mode, drop/non-drop frame indicator, timecode
errors, timecode lock and load timecode errors.
5
TIMECODE DISPLAY CONTROLS for switching from tape to
SETTING THE TIMECODE
The PDR1000TC records internal or external timecode, depending on the setting of the TIME CODE SOURCE switch. It also performs
timecode chase-sync playback and outputs timecode to other machines.
To set the internal generator, the PORTADAT should be in stop mode. Set the TIME CODE SOURCE to INT and press the TIME CODE key
until SOURCE TIME CODE appears in the display. Press SET and adjust the hours with the +/– keys. Pressing SET again moves the
flashing display along to the minutes section. After setting the frames, SET returns the display to normal - if the TIME CODE MODE is
set to free-run, counting starts immediately. REC RUN generates time code only when the PORTADAT is recording.
The LOAD TC (JAM) key forces the internal generator to display (and run) from an external source's timecode value. For this to work
correctly, the PORTADAT's frame rate must be set to match that of the external timecode source, and the timecode source selector
should be set to internal. This function is useful for recording audio linked to film or video with timecode.
To select the timecode output between tape or source, hold down TIME CODE and then select tape or source timecode with the +/- keys.
HHB Communications Ltd · 73-75 Scrubs Lane, London NW10 6QU, UK
Tel: 0181 962 5000 · Fax: 0181 962 5050 · E-Mail: sales@hhb.co.uk
HHB Communications USA LLC · 626 Santa Monica Boulevard, Suite 110, Santa Monica, California 90401, USA
Tel: 310 319 1111 · Fax: 310 319 1311 · E-Mail: sales@hhbusa.com
HHB Communications Canada Ltd · 260 King Street East, Toronto, Ontario M5A 4L5, Canada
Tel: 416 867 9000 · Fax: 416 867 1080 · E-mail: sales@hhbcanada.com
Visit HHB on-line at: http://www.hhb.co.uk
9
8
7
6
4
5
3
source TIME CODE, displaying USER BITS and loading the
timecode from an external source to the internal generator
2
(LOAD TC (JAM)).
6
USER BITS SOURCE selector toggles between external user
bits, manual use, date and external timecode.
7
TIME CODE MODE selector toggles the generator between free
run and record run.
8
FRAME RATE selector toggles timecode between 24, 25, 29.97
drop frame, 29.97 non-drop frame and 30 frames per second.
9
BNC CONNECTORS - output WORD SYNC, input VIDEO/
WORD SYNC and VIDEO/WORD SYNC THROUGH.
10
XLR sockets for linear timecode input and output.

QUICK REFERENCE GUIDE

10

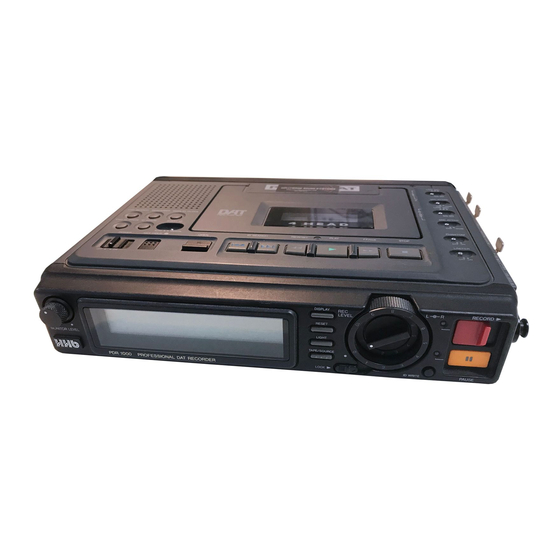

FEATURES & FUNCTIONS
8
7
1
INPUT FORMAT SELECTION switches located
under the lid select either digital (AES/EBU or
SPDIF) or analogue inputs, and set the analogue
sampling rate. The cassette eject switch and
clock/calendar set functions are also located here.
2
INTERNAL MONITOR speaker.
3
ID KEYS for writing, erasing and renumbering
IDs. The START ID button changes ID writing
from auto to manual. END SEARCH positions the
cassette at the end of the recorded section.
DISPLAY CLOCK shows the clock/calendar and
level/margin information in the main display.
4
POWER switch; KEY HOLD slider which locks the
transport controls, and a slider for opening the
top lid (see 1 above).
5
TRANSPORT controls, allowing playback and
search of audio. ID SEARCH, REW/REV and
FF/CUE, PLAY and STOP keys.
6
MIC/LINE switches, with high-pass filters for the
MIC inputs. Includes a +48V phantom power
switch, a 30dB microphone signal attenuator and
a mic LIMITER switch.
7
12V DC power input.
PORTADAT PDR1000TC PLUS
HM1000 Headphone Matrix and MS1000 Master Sync module fitted as standard.
PDR1000, PDR1000TC & PDR1000TC PLUS
16
6
1
2
5
4
3
12
11
10
9
8
HM1000 MS HEADPHONE MATRIX (optional).
9
REMOTE control port, parallel.
10
PHONES socket. 1/4" stereo jack.
11
MONITOR LEVEL control for headphones and
internal speaker.
12
BACK-LIT DISPLAY showing clock and counter,
battery level, metering, margin, source/tape
monitor, transport status and audio sample rate.
13
DISPLAY key selects: A-TIME (absolute time
from tape start), P-TIME (program time from
track start), COUNTER (time from pressing
RESET) and REMAIN (time remaining on the
tape). Display LIGHT, and TAPE/SOURCE
monitoring keys are also located here.
14
RECORD LEVEL CONTROLS, independent for left
and right channels; ID WRITE key.
15
RECORD and PAUSE keys.
16
PHONO sockets for SPDIF digital I/O and
analogue out L/R.
17
XLR sockets for AES/EBU digital I/O and
balanced analogue mic/line inputs.
consists of the timecode PORTADAT with the
17
15
13
14
