SAFETY INSTRUCTIONS
Important Safety Instructions
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance,Read product labels for flammability
or other warning.
Prevent accidents
To reduce the risk of fire,electrical shock,or injury to persons when using
your air conditioner ,follow basic precaution ,including the following:
Be sure the electrical power is adequate for model you have chosen.
This information can be found on the nameplate,which is located either
behind the louvers or on the left side of cabinet.
Be sure the air conditioner has been securely and correctly installed
according to the installation instructions provided with this manual.Save
this manual for possible future use in removing or reinstalling this unit.
When handling the air conditioner,be careful to avoid cuts from sharp
metral fins on front and rear coils.
Electrical information
The complete electrical rating of your new room air conditioner is stated
on the nameplate.Refer to the rating when checking the electrical require
-ments.
Be sure the air conditioner is properly grounded.To minimize shock and
fire hazard,proper grounding is important.The power cord is equipped
with a grounding plug for protection against shock hazard.
Your air conditioner must be used in a properly grounded wall receptacle.
If the wall receptacle you intend to use is not adequately grounded or
protected by a time delay fuse or circuit breaker,have a qualified electri
-cian install the proper receptacle.
If the supply cord is damaged,it must be replaced by the manufacture
or its service agent or a similarly qualified person in order to avoid a
hazard.
Do not use an extension cord or an adapter plug.
Do not block air flow inside with blinds,curtains or furniture:
or outside shrubs,enclosures,or other buildings.
The capacity of air conditioner must fit the room size for efficient and
satisfactory operation.
Close the fireplace damper floor and wall registers so cool air does
not escape up the chimney and into the duct work.
Clea n the air filter as recommended in the section
1
Care and Cleaning .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000BTU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AIRLUX 9000BTU

  • Page 1 SAFETY INSTRUCTIONS Important Safety Instructions For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance,Read product labels for flammability or other warning. Prevent accidents To reduce the risk of fire,electrical shock,or injury to persons when using your air conditioner ,follow basic precaution ,including the following: Be sure the electrical power is adequate for model you have chosen.
  • Page 2: General Description

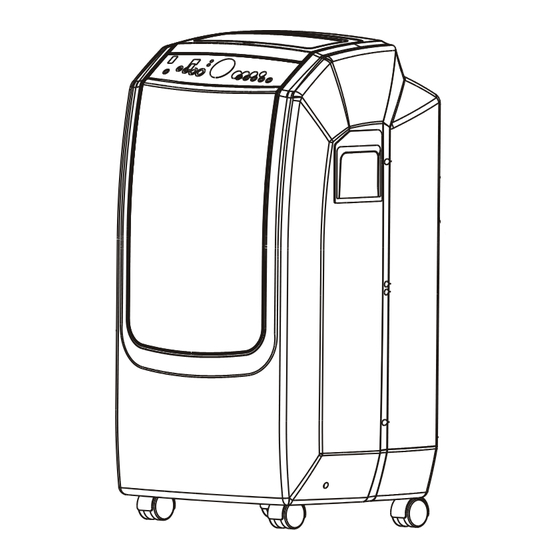

    GENERAL DESCRIPTION Front Air outlet Left-Right louver Air outlet cover Control panel Handle Caster Back Air filter Exhaust air outlet Water tap(rubber plug inside) Power cord Accessories Inward adaptor-for insertion over hose and into back of the air conditioner Outward adaptor-for insertion over hose and into foam of strip.
  • Page 3: Installation

    INSTALLATION Mounting of the unit This unit is a PORTABLE AIR CONDI Plastic -TIONER.It can be moved from room to strips room,so,the cooling can follow you any -where.The mounting is easy,beneath Outward adaptor a window.Please refer to the following way: 1.Using the plastic strips.
  • Page 4 INSTALLATION *.The supplied exhaust hose can be extended from 300 to 1500mm(12 to 59inch) for mounting.It is recommended that you use the hose in the shortest possible length. *.Take care to prevent any bow or bend in the middle of the exhaust hose, as this will trap hot exhaust air,which will radiate into the room and cause this unit to shut itself off due to overheating.
  • Page 5 OPERATION GUIDE Fan speed display lamp ON/OFF(power) button Fahrenheit display lamp Display window Down button Centigrade display lamp Mode selection button Up button Timer button Mode display lamp Sleep button Timed time display lamp Sleep display lamp Fan button Function instruction: Setting ON/OFF The ON/OFF button is for turning on and off the unit, Each time pressed, the mode of air conditioner will change by on and off .The set operation will...
  • Page 6 OPERATION GUIDE COOL :Set operation diverter switch on this site and COOL” light comes on. Use button “UP” and “DOWN” to set the temperature required. If the temperature of room is higher than that selected ,the appliance acti -vates cooling. The compressor starts after a delay of 3 minutes(during which only the ventilation function is active) If the temperature of room is lower than that selected required,the applian -ce activates ventilation function.
  • Page 7 OPERATION GUIDE TANK FULL :When water container is full the appliance will stop running au -tomatically.It can be restarted after draining the condensate water through water tap. NOTE: NOTE For the models with remote control, since they are not equipped with "SWING" function, when press the "SWING"...
  • Page 8: Maintenance

    DRAINAGE & MAINTENANCE DRAINAGE 1.Remove the rubber plug,keep it rubber plug for future use. 2.Connect a proper water tube with drain pipe the water hole,the condensed water will drain out automatically. MAINTENANCE Normal sounds 1.Sound of rushing air At the front of the unit,you may hear the sound of rushing air being mov -ed by the fan.
  • Page 9 DRAINAGE & MAINTENANCE Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and then rinse thoroughly under running water (no hotter than 40 C/108 F). Dry thoroughly before replacing. NOTE: Failure to keep air filter clean will result in poor air circulation. Do not operate without filter.This can render the unit inoperative.
  • Page 10: Wire Diagram

    WIRE DIAGRAM WIRE DIAGRAM SPECIFICATION Model 9000BTU 12000BTU Power supply 115V 60Hz 115V 60Hz Rated power input 1050W 1200W Cooling capacity 9000BTU/H 12000BTU/H Ambient 62-100 F 62-100 F Setting temperature 62-90 F 62-90 F Moisture removed 28L/Day 40L/Day Refrigerant See nameplate...
