USER'S MANUAL
DH-900S/DH-902S/DH-903S/DH-905S
Name Of Each Part

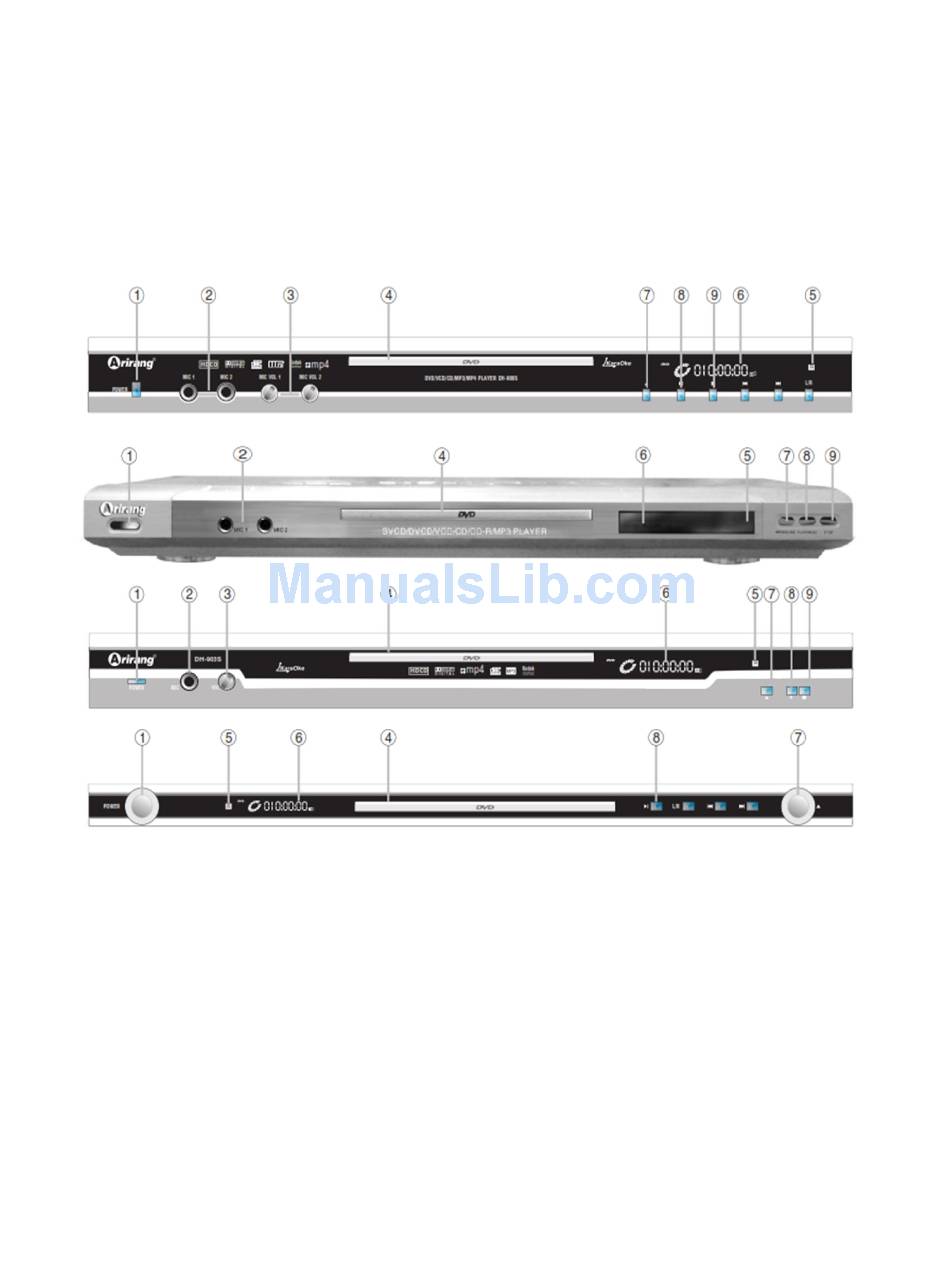

* Front panel
(1) POWER (Power)
(2) MICROPHONE JACKS (Mic port)
(3) MIC VOL (Adjust volume of micro)
(4) DOOR TRAY (Disc tray)
(5) REMOTE SENSOR (Eye received signal from remote control)
(6) FLT DISPLAY (Display clock)
(7) OPEN/CLOSE (Load/eject disc tray)
(8) PLAY/PAUSE (Play/pause)
(9) STOP (Stop)
Advertisement
Table of Contents
Related Manuals for Arirang DH-900S
Summary of Contents for Arirang DH-900S
- Page 1 USER’S MANUAL DH-900S/DH-902S/DH-903S/DH-905S Name Of Each Part * Front panel (1) POWER (Power) (2) MICROPHONE JACKS (Mic port) (3) MIC VOL (Adjust volume of micro) (4) DOOR TRAY (Disc tray) (5) REMOTE SENSOR (Eye received signal from remote control) (6) FLT DISPLAY (Display clock)
- Page 2 * Displayed clock (1) Disc being played (2) Chapter/Track being played (3) Dolby Digital (4) Time being played (5) Inform the state being played * Rear panel (1) Audio 5.1 Output (5.1 audio port) (2) Video Component (Component video port) (3) Video out ( Video port) (4) Optical ( Optical digital audio port) (5) S-Video (Super video port)
-
Page 3: Remote Control
* Remote control Note: When insert the battery into remote control, must be inserted in right polarity +/- of the battery and remote control, avoid the situation that the battery is inserted in incorrect polarity or the battery is tilted. Insert batteries into remote control (Make sure for Close the cover Open the cover... - Page 4 (1) STEP (Stop and slowly play the frame being played) (2) POWER (on/off power(Standby mode)) (3) STEREO L/R (Interrupt the vocal of singer in VCD Karaoke disc play) (4) ANGLE (Select picture angle to see in DVD play (must be supported by DVD disc)) (5) SUBTITLE (Select language captions in DVD disc play) (6) RETURN (Return) (7) SETUP (Enter to installation program to set the device operations)
- Page 5 * Way to use the remote control Note: Not illuminated by the light Not use poor quality battery, not use an old battery and a new battery * Connect to microphone Connect to Microphone, 6 millimeter Jack Note: Use micro with Analog audio output (not connect to digital audio)
-
Page 6: Basic Connections
BASIC CONNECTIONS 1. Connect to TV Component video port Video AV port S-Video audio port Audio AV port (L/R) 2. Connect to audio device Connect to Amplifier input Video AV port Audio AV port... - Page 7 Note: The user can connect to video port by using one of the ways (Video Out, S- Video, Component) depending on the TV of the user Should not connect the different video outputs at the same time Before connecting to audio devices, read the instructions attached carefully Turn off the device before connecting to equipments Should not connect DVD device to Video VCR device 3.
-
Page 8: Installation
Installation System Setup Press SETUP key on the remote control to enter to setup screen Use Up-Down-Left-Right key to move to items Use SELECT key to select: SYSTEM SETUP SOURCE (DISC/USB) TV SYSTEM VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP 1.1. - Page 9 Select the type of video output appropriate with the wire connection at the back side of the device Normally, select TV-RGB for normal wire connection 1.3. TV Type 4:3 PS (Play in full width of the screen) 4:3 LB (Play in full height of the screen) 16:9 (wide screen mode)
- Page 10 1.4. Password Set the code when enter to Rating to set the lock scale. Include 4 characters of number; the original default of manufacturer is ‘0000’ 1.5. Rating Set the children lock scale to limit unwholesome movie contents (Kid Safe: highest lock scale, Adult: lowest lock scale) 1.6.
- Page 11 Restore: Restore the device setting to original default of manufacturer Language Setup OSD language: displayed language Audio language: voice-over language Subtitle language: caption language Menu language: menu language 2.1. OSD Language Have 2 types of language for user to choose: English, Chinese...
- Page 12 2.2. Audio Language Have 8 types of voice-over language for user to choose: Chinese, English, Japan, French, Spanish, Portuguese, Latin, German 2.3. Subtitle Language Have 7 types of caption language for user to choose: Chinese, English, Japan, French, Spanish, Portuguese, German If no need the caption, select Off...
-
Page 13: Audio Setup
2.4. Menu Language Have 8 types of menu language for user to choose: Chinese, English, Japan, French, Spanish, Portuguese, German, Latin III. Audio Setup AUDIO OUT (Select audio output) MIC SETUP (Micro setup) ECHO (Adjust the echo) MIC VOL (Volume of micro) KEY (Adjust song key) - Page 14 3.1 Audio Out SPDIF/OFF: use normal AV wire SPDIF/RAM: use fiber optic cable SPDIF/PCM: use coaxial cable 3.2. MIC Setup AUTO: the device will automatically turn on micro when the user plug in OFF: off...
- Page 15 3.3. Echo Adjust the echo for micro, have 5 levels 3.4. Mic Vol Adjust volume of micro 3.5. Key...
-
Page 16: Video Setup
Adjust the song key, move the slide bar to increase or decrease the key Video Setup Brightness Contrast Saturation 4.1. Brightness Use to adjust the brightness for the screen, have 7 levels for user to choose... - Page 17 4.2. Contrast Use to adjust the contrast of picture, have 7 levels to choose 4.3. Hue Use to adjust the color of picture, have 7 levels for user to choose 4.4. Saturation...
-
Page 18: Speaker Setup
Use to adjust the saturation of picture, have 7 levels for user to choose Speaker Setup Use to change the speaker mixing method with rear audio signals in DVD play Have 4 levels: LT/RT, STEREO, VSS, 5.1 CH Helps turn on/off the subwoofer Have 3 modes for user to choose: ALL LG SPK, ALL SM SPK, MIXED SPK... -
Page 19: Digital Setup
Use to adjust the delay of center speaker (only have in 5.1 speaker system) Have 4 levels to choose Use to adjust the delay of rear speaker (only have in 5.1 speaker system) Have 4 levels to choose Digital Setup... - Page 20 OP MODE (OP mode) DYNAMIC RANGE (linear compression rate) DUAL MONO (output signal) 6.1. Op Mode Have 2 modes for user to choose: LINE OUT, RF MODE 6.2. Dynamic Range - Use to adjust the linear compression rate of the signal 6.3.
-
Page 21: Specifications
Use to select the output for left and right signals of output audio. If select MIX MONO, it only has effect when see DVD disc in 2 channels SPECIFICATIONS Voltage: 110 – 220VAC -50/60Hz Power Consumption: 20W Weight: 2.0Kg Compatible with: DVD/DVD-R/SVCD/ VCD/CD-R/ CD-RW/Mp3/WMA/Mp4 & Jpeg Video 1VP-P (750) 1VP-P (750)
