Support for disks
DVD, DVD-R, SVCD, VCD, CD, CD-R, CD-RW, Mp3, and Karaoke MASECO MIDIVISION
-
disc.
Karaoke support various functions
iFUN: score intelligently for each singing.
-
iSTAR: automatically adjust the tone appropriate with user's voice.
-
iHARMONY: use the use's voice harmonize with background music (Chorus).
-
Automatically play continuously random song when the device is on standby mode.
-
Reserve the song and clear the reserved song as preference.
-
Adjust the song's key and tempo appropriate with each voice.
-
Increase/decrease the song's melody as desired.
-
Install greetings/lines on the screen in Vietnamese.
-
Score and applause as preference
-
Qualitative picture, transparent and clear sound
Decoding technique MPEG1, MPEG2 and MPEG3.
-
High quality sound with digital effect.
-
High quality Video Background (MPEG2).
-
A lot of advantageous functions:
Function of presetting the song and helps to preset 500 songs.
-
The list of new songs.
-
Favorite songs.
-
Language is displayed in Vietnamese and English.
-
USB interface: record; play picture and audio data of all formats
-
MP3,MP4,WMA,WAV...
-
Use DVD ROM (ATAPI)
-
DVD disc can play up to 135', including 8 languages and 32 different captions
- MPEG-2 helps compress picture with high quality sound; creates the great, lively audio
and picture as in the theaters.
USER'S MANUAL
3600 DELUXE
SPECIAL FEATURES
Advertisement
Table of Contents
Related Manuals for Arirang 3600 DELUXE
Summary of Contents for Arirang 3600 DELUXE
-
Page 1: Special Features
USER’S MANUAL 3600 DELUXE SPECIAL FEATURES Support for disks DVD, DVD-R, SVCD, VCD, CD, CD-R, CD-RW, Mp3, and Karaoke MASECO MIDIVISION disc. Karaoke support various functions iFUN: score intelligently for each singing. iSTAR: automatically adjust the tone appropriate with user’s voice. -

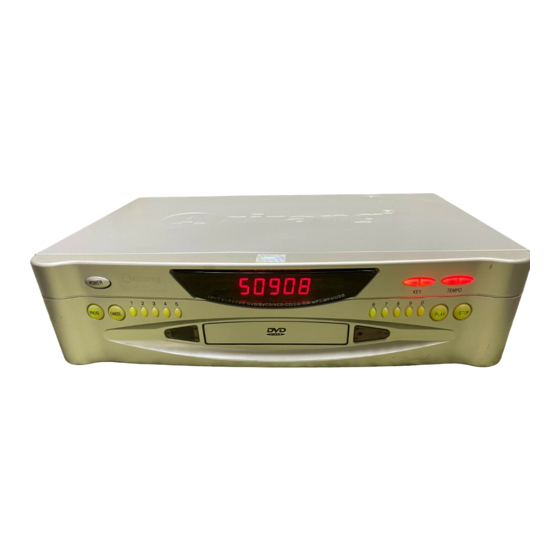

Page 2: Name Of Each Part
NAME OF EACH PART Front panel Numbers keys Light to display Key to adjust Key to adjust to select the song the code of the song the key the tempo Power Control key Stop Disc tray Key to delete the song Play Rear panel 5.1 ch audio port... -
Page 3: Basic Connection
BASIC CONNECTION Connect to TV 5.1ch audio Subwoofer Speaker Connect to 5.1ch Amplifier Rear speaker (left) Rear speaker (right) 5.1 ch Amplifier Front speaker (right) Front speaker (left) Center speaker... -
Page 4: Remote Control
REMOTE CONTROL 1. iFUN/F3: - MIDI: helps on/off intelligent scoring feature (iFUN) and move the song to the priority (SELECTED SONG) 2. F1/SUBTITLE: + MIDI: delete the song in the list + DVD/VCD: helps select displayed language (caption) in DVD play (must be supported by disc) 3. - Page 5 + MIDI: select the priority song to the top position + DVD: helps select TITLE in DVD play 4. VOCAL/AUDIO: +MIDI: helps turn on/off vocal or chorus +DVD/VCD: select the voice-over language 5. PROG/MELODY: + MIDI: use MALE/FEMALE key to increase/decrease the melody volume + DVD/VCD: set the playlist 6.
-
Page 6: System Setting
24. STOP: stop the song being played and move to the next song (MIDI) 25. REPEAT: repeat the song being played 26. A-B/LANGUAGE: + MIDI: Change of language VN/EG/CN when searching for a song (Midi Karaoke) + DVD/VCD: Repeat a selected section of pictures 27. - Page 7 1. General setup: helps adjust some main features - Screen saver: mode of playing screen saver program automatically when the device is in pause - Lock the program: select the scale to lock the children (supported by DVD disk) - Restore settings: restore the original settings 2.
- Page 8 3. Audio setting: helps select audio output - Digital output: 5.1ch audio + Dolby Digital + DTS - Stereo: when turn off this feature, the device will change to 5.1ch mode - Speaker Setup: set 5.1ch audio FL,FR,SL,SR,CENTER,SUBWOOFER + Speaker: small/large + Distance: 1.0M~6.6M + Volume: 0dB~ -10dB - Sampling frequency: 48K/96K...
- Page 9 + Cheer scoring (iFUN): on/off scoring mode + iHarmony: off/on/auto, use the user’s voice to make chorus + iStar: off/normal/professional, adjust the user’s voice appropriate with the tone. - Scale: set score scale + Scale: non-professional/normal/professional + Score: on/off scoring mode - Lyric: on/off the lyric of the song - Background picture: set background picture in Midi Karaoke play (DVD/blue background picture)
- Page 10 (**) Code:”7890” BASIC OPERATION TO USE MIDI KARAOKE I. Helps preset 500 songs 1. Input the code of the song to be played and press “PLAY/ENTER” 2. In case of incorrect input, press “CLEAR” key to delete 3. Press “ENTER” key to store the song to be preset II.
- Page 11 5. Clear a song in the list of stored songs: - Clear one of the songs have been stored, to display the stored songs, press SELECTED SONG key to open the list of the songs, use the function key to perform the operation + F1 key to clear a song + F2 key to move the song to upper position...
- Page 12 7. Select new song: Press Menu\New song key, the device will display the list of new songs, select the song and press ENTER to store or press PLAY to play. Select popular song: - Press Menu\Popular song key, the device will display the list of popular songs defaulted on disk.
- Page 13 SETTING IN MIDI KARAOKE DISC * Some general features in Midi Karaoke use. Press Menu use arrow key to move and Enter key to select, use Return key to return to previous operation. - List of songs: display list of all the songs (VN\EG\KR\CN) - Search as per author: helps user search for a song as per author easily by using the supported character keys corresponding with number keys (see II.4, page 9) - New song, popular song: search operation is the same as above...
-
Page 14: Usb Connection
(L/R) Amplifier USB CONNECTION - When the device is playing CD\VCD\DVD disc, conducting USB connection. The device will automatically identify. Press SETUP select USB to read the file from USB. - MP3+JPEG: this feature helps the device playing both mp3 and picture in Jpeg format. - MP3+WMA: read all files in Mp3 and Wma on USB. -
Page 15: Troubleshooting
RECORD THE VOICE - If the users want to record the voice when using Midi Karaoke disc, we perform as follow: + Plug USB in USB port designed at the rear side of the device. + Press RECORD to conduct recording and select the song code to be recorded. If the users do not plug in USB, the device will notify to plug in and perform the operation again. -
Page 16: Specifications
SPECIFICATIONS Voltage: AC 90 – 240VAC 50/60Hz Power Consumption: 30W USB interface Compatible with: DVD/DVD-R/SVCD/ VCD/CD-R/ CD-RW/Mp3/WMA/Mp4 & Jpeg Video 1VP-P (750) 1VP-P (750) S-Video 0.286 VP-P (750) Output 1VP-P (750) Component 0.7 VP-P (750) 0.7 VP-P (750) Audio 5.1CH 2Vrms(max) Input...
