Page 1: Installation Guide

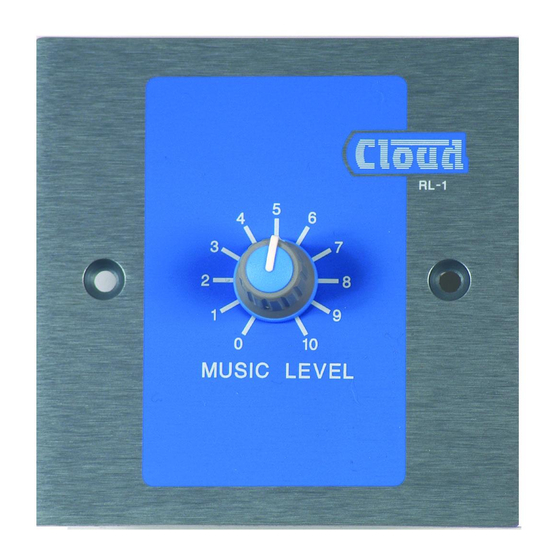

RL-1, RL-1A, RSL-4, RSL-4A, RSL-6, RSL-6A Remote Control Plates Installation Guide RL-1, RSL-4, RSL-6 Installation Guide V1.0... - Page 2 RL-1, RSL-4, RSL-6 Installation Guide V1.0...
-
Page 3: Table Of Contents
Introduction ..............4 Remote plate types ................. 5 Compatible Cloud products..............6 Single and multi-channel operation ............8 Device configuration ................9 Wiring details ..................11 CX163 stereo control options ............13 Wiring diagrams ..................14 RL-1, RSL-4, RSL-6 Installation Guide V1.0... -
Page 4: Introduction
(relevant) products, and also with numerous discontinued products. RL plates adjust the signal level in an audio channel of a Cloud device, and thus allow audio volume in an area to be controlled locally. RSL plates provide the same volume control function as RL plates, but additionally allow remote selection of music source, when used in conjunction with Cloud devices that have multiple line inputs. -
Page 5: Remote Plate Types
(4.51”x 2.76”) which allow them to be mounted into a standard US-style back box (with vertical orientation). All information in this manual applies equally to both mechanical versions. RL-1, RSL-4, RSL-6 Installation Guide V1.0... -
Page 6: Compatible Cloud Products
Compatible Cloud products The table below summarises which current Cloud products are compatible with each type of plate. For older products, please consult the product’s Installation Guide, www.cloud.co.uk, or contact Cloud’s Technical Dept. PRODUCT RL-1/1A RSL-4/4A RSL-6/6A Venue Mixers ✔... - Page 7 * These models require VCA cards to be installed before they can be used with remote control plates. Full installation instructions are provided with the VCA card kit, and can also be found in the Installation Guide for the model. RL-1, RSL-4, RSL-6 Installation Guide V1.0...
-
Page 8: Single And Multi-Channel Operation
An RL-1/1A may be wired in parallel to more than one channel of an amplifier or zoner, but note that the “law” of the control will differ from that obeyed when it is used with a single channel. -
Page 9: Device Configuration
RL plates: When adding RL-1/1A remote control plates, it will generally be necessary to disable the front panel music level control, so that volume may be adjusted only by the plate. On most units, this is done by operating a rear panel push-button switch. - Page 10 Guide for the specific product to which they are connecting the plates. This will give full details of the configuration procedure. If necessary, Installation Guides for all products can be found at www.cloud.co.uk. On multi-channel (or multi-zone) devices, the configuration changes necessary for remote control are always per-channel or per-zone.
-
Page 11: Wiring Details
RSL plates: These always require twin-core screened cable. The use of crimp ferrule-type terminals is recommended for the cable terminations as this will provide a much more reliable long-term connection. Recommended maximum cable length is 100 m (328 ft.) RL-1, RSL-4, RSL-6 Installation Guide V1.0... - Page 12 PRODUCT RL-1/1A RSL-4/4A RSL-6/6A Venue Mixers Zone Mixers CX163 C or D* CX263 CX261 CX462 Integrated Mixer-amplifiers MA60 MA60 MEDIA 36/50 46/50 Power amplifiers MPA60 MPA120 RL-1, RSL-4, RSL-6 Installation Guide V1.0...
-
Page 13: Cx163 Stereo Control Options
CX163 stereo control options The CX163 is a two-zone stereo mixer and has a different remote control connector to other Cloud units. When using RL remote level control plates with a CX163, the installer has the option of using a single RL plate to control both left and right channels together (i.e., stereo operation),... -
Page 14: Wiring Diagrams
WIRING DIAGRAM A REMOTE LEVEL CONTROL WIRING REMOTE LEVEL CONTROL WIRING REMOTE MUSIC REMOTE MUSIC RL-1/1A RL-1/1A CONTROL CONTROL CONNECTOR CONNECTOR USE TWO-CORE SCREENED CABLE USE TWO-CORE SCREENED CABLE WIRING DIAGRAM B WIRING DIAGRAM C RL-1, RSL-4, RSL-6 Installation Guide V1.0... - Page 15 (CX163 ONLY) 1 2 3 USE TWO-CORE SCREENED CABLE WIRING DIAGRAM D RSL-4/4A or RSL-6/6A REMOTE SOURCE & LEVEL CONTROL WIRING REMOTE MUSIC CONTROL CONNECTOR RSL-4/4A RSL-6/6A USE TWO-CORE SCREENED CABLE WIRING DIAGRAM E RL-1, RSL-4, RSL-6 Installation Guide V1.0...
- Page 16 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
