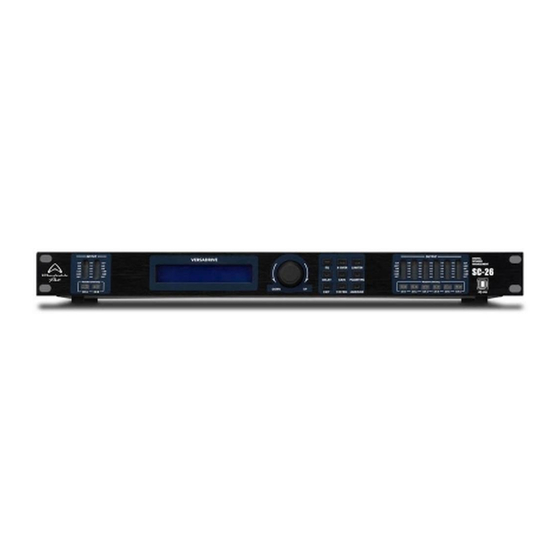

- Page 1 Versadrive SC-26 Speaker Management System OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com...
-
Page 2: Table Of Contents
Table Of Contents Table Of Contents .................. Important Warnings & Safety Instructions ..........2 Editing Audio Settings................4 Editing System Settings................5 PC Software Operation................6 Specifications .................... 9 Warranty ....................0... -
Page 3: Important Warnings & Safety Instructions
Important Warnings & Safety Instructions . Read these instructions 2. Follow all instructions 3. Keep these instructions 4. Heed all warnings 5. Do not use this apparatus near water 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 4 Front Panel Controls And Features • LCD Display: Displays menu and settings information • X-Over: To access crossover output settings • EQ: To access equalization settings for all channels • Limiter: To access limiting settings for output channels • Polarity: Change signal polarity •...
-
Page 5: Editing Audio Settings
• Once edited, click the rotary encoder once more to confirm the new value. Input Polarity Setting Polarity can be changed independently for each channel on the Versadrive SC-26. • To edit, hold in the MUTE / EDIT button for 3 seconds on the channel of your choice. -
Page 6: Editing System Settings
• Device ID: Up to 250 units can be used together. To keep organised you can edit the number / order of particular Versadrive SC-26 units. • Password: A 6 digit password can be set for safety at your venue and to lock the controls from unauthorised users. -
Page 7: Pc Software Operation
PC Software Operation The settings of the Versadrive SC-26 can be edited from your PC via USB connection. This can be done live during performance or you can store settings to the unit before your gig. An additional RS-485 connection allows long-distance network use allowing 250 units to be used at once while being up to 500m away from the PC. - Page 8 Saving and Recalling Settings The Versadrive SC-26 can operate a combination of loading and saving patches to both your PC and Versadrive SC-26 unit. The operation works for single patches but also has the ability to load the full 30 patches to your PC or device too (i.e. ‘Store All Programs To Device’).
- Page 9 Connecting Your Versadrive SC-26 The diagram below shows how to connect your Versadrive SC-26 to your PC and linking multiple units. Please note that the Versadrive SC-26 works with PC only. Install the drivers supplied on the CD-ROM or download via www.wharfedalepro.com.
-
Page 10: Specifications
SPECIFICATION Model Name SC-26 Frequency Response (±0.5dB) 20Hz - 20KHz 32-bit A/D D/A Converter 24-bit / 96 kHz S/N Ratio >0dB Delay time range 0-000ms Filter Types Linkwitz-Riley, Bessel, Butterworth Up to 48dB/oct. 6-band parametric / low shelf / high shelf Memory 30 save slots Number of inputs... -
Page 11: Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 12 Wharfedale Professional IAG House, 3/4 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 204 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
