Korg ToneWorks AX1000G Owner's Manual page 5

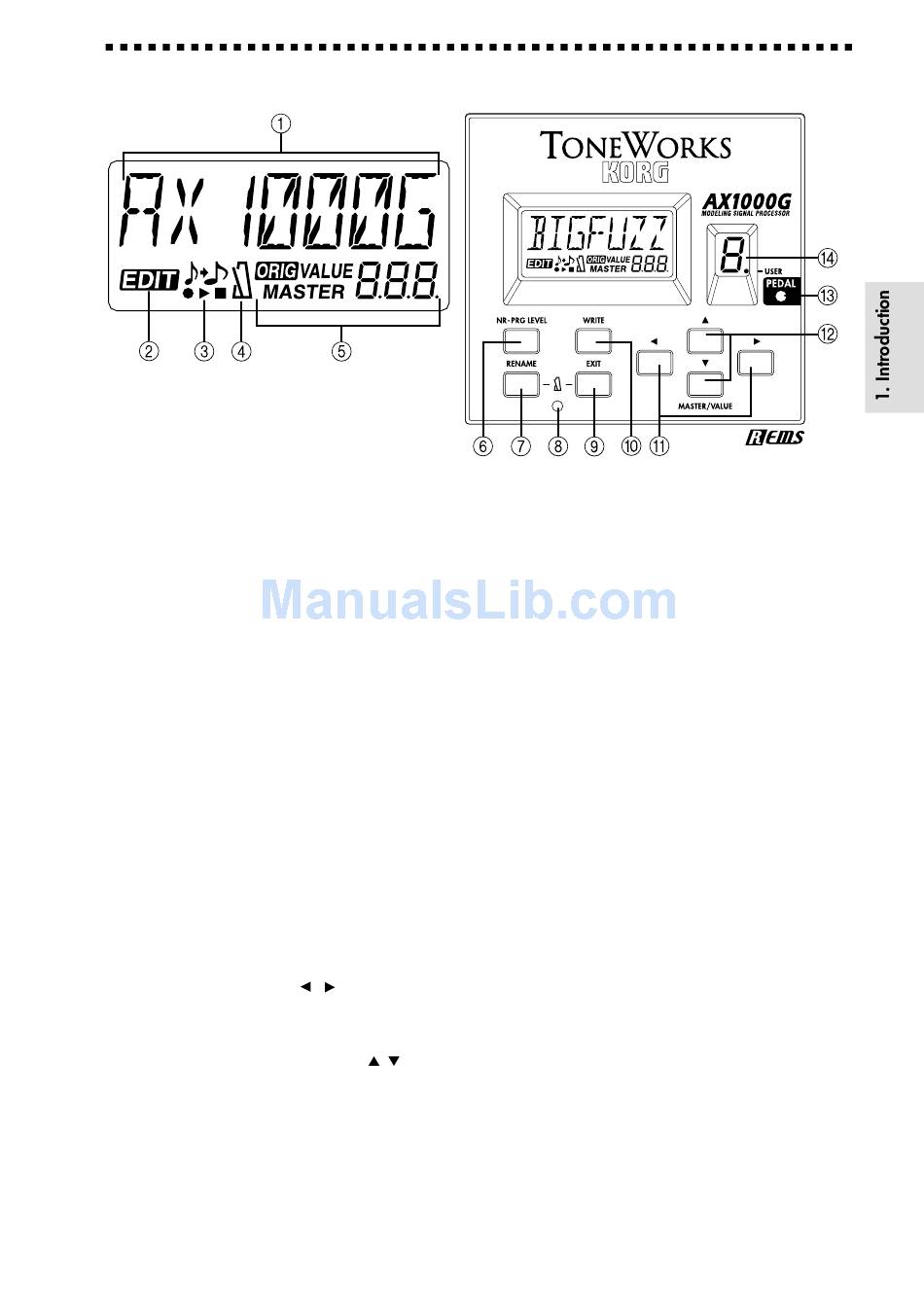

LCD and control panel
1
Name display
This shows the program name, effect
name, or parameter name, as appropri-
ate for each operation.
2
Edit icon
This will light if the selected program has been edited. It will blink if the program is
currently being edited.
3
Phrase trainer icon
This will blink when you are in Phrase Trainer mode.
4
Metronome icon
This will light when the metronome is on. It will blink while the metronome tempo or
level is being adjusted.
5
MASTER/VALUE display
This indicates the master level or parameter values.
6
NR-PRG LEVEL switch
Use this switch to adjust the amount of noise reduction or the level of each program.
7
RENAME switch
Use this switch to modify the name of a program.
8
Metronome LED
This LED will blink in time with the metronome tempo.
9
EXIT switch
From any state, you can press this to return to Play mode.
0
WRITE switch
Use this switch to save an edited program.
A
Cursor switches ( ,
Use these switches to select the parameter that you wish to edit, or when modifying the
name of a program.
B
MASTER/VALUE switches ( ,
Use these switches to modify the master level or the value of a parameter.
C
Pedal LED
This LED indicates the on/off status of the PEDAL effect, or the recording status when
the Sample & Play function is being used.
D
Bank number display
This shows the bank of the selected program. When a user program is selected, the
decimal point "." located at the lower right of the bank number will light.
)
)
