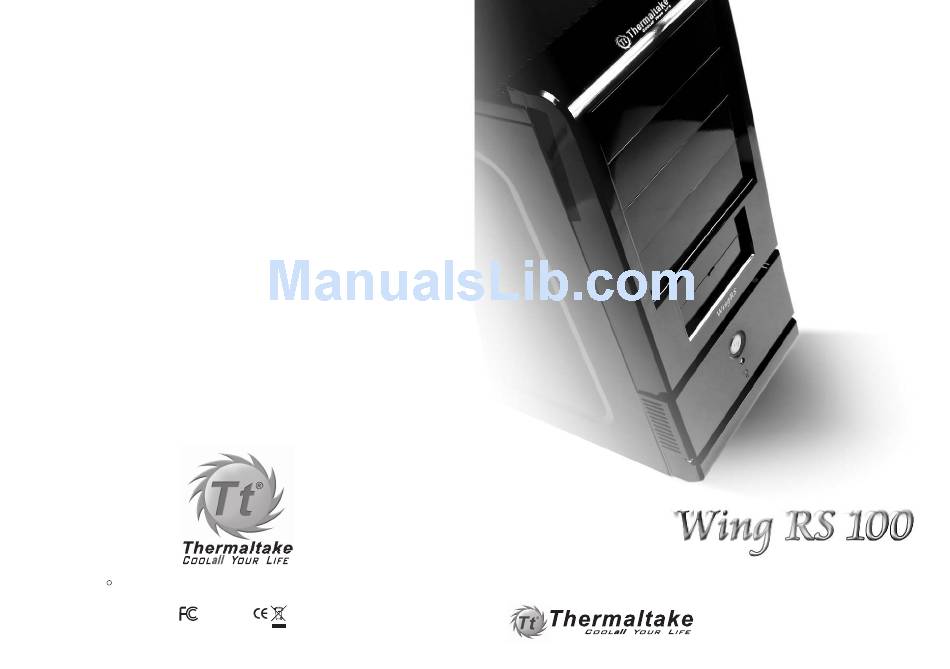

- Page 1 User's Manual 2007 Thermaltake Technology Co., Ltd. All Rights Reserved. 2007.04 All other registered trademarks belong to their respective companies. www.thermaltake.com Tested To Comply With FCC Standards FOR HOME OR OFFICE USE VG1000BNS VG1000BNS...
-
Page 2: Table Of Contents
Chapter 1. Product Introduction Specification ontents Chapter 1. Product Introduction Specification Chapter 2. Case Mechanical Operation How to open the side panel Model VG1000BNS External 5.25" device installation External 3.5" device installation Case Type Middle Tower HDD installation Net Weight 4.75 kg ;... -
Page 3: Chapter 2. Case Mechanical Operation
Chapter 2. Case Mechanical Operation 2-1 How to open the side panel 2-2 External 5.25" device installation To remove the side panel, please remove upper and bottom thumb screws on Remove the front panel the back of the case. Pull out the front panel as shown Remove the side panel, Open the side panel... - Page 4 Remove the 5.25" drive bay metal cover Find the proper openings Turn lock device counterclockwise to unlock Put back the lock device and turn lock device clockwise to lock Remove lock device 5.25" device installation Place 5.25" device into the complete drive bay VG1000BNS...
-
Page 5: External 3.5" Device Installation
2-3 External 3.5" device installation Turn lock device counter- Pull out the front clockwise to unlock panel as shown Remove lock device and insert the device into the Remove the 3.5" 3.5" drive bay drive bay plastic cover Find the proper openings VG1000BNS... -
Page 6: Hdd Installation
2-4 HDD installation Put back the lock device and turn clockwise to secure the drive Turn lock device counter- clockwise to unlock Remove lock device then 3.5" device installation place HDD into drive bay complete Important Notice: The lower 3.5" external drive bay is not compatible Put back the lock device and with FDD, but HDD is able to be installed in it. -
Page 7: Front Fan Installation (Optional)
2-5 Front fan installation (optional) 2-6 PCI slot usage Remove thumb screw from PCI slot bracket Remove the front panel Take off the PCI slot bracket as shown Place the fan as shown Insert the PCI device into PCI slot Secure the fan by screws VG1000BNS... -
Page 8: How To Install Psu
2-7 How to install PSU Put back the PCI slot bracket Place the PSU over the location as shown Screw the thumb screw as shown Secure it by screws Finish installation Finish installation VG1000BNS... -
Page 9: Motherboard Installation
Chapter.3 Motherboard & Leads Installation 3-1 Motherboard Installation 3-2 Case LED connections Each motherboard has different standoff layout. It is highly suggested that you refer to your motherboard's manual when installing On the front of the case, you can find some LEDs and motherboard into the Case. -
Page 10: Usb2.0 Connection
3-3 USB2.0 connection 3-4 Audio connection Please consult your motherboard manual USB connection to find out the section of "front panel Please consult your motherboard manual to find audio connector". out the section of "USB connection". AUDIO VCC1 VCC2 AUD_GND AUD_GND MIC_BIAS FP_RET_R... -
Page 11: Chapter4 Rsi Cooler And Power Supply
- Perfect ratio aluminum extrusion heatsink - Safety : UL, CUL, CE, NEMKO, TUV+CB, BSMI, FCC certification. for better heat dissipation. - Tool-less clip, easy installation. - Silent Solution There are recommended products of Thermaltake PSU, please refer to http://www.thermaltake.com VG1000BNS... - Page 12 memo memo VG1000BNS...
