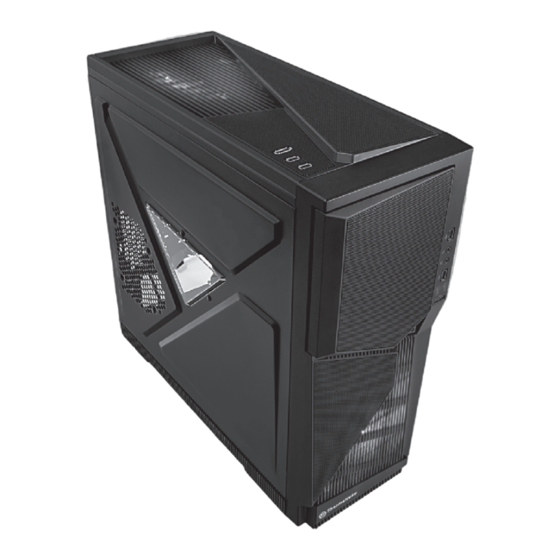

VL9000 Series
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
安裝說明書
用戶手冊
ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
Advertisement
Table of Contents
Related Manuals for Thermaltake VL9000 Series
Summary of Contents for Thermaltake VL9000 Series
- Page 1 Manuale dell’utente 安裝說明書 用戶手冊 ユーザーズマニュアル Руководство пользователя kullanıcı elkitabı ©2010 Thermaltake Technology Co., Ltd. All Rights Reserved. 2010.02 (EEE Yönetmeliğine Uygundur) All other registered trademarks belong to their respective companies. www.thermaltake.com Tested To Comply With FCC Standards FOR HOME OR OFFICE USE...
-
Page 2: Specification
Specification C o n t e n t s Chapter 1. Product Introduction Specification Model VL90001W2Z Case Type Middle Tower Chapter 2. Installation Guide Transparent Window Side Panel CPU Cooler Height & VGA (Add-on card) Length Limitation Net Weight 8.2 kg / 18.1 lb Dimension 515.0 x 210.0 x 502.0 mm... - Page 3 CPU Cooler Height & VGA (Add-on card) Length Limitation Attenzione! Limitazione altezza dissipatore CPU: Assicurarsi che l’altezza del dissipatore CPU NON superi 180 mm (7,1 pollici). Limitazione lunghezza VGA (scheda aggiuntiva): Assicurarsi che la lunghezza del VGA (scheda aggiuntiva) NON superi 260 mm (10,2 pollici). <180 mm 警告！！...
-
Page 4: Side Panels Disassembly
Side Panels Disassembly Motherboard Installation English / 繁體中文 / 1. Lay down the chassis. 1. 放平機殼。 English / 繁體中文 2. Install the motherboard in proper 2. 將主機板安裝在適當位置，然後用螺絲固定。 Unscrew thumbscrews and slide side 擰鬆拇指螺絲並從機殼滑下側面板。 location and secure it with screws. panels off from the chassis. Deutsch / 简体中文... - Page 5 5.25” Drives Installation Italiano / 4. 内側および外側に押して5.25” HDDケー 1. Tirare il pulsante del pannello anteriore ジの工具不要クリップをアンロックしま す。 per sganciarlo dallo chassis. 5. 5.25”デバイスをドライブベイに差し込 2. Rimuovere il coperchio in plastica み、上下に押して工具不要クリップをロ dell’alloggiamento dell’unità da 5,25”. ックします。 3. Rimuovere il coperchio in metallo dell’alloggiamento dell’unità...
-
Page 6: Drive Installation
3.5” Drive Installation Italiano / Русский / Русский / 1. Estrarre il pannello anteriore. 1. Снимите переднюю панель. 2. Rimuovere il coperchio del vano unità 2. Снимите крышку отсека da 3,5’’. 3,5-дюймового дисковода. 3. Inserire il dispositivo nel vano unità da 3. -
Page 7: Hdd Installation
3.5” HDD Installation Italiano / Русский / Русский / 1. Spingere all’interno e verso l’alto per 1. Для разблокировки фиксатора, не тр sboccare la clip tool-free nel ебующего применения инструментов, contenitore HDD da 3,5”. на каркасе для 3,5-дюймовых жестки 2. Inserire il dispositivo da 3,5” nel х... -
Page 8: Power Supply Unit (Psu) Installation
Power Supply Unit (PSU) Installation 2.5" HDD Installation Italiano / 1. Posizionare la PSU in modo corretto. 2. Regolare il ponticello di supporto della PSU nella posizione corretta e fissare la PSU con delle viti. 繁體中文 / 1. 將電源供應器放在正確的位置 2. 將電源供應器支撐架調整到適當的位置， 然後用螺絲固定電源供應器。... -
Page 9: Pci Card Installation
Keyboard & Mouse Security Lock Usage PCI Card Installation English / English / dall’interno dello chassis con la relativa vite. 繁體中文 / Place the keyboard or mouse cables through Insert the PCI card into the PCI slot, and 將 PCI 卡插入 PCI 插槽，然後用螺絲固定。 the “Keyboard &... -
Page 10: Front Fan Installation (Optional)
Front Fan Installation (optional) 120 mm Fan Installation (optional) 200 mm Fan Installation (optional) Notice: Remove the original 120mm Blue LED fan before installing the 200mm fan. English / 1. Install the spacer in front of the enclosure. 2. Take the #6-32 screw out of the Armor A90 part kit and tighten it. - Page 14 Memo Memo...
