Lilin PIH-308 Instruction Manual

Multiple pan/tilt/lens control
Hide thumbs

Advertisement

Table of Contents

Multiple Pan/Tilt/Lens Control
PIH-308/308-24
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-308 and is the answer not in the manual?

Questions and answers

Related Manuals for Lilin PIH-308

Summary of Contents for Lilin PIH-308

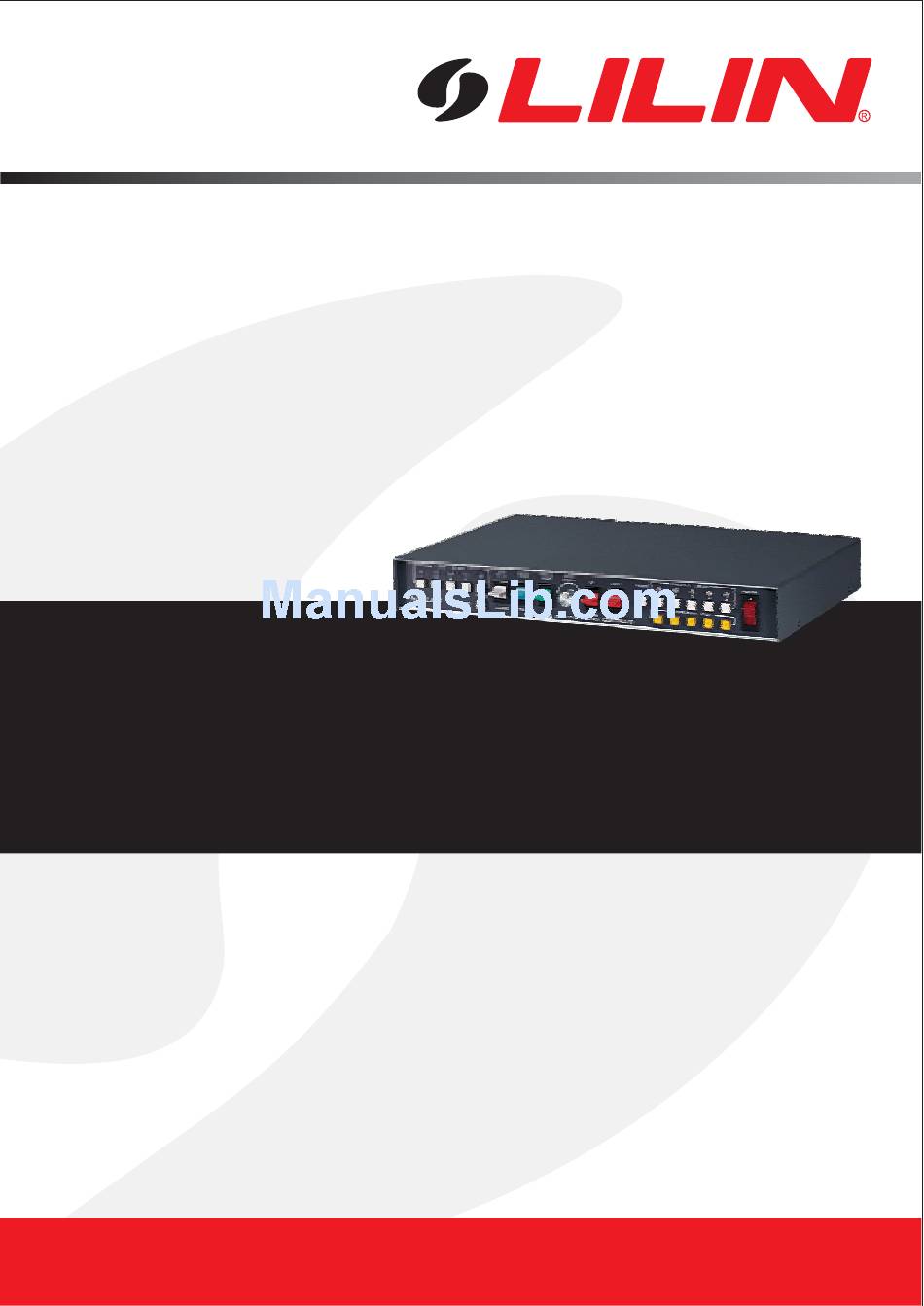

  • Page 1 Multiple Pan/Tilt/Lens Control PIH-308/308-24 INSTRUCTION MANUAL...
  • Page 2 CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the RISK OF ELECTRIC SHOCK presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN COVER.

  • Page 3: Table Of Contents

    PREFACE Thank you for choosing PIH-308/308-24 Multiple Pan/Tilt/Lens Control. For trouble free installation and optimum performance please read this manual thoroughly before attempting installation or operation. CONTENTS Page 1. Front Panel 2. Rear Panel 3. Interconnecting Diagram 4. Remarks 5. Specifications...

  • Page 4: Front Panel

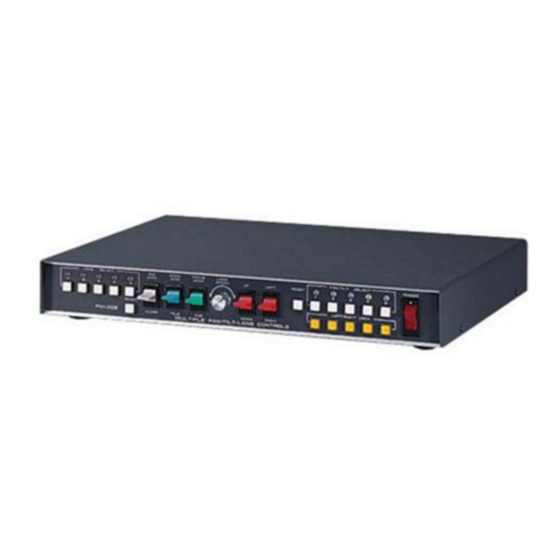

    SPEED RESET LEFT/RIGHT LOCK CLOSE TELE DOWN RIGHT PIH-308 MULTIPLE PAN/TILT/LENS CONTROLS POWER SWITCH PAN/TLLT/SELECT: Setting switches for manual control of pan/tilts. LEFT/RIGHT LOCK: Double-color switches which will go panning automatically when indicator lamp of switches turns to green. RESET: To reset manual mode of pan/tilt.

  • Page 5: Rear Panel

    2. REAR PANEL FUSE HOLDER AC INPUT PAN/TILT OUTPUT IRIS/ZOOM/FOCUS OUTPUT AC INPUT FUSE HOLDER PAN/TILT OUTPUT: 6P Connector. 1. Auto 2. Common 3. Down 4. Up 5. Right 6. Left IRIS/ZOOM/FOCUS OUTPUT: 6P Connector. 1. Grounding 2. IRIS 3. No Connection 4.

  • Page 6: Interconnecting Diagram

    GROUNDING IRIS NO CONNECTION ZOOM FOCUS NO CONNECTION 4. REMARKS a. The PIH-308 controls 5 sets of PAN/TILTS which are fed AC input of 117V or 230V (potion). INPUT OUTPUT a.c. 117V a.c. 117V OR a.c. 230V (FOR PAN/TILTS) PIH-308 DC 12V ....

  • Page 7: Specifications

    6. SPECIFICATIONS PIH-308 / PIH-308-24 MULTIPLE PAN/TILT/LENS CONTROL Model No. PIH-308 PIH-308-24 Input/Output Voltage 117/230Va.c. , 50/60Hz 24Va.c. , 50/60Hz Pan/Tilt Control Buttons Push button / Rocker and paddle switch Direction Control UP/DOWN , LEFT/RIGHT Focus NEAR/FAR switchable Zoom WIDE/TELE switchable...
  • Page 8 IRIS ZOOM FOCUS LENS PAN/TILT SELECT POWER POWER LEFT RESET OPEN WIDE NEAR SPEED AC Output RESET LEFT/RIGHT LOCK PIH-308 CLOSE TELE DOWN RIGHT MULTIPLE PAN/TILT/LENS CONTROLS Indoor Pan/Tilt PIH-308/PIH-308-24 PS-10 Multiple Pan/Tilt/Lens Control Power Supplier (Used in PIH-308-24) 66-308CSE-1...
  • Page 9 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-308CSE...

This manual is also suitable for:

Pih-308-24
