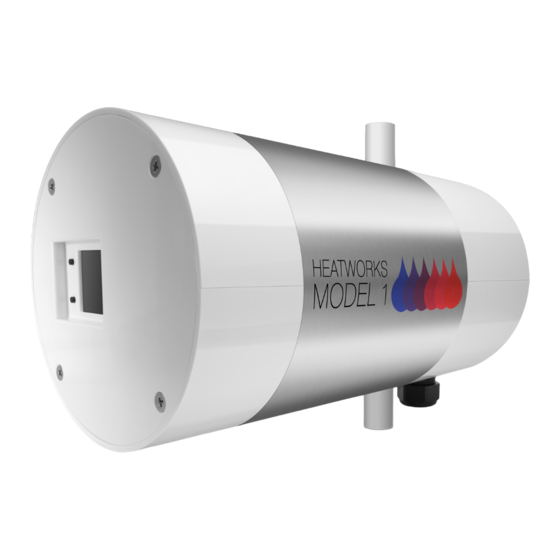

Summary of Contents for Heatworks model 1

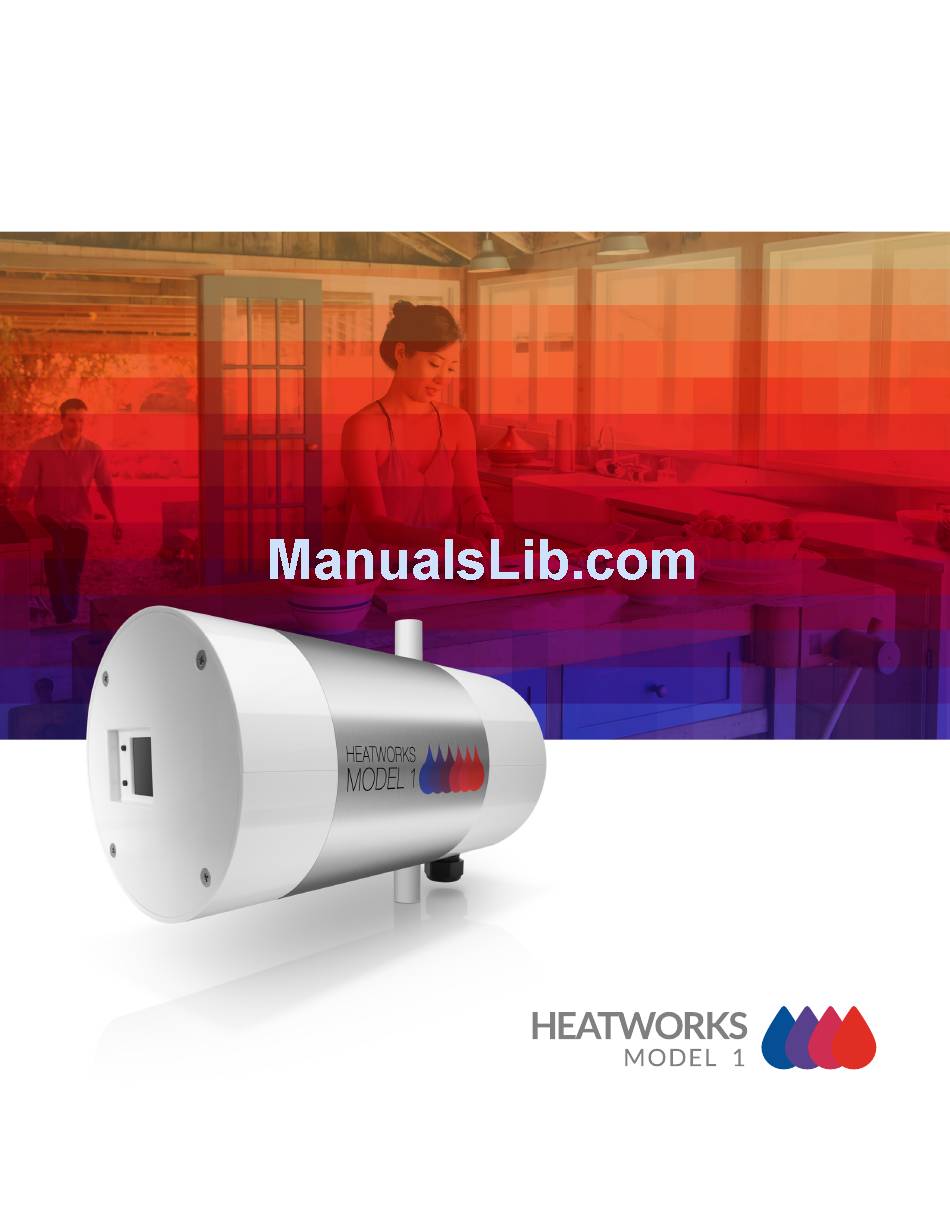

- Page 1 www.myheatworks.com INSTALLATION & USER MANUAL...
-
Page 3: Installation Of Your Model
PLEASE READ THESE INSTRUCTIONS THOROUGHLY AND COMPLETELY PRIOR TO INSTALLATION AND USE. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. IMPROPER INSTALLATION OR USE WILL VOID YOUR WARRANTY. -
Page 4: Table Of Contents
CONTENTS Introduction Applications for the Heatworks MODEL 1 Important Safety Information MODEL 1 Specifications Overview Normal Operation Installation of your MODEL 1 Plumbing Installation Instructions Electrical Installation Troubleshooting Maintenance Heatworks MODEL 1 LIMITED WARRANTY Warranty Registration... -
Page 5: Introduction
Save up to 40% of energy costs devoted to heating water and 10% of water usage. The MODEL 1 is the first water heater to accept preheated water, creating three new water-heating applications (booster, extender, and turbocharger). - Page 6 Eliminate the wait time for hot water from your existing system by placing MODEL 1s close to a point of use in line with the existing hot water plumbing. The MODEL 1 will provide instant hot water. When the heated water from the existing water heating system (gas, electric, tank or tankless) eventually arrives, the MODEL 1 automatically powers down.
- Page 7 Installation is the same as in the extender application, however in this scenario the existing tank temperature must be reduced. The MODEL 1 will then heat the water up to its final temperature on demand. This saves a substantial amount of energy and provides consistent and accurate temperature control.
-
Page 8: Important Safety Information
MODEL 1s on the outlet side of a solar water heater, in line with the existing hot water plumbing. The MODEL 1 will provide instant hot water to supplement your solar heater during poor sun conditions. When the heated water from the existing water heating system (gas, electric, tank or tankless) eventually arrives, the MODEL 1 automatically powers down. -
Page 9: Model 1 Specifications
MODEL 1 SPECIFICATIONS Description Tankless water heater utilizing direct energy Temperature outlet 50 °F to 130 °F (domestic hot water use) transfer technology. Product platform provides setpoint range reliable, controllable, and immediate water heating, either as a standalone water heater or as a ”booster”, “extender”... -
Page 10: Overview
OVERVIEW WATER OUTLET POWER CONTROL WATER INLET www.myheatworks.com... -
Page 11: Normal Operation
NORMAL OPERATION Operating your new tankless water heater is very similar to using any traditional water heating system. However, it is very important that you carefully read all of the setup procedures, operating instructions, and tips to ensure the maximum performance and energy savings from your new water heater. -
Page 12: Installation Of Your Model 1
INSTALLATION OF YOUR MODEL 1 When installed, the MODEL 1 must be oriented horizontally, with the water inlet at the bottom and the water outlet at the top of the unit. INSTALLATION PROCEDURE Use the mounting brackets provided as a template to position the screw holes. Four screws are provided to mount the brackets. -
Page 13: Plumbing Installation Instructions
The MODEL 1 requires two line conductors and one grounding conductor. The line conductors can both be phase (split-phase installation), or one line may be phase and the other neutral. The MODEL 1 auto senses voltage from 50 or 60 cycles (Hz) so there is no adjustment needed to set voltage. - Page 14 Your MODEL 1 is preset from the factory to draw a maximum current of 15 amps. To increase the maximum current draw, follow this procedure using the two buttons and the LCD screen on the front of the unit: CONTROL END Control Buttons •...
-
Page 15: Troubleshooting
Flow rate is too high Depending on your incoming water temperature and power output of your MODEL 1, your water flow rate may exceed the physical heating capacity of your water heater. Reduce the flow rate at the faucet. -
Page 16: Maintenance
WARNING: Do not switch power on if there is a possibility the water in the heater is frozen. Subject to the terms and conditions set forth in this limited warranty, each Heatworks MODEL 1 is warranted to the original Owner (“Owner”) against (i) mechanical or electrical failure of any component solely due to defects in material or Manufacturer’s workmanship for a period of... - Page 17 Manufacturer is not liable to Owner or any third party for any loss, personal injury or property damage, directly or indirectly, arising from the Heatworks MODEL 1 water heater. Under no circumstances is Manufacturer liable to Owner or any third party for incidental, consequential, special, contingent, or punitive damages of any description, whether any such claim be based upon warranty, contract, negligence, strict liability, or other tort, or otherwise.
- Page 18 This unit is used in an unapproved scenario such as, but not limited to, as fish tank water heater, to heat pools or spas, with a non-compatible AC/DC converter, if under-sized for the intended application, etc. Please contact Manufacturer before using the MODEL 1 in any alternative scenarios so not to void your warranty.
-
Page 19: Warranty Registration
Return Process Subject to the terms and conditions set forth in this limited warranty, if the Heatworks MODEL 1 fails or leaks because of defects in materials or Manufacturer’s workmanship during the applicable warranty period set forth above, Owner should contact Manufacturer for a Returned Merchandise Authorization (RMA). - Page 20 ISI Technology 475 East Bay Street Charleston, SC 29403 888. 506. 2821 info@isitechnology.com www.myheatworks.com...
