FingerTec AC800 Series Service Manual

AC800 Series Fingerprint Reader
Service Manual
Table of Contents
Chapter 1
General Descriptions for AC800 Series
Fingerprint Reader
Chapter 2
Components - Details and Functions
2.0 Components Assembly
2.1 Details of Parts
2.1.1 Graphical Dot Matrix LCD
2.1.2 Connections between
Graphical Dot Matrix LCD
and Controller Board
2.1.3 Optical Fingerprint Sensor
2.1.4 Connections between Optical
Sensor and FP Matching Board
2.1.5 FP Matching Board
2.1.6 Connection of FP Matching
Board and AC800 Series
Controller Board
2.1.7 Keypad Board
2.1.8 Connection of Keypad Board
and Controller Board
2.1.9 Speaker
2.1.10 AC800 series Controller Board
2.2 Arrangements of Components in
AC800 Series Reader
Chapter 3
Troubleshooting and Repairing
3.1 Connection between Reader and PC
using LAN connection
3.1.1 Solutions
3.2 Connections between Reader and PC
using RS232/485
3.2.1 Solutions
3.3 Troubleshooting for LCD Screen
Displaying
3.3.1 Solutions
3.4 Troubleshooting for Fingerprint Sensor
3.4.1 Solutions
Chapter 4
Door Lock System
4.1 EM-Lock
4.2 Push Release Button
4.3 Override Key Switch
4.4 Emergency Break Glass
4.5 Complete connection of door lock
system
4.5.1 Simple door lock system (with
1 fi ngerprint reader)
4.5.2 Door lock system with in/out
reader
Copyright © 2005 FingerTec Worldwide. All rights reserved.
JULY 2005 VERSION 1

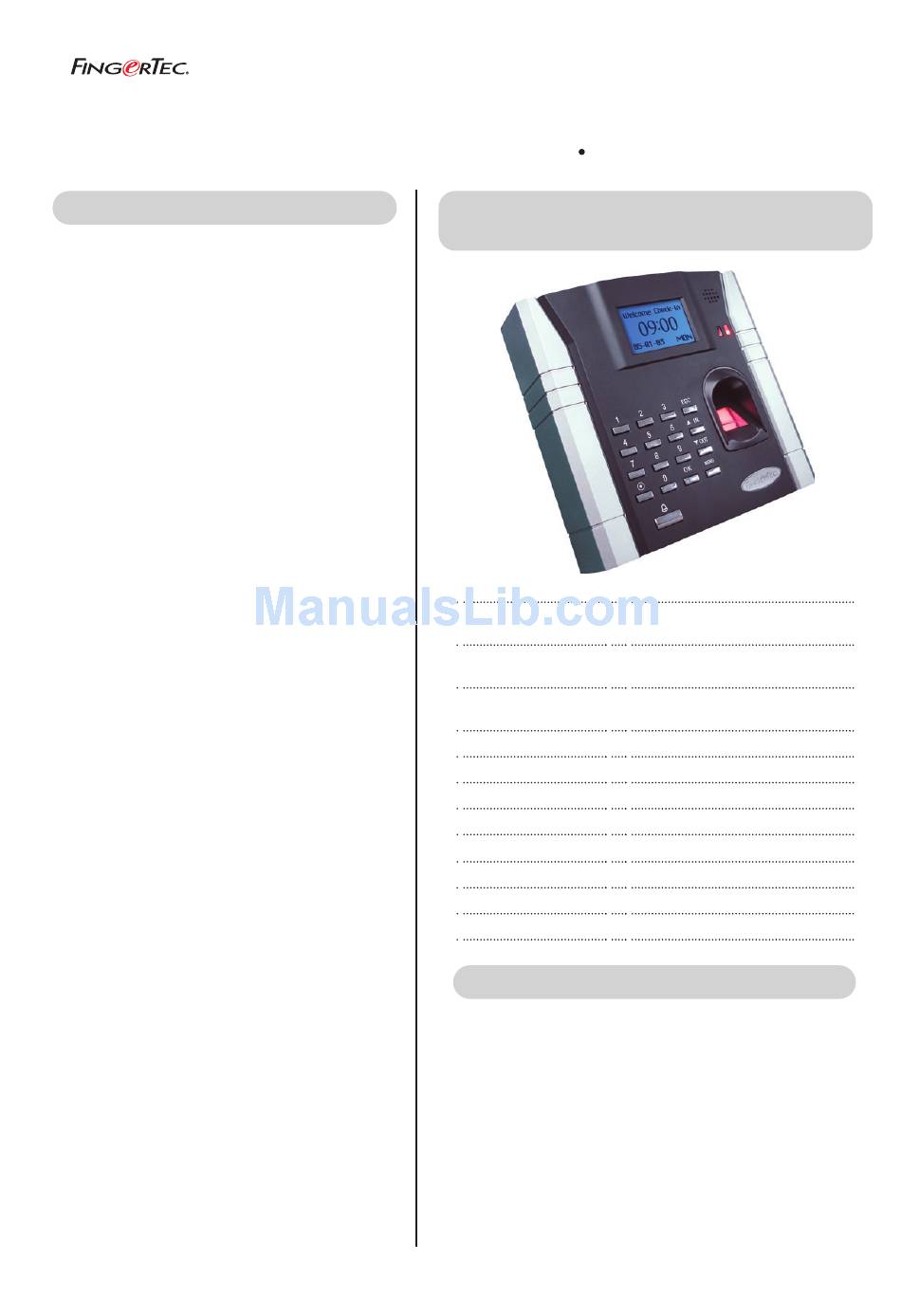

Chapter 1: General Descriptions of
AC800 Series Fingerprint Reader
:
Model
:
Template Size
Transaction Storage :
Communication :
:
Identifi cation Time
FAR :
FRR :
:
Time Zone
Temperature :
:
Power
Size :
Overview
• One to many identifi cation
• One to one verifi cation
• 10 fi ngers enrollment per user
• Standalone and/or networked operation
• 50 defi nable time zones
• Integrated wall mount design
• Power management
• In-Out reader confi guration
• Voice greetings
• Wireless doorbell
• Separate control of EM-Lock
• 26-bit Wiegand output (for WG model only)
SM800-01
Compiled by K.L. Pang
AC801 / AC802 / AC803 /
AC801WG
1k (AC801) / 1.5k (AC802) / 2.8k
(AC803)
30k (AC801) / 100k (AC802) /
120k (AC803)
RS232, RS485, TCP/IP; Wiegand
<=2s
<=0.0001%
<=1%
50 settings
0 - 45°C
12VDC @ 1A
150(W) x 145(H) x 38.5(D) mm
