Summary of Contents for Automatic Solutions ASA 550L I

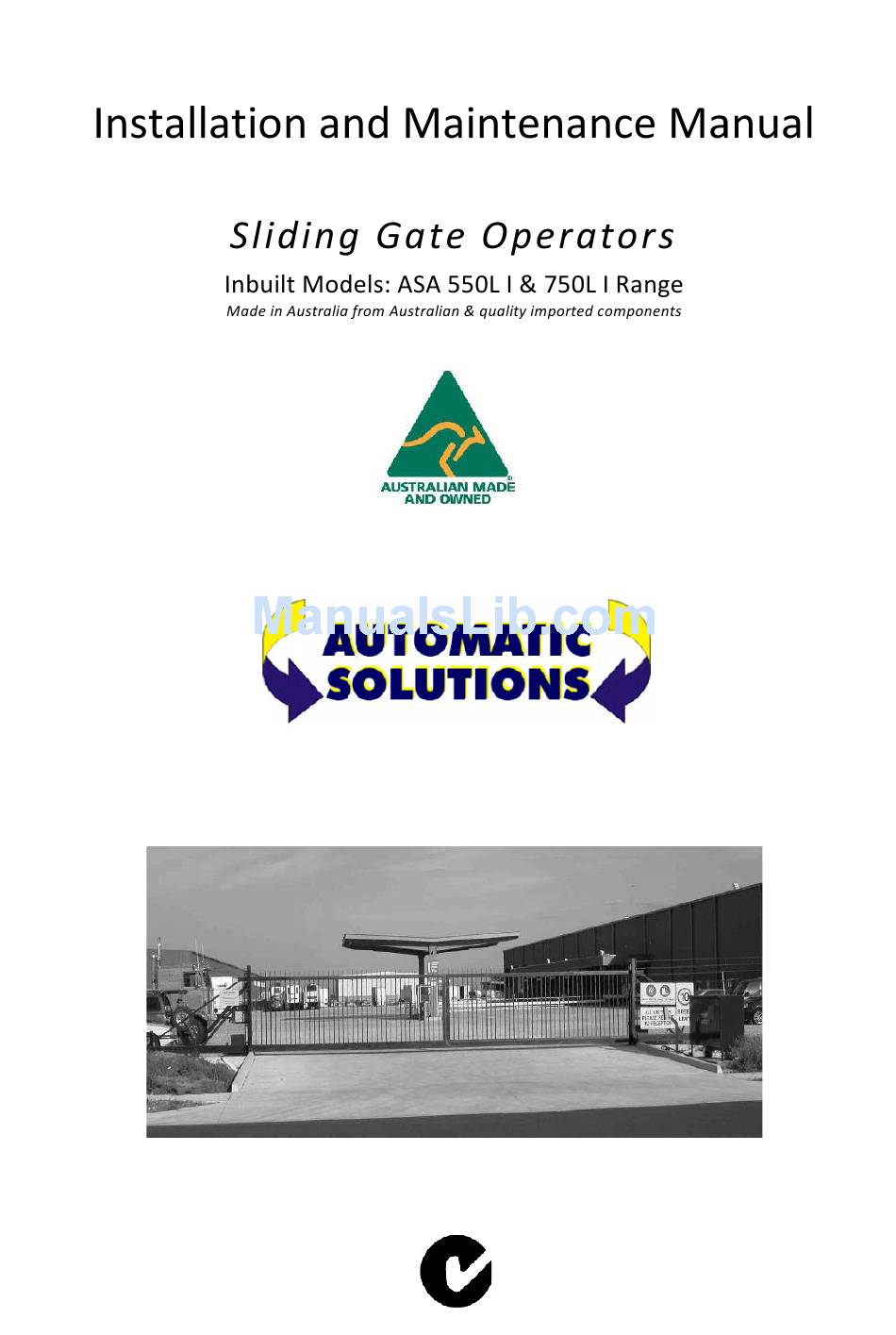

- Page 1 April 2010 N14870...
-
Page 2: Abbreviated Installation Instructions
Abbreviated Installation Instructions (For those who don't have time!) S l i d i n g G a t e O p e r a t o r s ASA 550, 750 “L” Range Made in Australia from Australian & quality imported components Place operator in correct position (Pinion wheel to be parallel to the gate and stepped out to allow for width of rack once it is mounted onto the gate frame). - Page 3 To commission the gate, move the gate approximately 1m from the fully open position and tighten the knurled wheel (Clockwise) engaging the clutch assembly Press the opening button located under the dip switches to begin opening cycle, Ensure the direction the gate travels is in accordance with the opening and closing status LED’s, if not reverse two of the motor wires at the inverter terminals.
-
Page 4: Table Of Contents
Abbreviated Installation Instructions Page 2-3 Section 1 Safety Precautions Page 5 Section 2 Wiring Requirements Page 6 Section 3 Installation Page 6-10 Electrical Cabling Mechanical Installation Electrical Connections CB6 Control Board Variable Speed Drive Unit Commissioning Section 4 Manual Release Instructions Page 10 Section 5 Maintenance... -
Page 5: Safety Precautions
1. S AFETY RECAUTIONS WARNING! FAILURE TO FOLLO LOW THESE SAFETY PRECAUTIONS AND INS NSTALLATION INSTRUCTIONS COULD RESULT IN IN INJURY OR DEATH AND OR DAMAGE TO P PROPERTY AND EQUIPMENT Appropriately licensed and competen etent personnel only should install the automation equ equipment. -
Page 6: Wiring Requirements
2. W IRING EQUIREMENTS 240v 10A non-earth leakage protected power supply where operator is mounted. Low voltage cables from operator for access control. (Shielded cable if over 8m runs). 3. I NSTALLATION ETAILS After reading the previous sections in this manual, and having checked for suitable installation, proceed as follows:- Electrical Cabling A suitably rated Isolator and 240v power supply should be available near to where the gate operator is... -
Page 7: Mechanical Installation
Mechanical Installation Ensure gate rolls easily and has been installed in a manner where there is no excessive friction or binding occurring. A concrete base approximately 600mm long x 300 wide x 300mm deep should be laid where the gate operator is to be located. -
Page 8: Electrical Connections
Electrical Connections Connect a non earth leakage protected 10A 240v supply to Din Rail terminals labelled A & N, Connect earth to the earth Din Rail terminal. Conduits for power & control need to preferably come up through the base plate 'knockout'. Connections to Control Board Units are pre-wired Control Inputs... - Page 9 Using the mode selection dip-switches select the desired operating modes. Note the times associated with the parameters marked with an * can be changed. The auto-close times can be changed using the procedure in the following section. See the instruction manual for details on how to change the other parameters. See the detailed instruction manual for details on how to change the other parameters.
-
Page 10: Variable Speed Drive Unit
Setting Cycle Timers & Auto Close Times The control board has pre-set cycle times which are used to set the maximum time the controller will drive the motors in the open and closed directions. The pre-programmed time for the open and close cycle timer’s is 60 seconds. -
Page 11: Commissioning
Commissioning Position the gate halfway and tighten knurled knob at back of slider, very firmly, by hand so gate will drive. Power up board and with gate in the half way position, press transmitter or manual control switch so operator drives gate. The first pulse will always open gate, green LED will flash (top right hand corner) if it does not, then reverse 2 of the motor wires. -
Page 12: Maintenance
5. M AINTENANCE ETAILS WARNING! Failure to maintain equipment may result ult in injury or death and/or damage to property and eq d equipment Recommended maintenance to be perfor formed on the operator and gate are as follows:- Operator performs over 150 cy cycles a day each month Operator performs between 10... - Page 13 6. W ARRANTY Gate Drive Systems Australia warrants that the goods manufactured by it shall be free from defect in manufacture for a period of 12 months from the date of invoice. Should any fault occur within that period as a result of faulty workmanship or materials, Gate Drive Systems Australia will make all necessary repairs, or at its discretion replace the product at no charge to the Customer except for freight.
- Page 14 Single Controls Dual Controls...
- Page 15 CONTROL BOARD LAYOUT FOR INVERTER CONTROLS FIG. 4 Mode Selection and Adjustment Electric Lock Control Terminals Protection Fuse Terminals for 24vAC Supply for Inverter Input Terminals Control Logic Motor 1 Drive Output Terminals for Inverter Plug In Rec eiver's Antenna Terminals Motor 2 Drive Output Terminals for Inverter With Optional Shield Motor 1 Limit Switch Inputs...
- Page 16 Wait times will vary dependent on local workloads. The cost is a service fee which includes the first half hour and the hourly rate thereafter. If any Automatic Solutions provided parts are found to be defective and within warranty these will be provided free of charge.
