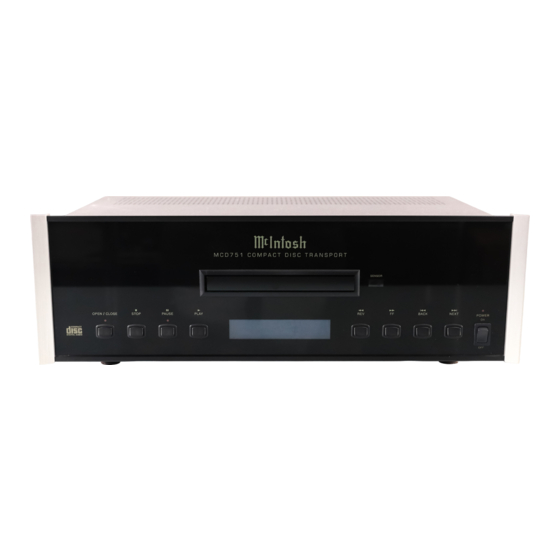

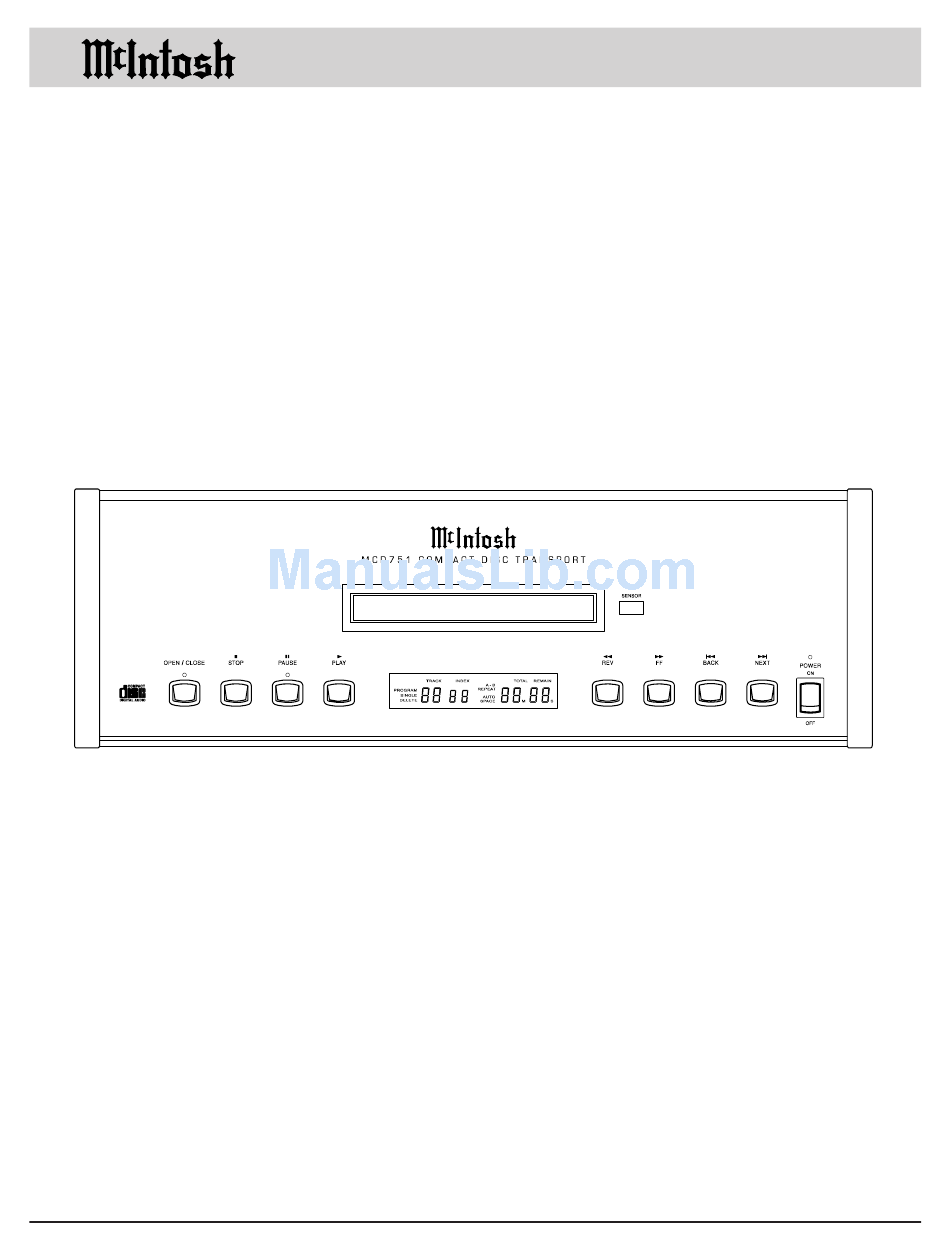

- Page 1 OWNER’S MANUAL MCD751 Compact Disc Transport MCD751 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Please Take A Moment
When the mechanism is in the LOCK position, the MCD751 Disc Tray will still open or close, however, the Laser assembly will not move and a disc will not play until the Locking mechanism is moved to the FREE position. -
Page 3: Important Safety Instructions
Safety Instructions IMPORTANT SAFETY Attention: pour pevenir les chocs elecriques pas INSTRUCTIONS! utiliser cette fiche polarisee avec un prolongateur, une prise de courant ou un autre sortie de courant, sauf si les lames peuvent etre inserees afond ans en PLEASE READ THEM BEFORE laisser aucune partie a decouvert. - Page 4 Safety Instructions con’t, Introduction and Performance Features Introduction Care of Equipment: Performance Features · Precision Transport Mechanism Repair of Equipment: · Digital Servo Control Motors · Remote Control · Remote Power and Data Control · Special Power Supply...
-
Page 5: Installation
Installation Installation 17-1/2" 444mm 7/32" 17-1/16" 5.3mm 433.4mm 1/4" Outline of Front Panel Edge of Cutout End Caps Panel Height 4-7/8" 5-3/8" 5-5/16" 123.8mm 136.9mm 134.9mm (Front View) 3/16" 5.1mm Support Shelf Bottom of Cutout and Top of Support Shelf Must Coincide Mounting Surface Mounting Bracket at Both Sides of the Rear Panel. - Page 6 Control Center with a data to a McIntosh component D/A Converter Connect the MCD751 power cord to a live AC outlet. Refer to information on the back panel of your MCD751 to de- termine the correct voltage for your unit...
- Page 7 How to Connect the MCD751 How to Connect the MCD751 Note: An optional connecting method is to use a coaxial cable from the MCD751 Coaxial Output to the Coaxial Digital Input of a McIntosh MDA700 D/A Converter, Decoder or Control Center.
- Page 8 MCD751 Front Panel Display, Push-Buttons and Switch MCD751 Front Panel Display, Push-Buttons and Switch Indicates when the disc tray Disc Tray opens to load Standby Power is opening or closing and and unload a disc On Indicator when a disc is in the tray...
- Page 9 How to Operate the MCD751 How to Operate the MCD751 Power On How to Load a Disc Figure 1 Note: There is a recessed area on the disc tray to accommodate 3 inch (7.6cm) mini discs. Figure 4 Figure 2...
- Page 10 How to Operate the MCD751, con’t How to Operate the MCD751, con’t Pause Mode Note: Track selection is performed when the player is in Stop Mode. The track selection memory will be retained when all tracks have played or when the STOP pushbutton is pressed.
- Page 11 How to Operate the MCD751, con’t How to Operate the MCD751, con’t Back and Next Time Display Note: When the player is in Note: BACK and NEXT can be performed when the disc is Stop Mode, playing, or in the Stop Mode.
-
Page 12: Remote Control Push-Buttons
Remote Control Push-Buttons Remote Control Push-Buttons Select disc tracks or any numbered operation Use to review each preselected or deleted disc track Use to delete spe- Use to clear a cific disc tracks preselected track from playing Use to preselect up Use together with a to 20 specific disc number pushbutton... -
Page 13: How To Operate The Remote Control
How to Operate the Remote Control Index Numbered and +10 Pushbuttons Stop Note: The MCD751 Remote Control can also be used in a remote area of any McIntosh remote control system to operate the player by sending control signals to Clear McIntosh keypad or IR sensor. -
Page 14: Specifications
Digital Output Transport Digital Signal Format Power Requirements Note: Refer to the rear panel of the MCD751 for the correct voltage. Dimensions Note: When the CD tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches... - Page 15 Packing Instructions Packing Instructions...
