Summary of Contents for Konica Minolta e-mini
Page 1

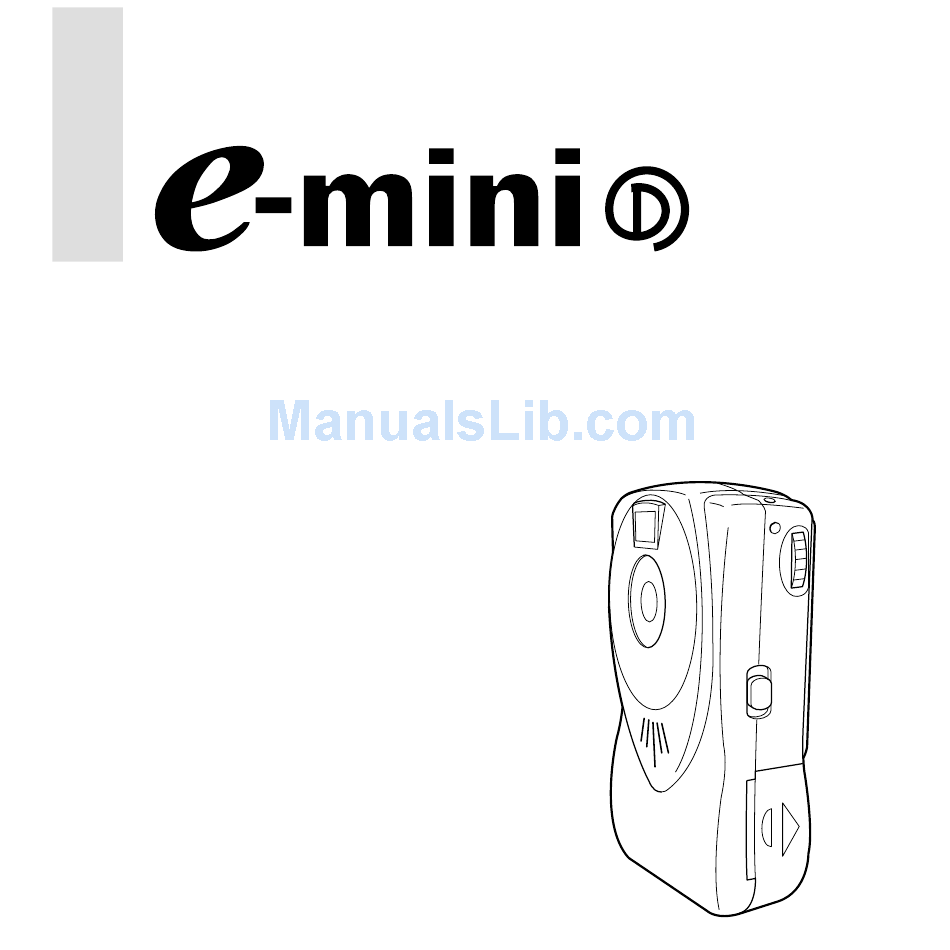

KONICA DIGITAL CAMERA Instruction Manual...
Page 2
FCC Statement: Declaration of Conformity Trade name: Konica Model: e-mini Responsible party: KONICA PHOTO IMAGING, INC. Address: 725 Darlington Avenue Mahwar, NJ 07430, U.S.A. Telephone number: 201-574-4000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two...
Contents 1. Safety Tips ... 1 2. Parts Identification ... 3 3. Loading Batteries ... 3 Important – Please Read Before You Begin 4. Taking Pictures ... 4 5. Selecting Modes ... 5 6. Playing back images ... 6 7. Installing Software ... 9 8.
Page 4
Warning Symbols and What They Mean WARNING Failure to use the product properly could result in fatal harm to the user. CAUTION Failure to use the product properly could result in minor or moderate harm to the user or in property damage. Precautions WARNING CAUTION...
2. Parts Identification Check that the product comes complete with the following components: G Camera × 1 G Strap × 1 G Instruction manual (warranty card) × 1 Parts Identification 3. Loading Batteries 1 Slide the lock 2 Slide the battery cover switch.
Battery Exhaustion The LED indicator will change from green to yellow-orange when the batteries are almost ex- hausted. When this happens, replace the batteries promptly. Important Battery life Number of pictures Continuous Playback time Note: The above figures are based on tests carried out by Konica understandard condi- tions (one picture every 30 seconds, including erase operations).
5. Selecting Modes Use the select dial on the side of the camera to select the required shooting mode. 1 Set the main switch on the side of the camera to REC. The LED indicator will light green after blinking red. 2 Press the select dial.
6. Playing back images 1 Set the main switch on the side of the camera to PLAY. The last picture taken will be displayed on the LCD moni- tor. 2 Turn the select dial upward. (Figure 6) The previous images will be displayed successively. * A movie image will be displayed with a yellow frame.
Page 9
INDEX 1 Press the select dial after selecting INDEX in the PLAY menu. Nine images will be displayed. The currently selected im- age has a red frame. (Figure 9) * A movie will be displayed with a yellow frame. 2 Press the select dial after selecting the disired image. The image will be displayed full-screen.
Page 10
SETUP – LANGUAGE 1 Press the select dial after selecting SETUP in the PLAY menu. 2 Press the select dial after selecting LANGUAGE. (Figure 3 Press the select dial after selecting JAPANESE or EN- GLISH. (Figure 14) Menus will be displayed in the selected language. SETUP –...
7. Installing Software Note: Check that the operating environment of your computer meets the following require- ments. [Operating environment] Windows 98/98SE/2000Professional/Me Memory 32 MB or more Hard disk space 200 MB or more Interface Display 32,000 colors or more, 640 X 480 pixels or more Others CD-ROM drive Install MGI PhotoSuite...
Page 12
9 Click [Next]. The installer starts. 0 Click [Continue]. A Click [Cancel]. B Click [Finish]. C Click [Finish]. Install e-miniD driver Note: The e-miniD driver must be installed in order to connect the camera to the computer. 1 Double-click the CD- ROM icon and then the [Konica] folder in the window that opens...
Page 13
6 Click [OK]. Install QuickTime4 Note: The installation of QuickTime4 is re- quired to play back a movie. 1 Double-click the CD- ROM icon and then the [QuickTime] folder in the window that opens subsequently. 2 Double-click the [En- glish] folder. 3 D o u b l e - c l i c k t h e [QuickTime Installer.
Page 14
9 Click [Next]. 0 Click [Next]. A Enter the required items and click [Next]. The installer starts. B Click [Close].
3 Click [Get]. 2 Attach the USB cable to the USB connector of the camera and that of your computer. 4 Choose [Digital Camera (TWAIN)] from the menu in the pane on the left. 5 Choose [Konica e-miniD] from [1 Choose a camera.] and click [Download].
Page 16
6 Click [Update]. e-miniD driver screen Upward Downward To the uppest To the lowest 7 Click [View] after selecting an image of your Photos choosing. 8 Click Close button. 9 Choose [Photos] in the upper right menu. The image file opens. Close button Starts getting a thumnail image.
View a movie Note: QuickTime4 must be installed. 1~6 Follow the steps described in the previ- ous section, “View Images”. 7 Click [View] after selecting a movie. (The file name of the movie is displayed in yellow.) “e-miniD AVI Player” will activate automati- cally.
