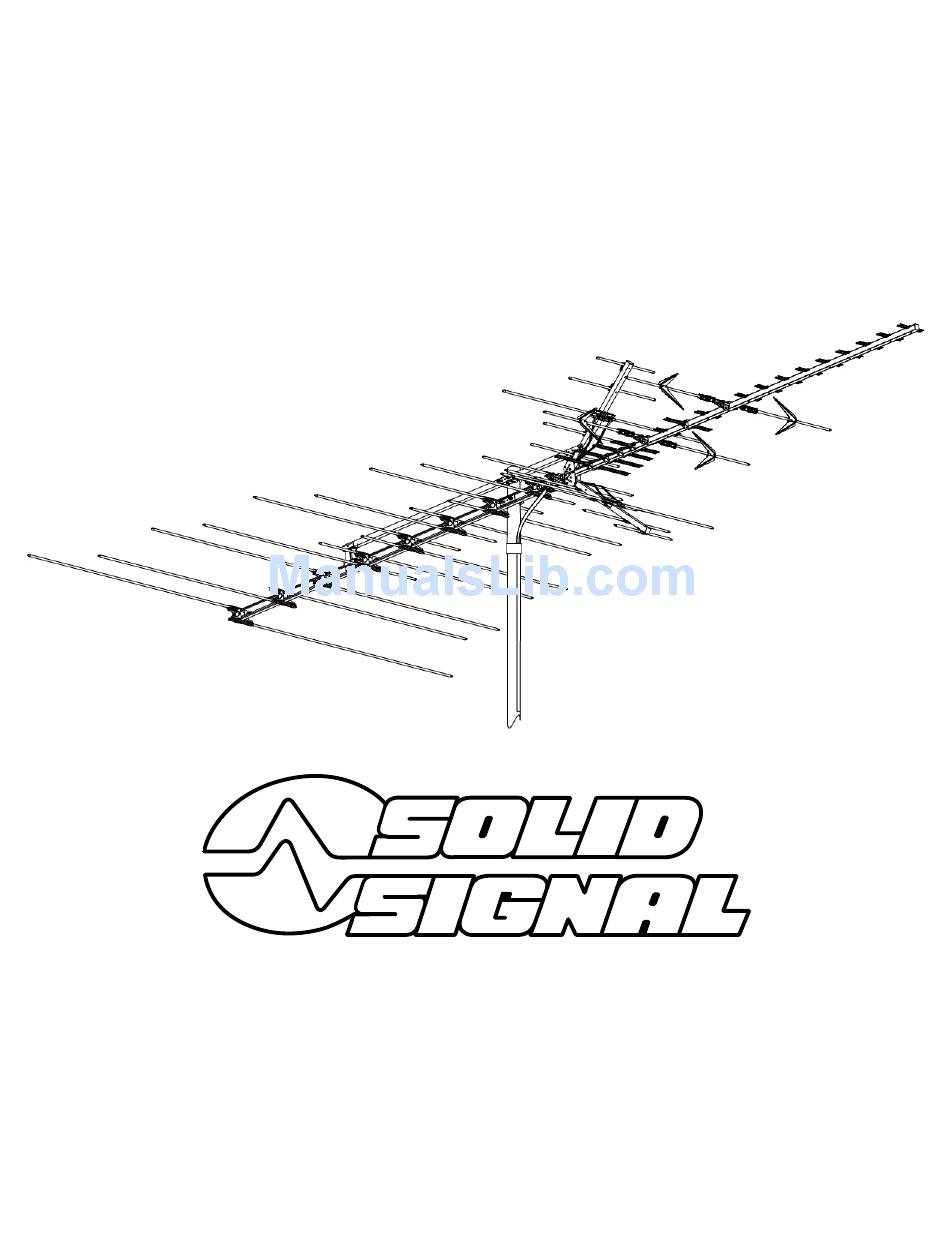

- Page 1 HD8200XL Xtreme Series HD Antenna Assembly And Installation Manual Made In America www.XtremeSignal.com...
- Page 2 HD8200XL Xtreme Series HD Antenna Assembly And Installation Manual www.XtremeSignal.com Made In America Step 1: Unpack Remove all three sections of the antenna and the hardware bag from package. Make sure the following parts are in the package: Antenna Components...
- Page 3 Step 2: Connect the reflector booms to the front (small) booms Find the two reflector booms and the front (or small) boom. The two smaller elements on the reflector booms face away from the small main boom. IMPORTANT: Unfold the elements on each end of the reflector boom so that the front of their locking tabs face towards each other.
- Page 4 Step 4: Connect the middle (large) section to the front (small) section Find the middle (large) section. Locate the end of the middle section that matches figure 4. Remove the nut and screw in the center. Slide the narrow boom of the front (small) section into the middle (large) section.
- Page 5 Step 6: Connect the rear section to the middle (large) section On the open end of the middle (large) section, remove the rear nut and screw. Screw Find the rear section. Slide the narrow Rear boom of the rear antenna into the middle Middle Section (large) section.
- Page 6 Step 8: Connect the boom brace Lay the boom brace on top of the antenna. Make sure the mast clamps (the brass-colored sections) on the boom brace and antenna are facing the same direction. Locate the screw hole in the reflector boom and attach the brace with one of the provided #10 screws and nuts.
- Page 7 Step 10: Insert the end caps Insert two of the plastic end caps in the ends of the antenna as shown in figure 11. Insert a third plastic end cap in the exposed end of the boom brace. Insert the last two end caps on the ends of the reflector booms.
-
Page 8: Step 13: Pointing The Antenna
Step 15: Enjoy Free HD TV Now that you have successfully installed the HD8200XL antenna you can start enjoying your free local HD broadcasts. Note: Elements that are bent, can easily be corrected, and do not affect signal, as it is the length that determines how the antenna receives signal. - Page 9 All warranty claims must be made to a Solid Signal authorized dealer or directly to Solid Signal. In the case that the dealer involved in the purchase of your antenna is unavailable or unknown, contact Solid Signal at 25225 Regency Drive, Novi MI 48375, either by phone at 877.697.4462 or via...
