Solid Signal ST2 Manual

ST2
Omni-directional Outdoor Scanner Antenna
with Matching Transformer and
50' of RG-6 Coaxial Cable, with F-to-BNC adapter
BEFORE YOU BEGIN
Your antenna has elements which are resonant in the 30-54 MHz,
108-174 MHz, 450-470 MHz, 470-512 MHz, and 800-912 MHz
bands. They work together to give you frequency coverage from
30 MHz to 1300 MHz. Before you begin assembly, read this manual
and the Consumer Product Safety Commission information. For
your safety and convenience, plan each step of the installation
and purchase the necessary hardware in advance. The order in
which you perform the steps and the hardware required depends
on the mounting and connection methods you choose. Your an-
tenna comes complete with a matching transformer, 50 feet of
RG-6 coaxial cable with a F-to-BNC adapter.
We recommend two people assemble the entire antenna on the
ground, then mount the assembled antenna on the mast. The
following steps are required to assemble your antenna.
Warning: When you install your antenna, use extreme caution.
If the antenna starts to fall, let it go! It could contact overhead
power lines. If the antenna touches the power line, contact with
the antenna, mast, cable, or guy wires can cause electrocution
and death. Call the power company to remove the antenna. Do
not attempt to remove it yourself.
ST2
WARNING: Installation of this
product near powerlines is
DANGEROUS. For your safety,
follow the installation directions.
ASSEMBLING THE ANTENNA

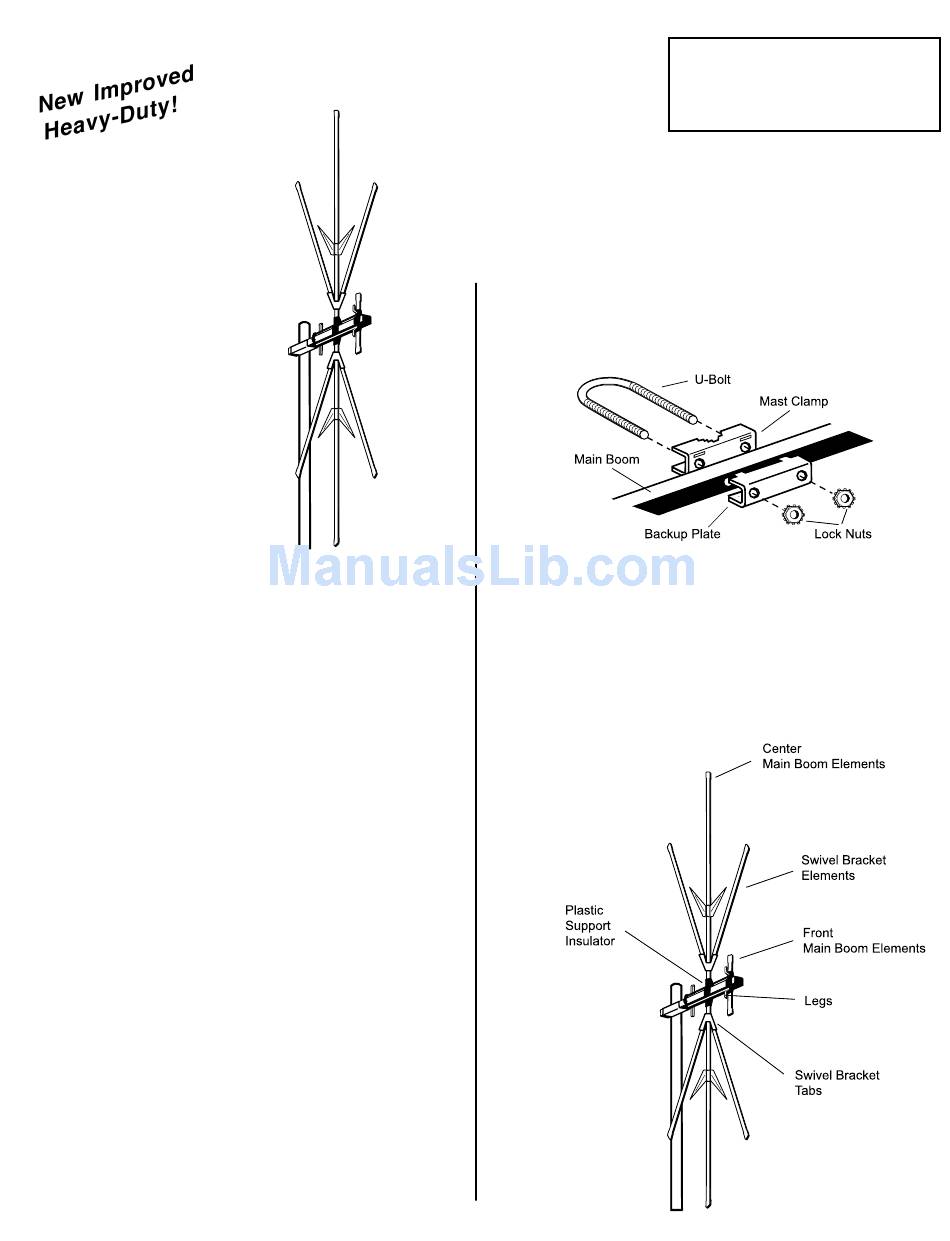

1. Use the supplied hardware to loosely attach the supplied mast
clamp assembly to the main boom as shown.
2. Press the supplied large end plugs into the main boom.
3. Hold the center and front main boom elements near the pivot
points and unfold them until they snap into the locking plas-
tic suppport insulators. Position the legs on the smaller front
elements outward, so they line up with the elements under
them. Pull the swivel bracket elements outward until they
snap into the swivel brackets' tabs.
