E

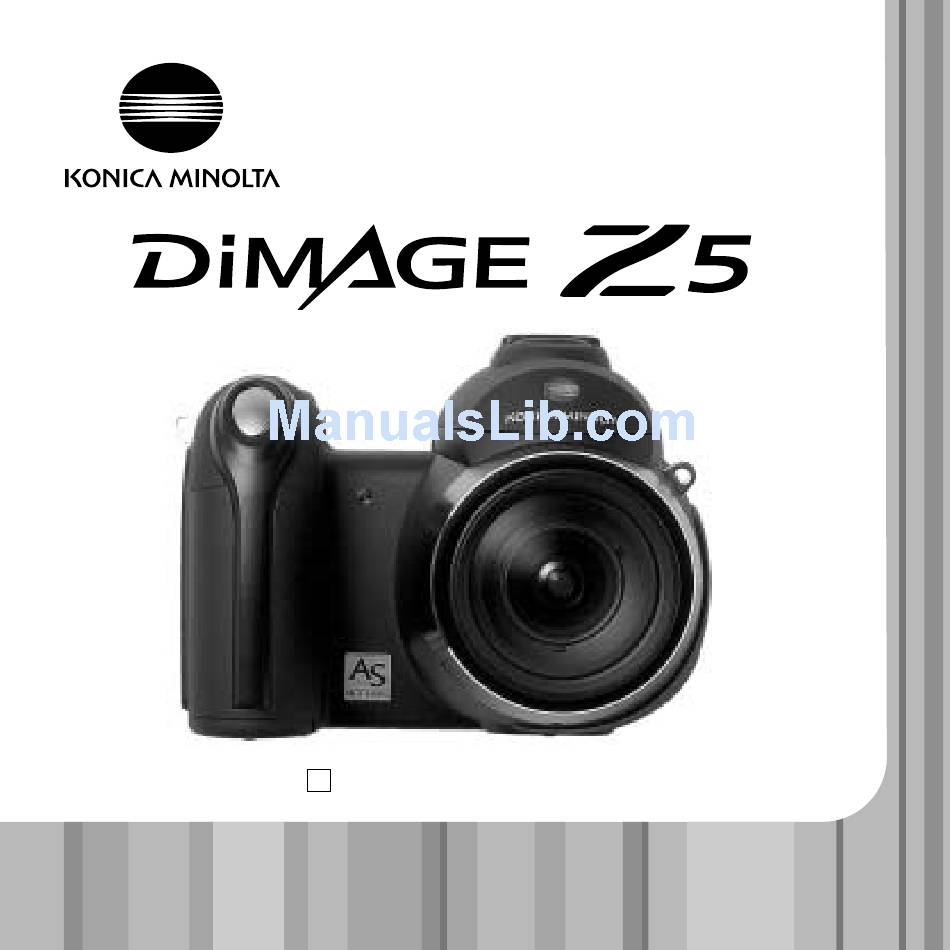

INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta DIMAGE DIMAGE-Z5

Summary of Contents for Konica Minolta DIMAGE DIMAGE-Z5

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Before You Begin

    Konica Minolta is a trademark of Konica Minolta Holdings, Inc. DiMAGE is a trademark of Konica Minolta Photo Imaging, Inc. Apple, Macintosh, and Mac OS are registered trademarks of Apple Computer Inc.

  • Page 3: For Proper And Safe Use

    FOR PROPER AND SAFE USE Read and understand all warnings and cautions before using this product. WARNING Using batteries improperly can cause them to leak harmful solutions, overheat, or explode which may damage property or cause personal injury. Do not ignore the following warnings.
  • Page 4 The continued use of a damaged product or part may cause injuries or fire. • Take the product to a Konica Minolta Service Facility when repairs are required. • Handling the cord on this product may expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm.
  • Page 5 CAUTION • Do not point the lens directly at the sun, a fire may result. Replace the lens cap when the camera is not in use. • Do not use or store the product in a hot or humid environment such as the glove compartment or trunk of a car.

  • Page 6: Table Of Contents

    ABOUT THIS MANUAL The basic operation of this camera is covered between pages 12 and 33. This section of the manual covers the camera parts, preparation of the camera for use, and the basic camera operation for recording, viewing, and deleting images. Many of the features of this camera are controlled with menus.
  • Page 7 Viewing and rotating images ...31 Deleting single images...31 button ...32 Enlarged playback ...33 Advanced recording...34 Recording mode display ...34 Macro ...35 Program (P) exposure mode ...36 Aperture priority (A) exposure mode ...36 Shutter priority (S) exposure mode...37 Manual (M) exposure mode...38 Noise reduction...39 Movie recording ...40 Exposure compensation ...41...
  • Page 8 Color mode ...65 Contrast ...65 Sharpness...66 Custom key function ...67 Quality (Movie)...68 Frame rate ...68 Movie file sizes ...68 Movie mode ...69 A short guide to photography...70 Advanced playback...72 Playing back movies ...72 Capturing a movie frame ...73 Navigating the playback menu ...74 Frame-selection screen ...76 Delete ...77 Format ...78...
  • Page 9 Audio signals ...99 Focus signal...99 Shutter FX...99 Volume ...99 Video output...100 Transfer mode...100 Digital zoom ...100 Self-timer...101 Data-transfer mode...102 System requirements...102 Connecting the camera to a computer ...103 Connecting to Windows 98 and 98SE...105 Automatic installation...105 Manual installation ...106 Memory card folder organization ...108 Auto power save - data-transfer mode ...109 Disconnecting the camera ...110 Changing the memory card ...112...

  • Page 10: Names Of Parts

    NAMES OF PARTS * This camera is a sophisticated optical instrument. Care should be taken to keep these surfaces clean. Please read the care and storage instructions in the back of this manual (p. 122). Microphone Self-timer lamp (p. 47) The battery-chamber door (p.
  • Page 11 Accessory shoe (p. 43) Diopter-adjustment dial (p. 17) Viewfinder* (p. 17) LCD monitor* Main switch Mode switch Exposure-mode dial (p. 21, 29, 36 - 40) Macro button (p. 35) Flash-mode button (p. 26) Access lamp Quick View / Delete button (p.

  • Page 12: Getting Up And Running

    GETTING UP AND RUNNING ATTACHING THE STRAP AND LENS CAP Always keep the strap around your neck in the event that the camera is accidentally dropped. An optional leather neck strap, NS-DG1000, is also available from your Konica Minolta dealer. Availability varies with region. Pass one of the small loops of the lens-cap strap through the eyelet on the lens cap (1).

  • Page 13: Inserting Batteries

    INSERTING BATTERIES This digital camera uses four AA-size alkaline or Ni-MH batteries. Do not use other types of AA batteries. The camera should be off when replacing batteries. To open the battery-chamber door, slide the door toward the side of the camera (1) to release the safety catch. Lift the door to open (2).

  • Page 14: Battery Condition Indicator

    BATTERY CONDITION INDICATOR This camera is equipped with an automatic battery-condition indicator. When the camera is on, the battery-condition indicator appears on the monitor. If the monitor is blank, the batteries may be exhausted or installed incorrectly. Full-battery indicator - the battery is fully charged. This indicator is displayed for three seconds on the monitor when the camera is turned on.

  • Page 15: Connecting The Optional Ac Adapter

    CONNECTING THE OPTIONAL AC ADAPTER Always turn off the camera before changing between power supplies. The AC Adapter AC-11 allows the camera to be powered from an electrical household outlet. The AC Adapter is recommended when the camera is interfaced with a computer or during periods of heavy use.

  • Page 16: Changing The Memory Card

    CHANGING THE MEMORY CARD An SD Memory Card or MultiMediaCard must be inserted for the camera to operate. If a card has not been inserted, a no-card warning is displayed on the monitor. For more about memory cards see page 124. Always turn off the camera and confirm the access lamp is not lit before removing a memory card;...

  • Page 17: Turning On The Camera And Displays

    TURNING ON THE CAMERA AND DISPLAYS Press the main switch to turn the camera on. Pressing the switch again turns the camera off. When the camera is turned on, the Anti-shake indicator appears on the LCD monitor. The mode switch, next to the main switch, is used to change between the recording and playback modes as well as the selecting the between the monitor and viewfinder display.

  • Page 18: Setting The Date And Time

    SETTING THE DATE AND TIME Set date/time? Date/Time set 2005 . 01 . 01 00 : 00 MM / DD / YYYY :move :sel. :enter Date/Time setup screen ETTING UP AND RUNNING After initially inserting a memory card and batteries, the camera’s clock and calendar must be set.

  • Page 19: Setting The Menu Language

    SETTING THE MENU LANGUAGE Drive m Image Drive mode Single Quality Image size 2560x1920 Auto D Quality Standard Digital Auto DSP Anti-shake LCDbrightness – Power save 1 min. Inst.Playback Lens acc. None Language English Language /JPN Español English /CHN Deutsch Italiano Français Svenska...

  • Page 20: Basic Recording

    BASIC RECORDING This section covers the basic operation of this camera. Thoroughly familiarize yourself with the operations in this section before moving on to the other sections in the manual. Turn on the camera. Set the mode switch to a recording position.

  • Page 21: Recording Images Automatically

    RECORDING IMAGES AUTOMATICALLY Turn the exposure-mode dial to the auto-recording position (1); all camera operations are now fully automatic. The autofocus, exposure, and imaging systems will work together to bring beautiful results effortlessly. While many of the camera’s systems in this mode are automatic, some of the functions can be changed.

  • Page 22: Basic Recording Operation

    BASIC RECORDING OPERATION The example uses auto recording. Except for movie recording, the operation for other exposure modes is the same. Automatic Digital Subject Program Selection is only available in the auto recording mode. Place the subject anywhere within the focus frame. Make sure the subject is within the focus range of the lens (p.

  • Page 23: Automatic Digital Subject Program Selection

    AUTOMATIC DIGITAL SUBJECT PROGRAM SELECTION Automatic Digital Program Selection chooses between program autoexposure and one of four digital subject programs. The digital subject programs optimize camera setting for various conditions and subjects. Automatic Digital Subject Program Selection is only available in auto recording and can be disabled in the auto-recording menu. For information on individual subject programs, see page 29.

  • Page 24: Focus Lock

    FOCUS LOCK Focus lock prevents the AF system from focusing. This can be used with off-center subjects or when a special focusing situation prevents the camera from focusing (p. 25). FOCUS RANGE All distances are measured from the front of the lens. See page 35 for the macro focus range.

  • Page 25: Focus Signals

    FOCUS SIGNALS The focus signal in the lower right corner of the LCD monitor indicates the focus status. The shutter can be released even if the camera cannot focus on the subject. Focus locked. Focus confirmed (P, A, S, and M continuous AF focus mode and sports action digital subject program).

  • Page 26: Flash Modes

    FLASH MODES To use the built-in flash, simply raise it (1). Lower the flash unit to prevent it from firing. Flash-mode indicator turns red while the flash is charging; wait until it becomes white before taking pictures. To change the flash mode, raise the flash and press the flash mode button (2) until the appropriate mode is indicated.

  • Page 27: Flash Range - Auto-Recording Mode

    FLASH RANGE - AUTO-RECORDING MODE The camera controls the flash output automatically. For well-exposed images, the subject must be within the flash range. Distance is given from the front of the lens. Because of the optical system, the flash range is not the same at the lens’ wide-angle position as it is at the telephoto position.

  • Page 28: Button

    BUTTON Pressing the information (i ) button changes the monitor display. The display cycles among the standard display, real-time histogram, and live image only. Standard display Real-time histogram Live image only The real-time histogram shows the approximate luminance distribution of the live image. This histogram cannot show the affect of flash illumination.

  • Page 29: Digital Subject Programs

    DIGITAL SUBJECT PROGRAMS Digital subject programs optimize the camera’s exposure, white-balance, and image-processing systems for specific conditions and subjects. Simply turn the exposure mode dial to select the appropriate subject program; the active subject program is displayed in the bottom left corner of the monitor. Portrait - optimized to reproduce warm, soft skin tones and a slight defocusing of the background.

  • Page 30: Basic Playback

    SINGLE-FRAME PLAYBACK AND HISTOGRAM DISPLAY Mode indicator Time of capture Date of capture Movie indicator (p. 72) Lock indicator (p. 79) DPOF indicator (p. 86) E-mail copy indicator (p. 82) Frame number/ total number of images To display the histogram display, press the up key of the controller. Press the down key to return to single-frame playback.

  • Page 31: Viewing And Rotating Images

    The histogram shows the luminance distribution of the image from black (left) to white (right). The 256 vertical lines indicates the relative proportion of that light value in the image. The histogram can be used to evaluate exposure, but displays no color information.

  • Page 32: Button

    BUTTON The information (i ) button controls the display format. Each time the button is pressed, the display cycles through to the next format: full display, image only, index playback. Full display Image only Index playback Information button In index playback, the four-way keys of the controller will move the yellow border. When the image is highlighted with the border, the date of recording, the lock and printing status, and the frame number of the image are displayed at the bottom of the screen.

  • Page 33: Enlarged Playback

    ENLARGED PLAYBACK In single-frame playback in Quick View or the playback mode, a still image can be enlarged for closer examination from 1.2X. The maximum magnification depends on image size ranging from 2X for 640x480 size images to 4X for 2560x1920 images. With images larger than 640x480, move the zoom lever to the right (T) at maximum magnification to doubled the image size for closer examination.

  • Page 34: Advanced Recording

    ADVANCED RECORDING This section cover the advanced recording features of this camera. Read the basic recording section before moving on to this section. RECORDING MODE DISPLAY 14 15 16 17 A. Focus frame B. Spot metering area (p. 63) DVANCED RECORDING 1.

  • Page 35: Macro

    MACRO Super-macro indicator Konica Minolta History Two macro modes are available: Super Macro and standard macro. Super Macro allows the camera to focus as close as 1cm (0.4 in.) from the front of the lens. When Super Macro is selected, the lens automatically zooms to a specific focal-length position and cannot be changed.

  • Page 36: Program (P) Exposure Mode

    PROGRAM (P) EXPOSURE MODE The program exposure mode controls both the shutter speed and aperture to ensure correct exposures. This exposure mode allows photographers to shoot without worry about exposure settings. The shutter speed and aperture values of the exposure are displayed on the monitor when the shutter-release button is pressed partway down.

  • Page 37: Shutter Priority (S) Exposure Mode

    SHUTTER PRIORITY (S) EXPOSURE MODE The photographer selects the shutter speed and the camera sets the appropriate aperture to ensure correct exposure. When shutter priority is selected, the shutter speed on the monitor turns blue and a double arrow indicator appears next to it. The shutter speed can be set between 1/1000 and 4 seconds.

  • Page 38: Manual (M) Exposure Mode

    MANUAL (M) EXPOSURE MODE Manual exposure mode allows individual selection of shutter speeds and apertures. This mode overrides the exposure system giving the photographer total control over the final exposure. The changes made to the exposure will be visible in the live image on the monitor. The monitor shutter-speed and aperture display will turn red when the shutter-release button is pressed partway down if the image is significantly underexposed or overexposed.

  • Page 39: Noise Reduction

    NOISE REDUCTION Noise can be apparent when using a slow shutter speed or high camera sensitivity (ISO), or using the camera in hot environment. In these cases, noise-reduction is applied to the Processing... image automatically. A message appears on the LCD monitor if the noise-reduction processing period is long.

  • Page 40: Movie Recording

    MOVIE RECORDING This camera can record digital video with sound. Total recording time varies with the image size and frame rate, see page 68. The optical and digital zoom, exposure compensation, and the macro modes can be used. Other changes can be made with the movie recording menu (p. 44). If the optical zoom is used while recording, the sound of the zoom sound may be audible during playback.

  • Page 41: Exposure Compensation

    EXPOSURE COMPENSATION The camera exposure can be adjusted to make the final picture lighter or darker by as much as ±2Ev in 1/3 increments. Exposure compensation can only be used with Digital Subject Programs, the P, A, and S exposure modes. With Digital Subject Programs, exposure compensation is reset when the camera is turned off.

  • Page 42: Focus Area Selection

    FOCUS AREA SELECTION Individual focus areas can be selected when recording still images. With auto recording and Digital Subject Programs, focus area selection is reset when the camera is turned off. In P, A, S, and M exposure modes, the selected focus area remains active until reset. Press and hold the central button of the controller until the five spot focus areas are displayed.

  • Page 43: Attaching An Accessory Flash

    Slide the accessory-shoe cap off as shown. Mount the flash unit on the accessory shoe by sliding it forward until it stops. System Accessories The following Konica Minolta flash units are compatible with this camera: Maxxum/Program Flash 2500(D) Maxxum/Program Flash 3600HS(D) Maxxum/Program Flash 5600HS(D)

  • Page 44: Navigating The Recording Menus

    NAVIGATING THE RECORDING MENUS The recording menu displayed varies with the position of the exposure-mode dial. There are four menus depending on if auto recording, movie recording, Digital Subject Programs, or the P, A, S, and M exposure modes are selected. Pressing the menu button (1) turns the menu on and off.

  • Page 45: Movie Menu

    Drive mode Single Image size 2560x1920 Quality Standard Auto DSP Anti-shake Disp. + Exp. Auto-recording menu P A S M Drive mode Single Image size 2560x1920 Quality Standard White balance Auto Anti-shake Disp. + Exp. P, A, S, and M exposure-mode menu Index to menu functions Anti-Shake, 56 Auto DSP, 56...

  • Page 46: Drive Modes

    DRIVE MODES Single-frame advance - to take a single image each time the shutter-release button is pressed (p. 22). Self-timer - to delay the release of the shutter. Used for self-portraits. Continuous advance - to continuously record images when the shutter-release button is pressed and held.

  • Page 47: Self-Timer

    SELF-TIMER Used for self-portraits, the self-timer will delay the release of the shutter for approximately ten seconds after the shutter-release button is pressed. The self-timer is set on section 1 of the recording menus (p. 44). With the camera on a tripod, compose the picture so the subject is within the focus frames.

  • Page 48: Using The Continuous-Advance Modes

    USING THE CONTINUOUS-ADVANCE MODES The continuous-advance drive modes allow a series of images to be captured while holding down the shutter-release button. These drive modes are set in section 1 of the recording menus. Immediately after selecting the continuous option on the menu, a selection screen is displayed to select between standard and UHS continuous advance.

  • Page 49: Continuous-Advance Notes

    CONTINUOUS-ADVANCE NOTES CONTINUOUS ADVANCE The continuous-advance drive mode can capture images at a rate of approximately 2.2 fps. When single-shot AF is used, focus and exposure is locked with the first frame. Focus and exposure is set for each image when the continuous-AF focus mode is used, but the rate of capture is reduced.

  • Page 50: Using The Progressive-Capture Mods

    USING THE PROGRESSIVE-CAPTURE MODE The Progressive-Capture drive mode continuously records images while holding down the shutter-release button. When the shutter button is released, the images stored in the camera’s buffer memory are saved. This drive mode is set in section 1 of the recording menus. Compose the picture as described in the basic recording operation section (p.
  • Page 51 When a series is captured, a thumbnail of each image is shown in an index display while being saved. Progressive capture can only be used when there is enough space available on the memory card to record an entire series of images.

  • Page 52: Bracketing

    BRACKETING This mode makes a three-image bracket of a scene. Bracketing is a method of taking a series of images of a static subject in which each image has a slight variation in exposure. The bracketing mode is set in section 1 of the recording menus.

  • Page 53: What Is An Ev

    Number of frames in bracketing series Frame counter The order of the bracket series is normal exposure, underexposure, and overexposure. The exposure bracket can be made in 0.3 or 0.5 Ev increments. The larger the number, the greater the difference in exposure between the images in the bracketed series. Normal Under Over...

  • Page 54: Image Size And Image Quality

    IMAGE SIZE AND IMAGE QUALITY Changing image size affects the number of pixels in each image. The greater the image size, the larger the file size. Choose image size based on the final use of the image - smaller images will be more suitable for web sites whereas larger sizes will produce higher quality prints.
  • Page 55 Size Quality Fine Standard Economy Approximate number of images that can be stored on a 16MB memory card Fine Standard Economy Camera Notes The frame counter indicates the approximate number of images that can be stored on the memory card at the camera’s image quality and size settings. If the settings are changed, the frame counter adjusts accordingly.

  • Page 56: Auto Dsp

    AUTO DSP Automatic Digital Subject Program Selection can be temporarily disabled in the auto-recording menu. When disabled, the program exposure mode is active. If the camera is turned off, Automatic Digital Subject Program Selection is activated. ANTI-SHAKE SYSTEM The Anti-Shake system minimizes the affect of camera shake, a slight blurring caused by subtle hand motion.
  • Page 57 Three options are available for the Anti-Shake system in section 1 of the recording menus. Display + Exp. - when the shutter-release button is pressed partway down, the anti- Shake function will activate. The affect of the Anti-Shake system can be seen in the live image.

  • Page 58: Focus Modes

    FOCUS MODES This camera has autofocus and manual focus control. The focus mode is selected separately in the Digital Subject Program, movie, and P, A, S, and M exposure-mode menus. When using Digital Subject Programs, the focus mode is reset when the camera is turned off.

  • Page 59: Manual Focus

    Manual Focus When focusing manually, a scale shows the approximate Magnifier indicator subject distance. The scale changes depending on the Manual-focus scale focusing range. Use the up/down controller keys to focus; the monitor image is automatically magnified by a maximum of 2.5X depending on the digital zoom setting;...

  • Page 60: White Balance

    WHITE BALANCE White balance is the camera’s ability to make different types of lighting appear neutral. The effect is similar to selecting daylight or tungsten film, or using color compensating filters in conventional photography. An indicator will be displayed on the monitor if a setting other than auto white-balance is chosen.

  • Page 61: Custom White Balance

    Custom White Balance Custom white-balance allows the camera to be calibrated to a specific lighting condition. The setting can be used repeatedly until reset. Custom white balance is especially useful with mixed-lighting or when critical control over color is needed. The object used to make a calibration must be neutral.

  • Page 62: Full-Time Af

    FULL-TIME AF With full-time AF active, the autofocus systems continually focuses to keep the monitor image sharp. This also reduces the autofocusing time when taking pictures. When the camera is set to manual focus, full-time AF is disabled. Turning the full-time AF function off can help conserve battery power.

  • Page 63: Metering Modes

    Positive compensation No compensation Flash compensation changes the ratio between the ambient and flash exposures. When using fill-flash to reduce harsh shadows caused by direct sunlight, flash compensation changes the ratio between the highlights and shadows. The flash affects the darkness of the shadows without affecting the area illuminated by the sun.

  • Page 64: Camera Sensitivity - Iso

    CAMERA SENSITIVITY - ISO Five camera sensitivity settings can be selected: Auto, 50, 100, 200, and 320; the numerical values are based on an ISO equivalent. ISO is the standard used to indicate film sensitivity: the higher the number, the more sensitive the film.

  • Page 65: Color Mode

    COLOR MODE The color mode controls whether an image is color or black and white. This must be set before the image is recorded. The color mode is set in section 3 of the P, A, S, and M menus and section 2 of the movie menu (p. 44). The live image reflects the selected color mode.

  • Page 66: Sharpness

    SHARPNESS Sharpness accents or softens details in an image in three levels: hard (+), normal, and soft (–). This can be set in section 3 of the P, A, S, and M menus (p. 44). Any changes made are applied to the live image, but may be difficult to see.

  • Page 67: Custom Key Function

    CUSTOM KEY FUNCTION The function assigned to the flash mode button can be selected among the flash mode, drive mode, white balance, focus mode, color mode, and camera sensitivity. This can be set in section 3 of the P, A, S, and M menus (p. 44). The flash mode can also be changed in section 2 of the P, A, S, and M menus.

  • Page 68: Quality (Movie)

    QUALITY (MOVIE) Movies can be recorded at three size and quality combinations: 640x480 Fine, 640x480 Standard, and 320x240 Standard. Image size and quality are the same as those for still images: the larger the image size and higher the quality, the larger the file size. Quality is set in section 1 of the movie menu (p.

  • Page 69: Movie Mode

    The performance of the memory card may prematurely end the recording of a movie clip. Test the card before important events. Check the Konica Minolta web site for the latest compatibility information: North America: http://www.konicaminolta.us/ Europe: http://www.konicaminoltasupport.com. MOVIE MODE The movie mode option selects the type of movie recorded. Standard produces a normal movie clip.

  • Page 70: A Short Guide To Photography

    A SHORT GUIDE TO PHOTOGRAPHY Photography can be a rewarding pursuit. It is a broad and disciplined field that can take years to master. But the pleasure in making photographs and the joy of capturing a magical moment cannot be compared. The guide is an introduction to some basic photographic principles.
  • Page 71 The shutter controls not only exposure, but also the ability to stop motion. Fast shutter speeds are used in sport photography to stop action. Slow shutter speeds can be used to show the flow of motion such as water cascading over a waterfall. The use of a tripod is recommended with slow shutter speeds.

  • Page 72: Advanced Playback

    ADVANCED PLAYBACK The basic functions in this mode are described in the basic playback section on pages 30 through 33. This section covers how to playback movie clips as well as the advanced function on the playback menu. Movie clips can be played back in Quick View or the playback mode.

  • Page 73: Capturing A Movie Frame

    CAPTURING A MOVIE FRAME A single frame from a movie clip can be copied and saved as a still image. The copied image has the same image size as the original movie. Play Rew Fwd Capture this frame? Play Rew Fwd Saved as PICT0015.JPG.

  • Page 74: Navigating The Playback Menu

    NAVIGATING THE PLAYBACK MENU Pressing the menu button (1) turns the menu on and off. The four-way keys of the controller (2) move the cursor in the menu. Pressing the central button of the controller enters a setting. Activate the menu with the menu button. Use the left/right keys of the controller to highlight the appropriate menu tab;...
  • Page 75 Delete – Format – Lock – Edit movie – Copy – Slide show – Playback – Duration 5 sec. Repeat DPOF set – Date print Index print – E-mail copy – Refer to the following sections for descriptions of the menu options. Section 1 and 3 of the playback menus cannot be used when the SD Memory Card is locked with the write-protect switch (p.

  • Page 76: Frame-Selection Screen

    FRAME-SELECTION SCREEN When a marked-frames setting is chosen on a menu, the frame selection screen will appear. This screen allows multiple images to be chosen. :move :sel. :enter The garbage can indicates the image is selected for deletion. The printer icon indicates the image is selected for DPOF printing.

  • Page 77: Delete

    DELETE Deleting permanently erases the file. Once deleted, a file cannot be recovered. Care should be taken when deleting images. Single, multiple, or all files on the memory card can be deleted in section 1 of the playback menu (p. 74). The delete option has three settings: This The file displayed or highlighted in the playback mode is deleted.

  • Page 78: Format

    If the card-error message appears, press the central button of the controller to close the window; check the Konica Minolta web site for the latest compatibility information: North America: http://www.konicaminolta.us/...

  • Page 79: Lock

    LOCK Single, multiple, or all files can be locked. A locked file cannot be deleted by either the playback menu functions or the QV/delete button. However, the formatting function (p. 78) will erase all files on a memory card whether locked or not. Important images should be locked.

  • Page 80: Movie Editing

    MOVIE EDITING The edit-movie option in section 1 of the playback menu allows an unwanted section to be cut from a movie clip. The movie to be edited must first be displayed in the playback mode before opening the playback menu. Highlight “Enter”...
  • Page 81 Preview edit. :function :play After playback, use the down key to continue if the edit is acceptable. To make changes to the edit, use the up key of the controller to return to the previous steps to adjust the start and end points. To cancel the edit operation, press the menu button. Save edit.

  • Page 82: Copy And E-Mail Copy

    COPY AND E-MAIL COPY The copy function in section 1 of the playback menu (p. 74) makes exact copies of image or movie files and can store the copied data on another memory card. E-mail Copy in menu section 3 makes a 640x480 (VGA) JPEG copy of an original still image so that it may be easily transmitted by e-mail.

  • Page 83: Copy

    Copy When the image(s) to be copied are selected, a screen with four messages is displayed. The messages are highlighted during the copying procedure. Copy Copying to camera memory. Change card. Copying to card. Copying completed. :enter After the copy-completed message is highlighted, a screen Copied to 101KM_CP.

  • Page 84: Slide Show

    SLIDE SHOW Section 2 of the playback menu controls the slide-show function. This function automatically displays all still images and movie clips on the memory card in order. The menu has the following options: To start the slide-show presentation. Highlight “Enter” and Slide show Enter press the central button of the controller to start the slide show.
  • Page 85 The controller can be used to control the presentation during playback. Press the central button of the controller to pause and restart the slide show presentation. The left/right keys advance to the next still image or return to the previous one. During a movie, the left/right keys forward or rewind the clip.

  • Page 86: About Dpof

    ABOUT DPOF This camera is supported by DPOF™ version 1.1. The DPOF (Digital Print Order Format) allows direct printing of still images from digital cameras. After the DPOF file is created, the memory card is simply taken to a photofinishing service or inserted into the memory- card slot of DPOF compatible printers.

  • Page 87: Date Print

    When the this-frame or all-frames setting is chosen, a screen appears requesting the number of copies of each image; a maximum of nine copies can be ordered. Use the up/down keys of the controller to set the required number of copies. If the all-frames setting was used to create a print order, any additional images recorded afterwards will not be included in the order.

  • Page 88: Viewing Images On A Television

    VIEWING IMAGES ON A TELEVISION It is possible to view camera images on your television. The camera has a video-out terminal to make the connection using the supplied AV cable. The camera is compatible with the NTSC and PAL standards. The video-output setting can be checked and set in section 4 of the setup menu (p.

  • Page 89: Setup Menu

    SETUP MENU The setup menu is used to control the camera’s functions and operation. The navigating the setup menu section covers the operation of the menu. The section is followed by detailed descriptions of the settings. OPENING THE SETUP MENU The setup menu is opened from the other menus.

  • Page 90: Navigating The Setup Menu

    NAVIGATING THE SETUP MENU See page 89 on how to open the menu. The four-way keys of the controller (1) move the cursor in the menu. Pressing the central button of the controller enters a setting. Use the left/right keys of the controller to highlight the appropriate menu tab; the menu changes as the tabs are highlighted.
  • Page 91 LCDbrightness – Power save 1 min. Inst.Playback Lens acc. None Language English File # memory Folder name Std. form Date/Time set – Date imprint Reset default – Audio signals Focus signal Shutter FX Volume Video output NTSC Transfer mode Data storage Digital zoom Self-timer 10 sec.

  • Page 92: Lcd Monitor Brightness

    LCD MONITOR BRIGHTNESS Monitor brightness can be adjusted in 11 levels. Brightness can be set individually for viewfinder and direct viewing in the recording mode. Turn the mode switch to the appropriate position before opening the brightness option in section 1 of the setup menu (p.

  • Page 93: Instant Playback

    INSTANT PLAYBACK An image can be displayed on the monitor after it is captured. When used with the continuous-advance, progressive- capture, or bracketing drive modes (p. 46), the images in the series are played back in a six-frame index display. Instant playback is activated section 1 of the setup menu (p.

  • Page 94: Language

    100KM022. The first three digits are the folder’s serial number, which will increase by one each time a new folder is created. The next two letters refer to Konica Minolta, and the last three numbers indicate the camera used; 022 indicates a DiMAGE Z5.

  • Page 95: Date And Time Setup

    With the date folder format selected, when an image is recorded, a new folder with the day’s date is created. All images recorded that day are placed in that folder. Images recorded on a different day are placed in a new folder with the corresponding date. If the file number memory function is off (p.

  • Page 96: Date Imprinting

    DATE IMPRINTING The date of recording can be printed directly on the image. The imprinting function must be activated in section 2 of the setup menu (p. 90) before the image is taken. Once activated, the date will continue to be imprinted until the function is reset;...

  • Page 97: Reset Default

    RESET DEFAULT This function affects all modes. When selected, a confirmation screen appears; choosing “Yes” resets the following functions and settings, “No” cancels the operation. Recording mode Auto Digital Subject Selection Flash mode Monitor display Exposure compensation Focus area Drive mode Image size Image quality Anti-Shake...
  • Page 98 Playback menu Playback (Slide Show) Duration (Slide Show) Repeat (Slide Show) Date print Index print Setup menu LCD Brightness Auto-power-save period Instant playback Lens accessory File number (#) memory Folder name Date imprinting Audio signals Focus signals Shutter FX Volume Transfer mode Digital zoom Self-timer...

  • Page 99: Audio Signals

    AUDIO SIGNALS Every time a button is pressed, an audio signal gives a positive confirmation of the operation. The audio signals can be turn off in section 3 of the setup menu (p. 90). The tone of the signal can also be changed; signal 1 is electrical and signal 2 is mechanical.

  • Page 100: Video Output

    VIDEO OUTPUT Camera images can be displayed on a television (p. 88). The video output can be changed between NTSC and PAL in section 4 of the setup menu. North America uses the NTSC standard and Europe uses the PAL standard. Check which standard is used in your region to play back images on your television set.

  • Page 101: Self-Timer

    Zoom scale Magnification SELF-TIMER Self-timer delay period can be selected between 10 seconds and 2 seconds in section 4 of the setup menu (p. 90). A two-second self-timer is recommended to reduce camera shake when using a tripod. Unlike the 10 seconds self-timer, the two-second self-timer is not canceled after taking a picture.

  • Page 102: Data-Transfer Mode

    DiMAGE Viewer CD-ROM (p. 105). No special driver software is required for other Windows or Macintosh operating systems. Customers who have bought a previous DiMAGE digital camera and have installed the Windows 98 driver software must repeat the installation procedure. The updated version of the driver software included on the supplied DiMAGE Viewer CD-ROM is required for the operation of the DiMAGE Z5 with a computer.

  • Page 103: Connecting The Camera To A Computer

    CONNECTING THE CAMERA TO A COMPUTER Confirm the battery has sufficient power before connecting the camera to a computer; the full-battery indicator should be displayed on the monitor. The use of the AC adapter (sold separately) is recommended over the use of the battery. For users with Windows 98 or 98 Second Edition, read the section on page 105 on how to install the necessary USB driver before connecting the camera to a computer.
  • Page 104 When the USB connection is completed, a drive icon, or volume, appears in My Computer or the desktop; the name varies with memory card. When using Windows XP, a window opens requesting instructions on what to do with the image data; follow the directions in the window.

  • Page 105: Connecting To Windows 98 And 98Se

    CONNECTING TO WINDOWS 98 AND 98 SE The driver needs only to be installed once. If the driver cannot be installed automatically, it can be installed manually with the operating system’s add-new-hardware wizard; see the instructions on the following page. During installation, if the operating system requests the Windows 98 CD-ROM, insert it into the CD-ROM drive and follow the accompanying instructions on the screen.

  • Page 106: Manual Installation

    Manual Installation 106 D TRANSFER MODE To install the Windows 98 driver manually, follow the instructions in the connecting-the-camera-to-a- computer section on page 98. When the camera is plugged into the computer, the operating system will detect the new device and the add-new-hardware-wizard window opens.
  • Page 107 The add new hardware wizard will confirm the location of the driver. The letter designating the CD- ROM drive will vary between computers. Click “Next” to install the driver in the system. three drivers MNLVENUM.inf, USBPDR.inf, or USBSTRG.inf. The last window confirms the driver has been installed.

  • Page 108: Memory Card Folder Organization

    MEMORY CARD FOLDER ORGANIZATION Drive Icon Dcim Misc 100KM022 10150130 102KM_CP 103KM_EM PICT0001.JPG PICT0002.MOV Still image Movie clip Image-file names begin with “PICT” followed by a four-digit file number and a jpg or mov extension. To copying images, simply drag and drop the file icon into a location in the computer.

  • Page 109: Auto Power Save - Data-Transfer Mode

    The number in the image file name may not correspond to the frame number of the image. As images are deleted in the camera, the frame counter will adjust itself to show the number of images on the card and reassign the frame numbers accordingly. The serial numbers used with image files will not change when an image is deleted.

  • Page 110: Disconnecting The Camera

    DISCONNECTING THE CAMERA Never disconnect the camera when the access lamp is red - the data or memory card may permanently be damaged. Windows 98 / 98 Second Edition Confirm that the access lamp is not lit. Turn off the camera and then disconnect the USB cable.
  • Page 111 The hardware devices to be stopped will be displayed. Highlight the device by clicking on it then click “Stop.” A confirmation screen will appear to indicate the devices to be stopped. Clicking “OK” will stop the device. A third and final screen will appear to indicate the camera can be safely disconnected from the computer.

  • Page 112: Changing The Memory Card

    CHANGING THE MEMORY CARD Never remove the card when the access lamp is red - the data or memory card may permanently be damaged. Windows 98 and 98 Second Edition 1.Turn off the camera. 2.Change the memory card. 3.Turn on the camera to remake the USB connection. Windows Me, 2000 Professional, and XP 1.Stop the USB connection using the unplug-or-eject-hardware routine (p.

  • Page 113: Uninstalling The Driver Software - Windows

    Click on the locations to display the files. The driver should be indicated with Konica Minolta, the camera name, or “USB Mass Storage Device.” Under certain conditions, the driver name may be different. However, the driver will be indicated by either a question mark or exclamation point.

  • Page 114: Pictbridge

    PICTBRIDGE Confirm the transfer-mode option in section 4 of the setup menu is set to PictBridge. Connect the camera to a PictBridge compatible printer using the camera’s USB cable. The larger plug on the cable is connected to the printer. Open the AV out/ USB port cover and insert the smaller plug of the cable into the camera.

  • Page 115: Notes On Printing Errors

    No. of prints: Print size: Printer setup Layout: Printer setup Print quality: Printer setup Data print: Printer setup :start Once printing begins, the operation can be canceled by pressing the center of the controller. When printing run is finished, a message indicates the end of the operation;...

  • Page 116: Navigating The Pictbridge Menu

    NAVIGATING THE PICTBRIDGE MENU Pressing the menu button (1) turns the menu on and off. The four-way keys of the controller (2) move the cursor in the menu. Pressing the central button of the controller enters a setting. Activate the menu with the menu button. Use the left/right keys of the controller to highlight the appropriate menu tab;...

  • Page 117: Batch Print

    Batch print – Index print – Batch print Batch print in section 1 selects all still images on the memory card for printing. Two options are available: All-frames - to print all images on the card. A screen opens so the number of copies of each image can be specified.

  • Page 118: Paper Size

    Paper size The paper size of the print can be specified. Highlight the current page size and press the central button of the controller to open paper-size screen. Use the controller to select the paper size, and press the central button to complete the operation.

  • Page 119: Data Print

    Data print Data can be printed with the image. The printer-setup option uses the options set with the printer. The date of capture and the file name can be selected for printing. Data printing can also be disabled with the menu. DPOF print –...

  • Page 120: Appendix

    APPENDIX TROUBLESHOOTING The section covers minor problems with basic camera operation. For major problems or damage, or if a problem continues to reoccur frequently, contact a Konica Minolta service facility. Problem Symptom Access lamp turns red when pressing the main switch...
  • Page 121 This manual contains information on products and accessories available at the time of printing. To obtain compatibility information on products not contained in this manual, contact a Konica Minolta service facility. Slow shutter speeds Use a tripod, change the camera result in blurred images sensitivity to a higher setting (p.

  • Page 122: Care And Storage

    CARE AND STORAGE Read this section in its entirety to get the best results from your camera. With proper care, your camera will provide years of service. Camera care • Do not subject the camera to shock or impact. • Turn off the camera when transporting. •...

  • Page 123: Lcd Monitor Care

    • A special built-in battery supplies power to the clock and memory when the camera battery is exhausted or removed. If the camera resets each time the battery is replaced, the built-in battery is exhausted. It must be replaced at a Konica Minolta service facility.

  • Page 124: Memory Cards

    Memory cards should not be used to permanently store image data. Always make a copy of camera files on an appropriate storage device or recording media. Konica Minolta has no responsibility for any loss or damage to data. 124 A...

  • Page 125: Before Important Events And Journeys

    Before important events and journeys • Check the camera’s operation; take test pictures and purchase spare batteries. • Konica Minolta has no responsibility for any damage or loss incurred by equipment malfunction. Copyright • TV program, films, video tapes, photographs, and other materials may be copyrighted.

  • Page 126: Quicktime System Requirements

    QUICKTIME SYSTEM REQUIREMENTS IBM PC / AT Compatible Pentium processor-based PC or compatible computer Windows 98, Me, 2000, or XP. 128MB or more of RAM 126 A PPENDIX QuickTime is used for playing back movies. To install QuickTime, follow the instructions in the installer.
  • Page 127 Conformité Européenne (European Conformity). FCC Compliance Statement Declaration on Conformity Responsible Party: Konica Minolta Photo Imaging U.S.A. Inc. Address: 725 Darlington Avenue, Mahwah, NJ 07430 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 128: Technical Specifications

    TECHNICAL SPECIFICATIONS CCD: Number of effective pixels: Total number of pixels: Camera sensitivity (ISO): Aspect ratio: Lens construction: Maximum aperture: Focal length: Focusing range: Autofocusing system: Focus modes: Shutter: Shutter speeds: Built-in flash recycling time: Monitor LCD: Monitor field of view: Viewfinder field of view: A/D conversion: Recording media:...
  • Page 129 Memory Card. * CIPA: Camera & Imaging Products Association alkaline batteries, 330 min. with 2500mAh Ni-MH batteries, based on Konica Minolta standard. 108.5 (W) X 80 (H) X 84 (D) mm 4.27 (W) X 3.15 (H) X 3.31 (D) in.

  • Page 130: Index

    INDEX A mode, 36 AC adapter, 15 Anti-shake system, 56 Aperture priority mode, 36 Audio signals, 99 Auto power save, 14, 92, 109 Autoflash, 26 Autofocus, 58 Automatic white balance, 60 Battery Care and storage, 123 Indicator, 14 Inserting, 13 Bracketing, 52 Camera-shake warning, 27, 56 Center weighted metering, 63...
  • Page 131 Image quality, 54, 68 Image size, 54, 68 Lock, 79 Index print, 87 Instant playback, 93 ISO, 64 Language, 19, 94 Lock, 79 M mode, 38 Macro, 35 Main switch, 17 Manual focus, 59 Manual mode, 38 Memory card Care and storage, 124 Changing, 16 Format, 78 Write-protect switch, 124...
  • Page 132 © 2005 Konica Minolta Photo Imaging, Inc. under the Berne Convention and the Universal Copyright Convention. 9222-2800-11 NI-A412 Printed in China...

This manual is also suitable for:

Dimage z5

Table of Contents
