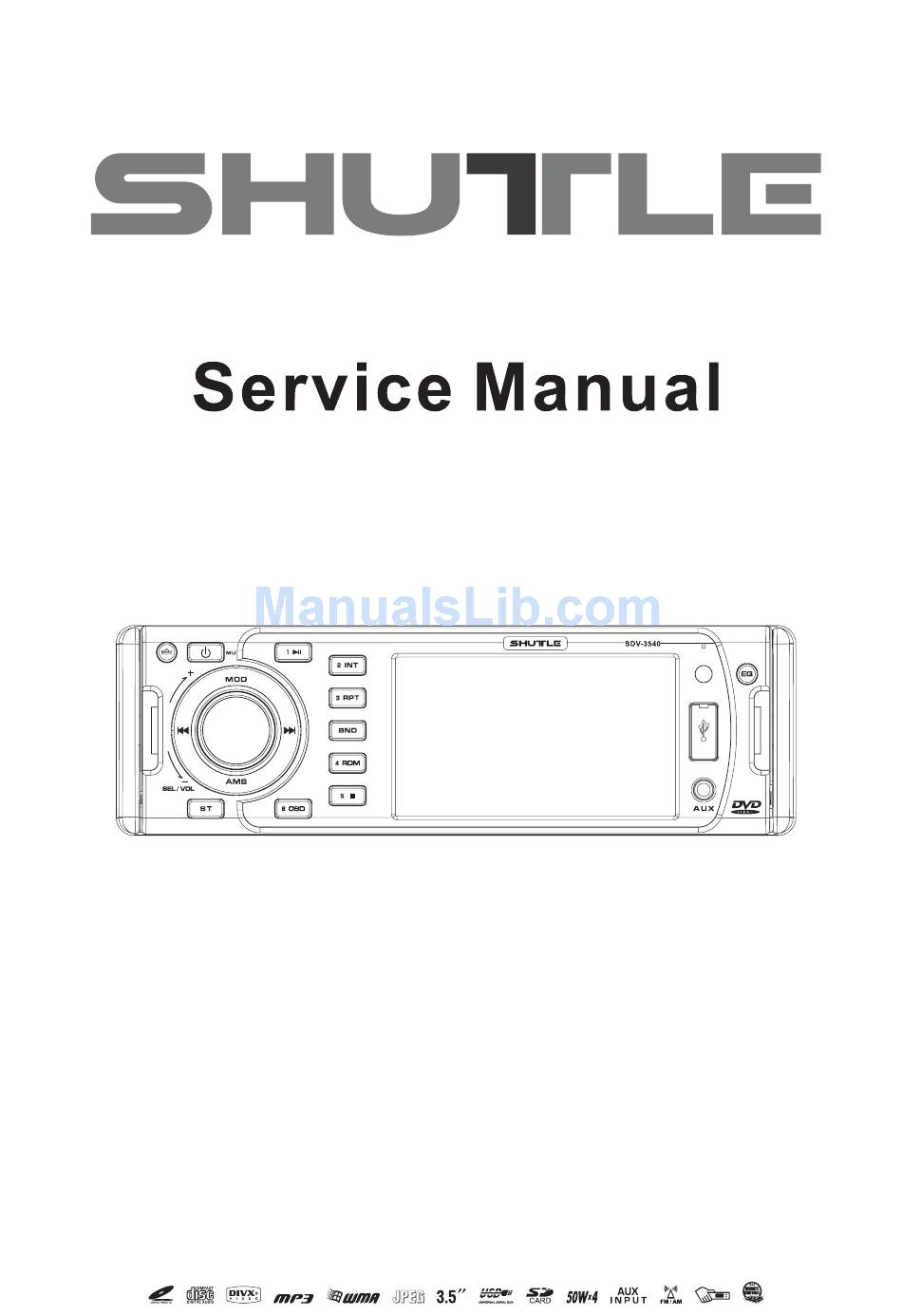

- Page 1 SDV-3540 Мультимедийный проигрыватель Руководство по установке и эксплуатации...
- Page 2 CONTENTS...
-
Page 3: Specification
SPECIFICATION General Power Supply Requirements: DC 14 4V, Negative Ground Load Impedance 4 ohms Maximum Output Power: 25W x 4(CH) Chassis Dimensions: 178 x 163x 50mm (W x D x H) DVD Deck Section Discs Played DVD, MPEG4,DIVX,VCD 1.0/2.0/3.0,MP3 WMA,CD,CD-R,CD-RW,Picture-CD Video system AUTO/PAL/NTSC Mounting Angle... -
Page 4: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS 1.Mounting Box: Slide out the mounting box in parallel. 2.Top cover: Release screw at the back of top cover, and pull out the cover. 3.Bottom Cover: Turn over the unit to release the screws at the back of bottom cover and one the top surface. Pull out the cover. 4.Disassemble the Panel: Pull out the Front panel. -
Page 5: Operation Check
OPERATION CHECK GENERAL SPECIFICATIONS OF SIGNAL Standard frequency 1000 KHz (600, 1400 KHz) 98.0 MHz (90.0, 106.0 MHz) Signal output 74 dB/uV 60 dB/uV Modulation 1 kHz 1 KHz 22.5KHz FM mono AF output level AM/FM Power source voltage DC 14.4 V (backup voltage is the same as this ) AF load impedance 4 ohm pure resistance Balance... - Page 6 DECK DECK...
- Page 7 ADJUSTMENT FM IF/RF ADJUSTMENT Equipment Required FM IF/RF signal generator Oscilloscope Solid-state voltmeter (SSVM) Frequency counter Regulated DC power supply DC digital voltmeter Distortion meter FM IF and RF Alignment Using FM Signal Generator Note : Press the radio power switch to turn on the radio. Signal generator output must be kept as low as possible to avoid overload and clipping.
- Page 8 ADJUSTMENT AM /RF ADJUSTMENT Equipment Required >AM/RF signal generator >Oscilloscope >Solid-state voltmeter (SSVM) >Frequency counter >Regulated DC power supply >DC digital voltmeter >Distortion meter AM/RF and RF Alignment Using AM Signal Generator Note : Press the radio power switch to turn on the radio. Signal generator output must be kept as low as possible to avoid overload and clipping.
-
Page 9: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer Symptom Causes Solution If the power supply is properly No Power The car ignition key not connected to the car accessory been switched on terminal, switch the ignition... -
Page 10: Mainboard Layout
PRINTED CIRCUIT BOARDS MAIN BOARD ( LAYOUT ) - Page 11 PRINTED CIRCUIT BOARDS...
- Page 12 PRINTED CIRCUIT BOARDS...
- Page 13 PRINTED CIRCUIT BOARDS...
- Page 14 PRINTED CIRCUIT BOARDS...
-
Page 15: Servo Board
PRINTED CIRCUIT BOARDS SERVO BOARD... - Page 16 PRINTED CIRCUIT BOARDS SERVO BOARD...
- Page 17 PRINTED CIRCUIT BOARDS SERVO BOARD...
- Page 18 PRINTED CIRCUIT BOARDS SERVO BOARD...
-
Page 19: Wiring Diagram
WIRING DIAGRAM Радио антенна К +12В лампы заднего хода Reverse К стояночному тормозу (<) Parking Видео выход Монитор Мультимедийный проигрыватель Камера заднего обзора Линейный аудио выход 4<х канальный усилитель Линейный аудио выход Выход на сабвуфер усилитель Коаксиальный выход Синий Провод управления антенной, усилителем... - Page 20 06-109188-2001-0S-N MB9188T(4*25W+TFT+SUB+ISO插)(统宝屏) 04-022114-0100 晶体22.1184MHZ 20PF.±30PPM SD卡板 PY-8198D-SDB PCB，HP=1.mm，FR-4 06-C08198-2000 83.97*92.7/4pcs 双面板 07-113060-0101 热敏电阻 300mA 60V T60-030 08-210222-1029 电解电容 16V 2200UF ±20% 10*20 10-080436-0201 插件三极管 2SB436 ( 塑封) 10-090435-0201 插件三极管 2SD435 TO-251 40V，3A，10W( 塑封) 11-020431-0700 TO-92,TL431 11-037388-0600 IC TDA7388 11-047809-0600 直插稳压 IC LM7809 TO-220 11-478L05-0600 集成电路...
- Page 21 19-202010-0005 支架 FUSE (大号) 22-100010-0003 FUSE 1A，DC250，φ4.8X20MM 22-100150-0002 FUSE 15A，DC250V，φ5.6X30MM 输出线14P power output line(不带火牛，不带FUSE) 34-010914-9138 9138D(ISO) 06-109188-2001-1S-N MB9188T(4*25W+TFT+SUB+ISO插)(统宝屏)外发 主板 PY-9188D-MB PCB ，FR-4，双面板 06-109188-2001 186.7*150.5*1.2mm/1 07-080000-0800 贴片电阻 1206 1/4W 07-080000-9900 贴片电阻 0 0603 07-080100-0800 贴片电阻 SMD 10R 1206 5% 07-080100-9900 贴片电阻 10 ...
- Page 22 07-080750-9900 贴片电阻 75 0603 07-080822-9900 贴片电阻 8K2 5% 0603 电解电容 10UF/50V±20% φ5X5mm 排带2.5MM脚距，平底部 08-216100-5022 伸出 电解电容 100UF/10V ±20% φ5X5mm 排带2.5MM脚距，平底 08-216101-0029 部伸出 电解电容 100UF/16V ±20% φ6.3X5mm 排带2.5MM脚距，平 08-216101-1029 底部伸出 电解电容 220UF/10V ±20% φ6.3*5mm 排带2.5MM脚距，平 08-216221-0029 底部伸出 电解电容 47UF/16V ±20% φ5X5mm 排带2.5MM脚距，平底 08-216470-1029 部伸出...
- Page 23 16-0A1470-0000 贴片电感 0805 47uH 16-0A2100-0000 贴片电感 1210 10uH 16-A00000-1003 贴片磁珠 FB 0Ω 0603 16-AA2000-0000 贴片磁珠 1206 FB320 34-010332-0320 贴片插座 32PIN,间距1.0mm,up port 34-010326-0321 贴片插座 26P 1.0MM PITCH 06-000SUB-9138-1-N PY9138D SUBWOOFRE PARTS 07-080103-9900 贴片电阻 0603 07-080154-9900 贴片电阻 150K 5% 0603 07-080273-9900 贴片电阻 0603 07-080222-9900 贴片电阻 ...
- Page 24 09-088103-1300 贴片电容 103/50V 0603 ±10％ 09-088104-1300 贴片电容 104/25V 0603 ±10％ 09-088105-1300 贴片电容 105/16V 0603 ±10％ 09-088220-1300 贴片电容 22P/50V 0603 ±5% 09-088568-1300 贴片电容 5.6P/50V 0603 ±5％ 09-088224-1300 贴片电容 224/25V 0603 ±10％ 12-214148-0011 贴片二极管 IN4148 1206 圆柱形 11-006621-0800 TEF 6621 SOT-32 16-000338-0000 贴片电感 3.3UH SMD 1206 16-0A1188-1000 贴片电感...
- Page 25 07-080332-9900 贴片电阻 3K3 5% 0603 07-080392-9900 贴片电阻 3K9 0603 5% 07-080470-9900 贴片电阻 47 5% 0603 07-080472-9900 贴片电阻 4K7 5% 0603 07-080561-9900 贴片电阻 560 5% 0603 07-080680-9900 贴片电阻 68 5% 0603 07-080681-9900 贴片电阻 680 5% 0603 07-080821-9900 贴片电阻 820R 0603 07-080822-9900 贴片电阻...
- Page 26 07-080101-9900 贴片电阻 100 5% 0603 07-080102-9900 贴片电阻 1K 5% 0603 07-080103-9900 贴片电阻 0603 07-080104-9900 贴片电阻 100K 5% 0603 07-080108-9900 贴片电阻 0603 07-080153-9900 贴片电阻 15K 5% 0603 07-080220-9900 贴片电阻 22 5% 0603 07-080221-9900 贴片电阻 220 5% 0603 07-080222-9900 贴片电阻 2K2 5% 0603 07-080123-9900 贴片电阻...
- Page 27 11-025T80-0400 IC 8M FLASH (SPI EN25T80) SO-8 11-102402-0400 SOP-8,24C02N 11-196287-9400 SOP-8,BA6287F 11-321117-0900 LD1117 (3.3V) TO-223 11-411718-0000 TO-223,LD1117(1.8V) 11-AM5888-0100 IC AM5888S DIP28-SSOPH 11-HE8202-0500 IC SPHE8202TQ QFP128 12-214148-0011 贴片二极管 IN4148 1206 圆柱形 16-0A1108-0000 贴片电感 1UH 0603 16-A00000-1003 贴片磁珠 FB 0Ω 0603 16-A00100-0000 贴片电感...
- Page 30 EXPLODED DRAWING INSTRUCTION E型介子 ∅ 1. 5X4...
- Page 31 74-918801-1006 DVD+TFT 遥控器 SHUTTLE 90-9188DT-0109 PY-9188DT 主结构料 B3-2010-149D 40-019118-0001 基座(26PIN)，ABS777D/BLACK，喷亚黑油 40-049188-0001 装饰框，ABS777D/BLACK，喷亮黑漆 41-169188-0001 EJ钮，ABS/瓷白，喷黑油光刻光字 41-739118-0001 CD碟口透光架，ACRYLIC/CLEAR，喷白油 41-128198-0000 开关触杆（LEVER SW） 41-138198-0000 锁扣（LOCKER） 41-148198-0000 翻面推杆（LEVER OPEN） 41-158198-0000 齿轮（GEAR） 42-018198-0100 锁扣铜柱 Ф2.0X20.4 43-016118-0110 面盖0.6MM G.S.S 43-026118-0110 底盖 0.6MM G.S.S 43-066118-0110 左侧架 1.0MM G.S.S 43-076118-0110 右侧架...
- Page 32 71-016118-0000 黑色不织布，170*80*80G 71-112812-0001 CD碟口绒布，单面黑色绒布，128*12.6*0.5T 90-9188DT-0209 PY-9188DT前咀结构料 B3-2010-149D 面壳(TFT用)，ABS777D/BLACK，喷亮黑油丝印银字“DVD， 40-019188-0008 SEL/VOL，MU”(877C) 40-029188-0001 底壳(26PIN)，ABS777D/BLACK，喷亮黑 41-019188-0001 遥控头盖，ACRYLIC/CLEAR，喷深紫红色（209C） 41-029188-0004 左右装饰条，ACRYLIC/GREEN，底部喷白 41-039188-0004 音量钮发光胶，ACRYLIC/GREEN，底部喷白 装饰块，ABS/BLACK，喷半光黑油丝印银字（877C）“AUX 41-049188-0011 ”（TFT用）型号：SDV-3540 57-900303-0081 SHUTTLE标牌 PVC，黑底镂空银字，17.6X3.4MM 41-059188-0000 音量钮装饰盖，ABS/BLACK 41-069188-0001 左右装饰块，ABS/BLACK，喷半光黑 41-079188-0001 EQ钮，ABS/瓷白，喷亮黑油光刻光字 41-089188-0001 数字钮，ABS/瓷白，喷亮黑油光刻光色“□/5，OSD/6” 41-119188-0001 OPEN钮（手动），ABS，喷亮黑油 41-129188-0001 POWER钮，ABS/瓷白，喷亮黑油光刻光字 41-139188-0001 ST钮，ABS/瓷白，喷亮黑油光刻光字 41-149188-0001 MODE/AMS/巡迹钮，ABS/瓷白，喷亮黑漆光刻光字...
- Page 33 R RED/BLACK 63-328118-0 901 AUX IN L (白底/黑字) RED/WHITE 63-208118-0 401 光头贴纸 YELLOW/BLK 63-228118-0 401 电器危害贴纸 YELLOW/BLK 63-268118-0 201 机芯螺丝封条 63-B10149-0 4-01 机面贴纸 型号：SDV-3540 64-B10038-0 1-01 保修卡 卡通箱(扣底用） A=A 5pcs 尺寸470*239*326MM 型 65-B10149-0 4-01 号:SDV-3540 B3-2010-149D 彩盒(扣底上开盖)225x90x306MM(250g裱B9加强过哑胶局部 66-B10149-0 4-01 UV) 型号:SDV-3540...
