Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle's
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a
symbol. This information is intended to help you avoid
NOTICE
damage to your vehicle, other property, or the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILX and is the answer not in the manual?

Questions and answers

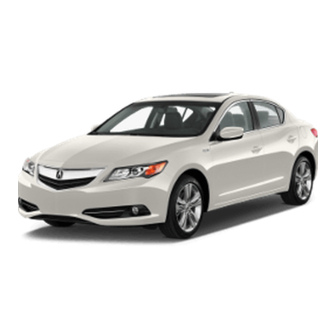

Summary of Contents for Acura ILX

  • Page 1 California Proposition 65 Warning To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the WARNING: This product contains or emits vehicle manufacturer, other parties, such as law enforcement, that chemicals known to the state of California to cause have the special equipment, can read the information if they have cancer and birth defects or other reproductive...
  • Page 2: A Few Words About Safety

    A Few Words About Safety You will find this important safety information in a variety of forms, including: Your safety, and the safety of others, is very important. And ● Safety Labels - on the vehicle. operating this vehicle safely is an important responsibility. ●...
  • Page 3: Table Of Contents

    Contents This owner’s manual should be considered a permanent part of the 2 Safe Driving P. 21 vehicle and should remain with the vehicle when it is sold. For Safe Driving P. 22 Seat Belts P. 26 Airbags P. 33 2 Instrument Panel P.
  • Page 4 Contents Quick Reference Guide P. 4 Child Safety P. 48 Exhaust Gas Hazard P. 60 Safety Labels P. 61 Safe Driving P. 21 Instrument Panel P. 63 Opening and Closing the Trunk P. 102 Security System P. 106 Opening and Closing the Windows P. 108 Operating the Switches Around the Steering Wheel P.
  • Page 5 Quick Reference Guide Visual Index ❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 233) ❙ System Indicators (P 64) ❙ Gauges (P 78) ❙ Multi-Information Display (P 79) ❙ Audio/Information Screen (P 146) ❙ Navigation System () See the Navigation System Manual ❙...
  • Page 6 ❙ Headlights/Turn Signals (P 114) ❙ Fog Lights (P 117) ❙ Paddle Shifter (Shift down) (P 225) ❙ Remote Audio Control Buttons (P 149) ❙ Brightness Control (P 119) ❙ Paddle Shifter (Shift up) (P 225) ❙ Wipers/Washers (P 118) ❙...
  • Page 7 Visual Index ❙ Power Window Switches (P 108) ❙ Power Door Lock Master Switch (P 100) ❙ Door Mirror Controls (P 122) ❙ Rearview Mirror (P 121) ❙ Driver's Front Airbag (P 36) ❙ Passenger's Front Airbag (P 36) ❙ Parking Brake (P 237) ❙...
  • Page 8 ❙ Ceiling Light (P 131) ❙ Side Curtain Airbags (P 43) ❙ Coat Hook (P 134) ❙ Grab Handle ❙ Seat Belts (P 26) ❙ Moonroof Switch (P 111) ❙ Map Lights (P 131) ❙ Sun Visors ❙ Vanity Mirrors ❙...
  • Page 9 Visual Index ❙ Maintenance Under the Hood (P 256, 257) ❙ Windshield Wipers (P 118, 284) ❙ Power Door Mirrors (P 122) ❙ Door Lock/Unlock Control (P 95) ❙ Headlights (P 114, 274) ❙ Front Turn Signal/Parking/Side Marker Lights (P 114, 278, 279) ❙...
  • Page 10 Safe Driving (P 21) Airbags (P 33) ● Your vehicle is fitted with airbags to help protect you and your passengers during a moderate-to-severe collision. Child Safety (P 48) ● All children 12 and younger should be seated in the rear seat. ●...
  • Page 11: Instrument Panel

    Instrument Panel (P 63) Gauges /Multi-Information Display /System Indicators (P 78) (P 79) (P 64) Multi-Information Display System Indicators System Indicators Keyless Access System Shift Lever Position Indicator Malfunction Indicator Indicator Lamp Tachometer Speedometer Turn Signal and Hazard Warning Low Oil Pressure Indicators Indicator Electric Power Steering...
  • Page 12 Controls (P 91) ENGINE START/STOP Turn Signals Wipers and Washers (P 114) Button (P 112) (P 118) Turn Signal Control Lever Press the button to change the vehicle’s power mode. Right Wiper/Washer Control Lever Adjustment Ring : Long Delay : Short Delay Left Pull toward you to spray...
  • Page 13 Steering Wheel Trunk Power Windows (P 120) (P 102) (P 108) ● With the power mode in ON, open and ● To adjust, pull the adjustment lever close the power windows. towards you, adjust to the desired ● If the power window lock button is in the position, then lock the lever back in place.
  • Page 14 Climate Control System Clock (P 136) (P 92) ● Press the AUTO button to activate the climate control system. Models without navigation system ● Press the button to turn the system on or off. Press the CLOCK (AUX) button until the ●...
  • Page 15 ● Audio Remote Controls (P 149) Features (P 141) VOL Button MODE Button Audio system (P 142) For navigation system operation () See the Navigation System Manual Audio/ Information Screen CH Button ● VOL (Volume) Button Press to adjust the volume up/ AM Button VOL / (Volume/Power) Knob...
  • Page 16 Driving (P 209) Manual Transmission (P 226) (P225) Paddle Shifters Automatic Transmission (P 222) ● Paddle shifters allow you to shift gears much like a manual ● Shift to and depress the brake pedal when starting the transmission (1st through 5th). This is useful for engine braking. engine.
  • Page 17 VSA® OFF Button Refueling (P 233) (P 243) ● The vehicle stability assist (VSA®) system Fuel recommendation: Unleaded premium gasoline with a pump octane helps stabilize the vehicle during number 91 or higher recommended cornering, and helps maintain traction Fuel tank capacity: 13.2 US gal (50 L) while accelerating on loose or slippery road surfaces.
  • Page 18 Maintenance (P 247) Under the Hood (P 256, 257) ● Check engine oil, engine coolant, and windshield washer Wiper Blades (P 284) fluid. Add when necessary. ● Replace blades if they leave streaks ● Check brake fluid and clutch fluid. across the windshield.
  • Page 19: Handling The Unexpected

    Handling the Unexpected (P 303) Flat Tire Engine Won't Start Overheating (P 305) (P 311) (P 318) ● If the battery is dead, jump start using a ● Park in a safe location. If you do not see ● Park in a safe location and replace the booster battery.
  • Page 20: What To Do If

    What to Do If The power mode does not The steering wheel may be locked. ● change from VEHICLE OFF Move the steering wheel left and right after ● (LOCK) to ACCESSORY. pressing the ENGINE START/STOP button. Why? The power mode does not The shift lever should be moved to change from ON to VEHICLE OFF (LOCK).
  • Page 21 Why do the doors lock If you do not open the doors within 30 seconds, the doors are after I unlocked the doors relocked automatically for security. using a remote transmitter? Why does the beeper The beeper sounds when: sound when I open the The power mode is in ACCESSORY.
  • Page 22: Safe Driving

    Safe Driving You can find many safety recommendations throughout this chapter, and throughout this manual. For Safe Driving Side Curtain Airbags ......43 Important Safety Precautions ..... 22 Airbag System Indicators....44 Your Vehicle's Safety Features.... 24 Airbag Care ........47 Seat Belts Child Safety About Your Seat Belts......
  • Page 23: For Safe Driving

    For Safe Driving The following pages explain your vehicle's safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important. Important Safety Precautions 1Important Safety Precautions ■ Some states, provinces and territories prohibit the use Always wear your seat belt of cell phones other than hands-free devices by the A seat belt is your best protection in all types of collisions.
  • Page 24 uuFor Safe DrivinguImportant Safety Precautions ■ Pay appropriate attention to the task of driving safely Engaging in cell phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.
  • Page 25: Your Vehicle's Safety Features

    uuFor Safe DrivinguYour Vehicle's Safety Features Your Vehicle's Safety Features 1Your Vehicle's Safety Features Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering...
  • Page 26: Safety Checklist

    uuFor Safe DrivinguYour Vehicle's Safety Features ■ 1Safety Checklist Safety Checklist If the door and trunk open indicator is on, a door For the safety of you and your passengers, make a habit of checking these items and/or the trunk is not completely closed. Close all each time before you drive.
  • Page 27: Seat Belts

    Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you 1About Your Seat Belts connected to the vehicle so that you can take advantage of many built-in safety WARNING features. They also help keep you from being thrown against the inside of the vehicle, against other passengers, or out of the vehicle.
  • Page 28: Seat Belt Reminder

    uuSeat BeltsuAbout Your Seat Belts ■ Proper use of seat belts 1About Your Seat Belts Follow these guidelines for proper use: If a rear seat passenger moves around and extends • All occupants should sit upright, well back in the seat, and remain in that position the seat belt, the lockable retractor may activate.
  • Page 29: Automatic Seat Belt Tensioners

    uuSeat BeltsuAbout Your Seat Belts ■ 1Automatic Seat Belt Tensioners Automatic Seat Belt Tensioners The seat belt tensioners can only operate once. The front seats are equipped with automatic seat belt tensioners to enhance safety. If a tensioner is activated, the SRS indicator will come on.
  • Page 30: Fastening A Seat Belt

    uuSeat BeltsuFastening a Seat Belt Fastening a Seat Belt After adjusting a front seat to the proper position, and while sitting upright and well 1Fastening a Seat Belt back in the seat: No one should sit in a seat with an inoperative seat 2 Adjusting the Seats P.
  • Page 31 uuSeat BeltsuFastening a Seat Belt 3. Position the lap part of the belt as low as 1Fastening a Seat Belt possible across your hips, then pull up on WARNING the shoulder part of the belt so the lap part Lap belt fits snugly.
  • Page 32: Advice For Pregnant Women

    uuSeat BeltsuFastening a Seat Belt ■ 1Advice for Pregnant Women Advice for Pregnant Women Each time you have a checkup, ask your doctor if it is If you are pregnant, the best way to protect yourself and your unborn child when okay for you to drive.
  • Page 33: Seat Belt Inspection

    uuSeat BeltsuSeat Belt Inspection Seat Belt Inspection Regularly check the condition of your seat belts as follows: 1Seat Belt Inspection WARNING • Pull each belt out fully, and look for frays, cuts, burns, and wear. • Check that the latches work smoothly and the belts retract easily. Not checking or maintaining seat belts can If a belt does not retract easily, cleaning the belt may correct the problem.
  • Page 34: Airbags

    Airbags Airbag System Components Continued...
  • Page 35 uuAirbagsuAirbag System Components The front, front side, and side curtain An electronic control unit that continually Impact sensors that can detect a airbags are deployed according to the monitors and can record information moderate to severe front or side impact. direction and severity of impact.
  • Page 36 uuAirbagsuAirbag System Components ■ 1Important Facts About Your Airbags Important Facts About Your Airbags Do not attempt to deactivate your airbags. Together, Airbags can pose serious hazards. To do their job, airbags must inflate with airbags and seat belts provide the best protection. tremendous force.
  • Page 37: Types Of Airbags

    uuAirbagsuTypes of Airbags Types of Airbags Your vehicle is equipped with three types of airbags: 1Types of Airbags • Front airbags: Airbags in front of the driver's and front passenger's seats. The airbags can inflate whenever the power mode is •...
  • Page 38 uuAirbagsuFront Airbags (SRS) ■ Operation Front airbags are designed to inflate during moderate-to-severe frontal collisions. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
  • Page 39 uuAirbagsuFront Airbags (SRS) ■ When front airbags should not deploy Minor frontal crashes: Front airbags were designed to supplement seat belts and help save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle.
  • Page 40: Advanced Airbags

    uuAirbagsuFront Airbags (SRS) ■ 1Advanced Airbags Advanced Airbags If there is a problem with the driver's seat position Your front airbags have advanced features to help reduce the likelihood of airbag sensor, the SRS indicator will come on and the airbag related injuries to smaller occupants.
  • Page 41: Side Airbags

    uuAirbagsuSide Airbags Side Airbags The side airbags help protect the upper torso of the driver or a front passenger 1Side Airbags during a moderate to severe side impact. Do not attach accessories on or near the side airbags. They can interfere with the proper operation of the ■...
  • Page 42 uuAirbagsuSide Airbags ■ When a side airbag deploys with little or no visible damage Because the airbag system senses sudden acceleration, a strong impact to the side of the vehicle's framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.
  • Page 43 uuAirbagsuSide Airbags ■ 1Side Airbag Cutoff System Side Airbag Cutoff System To reduce the likelihood that a front passenger may be injured by an inflating side Sensor that airbag, the passenger side airbag is automatically turned off when: monitors the passenger’s height.
  • Page 44: Side Curtain Airbags

    uuAirbagsuSide Curtain Airbags Side Curtain Airbags The side curtain airbags help protect the heads of the driver and passengers in outer 1Side Curtain Airbags seating positions during a moderate-to-severe side impact. The side curtain airbags are most effective when an occupant is wearing their seat belt properly and ■...
  • Page 45: Airbag System Indicators

    uuAirbagsuAirbag System Indicators Airbag System Indicators If a problem occurs in the airbag system, the SRS indicator will come on and a 1SRS (Supplemental Restraint System) Indicator message appears on the multi-information display. WARNING ■ SRS (Supplemental Restraint System) Indicator Ignoring the SRS indicator can result in serious injury or death if the airbag systems ■...
  • Page 46 uuAirbagsuAirbag System Indicators ■ 1Passenger Airbag Off Indicator Passenger Airbag Off Indicator If the indicator comes on with no front passenger and ■ When the passenger airbag off no objects on the passenger’s seat, or with an adult U.S. Canada indicator comes on riding there, something may be interfering with the The indicator comes on to alert you that the...
  • Page 47 uuAirbagsuAirbag System Indicators ■ 1Side Airbag Off Indicator Side Airbag Off Indicator When you set the power mode to ON, the indicator ■ When the side airbag off indicator comes on should come on for a few seconds and then go out. If it doesn't come on, stays on, or comes on while U.S.
  • Page 48: Airbag Care

    If it is necessary to remove or modify a front seat to accommodate a person with disabilities, contact an Acura dealer, or for U.S. vehicles, Acura Client Relations at 1-800-382-2238 and for Canadian vehicles, Canadian Acura Client Service at 1-...
  • Page 49: Child Safety

    Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are 1Protecting Child Passengers either unrestrained or not properly restrained. In fact, vehicle accidents are the WARNING number one cause of death of children ages 12 and under. Children who are unrestrained or To reduce the number of child deaths and injuries, every state, Canadian province improperly restrained can be seriously...
  • Page 50: Safety Labels P

    uuChild SafetyuProtecting Child Passengers • Any child who is too small to wear a seat belt correctly must be restrained in an 1Protecting Child Passengers approved child seat that is properly secured to the vehicle using either the lap belt WARNING portion of the lap/shoulder belt or the lower anchors of the LATCH system.
  • Page 51: Protecting Infants

    uuChild SafetyuSafety of Infants and Small Children Safety of Infants and Small Children ■ 1Protecting Infants Protecting Infants WARNING An infant must be properly restrained in a rear-facing, reclining child seat until the infant reaches the seat maker's weight or height limit for the seat, and the infant is Placing a rear-facing child seat in the front at least one year old.
  • Page 52 uuChild SafetyuSafety of Infants and Small Children ■ 1Protecting Smaller Children Protecting Smaller Children WARNING If a child is at least one year old and within the weight range indicated by the child seat manufacturer, the child should be properly restrained in a firmly secured Placing a forward-facing child seat in the forward-facing child seat.
  • Page 53 uuChild SafetyuSafety of Infants and Small Children ■ 1Selecting a Child Seat Selecting a Child Seat Installation of a LATCH-compatible child seat is Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). simple. Some have a rigid-type connector, while others have a flexible-type connector. Both are equally easy to use.
  • Page 54 uuChild SafetyuSafety of Infants and Small Children ■ Installing a LATCH-Compatible Child Seat A LATCH-compatible child seat can be installed in either of the two outer rear seats. A child seat is attached to the lower anchors with either the rigid or flexible type of connectors.
  • Page 55 uuChild SafetyuSafety of Infants and Small Children 1Installing a LATCH-Compatible Child Seat For your child's safety, when using a child seat installed using the LATCH system, make sure that the seat is properly secured to the vehicle. A child seat that is not properly secured will not adequately protect a child in a crash and may cause injury to the child or other vehicle occupants.
  • Page 56 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Child Seat with a Lap/Shoulder Seat Belt Installing a Child Seat with a Lap/Shoulder Seat Belt A child seat that is not properly secured will not 1. Place the child seat on the vehicle seat. adequately protect a child in a crash and may cause 2.
  • Page 57 uuChild SafetyuSafety of Infants and Small Children 6. Make sure the child seat is firmly secured by 1Installing a Child Seat with a Lap/Shoulder Seat Belt rocking it forward and back and side to To deactivate a lockable retractor, release the buckle side;...
  • Page 58 uuChild SafetyuSafety of Infants and Small Children ■ Adding Security with a Tether 1Adding Security with a Tether Since a tether can provide additional security to the A tether anchorage point is provided behind Tether Anchorage Points lap/shoulder seat belt installation, we recommend each rear seating position.
  • Page 59: Safety Of Larger Children

    uuChild SafetyuSafety of Larger Children Safety of Larger Children ■ 1Safety of Larger Children Protecting Larger Children WARNING The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who Allowing a child age 12 or under to sit in must sit in front.
  • Page 60 uuChild SafetyuSafety of Larger Children ■ 1Booster Seats Booster Seats When installing a booster seat, make sure to read the If a lap/shoulder seat belt cannot be used instructions that came with it, and install the seat properly, position the child in a booster seat in accordingly.
  • Page 61: Exhaust Gas Hazard

    Exhaust Gas Hazard Carbon Monoxide Gas The engine exhaust from this vehicle contains carbon monoxide, a colorless, 1Carbon Monoxide Gas odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon WARNING monoxide gas will not get into the interior. Carbon monoxide gas is toxic.
  • Page 62: Safety Labels

    Safety Labels Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer for a replacement.
  • Page 64: Instrument Panel

    Instrument Panel This chapter describes the buttons, indicators, and gauges that are used while driving. Indicators ..........64 Multi-Information Display Warning and Information Messages...... 73 Gauges and Multi-Information Display Gauges..........78 Multi-Information Display ....79...
  • Page 65: Indicators

    Indicators Indicator Name On/Blinking Explanation Message Comes on for a few seconds when Comes on while driving - Make sure the ● ● you set the power mode to ON, then parking brake is released. Check the brake goes off if the parking brake has fluid level.
  • Page 66 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on when you set the power Readiness codes are part of the on board ● ● mode to ON, and goes off either diagnostics for the emissions control when the engine starts or after systems.
  • Page 67 uuIndicatorsu Indicator Name On/Blinking Explanation Message Blinks if the transmission system has Blinks while driving - Avoid sudden starts ● ● a problem. and acceleration and have the vehicle checked by a dealer immediately. Transmission Indicator M (sequential Comes on when the manual ●...
  • Page 68 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on when the fuel reserve is Comes on - Refuel your vehicle as soon as ● ● running low (approximately 1.9 U.S. possible. gal./7.5 Liter left). Blinks - Have the vehicle checked by a Low Fuel ●...
  • Page 69 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on when you set the power Stays on constantly or does not come ● ● mode to ON, and goes off when the on at all - Have the vehicle checked by a Electric Power engine starts.
  • Page 70 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds if you Goes off when all doors and the trunk are ● ● set the power mode to ON, then closed. goes off. Door and Trunk Comes on if any door or the trunk is ●...
  • Page 71 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when ● While the indicator is on, press the ● you set the power mode to ON, then (information) button to see the message goes off. again. Comes on along with a beep when a ●...
  • Page 72 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when It does not mean there is a problem with U.S. ● ● you set the power mode to ON, then your side airbags. goes off. Comes on when nobody is sitting in the ●...
  • Page 73 uuIndicatorsu Indicator Name On/Blinking Explanation Message Blinks when the Security System ● Alarm has been set. Security System — 2 Security System Alarm P. 106 Alarm Indicator Indicator Comes on for a few seconds when Have your vehicle checked by a dealer. ●...
  • Page 74: Multi-Information Display Warning And Information Messages

    uuIndicatorsuMulti-Information Display Warning and Information Messages Multi-Information Display Warning and Information Messages The following messages appear only on the multi-information display. Press the (information) button to see the message again with the system message indicator on. Message Condition Explanation Appears when the fuel fill cap is loose or is not installed. ●...
  • Page 75 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation Appears when the engine coolant temperature gets ● abnormally high. 2 Overheating P. 318 Appears when the engine coolant temperature gets Drive slowly to prevent overheating. ● ● high. Appears when there is a problem with the sensor on the Have your vehicle checked by a dealer.
  • Page 76 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation U.S. Appears when the starter system has a problem. As a temporary measure, press and hold the ENGINE ● ● START/STOP button for 15 seconds while pressing the brake pedal and manually start the engine. Have the vehicle checked by a dealer.
  • Page 77 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation Appears when the power mode is in ACCESSORY. ● — Appears when you close the door with the power mode Disappears when you bring the keyless access remote ● ● in ON without the keyless access remote inside the back inside the vehicle and close the door.
  • Page 78 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation Appears after you unlock and open the driver’s door. ● 2 Starting the Engine P. 216 Appears when the steering wheel is locked. Move the steering wheel left and right after pressing the ●...
  • Page 79: Gauges And Multi-Information Display

    Gauges and Multi-Information Display Gauges Gauges include the speedometer, tachometer, fuel gauge, and related indicators. They are displayed when the power mode is in ON. ■ Speedometer Displays your driving speed in mph or km/h. ■ Tachometer Shows the number of engine revolutions per minute. ■...
  • Page 80: Multi-Information Display

    uuGauges and Multi-Information DisplayuMulti-Information Display Multi-Information Display The multi-information display shows the odometer, trip meter, outside temperature indicator, and other gauges. It also displays important messages such as warnings and other helpful information. ■ Switching the Display Press the (information) button or the SEL/RESET button to change the display.
  • Page 81: Trip Meter

    uuGauges and Multi-Information DisplayuMulti-Information Display SEL/RESET Button SEL/RESET SEL/RESET Button Button Odometer Trip A Trip B Outside temperature ■ Odometer Shows the total number of miles or kilometers that your vehicle has accumulated. ■ Trip Meter 1Trip Meter Switch between trip meter A and trip meter B by Shows the total number of miles or kilometers driven since the last reset.
  • Page 82: Outside Temperature

    uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Outside Temperature Outside Temperature The temperature sensor is in the front bumper. Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada). Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle ■...
  • Page 83 uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Average Speed Average Speed You can change when to reset the average speed. Shows the average speed in mph or km/h since Trip A or Trip B was reset. ■ Engine Oil Life Shows the remaining oil life and Maintenance Minder 2 Maintenance Minder P.
  • Page 84: Customized Features

    uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Customized Features Customized Features To customize other features, press the Use the multi-information display to customize certain features. button. 2 List of customizable options P. 85 ■ How to customize When you customize settings: Press the button to select CUSTOMIZE SETTINGS while the power mode is in ON.
  • Page 85 uuGauges and Multi-Information DisplayuMulti-Information Display ■ Customization flow Press the button to select CUSTOMIZE SETTINGS and press the SEL/ RESET button. CUSTOMIZE SETTINGS SEL/RESET METER SETUP SEL/RESET LANGUAGE SELECTION ADJUST OUTSIDE TEMP. DISPLAY “TRIP A” RESET TIMING “TRIP B” RESET TIMING KEYLESS START GUIDANCE SCREENS KEYLESS ACCESS SETUP SEL/RESET...
  • Page 86 uuGauges and Multi-Information DisplayuMulti-Information Display ■ List of customizable options Customizable Setup Group Description Selectable settings Features LANGUAGE ENGLISH /FRENCH/ Changes the displayed language. SELECTION SPANISH -5°F ~ ±0°F ~ +5°F (U.S.) ADJUST OUTSIDE Adjusts the temperature reading by a few degrees. -3°C ~ ±0°C ~ +3°C TEMP.
  • Page 87 uuGauges and Multi-Information DisplayuMulti-Information Display Setup Customizable Features Description Selectable settings Group INTERIOR LIGHT Changes the length of time the interior lights stay 60sec/30sec /15sec DIMMING TIME on after you close the doors. LIGHTING HEADLIGHT AUTO OFF Changes the length of time the exterior lights stay SETUP 60sec/30sec/15sec /0sec...
  • Page 88 uuGauges and Multi-Information DisplayuMulti-Information Display Setup Group Customizable Features Description Selectable settings MAINTENANCE INFO. Resets the Maintenance Minder RESET/CANCEL DEFAULT ALL Sets/Cancels all the customized settings as default. CANCEL/SET Continued...
  • Page 89 uuGauges and Multi-Information DisplayuMulti-Information Display ■ Example of customization settings The steps for changing the “TRIP A” RESET TIMING setting to ON are shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET. 1. Press and release the button until CUSTOMIZE SETTINGS appears on the display.
  • Page 90 uuGauges and Multi-Information DisplayuMulti-Information Display 5. Press the button and select MANUALLY RESET, then press the SEL/ RESET button. The MANUALLY RESET setup screen appears, then the display returns to the customize item screen. 6. Press the button until EXIT appears on the display, then press the SEL/RESET button.
  • Page 92: Controls

    Controls This chapter explains how to operate the various controls necessary for driving. Setting the Clock ........ 92 Security System Alarm...... 106 Adjusting the Mirrors....... 121 Locking and Unlocking the Doors Opening and Closing the Windows ..108 Interior Rearview Mirror ....121 Key Types and Functions ....
  • Page 93: Setting The Clock

    Setting the Clock Clock Models without navigation system 1Clock You can adjust the time in the clock display, with the power mode in ON. These indications are used to show how to operate 1. Press the SETUP button. the selector knob. SETUP Button Rotate to select.
  • Page 94: Locking And Unlocking The Doors

    Locking and Unlocking the Doors Key Types and Functions This vehicle comes with the following keys: 1Key Types and Functions All the keys have an immobilizer system. The ■ immobilizer system helps to protect against vehicle Keys theft. ■ Keyless access remote 2 Immobilizer System P.
  • Page 95: Low Keyless Access Remote Signal Strength

    uuLocking and Unlocking the DoorsuLow Keyless Access Remote Signal Strength ■ 1Key Number Tag Key Number Tag Keep the key number tag separate from the key in a Contains a number that you will need if you safe place outside of your vehicle. purchase a replacement key.
  • Page 96: Locking/Unlocking The Doors From The Outside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside Locking/Unlocking the Doors from the Outside 1Locking/Unlocking the Doors from the Outside ■ Using the Remote Transmitter You can lock or unlock doors using the remote ■ Locking the doors transmitter or keyless access system only when the Press the LOCK button.
  • Page 97 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Using the Keyless Access System Using the Keyless Access System • Do not leave the keyless access remote in the When you carry the keyless access remote, vehicle when you get out. Carry it with you. you can lock/unlock the doors and open the •...
  • Page 98 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the vehicle 1Using the Keyless Access System Grab the driver’s door handle: • Even within the 32 inches (80 cm) radius, you may The driver’s door unlocks. not be able to lock/unlock the doors with the Some exterior lights flash twice and the keyless access remote if it is above or below the outside handle.
  • Page 99 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors Using a Key Locking/Unlocking the Doors Using a Key When you lock the driver's door with a key, all the Fully insert the key and turn it. other doors lock at the same time.
  • Page 100: Locking/Unlocking The Doors From The Inside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside Locking/Unlocking the Doors from the Inside ■ 1Using the Lock Tab Using the Lock Tab When you lock the door using the lock tab on the ■ Locking a door driver's door, all the other doors lock at the same Lock Tab Push the lock tab forward.
  • Page 101: Childproof Door Locks

    uuLocking and Unlocking the DoorsuChildproof Door Locks ■ 1Using the Master Door Lock Switch Using the Master Door Lock Switch When you lock/unlock either front door using the Press the master door lock switch in as shown master door lock switch, all the other doors lock/ to lock or unlock all doors.
  • Page 102: Auto Door Locking/Unlocking

    uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking Auto Door Locking/Unlocking Your vehicle locks all doors and unlocks the driver’s door automatically when a 1Auto Door Locking/Unlocking certain condition is met. You can turn off or change to another auto door locking/unlocking setting using the multi-information ■...
  • Page 103: Opening And Closing The Trunk

    Opening and Closing the Trunk Precautions for Opening/Closing the Trunk ■ Opening the trunk Open the trunk all the way. If it is not fully opened, the trunk lid may begin to close under its own weight. ■ Closing the trunk Keep the trunk lid closed while driving to: Avoid possible damage.
  • Page 104: Using The Trunk Release Button

    uuOpening and Closing the TrunkuUsing the Trunk Release Button ■ Locking the trunk opener You can lock the trunk release with the built- in key. Using the Trunk Release Button 1Using the Trunk Release Button • Do not leave the keyless access remote in the Push up the release button on the trunk lid Trunk Release Button vehicle when you get out.
  • Page 105 uuOpening and Closing the TrunkuUsing the Remote Transmitter Using the Remote Transmitter Press the trunk release button for Trunk approximately one second to unlock and open Button the trunk. Trunk Main Switch 1Trunk Main Switch If you need to give the key to someone else, remove The trunk main switch disables the trunk the built-in key from the keyless access remote by release button on the remote transmitter and...
  • Page 106: Emergency Trunk Opener

    uuOpening and Closing the TrunkuEmergency Trunk Opener Emergency Trunk Opener The trunk release lever allows you to open the 1Emergency Trunk Opener Lever trunk from inside for your safety. Parents should decide if their children should be shown how to use this feature. Slide the release lever in the direction of the arrow.
  • Page 107: Security System

    Security System Immobilizer System The immobilizer system prevents a key that has not been pre-registered from 1Immobilizer System starting the engine. Each key contains electronic transmitters that use electronic NOTICE signals to verify the key. Leaving the keyless access remote in the vehicle can result in theft or accidental movement of the vehicle.
  • Page 108: Panic Mode

    uuSecurity SystemuSecurity System Alarm ■ Setting the security system alarm 1Security System Alarm The security system alarm automatically sets when the following conditions have Do not set the security system alarm when someone been met: is in the vehicle or a window is open. The system can •...
  • Page 109: Opening And Closing The Windows

    Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and closed when the power mode is in ON, 1Opening/Closing the Power Windows using the switches on the doors. The driver's side switches can be used to open and WARNING close all of the windows.
  • Page 110 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing Windows without Auto-Open/Close Function To open: Push the switch down. Close To close: Pull the switch up. Release the switch when the window reaches the desired position. Open ■ Opening Windows and Moonroof with the Remote To open: Press the UNLOCK button twice within 10 seconds and hold it down for the second time.
  • Page 111 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing the Windows/Moonroof with the Key To open: Unlock the driver’s door with the key. Within 10 seconds of returning the key to the central position, turn the key in the unlock direction and hold it there.
  • Page 112: Opening And Closing The Moonroof

    Opening and Closing the Moonroof ■ 1Opening/Closing the Moonroof Opening/Closing the Moonroof WARNING You can only operate the moonroof when the power mode is in ON. Use the switch in the front of the ceiling to open and close the moonroof. Opening or closing the moonroof on ■...
  • Page 113: Engine Start/Stop Button

    Operating the Switches Around the Steering Wheel ENGINE START/STOP Button ■ 1ENGINE START/STOP Button Changing the Power Mode ENGINE START/STOP Button Operating Range Automatic Transmission Manual Transmission Operating Range VEHICLE OFF (LOCK) Indicator Indicator Indicator in the button is off. The steering wheel is locked.
  • Page 114 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Power Mode Reminder If you open the driver’s door when the power mode is set to ACCESSORY, a warning buzzer sounds. ■ Keyless Access Remote Reminder 1Keyless Access Remote Reminder When the keyless access remote is within the Warning buzzers may sound from inside or/ system’s operational range, and the driver’s door is...
  • Page 115: Turn Signals

    uuOperating the Switches Around the Steering WheeluTurn Signals Turn Signals The turn signals can be used when the power mode is in ON. Right Turn ■ One-touch turn signal When you lightly push up or down and release the turn signal lever, the exterior turn signals and turn signal indicator blink three times.
  • Page 116: Automatic Lighting Control

    uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Automatic Lighting Control Automatic Lighting Control We recommend that you turn on the lights manually Automatic lighting control can be used when when driving at night, in a dense fog, or in dark areas the power mode is in ON.
  • Page 117 uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Headlight Integration with Wiper Headlight Integration with Wiper This feature activates during the headlights are off in The headlights automatically come on when the wipers are used several times within AUTO. a certain intervals with the headlight switch in AUTO.
  • Page 118: Fog Lights

    uuOperating the Switches Around the Steering WheeluFog Lights Fog Lights When the low beam headlights are on, turn 1Fog Lights the fog light switch on to use the fog lights. The fog lights go off when the headlights turn off, or when the daytime running lights are on.
  • Page 119: Wipers And Washers

    uuOperating the Switches Around the Steering WheeluWipers and Washers Wipers and Washers The windshield wipers and washers can be 1Wipers and Washers used when the power mode is in ON. NOTICE Do not use the wipers when the windshield is dry. ■...
  • Page 120: Brightness Control

    uuOperating the Switches Around the Steering WheeluBrightness Control Brightness Control When the power mode is in ON, you can use 1Wipers and Washers the brightness control knob to adjust If the wiper stops operating due to any obstacle such instrument panel brightness. as the build-up of snow, park the vehicle in a safe place.
  • Page 121: Rear Defogger/Heated Door Mirror Button

    uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror Button Rear Defogger/Heated Door Mirror Button Press the rear defogger and heated door 1Rear Defogger/Heated Door Mirror Button mirror button to defog the rear window and NOTICE mirrors when the power mode is in ON. When cleaning the inside of the rear window, be careful not to damage the heating wires.
  • Page 122: Adjusting The Mirrors

    Adjusting the Mirrors Interior Rearview Mirror Adjust the angle of the rearview mirror when you are sitting in the correct driving 1Adjusting the Mirrors position. Keep the inside and outside mirrors clean and adjusted for best visibility. ■ Rearview Mirror with Day and Night Positions Adjust the mirrors before you start driving.
  • Page 123: Power Door Mirrors

    uuAdjusting the MirrorsuPower Door Mirrors Power Door Mirrors You can adjust the door mirrors when the power mode is in ON. ■ Mirror position adjustment L/R selector switch: Select the left or right mirror. After adjusting the mirror, return the switch to the center position.
  • Page 124: Adjusting The Seats

    Adjusting the Seats Adjusting the Seat Positions Adjust the driver's seat as far back as possible 1Adjusting the Seats Allow sufficient while allowing you to maintain full control of space. WARNING the vehicle. You should be able to sit upright, well back in the seat and be able to Sitting too close to a front airbag can result adequately press the pedals without leaning...
  • Page 125 uuAdjusting the SeatsuAdjusting the Seat Positions ■ Adjusting the front manual seat(s) 1Adjusting the front manual seat(s) Once a seat is adjusted correctly, rock it back and forth to make sure it is locked in position. Height Adjustment (Driver side only) Pull up or push down the lever to raise or lower the seat.
  • Page 126: Adjusting The Seat-Backs

    uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Adjusting the Seat-Backs Adjusting the Seat-Backs WARNING Adjust the driver's seat-back to a comfortable, upright position, leaving ample space Reclining the seat-back too far can result in between your chest and the airbag cover in serious injury or death in a crash.
  • Page 127: Adjusting The Head Restraints

    uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Adjusting the Head Restraints Adjusting the Head Restraints WARNING Your vehicle is equipped with head restraints in all seating positions. Improperly positioning head restraints reduces their effectiveness and increases Head restraints are most effective for the likelihood of serious injury in a crash.
  • Page 128 uuAdjusting the SeatsuAdjusting the Seat Positions ■ Changing the Rear Center Seat Head Restraint Positions A passenger sitting in the center back seating position should adjust the height of their head restraint to an appropriate position before the vehicle begins moving. To raise the head restraint: Pull it upward.
  • Page 129: Maintain A Proper Sitting Position

    uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Maintain a Proper Sitting Position Maintain a Proper Sitting Position WARNING After all occupants have adjusted their seats and head restraints, and put on their seat belts, it is very important that they continue to sit upright, well back in their Sitting improperly or out of position can seats, with their feet on the floor, until the vehicle is safely parked and the engine is result in serious injury or death in a crash.
  • Page 130: Folding Down The Rear Seat

    uuAdjusting the SeatsuRear Seat Rear Seat ■ 1Folding Down the Rear Seat Folding Down the Rear Seat The rear seat-backs can be folded down to 1. Remove the center shoulder belt from the accommodate bulkier items in the trunk. Center guide.
  • Page 131 uuAdjusting the SeatsuArmrest Armrest ■ Using the Rear Seat Armrest Pull down the armrest in the center seat-back.
  • Page 132: Interior Lights/Interior Convenience Items

    Interior Lights/Interior Convenience Items Interior Lights ■ 1Interior Light Switches Interior Light Switches In the door activated position, the interior lights fade ■ out and go off about 30 seconds after the doors are Front Door Activated Position The interior lights come on regardless of closed.
  • Page 133: Interior Convenience Items

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items Interior Convenience Items ■ 1Glove Box Glove Box WARNING Pull the handle to open the glove box. You can lock the glove box with the built-in key. An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.
  • Page 134: Beverage Holders

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Beverage Holders Beverage Holders NOTICE ■ Front seat beverage holders Spilled liquids damage the upholstery, carpeting, and Are located in the console between the front electrical components in the interior. seats. Be careful when you are using the beverage holders. Hot liquid can scald you.
  • Page 135: Coat Hook

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Accessory Power Socket Accessory Power Socket NOTICE The accessory power sockets can be used when the power mode is in ACCESSORY Do not insert an automotive type cigarette lighter or ON. element. Open the console lid and the cover to use it. This can overheat the power socket.
  • Page 136: Seat Heaters

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Seat Heaters Seat Heaters WARNING The power mode must be in ON to use the seat heaters. The HI setting heats the seats Heat induced burns are possible when faster than the LO setting. using seat heaters.
  • Page 137: Climate Control System

    Climate Control System Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. 1Using Automatic Climate Control The system also selects the proper mix of heated or cooled air that raises or lowers If any buttons are pressed while using the climate the interior temperature to your preference as quickly as possible.
  • Page 138: Defrosting The Windshield And Windows

    uuClimate Control SystemuUsing Automatic Climate Control ■ 1Defrosting the Windshield and Windows Defrosting the Windshield and Windows For your safety, make sure you have a clear view Pressing the button turns the air through all the windows before driving. conditioning system on and automatically Do not set the temperature near the upper or lower switches the system to fresh air mode.
  • Page 139: Synchronized Mode

    uuClimate Control SystemuSynchronized Mode Synchronized Mode 1Synchronized Mode When you press the button, the system changes to synchronized mode. When the system is in dual mode, the driver side temperature and the passenger side temperature can be set separately. You can set the temperature synchronously for the driver side and the passenger side in synchronized mode.
  • Page 140: Automatic Climate Control Sensors

    uuClimate Control SystemuAutomatic Climate Control Sensors Automatic Climate Control Sensors The automatic climate control system is Sensor equipped with sensors. Do not cover or spill any liquid on them. Sensor...
  • Page 142: Features

    Features This chapter describes how to operate technology features. Audio System Playing Internet Radio ...... 161 Compatible iPod, iPhone, and USB Flash About Your Audio System....142 Playing a USB Flash Drive ....163 Drives ..........176 USB Adapter Cable ......143 Playing Bluetooth®...
  • Page 143: Audio System

    Audio System About Your Audio System Models with navigation system 1About Your Audio System See the Navigation System Manual for operation of the audio system, AcuraLink XM® Radio is available on a subscription basis only. Bluetooth® HandsFreeLink®, and voice commands for these features. For more information on XM®...
  • Page 144: Usb Adapter Cable

    uuAudio SystemuUSB Adapter Cable USB Adapter Cable 1. Unclip the USB connector and loosen the 1USB Adapter Cable adapter cable. • Do not leave the iPod or USB flash drive in the 2. Install the iPod dock connector or the USB vehicle.
  • Page 145: Audio System Theft Protection

    U.S. models correctly after 10 tries, leave the system for one hour before trying again, or visit You can register the security code at Acura Owners a dealer to have the system reset. (owners.acura.com.), and find information on how to retrieve the serial number and obtain the code at radio-navicode.acura.com.
  • Page 146: Audio System Basic Operation

    Audio System Basic Operation To use the audio system function, the power mode must be in ACCESSORY or ON. 1Audio System Basic Operation Use the selector knob or SETUP button to These indications are used to show how to operate BACK Button SETUP Button access some audio functions.
  • Page 147: Audio/Information Screen

    uuAudio System Basic OperationuAudio/Information Screen Audio/Information Screen Displays audio status and wallpaper, and allows you to go to various setup options. ■ Switching the Display Press DISPLAY button. Rotate and select the mode from the three display modes. Press DISPLAY Button Selector Knob...
  • Page 148 uuAudio System Basic OperationuAudio/Information Screen ■ Audio Display Shows the current audio information. 2 Audio System Basic Operation P. 145 ■ Wallpaper Shows a clock screen or an image you import. 2 Wallpaper Setup P. 168 ■ Minimum Display Minimizes the display by only showing the clock and audio status on the display. ■...
  • Page 149 uuAudio System Basic OperationuAudio/Information Screen ■ Language Selection 1. Rotate to select Language Selection, then press 2. Rotate to select the language, then press...
  • Page 150: Audio Remote Controls

    uuAudio System Basic OperationuAudio Remote Controls Audio Remote Controls Allow you to operate the audio system while driving. 1Audio Remote Controls MODE Button The CD mode appears only when a CD is loaded. VOL Button MODE Button Cycles through the audio modes as follows: FM1 FM2 AM XM1 CD AUX When in AUX mode, the following are operable from...
  • Page 151: Adjusting The Sound

    uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound Press the SETUP button, and rotate 1Adjusting the Sound SETUP Button select Sound Settings, then press . Rotate The SVC has four modes: Off, Low, Mid, and High. SVC adjusts the volume level based on the vehicle to scroll through the following choices: speed.
  • Page 152: Playing Am/Fm Radio

    uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio Preset Buttons (1-6) VOL/ (Volume/Power) Knob To store a station: Press to turn the audio system on and off. 1. Tune to the selected station. Turn to adjust the volume. 2. Pick a preset button and hold it until you hear a beep.
  • Page 153 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Playing AM/FM Radio Radio Data System (RDS) The ST indicator appears on the display indicating Provides text data information related to your selected RDS-capable FM station. stereo FM broadcasts. Stereo reproduction in AM is not available. ■...
  • Page 154: Playing Xm® Radio

    uuAudio System Basic OperationuPlaying XM® Radio Playing XM® Radio VOL/ (Volume/Power) Knob Preset Buttons (1-6) Press to turn the audio system on and off. To store the channel: Turn to adjust the volume. 1. Tune to the channel. 2. Pick a preset button and hold it until (XM®) Button you hear a beep.
  • Page 155 uuAudio System Basic OperationuPlaying XM® Radio ■ 1Playing XM® Radio To Play the XM® Radio In the channel mode, all available channels are 1. Press the button to select the XM® radio band (XM1 or XM2). selectable. In the category mode, you can select a 2.
  • Page 156: Playing A Cd

    uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA or AAC format. With the CD loaded, press the CD button. FOLDER Bar Press to skip to the next folder, and to skip to the beginning of the previous VOL/ (Volume/Power) Knob...
  • Page 157 uuAudio System Basic OperationuPlaying a CD ■ 1Playing a CD How to Select a File from a Folder with the Selector Knob (MP3/WMA/AAC) NOTICE Do not use CDs with adhesive labels. The label can 1. Press to switch the display to a folder list. cause the CD to jam in the unit.
  • Page 158 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Press the BACK button to go back to the previous You can select repeat and random modes when playing a track or file. display, and press the SETUP button to cancel this 1.
  • Page 159: Playing An Ipod

    uuAudio System Basic OperationuPlaying an iPod Playing an iPod Connect the iPod using your dock connector to the USB adapter cable, then press the AUX button. 2 USB Adapter Cable P. 143 USB Indicator Appears when an iPod is connected. Album Art VOL/ (Volume/Power) Knob...
  • Page 160 uuAudio System Basic OperationuPlaying an iPod ■ 1Playing an iPod How to Select a File from the iPod Menu Available operating functions vary on models or 1. Press to display the iPod menu. versions. Some functions may not be available on the vehicle's audio system.
  • Page 161 uuAudio System Basic Operationu ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a file. Normal Play 1. Press the SETUP button. Repeat Off: Turns off the repeat mode. Repeat One Track: Repeats the current track.
  • Page 162: Playing Internet Radio

    uuAudio System Basic OperationuPlaying Internet Radio U.S. models iPhone® use only Playing Internet Radio Activate Pandora®, and connect the iPhone® using your dock connector to the USB adapter cable, then press the AUX button. 2 USB Adapter Cable P. 143 Rating Icon Album Art VOL/...
  • Page 163 uuAudio System Basic OperationuPlaying Internet Radio ■ 1Playing Internet Radio Pandora® Menu Pandora® is a personalized Internet radio service that You can operate some of the Pandora menu items from your vehicle’s audio system. selects music based on an artist, song, or genre a user The available items are: enters, and streams what is likely to be of interest.
  • Page 164: Playing A Usb Flash Drive

    uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC format. Connect your USB flash drive to the USB adapter cable, then press the AUX button. 2 USB Adapter Cable P.
  • Page 165 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from a Folder with the Selector Knob Use the recommended USB flash drives. 1. Press to switch the display to a folder list. 2 General Information on the Audio System P.
  • Page 166 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and random modes when playing a file. Normal Play 1. Press the SETUP button. Repeat One Track: Repeats the current file.
  • Page 167: Playing Bluetooth® Audio

    This function is available when the phone is paired and linked to the vehicle's audio capabilities are compatible with the system. Bluetooth® HandsFreeLink® (HFL) system. For a list of compatible phones: • U.S.: Visit www.acura.com/handsfreelink, or call 1- 2 Phone Setup P. 186 888-528-7876. • Canada: Visit www.handsfreelink.ca, or call 1-888- Bluetooth Indicator 528-7876.
  • Page 168 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker's operating linked to HFL.
  • Page 169: Wallpaper Setup

    uuAudio System Basic OperationuWallpaper Setup Wallpaper Setup You can change, store and delete the wallpaper on the audio/information screen. 1Wallpaper Setup • When importing wallpaper files, the image must be ■ Import Wallpaper in the USB flash drive’s root directory. Images in a folder cannot be imported.
  • Page 170 uuAudio System Basic OperationuWallpaper Setup ■ Select Wallpaper 1. Rotate to select Select on the wallpaper setup menu, then press The screen will change to the wallpaper list. 2. Rotate to select desired wallpaper and press When the scroll is stopped, the thumbnail is displayed. ■...
  • Page 171: Cd Player

    Audio Error Messages CD Player If a disc error occurs, you may see the following error messages. Error Message Cause Solution Current track/file will be skipped. The next supported track/file ● Unplayable File Track/file format not supported plays automatically. Bad Disc Press the (eject) button and remove the disc, and check that the ●...
  • Page 172: Ipod/Usb Flash Drive

    uuAudio Error Messages uiPod/USB Flash Drive iPod/USB Flash Drive If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution Appears when there is a problem with the USB adapter unit.
  • Page 173: Pandora

    uuAudio Error Messages uPandora® U.S. models Pandora® If an error occurs while playing Pandora®, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution PANDORA No Station Appears when there is no station list on the device. Use the device to create a station. PANDORA Requires Update Appears when Pandora version is not supported.
  • Page 174: Xm® Radio Service

    General Information on the Audio System XM® Radio Service ■ Subscribing to XM® Radio 1Subscribing to XM® Radio Contact Information for XM® Radio: 1. You need your radio ID ready before registering for subscription. To see the ID in US: XM® Radio at www.siriusxm.com or 1-800-852- the display: Turn the selector knob until 0 appears.
  • Page 175: Recommended Cds

    uuGeneral Information on the Audio SystemuRecommended CDs Recommended CDs • Use only high-quality CD-R or CD-RW discs labeled for audio use. 1Recommended CDs • Use only CD-R or CD-RW discs on which the recordings are closed. A Dual-disc cannot play on this audio unit. If recorded •...
  • Page 176 uuGeneral Information on the Audio SystemuRecommended CDs ■ Protecting CDs 1Protecting CDs Follow these precautions when handling or storing CDs: NOTICE • Store a CD in its case when it is not being played. Do not insert a damaged CD. It may be stuck inside •...
  • Page 177: Compatible Ipod, Iphone, And Usb Flash Drives

    uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives Compatible iPod, iPhone, and USB Flash Drives ■ iPod and iPhone Model Compatibility 1iPod and iPhone Model Compatibility This system may not work with all software versions Model of these devices.
  • Page 178: Homelink® Universal Transceiver

    HomeLink® Universal Transceiver The HomeLink® Universal Transceiver can be programmed to operate up to three 1HomeLink® Universal Transceiver remote controlled devices around your home, such as garage doors, lighting, or HomeLink® is a registered trademark of Johnson home security systems. Controls., Inc.
  • Page 179 uuHomeLink® Universal Transceiver uTraining HomeLink ■ 1Training HomeLink Training a Button Retraining a Button Position the remote transmitter you wish to link 1 to 3 inches (3-8 cm) from the HomeLink If you want to retrain a programmed button for a button you want to program.
  • Page 180: Bluetooth® Handsfreelink

    Models without navigation system procedures, and special feature capabilities: Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using • U.S.: Visit www.acura.com/handsfreelink, or call 1- your vehicle's audio system, without handling your cell phone. 888-528-7876. • Canada: Visit www.handsfreelink.ca, or call 1-888- 528-7876.
  • Page 181: Limitations For Manual Operation

    uuBluetooth® HandsFreeLink®uUsing HFL ■ 1Bluetooth® HandsFreeLink® HFL Status Display Bluetooth® Wireless Technology The audio/information screen notifies you Bluetooth Indicator The Bluetooth® word mark and logos are registered when there is an incoming call. Comes on when your trademarks owned by Bluetooth SIG, Inc., and any phone is connected to HFL.
  • Page 182: Hfl Menus

    uuBluetooth® HandsFreeLink®uHFL Menus HFL Menus The power mode must be in ACCESSORY or ON to use HFL. 1HFL Menus To use HFL, you must first pair your Bluetooth- PHONE or compatible cell phone to the system while the vehicle Phone is parked.
  • Page 183 uuBluetooth® HandsFreeLink®uHFL Menus Redial Redial the last number dialed in the phone’s history. Select message and Text Message Message is read aloud Read/Stop reading System reads received message aloud, or stop message from being read. Reply to a received message using one of Reply six fixed phrases.
  • Page 184 uuBluetooth® HandsFreeLink®uHFL Menus Phone Setup Connection Add a New Phone Pair a phone to the system. Connect a Phone Connect a phone to the system. Disconnect Phone Disconnect a paired phone from the system. Delete a Phone Delete a previously paired phone. Pairing Code Create a code for a paired phone.
  • Page 185 uuBluetooth® HandsFreeLink®uHFL Menus Add New Select a phone number from the Speed Dial Phonebook phonebook to store as a speed dial number. Call History Select a phone number from the call history to store as a speed dial number. Phone Number Enter a phone number to store as a speed dial number.
  • Page 186 uuBluetooth® HandsFreeLink®uHFL Menus Auto Transfer Set calls to automatically transfer from your phone to HFL when you enter the vehicle. Caller ID Info Name Priority Prioritize the caller’s name as the caller ID. Number Priority Prioritize the caller’s phone number as the caller ID.
  • Page 187: Phone Setup

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Phone Setup Phone Setup Your Bluetooth-compatible phone must be paired to ■ To pair a cell phone (when there is no HFL before you can make and receive hands-free phone paired to the system) calls. 1. Press the PHONE button or the button.
  • Page 188 uuBluetooth® HandsFreeLink®uHFL Menus ■ To pair a cell phone (when a phone has already been paired to the system) 1. Press the PHONE button or the button. If a prompt appears asking to connect to a phone, select No and proceed with step 2.
  • Page 189 uuBluetooth® HandsFreeLink®uHFL Menus 6. Make sure your phone is in search or discoverable mode, then press HFL automatically searches for a Bluetooth device. 7. When your phone appears on the list, select it by pressing If your phone doesn’t appear, select Phone Not Found? and search for Bluetooth devices using your phone.
  • Page 190 uuBluetooth® HandsFreeLink®uHFL Menus ■ To change the pairing code setting 1To change the pairing code setting 1. Press the PHONE button or the button. The default pairing code is 0000 until you change the 2. Rotate to select Phone Setup, then setting.
  • Page 191 uuBluetooth® HandsFreeLink®uHFL Menus ■ To delete a paired phone 1. Press the PHONE button or the button. 2. Rotate to select Phone Setup, then press Repeat the procedure to select Connection, then Delete a Phone. 3. Rotate to select a phone you want to delete, then press 4.
  • Page 192 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1To Set Up a Text Message Notice Option To Set Up a Text Message Notice Option On: A pop-up notification comes on every time you 1. Press the PHONE button or the button. receive a new text message. 2.
  • Page 193: To Create A Security Pin

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1To Create a Security PIN To Create a Security PIN In the phone is already security PIN protected, you You can protect each of the six cell phones with a security PIN. need to enter the current security PIN before clearing 1.
  • Page 194: Automatic Transferring

    uuBluetooth® HandsFreeLink®uHFL Menus ■ Automatic Transferring If you get into the vehicle while you are on the phone, the call can be automatically transferred to HFL. 1. Press the PHONE button or the button. 2. Rotate to select Phone Setup, then press Repeat the procedure to select Auto Transfer.
  • Page 195: To Clear The System

    uuBluetooth® HandsFreeLink®uHFL Menus ■ To Clear the System Security codes, paired phones, all stored voice tags, all speed dial entries, and all imported phonebook data are erased. 1. Press the PHONE button or the button. 2. Rotate to select Phone Setup, then press Repeat the procedure to select System Clear.
  • Page 196 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Automatic Import of Cellular Phonebook and Call History Automatic Import of Cellular Phonebook and Call History When you select a person from the list in the cellular When your phone is paired, the contents of its phonebook and call history are phonebook, you can see up to three category icons.
  • Page 197: Speed Dial

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Speed Dial Speed Dial You can use the audio preset buttons during a call to Up to 15 speed dial numbers can be stored per phone. store a speed dial number: To store a speed dial number: 1.
  • Page 198 uuBluetooth® HandsFreeLink®uHFL Menus ■ To add a voice tag to a stored speed 1Speed Dial dial number Avoid using duplicate voice tag. 1. Press the PHONE button or the button. Avoid using “home” as a voice tag. 2. Rotate to select Phone Setup, then It is easier for HFL to recognize a longer name.
  • Page 199: Making A Call

    uuBluetooth® HandsFreeLink®uHFL Menus ■ To delete a speed dial number 1. Press the PHONE button or the button. 2. Rotate to select Phone Setup, then press Repeat the procedure to select Speed Dial. 3. Select an existing speed dial entry. 4.
  • Page 200 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using the imported 1To make a call using the imported phonebook phonebook This function is disabled while the vehicle is moving. When your phone is paired, the contents of its However, you can call a stored speed dial number phonebook are automatically imported to with a voice tag using voice commands.
  • Page 201 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using redial 1. Press the PHONE button or the button. 2. Rotate to select Redial, then press Dialing starts automatically. ■ 1To make a call using the call history To make a call using the call history The call history displays the last 20 dialed, received, or Call history is stored by Dialed Calls, missed calls.
  • Page 202: Receiving A Call

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible HFL Mode Caller Name Press the button to put the current call on hold to notification sounds (if activated) and the answer the incoming call.
  • Page 203: Options During A Call

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Options During a Call Options During a Call Touch Tones: Available on some phones. The following options are available during a call. Mute: Mute your voice. Transfer Call: Transfer a call from HFL to your phone. Touch Tones: Send numbers during a call.
  • Page 204: Receiving A Text Message

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Text Message Receiving a Text Message The system does not display any received messages HFL can display newly received text messages as well as 20 of the most recently while you are driving. You can only hear them read received messages on a linked cell phone.
  • Page 205: Displaying Messages

    uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Displaying Messages Displaying Messages icon appears next to an unread message. 1. Press the PHONE button or the button. 2. Rotate to select Text Message, then Only the first three lines of the received message are press displayed with this option.
  • Page 206 uuBluetooth® HandsFreeLink®uHFL Menus ■ Using the stop reading or read option 1Using the stop reading or read option 1. Press the PHONE button or the button. This option changes to: 2. Rotate to select Text Message, then • Stop Reading while the text message is read out. press Select this option to discontinue the message read- out.
  • Page 207 uuBluetooth® HandsFreeLink®uHFL Menus ■ Reply to a message 1Reply to a message You can reply to a message using one of the The available fixed reply messages are as follows: six common phrases available in the system. • Talk to you later, I'm driving. •...
  • Page 208 uuBluetooth® HandsFreeLink®uHFL Menus ■ Making a call to a sender You can call the text message sender. 1. Press the PHONE button or the button. 2. Rotate to select to Text Message, then press 3. Rotate to select a message, then press The text message is displayed.
  • Page 210: Driving

    Driving This chapter discusses driving, refueling, and information on items such as accessories. Before Driving Cruise Control ......... 229 Parking Your Vehicle......241 Driving Preparation ......210 Multi-View Rear Camera....242 Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System ....232 Maximum Load Limit......
  • Page 211: Before Driving

    Before Driving Driving Preparation Check the following items before you start driving. ■ Exterior Checks 1Exterior Checks • Make sure there are no obstructions on the windows, door mirrors, exterior NOTICE When doors are frozen shut, use warm water around lights, or other parts of the vehicle.
  • Page 212: Adjusting The Mirrors P

    uuBefore DrivinguDriving Preparation ■ 1Interior Checks Interior Checks The headlight aim is set by the factory, and does not • Store or secure all items on board properly. need to be adjusted. However, if you regularly carry Carrying too much cargo, or improperly storing it, can affect your vehicle's heavy items in the trunk have the aiming readjusted handling, stability, stopping distance, and tires, and make it unsafe.
  • Page 213 uuBefore DrivinguDriving Preparation • Be sure items placed on the floor behind the front seats cannot roll under the seats. They can interfere with the driver's ability to operate the pedals, the operation of the seats, or the operation of the sensors under the seats. •...
  • Page 214: Maximum Load Limit

    uuBefore DrivinguMaximum Load Limit Maximum Load Limit The maximum load for your vehicle is 850 lbs (385 kg). 1Maximum Load Limit See Tire and Loading Information label attached to the driver's doorjamb. WARNING Overloading or improper loading Label Example can affect handling and stability and cause a crash in which you can be hurt or killed.
  • Page 215 uuBefore DrivinguMaximum Load Limit (5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4. (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
  • Page 216: Towing A Trailer

    Towing a Trailer Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties. Towing Your Vehicle Your vehicle is not designed to be towed behind a motor home. If your vehicle needs to be towed in an emergency, refer to the emergency towing information. 2 Emergency Towing P.
  • Page 217: When Driving

    When Driving Starting the Engine 1. Make sure the parking brake is applied. 1Starting the Engine Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 8,000 feet (2,400 meters).
  • Page 218 uuWhen DrivinguStarting the Engine All models 1Starting the Engine 3. Press the ENGINE START/STOP button Bring the keyless access remote close to the ENGINE without depressing the accelerator pedal. START/STOP button if the battery in the keyless access remote is weak. 2 If the Keyless Access Remote Battery is Weak P.
  • Page 219: Stopping The Engine

    uuWhen DrivinguStarting the Engine ■ Stopping the Engine You can turn the engine off when the vehicle is completely stopped. Automatic transmission models 1. Shift to 2. Press the ENGINE START/STOP button. Manual transmission models • If the shift lever is in N , press the ENGINE START/STOP button.
  • Page 220 uuWhen DrivinguStarting the Engine ■ Hill Start Assist System 1Starting the Engine Hill start assist keeps the brake engaged briefly to help prevent the vehicle from Hill start assist may not prevent the vehicle from rolling on inclines as you move your foot from the brake pedal to the accelerator. rolling downhill on a very steep or slippery slope, and does not operate on small inclines.
  • Page 221: Other Precautions

    uuWhen DrivinguPrecautions While Driving Precautions While Driving ■ 1Precautions While Driving In Rain NOTICE Avoid driving in deep water and on flooded roads. This can damage the engine, Do not operate the shift lever while pressing the driveline, or cause electrical component failure. accelerator pedal.
  • Page 222: Automatic Transmission

    uuWhen DrivinguAutomatic Transmission Automatic Transmission ■ 1Precautions While Driving Creeping NOTICE The engine runs at a higher idle speed and creeping increases. The following can damage the under spoiler: Keep the brake pedal firmly depressed when stopped. • Parking the vehicle by a parking block •...
  • Page 223: Automatic Transmission Models

    uuWhen DrivinguShifting Automatic transmission models Shifting 1Shifting Change the shift position in accordance with your driving needs. You cannot change the power mode from ON to VEHICLE OFF (LOCK) unless the shift lever is in ■ Shift lever positions The vehicle may move forward very slightly even in while the engine is cold.
  • Page 224 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission. Use the shift lever position indicator to check the lever position before pulling away.
  • Page 225 uuWhen DrivinguShifting ■ Sequential Shift Mode Use the paddle shifters to change between 1st and 5th gears without removing your hands from the steering wheel. The transmission will switch to the sequential shift mode. ■ When the shift lever is in The vehicle will go into the sequential shift mode momentarily, and the gear position indicator will come on.
  • Page 226 uuWhen DrivinguShifting ■ Second gear lock mode If you pull the + paddle shifter while stopped or driving at 6 mph (10 km/h) or less, the gear position will be locked in 2nd gear. This makes it easier to pull away on slippery surfaces such as snow covered roads.
  • Page 227: Manual Transmission Models

    uuWhen DrivinguShifting Manual transmission models Shifting 1Shifting ■ Shift Lever Operation NOTICE Do not shift to before the vehicle comes to a Fully depress the clutch pedal to operate the shift lever and change gears, then complete stop. slowly release the pedal. Shifting to before stopping can damage the transmission.
  • Page 228 uuWhen DrivinguShifting When you are not shifting, do not rest your 1Shifting foot on the clutch pedal. This can cause your Recommended Shift Points clutch to wear out faster. Driving in the highest gear that allows the engine to run and accelerate smoothly helps to optimize fuel economy and effective emissions control.
  • Page 229 uuWhen DrivinguShifting ■ Reverse Lockout The manual transmission has a lockout mechanism that stops you from accidentally shifting into R from a forward gear while the vehicle is moving above a certain speed. If you cannot shift to R when the vehicle is stopped, do the following: 1.
  • Page 230: Cruise Control

    uuWhen DrivinguCruise Control Cruise Control Maintains a constant vehicle speed without having to keep your foot on the 1Cruise Control accelerator. Use cruise control on freeways or open roads where you can travel at a WARNING constant speed with little acceleration or deceleration. Improper use of the cruise control can lead When to use to a crash.
  • Page 231 uuWhen DrivinguCruise Control ■ To Set the Vehicle Speed DECEL/SET Button Press and release On when cruise control begins. Take your foot off the pedal and press the DECEL/SET button when you reach the desired speed. The moment you release the DECEL/SET button, the set speed is fixed, and cruise control begins.
  • Page 232 uuWhen DrivinguCruise Control ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed You can set the vehicle speed using the DECEL/SET Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons button on the steering wheel when adjusting the on the steering wheel.
  • Page 233: Vehicle Stability Assist (Vsa®), Aka Electronic Stability Control (Esc), System

    uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System 1Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less The VSA®...
  • Page 234 uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System ■ 1Vehicle Stability Assist (VSA®), aka Electronic Stability Control VSA® On and Off (ESC), System This button is on the driver side control panel. VSA® OFF Indicator Without VSA®, your vehicle will have normal braking To turn the VSA®...
  • Page 235: Tire Pressure Monitoring System (Tpms)

    uuWhen DrivinguTire Pressure Monitoring System (TPMS) U.S. models only Tire Pressure Monitoring System (TPMS) 1Tire Pressure Monitoring System (TPMS) Monitors the tire pressure while you are Conditions such as low ambient temperature and driving. If your vehicle's tire pressure becomes altitude change directly affect tire pressure and can significantly low, the low tire pressure/TPMS trigger the low tire pressure/TPMS indicator to come...
  • Page 236: Tire Pressure Monitoring System (Tpms) - Required Federal Explanation

    uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation U.S. models Tire Pressure Monitoring System (TPMS) - Required Federal Explanation Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.
  • Page 237 uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver's responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
  • Page 238: Brake System

    Braking Brake System ■ 1Parking Brake Parking Brake NOTICE Use the parking brake to keep the vehicle stationary when parking. Release the parking brake fully before driving. The To apply: rear brakes and axle can be damaged if you drive Pull the lever fully up without pressing the with the parking brake applied.
  • Page 239: Foot Brake

    uuBrakinguBrake System ■ 1Foot Brake Foot Brake Check the brakes after driving through deep water, Your vehicle is equipped with disc brakes at all four wheels. A vacuum power assist or if there is a buildup of road surface water. If helps reduce the effort needed on the brake pedal.
  • Page 240: Anti-Lock Brake System (Abs)

    uuBrakinguAnti-lock Brake System (ABS) Anti-lock Brake System (ABS) ■ 1Anti-lock Brake System (ABS) NOTICE Helps prevent the wheels from locking up, and helps you retain steering control by The ABS may not function correctly if you use an pumping the brakes rapidly, much faster than you. incorrect tire type and size.
  • Page 241: Brake Assist System

    uuBrakinguBrake Assist System Brake Assist System ■ Brake Assist System Designed to assist the driver by generating greater braking force when you depress the brake pedal hard during emergency braking. ■ Brake assist system operation Press the brake pedal firmly for more powerful braking. When brake assist operates, the pedal may wiggle slightly and an operating noise may be heard.
  • Page 242: When Stopped

    Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly. 1Parking Your Vehicle 2. Firmly apply the parking brake. Do not park your vehicle near flammable objects, such as dry grass, oil, or timber. Automatic transmission models Heat from the exhaust can cause a fire. 3.
  • Page 243: Multi-View Rear Camera

    Multi-View Rear Camera About Your Multi-View Rear Camera 1About Your Multi-View Rear Camera Models with navigation system The rear camera view is restricted. You cannot see See the Navigation System Manual. the corner ends of the bumper or what is underneath the bumper.
  • Page 244: Refueling

    NOT contain harmful manganese-based fuel additives such as MMT, if such gasoline is Because the level of detergency and additives in gasoline vary in the market, Acura available. endorses the use of “TOP TIER Detergent Gasoline” where available to help maintain the performance and reliability of your vehicle.
  • Page 245: How To Refuel

    uuRefuelinguHow to Refuel How to Refuel 1. Stop your vehicle with the service station 1How to Refuel Push pump on the left side of the vehicle in the WARNING rear. 2. Turn off the engine. Gasoline is highly flammable and explosive. 3.
  • Page 246: Fuel Economy

    Fuel Economy Improving Fuel Economy Fuel economy depends on several conditions, including driving conditions, your 1Improving Fuel Economy driving habits, the condition of your vehicle, and loading. Depending on these and Direct calculation is the recommended method to other conditions, you may or may not achieve the rated fuel economy of this vehicle. determine actual fuel consumed while driving.
  • Page 247: Accessories And Modifications

    Acura Genuine accessories are recommended to ensure proper operation on your vehicle. Modifications Do not modify your vehicle or use non-Acura components that can affect its handling, stability, and reliability. Overall vehicle performance can be affected. Always make sure all equipment is properly installed and maintained, and that it meets federal, state, province, territory, and local regulations.
  • Page 248: Maintenance

    Maintenance This chapter discusses basic maintenance. Before Performing Maintenance Wear Indicators ....... 291 Changing the Engine Oil and Oil Filter ..265 Inspection and Maintenance .... 248 Engine Coolant ........ 268 Tire Service Life........ 291 Transmission Fluid......270 Tire and Wheel Replacement ... 292 Safety When Performing Maintenance..
  • Page 249: Before Performing Maintenance

    Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspections and maintenance to keep your vehicle 1Inspection and Maintenance in good condition. If you become aware of any abnormality (noise, smell, insufficient U.S. models brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer. Maintenance, replacement, or repair of emissions control devices and systems may be (Note, however, that service at a dealer is not mandatory to keep your warranties in...
  • Page 250: Safety When Performing Maintenance

    uuBefore Performing MaintenanceuSafety When Performing Maintenance Safety When Performing Maintenance Some of the most important safety precautions are given here. 1Safety When Performing Maintenance However, we cannot warn you of every conceivable hazard that can arise in WARNING performing maintenance. Only you can decide whether or not you should perform a given task.
  • Page 251: Parts And Fluids Used In Maintenance Service

    Performing MaintenanceuParts and Fluids Used in Maintenance Service Parts and Fluids Used in Maintenance Service The use of Acura genuine parts and fluids is recommended when maintaining and servicing your vehicle. Acura genuine parts are manufactured according to the same...
  • Page 252: Maintenance Minder

    Maintenance Minder If the engine oil life is less than 15%, you will see the Maintenance Minder messages appear on the multi-information display every time you set the power mode to ON. The messages notify you when to change the engine oil, or when to bring your vehicle to a dealer for indicated maintenance services.
  • Page 253 uuMaintenance Minder uTo Use Maintenance Minder To Use Maintenance Minder ■ 1Displaying the Engine Oil Life and Maintenance Items Displaying the Engine Oil Life and Maintenance Items Based on the engine operating conditions, the Maintenance items, which should be serviced at the same time that you replace the remaining engine oil life is calculated and displayed engine oil, appear on the multi-information display.
  • Page 254 uuMaintenance Minder uTo Use Maintenance Minder ■ Maintenance Minder Messages on the Multi-Information Display Maintenance Message Oil Life Display Explanation Information SERVICE DUE SOON 15 % The remaining engine oil life is 15 to 6 The engine oil is approaching the end of its service life, and the maintenance percent.
  • Page 255 uuMaintenance Minder uTo Use Maintenance Minder ■ 1Maintenance Service Items Maintenance Service Items • Independent of the Maintenance Minder information, replace the brake fluid every 3 years. System Message • Inspect idle speed every 160,000 miles (256,000 Indicator Maintenance Minder Message km).
  • Page 256: Features P

    uuMaintenance Minder uTo Use Maintenance Minder ■ 1Resetting the Display Resetting the Display NOTICE Reset the engine oil life display if you have performed the maintenance service. Failure to reset the engine oil life after a maintenance service results in the system showing incorrect maintenance intervals, which can lead to serious mechanical problems.
  • Page 257: Maintenance Under The Hood

    Maintenance Under the Hood Maintenance Items Under the Hood 2.0 ℓ engine models Engine Oil Dipstick (Orange) Brake Fluid (Black Cap) Engine Oil Fill Cap Washer Fluid Automatic Transmission (Blue Cap) Fluid Dipstick (Yellow) Battery Engine Coolant Reserve Tank Radiator Cap...
  • Page 258 uuMaintenance Under the HooduMaintenance Items Under the Hood 2.4 ℓ engine models Engine Oil Fill Cap Brake Fluid (Black Cap) Clutch Fluid (Light Gray Cap) Engine Oil Dipstick (Orange) Battery Washer Fluid (Blue Cap) Engine Coolant Reserve Tank Radiator Cap...
  • Page 259: Opening The Hood

    uuMaintenance Under the HooduOpening the Hood Opening the Hood 1. Park the vehicle on a level surface, and set 1Opening the Hood Hood Release Handle the parking brake. NOTICE 2. Pull the hood release handle under the Do not open the hood when the wiper arms are lower left corner of the dashboard.
  • Page 260: Engine Compartment Cover

    uuMaintenance Under the HooduEngine Compartment Cover Engine Compartment Cover The component parts in the engine compartment are protected by a cover. 1Engine Compartment Cover You may need to remove the cover when you perform certain maintenance work. Holding clip (A-type) To remove the cover: Insert a flat-tip screwdriver, lift and remove the center pin to remove the clip.
  • Page 261 uuMaintenance Under the HooduEngine Compartment Cover 1Engine Compartment Cover Holding clip (B-type) Press down the center pin until it clicks to unlock it. center pin Push the center pin back to lock the clip. Then, insert the clip into the hole and press on the center pin until it is flat.
  • Page 262: Recommended Engine Oil

    This seal indicates the oil is energy conserving and that it meets the American Petroleum Institute’s latest requirements. Use a Genuine Acura Motor Oil or another commercial engine oil of suitable viscosity for the ambient temperature as shown. Ambient Temperature ■...
  • Page 263: Oil Check

    uuMaintenance Under the HooduOil Check Oil Check We recommend that you check the engine oil level every time you refuel. 1Oil Check Park the vehicle on level ground. If the oil level is near or below the lower mark, slowly Wait approximately three minutes after turning the engine off before you check the add oil being careful not to overfill.
  • Page 264 uuMaintenance Under the HooduOil Check 4. Remove the dipstick again, and check the 2.0 ℓ engine models level. It should be between the upper and lower marks. Add oil if necessary. Upper Mark Lower Mark 2.4 ℓ engine models Upper Mark Lower Mark...
  • Page 265: Adding Engine Oil

    uuMaintenance Under the HooduAdding Engine Oil Adding Engine Oil 1. Unscrew and remove the engine oil fill cap. 1Adding Engine Oil 2.0 ℓ engine models 2. Add oil slowly. If any oil spills, wipe it up immediately. Spilled oil may 3.
  • Page 266: Changing The Engine Oil And Oil Filter

    uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter Changing the Engine Oil and Oil Filter You must change the engine oil and oil filter regularly in order to maintain the 1Changing the Engine Oil and Oil Filter engine's lubrication. The engine may be damaged if they are not changed regularly. NOTICE You may damage the environment if you do not Change the oil and filter in accordance with the maintenance message on the multi-...
  • Page 267 uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter All models 2.0 ℓ engine models 4. Remove the drain bolt and washer from the bottom of the engine, and drain the oil into a suitable container. Washer Drain Bolt 2.4 ℓ...
  • Page 268 uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter 5. Remove the oil filter and dispose of the 2.0 ℓ engine models 1Changing the Engine Oil and Oil Filter remaining oil. You will need a special wrench to replace the oil 6.
  • Page 269: Engine Coolant

    Check that it is a high quality ■ Reserve Tank coolant recommended for aluminum engines. Continued use of any non-Acura coolant can result in 1. Check the amount of coolant in the reserve corrosion, causing the cooling system to malfunction tank.
  • Page 270 uuMaintenance Under the HooduEngine Coolant ■ 1Radiator Radiator WARNING 1. Make sure the engine and radiator are 2.0 ℓ engine models cool. Removing the radiator cap while the 2. Remove the engine compartment cover. engine is hot can cause the coolant to spray 2 Engine Compartment Cover P.
  • Page 271: Transmission Fluid

    Any damage caused by using a transmission fluid that Perform step 3 after waiting for about 60 is not equivalent to Acura ATF DW-1 is not covered seconds (less than 90 seconds). by Acura's new vehicle warranty.
  • Page 272 Under the HooduTransmission Fluid ■ Manual Transmission Fluid Specified fluid: Acura Manual Transmission Fluid (MTF) Have a dealer check the fluid level and replace if necessary.
  • Page 273: Brake/Clutch Fluid

    Under the HooduBrake/Clutch Fluid Brake/Clutch Fluid 1Brake/Clutch Fluid Specified fluid: Acura Heavy Duty Brake Fluid DOT 3 NOTICE Use the same fluid for both the brakes and clutch. Brake fluid marked DOT 5 is not compatible with your vehicle's braking system and can cause extensive ■...
  • Page 274: Refilling Window Washer Fluid

    uuMaintenance Under the HooduRefilling Window Washer Fluid Refilling Window Washer Fluid Check the amount of window washer fluid using the washer fluid level gauge on the 1Refilling Window Washer Fluid cap. NOTICE If the level is low, fill the washer reservoir. Do not use engine antifreeze or a vinegar/water solution in the windshield washer reservoir.
  • Page 275: Replacing Light Bulbs

    Replacing Light Bulbs Headlight Bulbs When replacing, use the following bulbs. 1Headlight Bulbs High beam headlight: 60 W (HB3) NOTICE Halogen bulbs get very hot when lit. Low beam headlight: 55 W (H11 for halogen bulb Type) Oil, perspiration, or a scratch on the glass can cause 35 W (D2S for high voltage discharge type) the bulb to overheat and shatter.
  • Page 276 uuReplacing Light BulbsuHeadlight Bulbs Halogen Types 1Low Beam Headlights ■ Low Beam Headlights Holding clip (C-type) Insert a flat-tip screwdriver, lift and remove the center Driver side pin to remove the clip. Clip (B) 1. Remove the engine compartment cover. Cover 2 Engine Compartment Cover P.
  • Page 277: Not Available On All Models

    uuReplacing Light BulbsuFog Light Bulbs All models Coupler 5. Pull the tab to remove the coupler. 6. Rotate the old bulb to the left to remove. 7. Insert a new bulb into the headlight assembly and turn it to the right. 8.
  • Page 278 uuReplacing Light BulbsuFog Light Bulbs 2. Insert a flat-tip screwdriver into the tab at the inside edge of the cover, then pull straight out as indicated to remove the cover. Cover 3. Remove the screws using a Phillips-head screwdriver and carefully pull the fog light assembly out of the bumper.
  • Page 279: Front Turn Signal Light Bulbs

    uuReplacing Light BulbsuFront Turn Signal Light Bulbs Front Turn Signal Light Bulbs When replacing, use the following bulbs. 1Front Turn Signal Light Bulbs Front Turn Signal Light: 21 W Holding clip (D-type) When removing the clip, insert a flat-tip screwdriver, 1.
  • Page 280 uuReplacing Light BulbsuParking/Side Marker Light Bulbs Parking/Side Marker Light Bulbs When replacing, use the following bulbs. Parking/Side Marker Light: 5 W Turn the steering wheel and pull the inner Coupler fender back in the same way as when replacing the front turn signal light bulbs. 2 Front Turn Signal Light Bulbs P.
  • Page 281 uuReplacing Light BulbsuBrake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs When replacing, use the following bulbs. Brake/Rear Side Marker/Taillight: 21/5 W Rear Turn Signal Light: 21 W 1.
  • Page 282 uuReplacing Light BulbsuBrake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs 4. Turn the socket to the left and remove it. Bulb Remove the old bulb. Socket 5. Insert a new bulb. 6. Reinstall the light assembly by sliding it on to the guide on the body.
  • Page 283 uuReplacing Light BulbsuBack-Up Light Bulbs Back-Up Light Bulbs When replacing, use the following bulbs. Back-Up Light: 16 W 1. Remove the holding clips using a flat-tip screwdriver, then pull the lining back. Clips 2. Turn the socket to the left and remove it. 3.
  • Page 284 Socket 4. Remove the old bulb and insert a new bulb. High-Mount Brake Light Bulb High-mount brake light bulbs are LED type. Have an authorized Acura dealer inspect and replace the light bulbs.
  • Page 285: Checking And Maintaining Wiper Blades

    Checking and Maintaining Wiper Blades Checking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper arm may scratch the window glass. Changing the Wiper Blade Rubber 1Changing the Wiper Blade Rubber 1. Lift the driver side wiper arm first, then the NOTICE Avoid dropping the wiper arm;...
  • Page 286: Blades

    uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber 4. Slide the wiper blade out from its holder by pulling the tabbed end out. Blade 5. Remove the retainers from the rubber blade Blade that has been removed, and mount to a new rubber blade.
  • Page 287: Checking Tires

    Checking and Maintaining Tires Checking Tires To safely operate your vehicle, your tires must be of the proper type and size, in 1Checking Tires good condition with adequate tread, and properly inflated. WARNING ■ Inflation guidelines Using tires that are excessively worn or Properly inflated tires provide the best combination of handling, tread life, and comfort.
  • Page 288: Tire And Loading Information Label

    uuChecking and Maintaining TiresuTire and Loading Information Label Tire and Loading Information Label The label attached to the driver’s doorjamb provides necessary tire and loading 1Tire and Loading Information Label information. The tire and loading information label attached to the driver’s doorjamb contains: The number of people your vehicle can carry.
  • Page 289 uuChecking and Maintaining TiresuTire Labeling ■ 1Tire Identification Number (TIN) Tire Identification Number (TIN) DOT B97R FW6X 2209 The tire identification number (TIN) is a group of numbers and letters that look like DOT: This indicates that the tire meets all the example in the side column.
  • Page 290: Dot Tire Quality Grading (U.s. Vehicles)

    uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT) standards.
  • Page 291 uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) ■ 1Traction Traction Warning: The traction grade The traction grades, from highest to lowest, are AA, A, B, and C. assigned to this tire is based on Those grades represent the tire's ability to stop on wet pavement straight-ahead braking traction tests, as measured under controlled conditions on specified and does not include acceleration,...
  • Page 292: Wear Indicators

    uuChecking and Maintaining TiresuWear Indicators Wear Indicators The groove where the wear indicator is 1Checking Tires located is 1/16 inch (1.6 mm) shallower than Example of a Wear High speed driving Indicator mark elsewhere on the tire. If the tread has worn so We recommend that you do not drive faster than the posted speed limits and conditions allow.
  • Page 293: Tire And Wheel Replacement

    uuChecking and Maintaining TiresuTire and Wheel Replacement Tire and Wheel Replacement Replace your tires with radials of the same size, load range, speed rating, and 1Tire and Wheel Replacement maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a WARNING different size or construction can cause the ABS and VSA®...
  • Page 294: Tire Rotation

    uuChecking and Maintaining TiresuTire Rotation Tire Rotation Rotating tires according to the maintenance messages on the multi-information 1Tire Rotation display helps to distribute wear more evenly and increase tire life. Tires with directional tread patterns should only be rotated front to back (not from one side to the other). ■...
  • Page 295: Winter Tires

    uuChecking and Maintaining TiresuWinter Tires Winter Tires If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires, 1Winter Tires or tire chains; reduce speed; and maintain sufficient distance between vehicles when WARNING driving. Using the wrong chains, or not properly Be particularly careful when operating the steering wheel or brakes to prevent installing chains, can damage the brake skidding.
  • Page 296: Battery

    Battery Checking the Battery The battery condition is being monitored by the sensor on the negative terminal. If 1Battery there is a problem with the sensor, the warning message on multi-information WARNING display will let you know. Have your vehicle checked by a dealer. The battery gives off explosive hydrogen If your vehicle's battery is disconnected or goes dead: gas during normal operation.
  • Page 297: Remote Transmitter Care

    Remote Transmitter Care Replacing the Button Battery If the indicator does not come on when the button is pressed, replace the battery. 1Replacing the Button Battery Battery type: CR2032 NOTICE An improperly disposed of battery can damage the 1. Remove the built-in key. environment.
  • Page 298: Climate Control System Maintenance

    Climate Control System Maintenance Dust and Pollen Filter The climate control system is equipped with a dust and pollen filter that collects 1Dust and Pollen Filter pollen, dust, and other debris in the air. The Maintenance Minder messages will let If the airflow from the climate control system you know when to replace the filter.
  • Page 299: Interior Care

    Cleaning Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. 1Interior Care Use a clean cloth to remove detergent residue. Do not spill liquids inside the vehicle. Electrical devices and systems may malfunction if ■...
  • Page 300: Floor Mats

    uuCleaninguInterior Care ■ 1Floor Mats Floor Mats If you use any floor mats that were not originally The front floor mats hook over the floor provided with your vehicle, make sure they are anchors, which keep the mats from sliding designed for your specific vehicle, fit correctly, and forward.
  • Page 301: Exterior Care

    uuCleaninguExterior Care Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it. ■...
  • Page 302 uuCleaninguExterior Care ■ 1Applying Wax Applying Wax NOTICE A good coat of automotive body wax helps protect your vehicle’s paint from the Chemical solvents and strong cleaners can damage elements. Wax will wear off over time and expose your vehicle’s paint to the the paint, metal, and plastic on your vehicle.
  • Page 303 uuCleaninguExterior Care ■ Fogged Exterior Light Lenses The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily if you have driven in the rain, or after the vehicle has been run through a car wash. Dew condensation also may build up inside the lenses when there is a significant enough difference between the ambient and inside lens temperatures (similar to vehicle windows fogging up in rainy conditions).
  • Page 304: Handling The Unexpected

    Handling the Unexpected This chapter explains how to handle unexpected troubles. Tools Overheating If the Electric Power Steering (EPS) System Types of Tools ........304 How to Handle Overheating..... 318 Indicator Comes On......322 If a Tire Goes Flat Indicator, Coming On/Blinking If the Low Tire Pressure/TPMS Indicator If the Low Oil Pressure Indicator Comes Changing a Flat Tire ......
  • Page 305: Tools

    Tools Types of Tools 1Types of Tools The tools are stored in the cargo area. Wheel Nut Wrench/Jack Handle Tool Case Jack Handle Bar Jack...
  • Page 306: If A Tire Goes Flat

    If a Tire Goes Flat Changing a Flat Tire If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually 1Changing a Flat Tire to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact Periodically check the tire pressure of the compact spare tire.
  • Page 307 uuIf a Tire Goes FlatuChanging a Flat Tire ■ Getting Ready to Replace the Flat Tire 1Getting Ready to Replace the Flat Tire The shape of the tool case varies by model. 1. Open the trunk floor lid. 2. Take the tool case out of the trunk. Take the jack and wheel nut wrench out of the tool case.
  • Page 308 uuIf a Tire Goes FlatuChanging a Flat Tire 5. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced. 6. Loosen each wheel nut about one turn using the wheel nut wrench. Continued...
  • Page 309 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1How to Set Up the Jack How to Set Up the Jack WARNING 1. Place the jack under the jacking point closest to the tire to be changed. The vehicle can easily roll off the jack, seriously injuring anyone underneath.
  • Page 310 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1Replacing the Flat Tire Replacing the Flat Tire Do not over tighten the wheel nuts by applying extra 1. Remove the wheel nuts and flat tire. torque using your foot or a pipe. 2.
  • Page 311 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1Storing the Flat Tire Storing the Flat Tire WARNING 1. Remove the center cap. Wing 2. Place the flat tire face down in the spare tire Bolt normal Loose items can fly around the interior in a tire well.
  • Page 312: Engine Does Not Start

    Engine Does Not Start Checking the Engine If the engine does not start, check the starter. 1Checking the Engine If you must start the vehicle immediately, use an assisting vehicle to jump start it. 2 Jump Starting P. 314 Starter condition Checklist Starter doesn’t turn or turns Check for a message on the multi-information display.
  • Page 313: If The Keyless Access Remote Battery Is Weak

    uuEngine Does Not StartuIf the Keyless Access Remote Battery is Weak If the Keyless Access Remote Battery is Weak If the beeper sounds, the TO START, HOLD REMOTE NEAR START BUTTON message appears on the multi-information display, the indicator on the ENGINE START/STOP button flashes, and the engine won’t start.
  • Page 314: Emergency Engine Stop

    uuEngine Does Not StartuEmergency Engine Stop Emergency Engine Stop The ENGINE START/STOP button may be used to stop the engine due to an 1Emergency Engine Stop emergency situation even while driving. If you must stop the engine, do either of the Do not press the button while driving unless it is following operations: absolutely necessary for the engine to be switched...
  • Page 315: Jump Starting

    Jump Starting ■ 1Jump Starting Jump Starting Procedure WARNING Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood. A battery can explode if you do not follow 1. Connect the first jumper cable to your 2.0 ℓ...
  • Page 316 uuJump Startingu 4. Connect the other end of the second 1Jump Starting 2.0 ℓ engine models jumper cable to the engine mounting bolt Battery performance degrades in cold conditions and as shown. Do not connect this jumper cable may prevent the engine from starting. to any other part.
  • Page 317 uuJump Startingu ■ What to Do After the Engine Starts Once your vehicle's engine has started, remove the jumper cables in the following order. 1. Disconnect the jumper cable from your vehicle's ground. 2. Disconnect the other end of the jumper cable from the assisting vehicle's battery - terminal.
  • Page 318: Shift Lever Does Not Move

    Shift Lever Does Not Move Automatic transmission models Follow the procedure below if you cannot move the shift lever out of the position. ■ Releasing the Lock 1. Set the parking brake. Slot 2. Remove the built-in key from the keyless access remote.
  • Page 319: Overheating

    Overheating How to Handle Overheating Overheating symptoms are as follows: 1How to Handle Overheating • The temperature gauge needle is at the mark or the engine suddenly loses WARNING power. • Steam or spray comes out of the engine compartment. Steam and spray from an overheated engine can seriously scald you.
  • Page 320 uuOverheatinguHow to Handle Overheating ■ Next thing to do 1How to Handle Overheating 1. Check that the cooling fan is operating and WARNING stop the engine once the temperature gauge needle comes down. Removing the radiator cap while the If the cooling fan is not operating, engine is hot can cause the coolant to spray immediately stop the engine.
  • Page 321: Indicator, Coming On/Blinking

    Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes On ■ Reasons for the indicator to come on 1If the Low Oil Pressure Indicator Comes On Comes on when the engine oil pressure is low. NOTICE ■ What to do as soon as the indicator comes on Running the engine with low oil pressure can cause 1.
  • Page 322: If The Malfunction Indicator Lamp Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks If the Malfunction Indicator Lamp Comes On or Blinks 1If the Malfunction Indicator Lamp Comes On or Blinks ■ Reasons for indicator lamp to come on or blink NOTICE •...
  • Page 323: If The Brake System Indicator (Red) Comes On

    uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On If the Brake System Indicator (Red) Comes On ■ Reasons for the indicator to come on 1If the Brake System Indicator (Red) Comes On U.S. • The brake fluid is low. Have your vehicle repaired immediately.
  • Page 324: If The Low Tire Pressure/Tpms Indicator Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks U.S. models If the Low Tire Pressure/TPMS Indicator Comes On or 1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks Blinks NOTICE ■ Driving on an extremely underinflated tire can cause Reasons for the indicator to come on or blink it to overheat.
  • Page 325: Fuse Locations

    Fuses Fuse Locations ■ If any electrical devices are not working, set Circuit protected and fuse rating Circuit Protected Amps the power mode to VEHICLE OFF (LOCK) Oil Level 7.5 A Circuit Protected Amps and check to see if any applicable fuse is Fog Lights (20 A) 70 A...
  • Page 326 uuFusesuFuse Locations ■ Interior Fuse Box Circuit Protected Amps Circuit Protected Amps − − Small Lights 7.5 A Located under the dashboard. Moonroof 20 A Illumination 7.5 A 12 Driver’s Power Seat Sliding (20 A) − − Driver’s Power Seat Premium Audio (20 A) (20 A)
  • Page 327: Inspecting And Changing Fuses

    uuFusesuInspecting and Changing Fuses Inspecting and Changing Fuses 1. Set the power mode to VEHICLE OFF 1Inspecting and Changing Fuses (LOCK). Turn headlights and all accessories Blown Fuse NOTICE off. Replacing a fuse with one that has a higher rating 2.
  • Page 328: Emergency Towing

    Emergency Towing Call a professional towing service if you need to tow your vehicle. 1Emergency Towing NOTICE ■ Flat bed equipment Trying to lift or tow your vehicle by the bumpers will The operator loads your vehicle on the back of a truck. cause serious damage.
  • Page 330: Information

    Information This chapter includes your vehicle's specifications, locations of identification numbers, and other information required by regulation. Specifications ........330 Emissions Testing Identification Numbers Testing of Readiness Codes....337 Vehicle Identification Number (VIN), Warranty Coverages ......339 Engine Number and Transmission Authorized Manuals......
  • Page 331: Specifications

    2.0 ℓ engine models ■ Vehicle Specifications Displacement 122 cu-in (1,997 cm 35W (D2S) Headlights (Low Beam) 55W (H11) DILZKR7B11GS Model Acura ILX Spark Plugs Headlights (High Beam) 60W (HB3) DENSO DXU22HCR-D11S No. of Passengers: Fog Lights 55W (H11) Front...
  • Page 332 ■ ■ ■ Brake Fluid Engine Oil Tire Specified Acura Heavy Duty Brake Fluid DOT 3 ·Genuine Acura Motor Oil 0W-20 Size P215/45R17 87V Recommended ·API Premium-grade 0W-20 detergent oil Regular Pressure 33 (230 [2.3]) Change 3.7 US qt (3.5 ℓ) psi (kPa [kgf/cm ■...
  • Page 333 Vehicle Specifications Displacement 144 cu-in (2,354 cm Headlights (Low Beam) 35W (D2S) ILZKR7B-11S Headlights (High Beam) 60W (HB3) Model Acura ILX Spark Plugs DENSO SXU22HCR11S Fog Lights 55W (H11) No. of Passengers: Front Turn Signal Lights Front Parking/Side Marker Lights Rear ■...
  • Page 334 ■ ■ ■ Brake/Clutch Fluid Engine Oil Tire Specified Acura Heavy Duty Brake Fluid DOT 3 ·Genuine Acura Motor Oil 0W-20 Size P215/45R17 87V Recommended ·API Premium-grade 0W-20 detergent oil Regular Pressure 33 (230 [2.3]) Change 4.2 US qt (4.0 ℓ) psi (kPa [kgf/cm ■...
  • Page 335: Identification Numbers

    Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number 1Vehicle Identification Number (VIN), Engine Number and Transmission Number Your vehicle has a 17-digit vehicle identification number (VIN) used to register your The interior vehicle identification number (VIN) is vehicle for warranty purposes, and for licensing and insuring your vehicle.
  • Page 336: Devices That Emit Radio Waves

    Devices that Emit Radio Waves The following products and systems on your vehicle emit radio waves when in operation. U.S. AcuraLink Audio System Bluetooth® Audio Bluetooth® HandsFreeLink® HomeLink® Universal Transceiver Immobilizer System Keyless Access System U.S. models only Tire Pressure Monitoring System (TPMS) Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commission) and Industry Canada Standard, described below:...
  • Page 337: Reporting Safety Defects

    Reporting Safety Defects In the U.S. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.
  • Page 338: Emissions Testing

    Emissions Testing Testing of Readiness Codes Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system. 1Testing of Readiness Codes Some States use these codes as a test to see if your vehicle’s emissions components The readiness codes are erased when the battery is are working properly.
  • Page 339 uuEmissions TestinguTesting of Readiness Codes 7. Select a nearby, lightly traveled major highway where you can maintain a speed of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in D (automatic) or 5th (manual). Do not use cruise control. When traffic allows, drive for 90 seconds without moving the accelerator pedal.
  • Page 340: Warranty Coverages

    Rust Perforation Limited Warranty – all exterior body panels are covered for rust-through from the inside for the specified time period with no mileage limit. Accessory Limited Warranty – Acura accessories are covered under this warranty. Time and mileage limits depend on the type of accessory and other factors. Please read your warranty booklet for details.
  • Page 341 Replacement Muffler Lifetime Limited Warranty – provides coverage for as long as the purchaser of the muffler owns the vehicle. Restrictions and exclusions apply to all these warranties. Please read the Acura warranty information booklet that came with your vehicle for precise information on warranty coverages.
  • Page 342: Authorized Manuals

    Authorized Manuals ■ Service Express 1Authorized Manuals For electronic copies of service publications, you can purchase a subscription to For Canadian Owners: Service Express. Visit www.techinfo.honda.com for pricing and options. Please contact a dealer to order any manuals that you may require.
  • Page 343: Client Service Information

    Vehicle Identification Number 2 Vehicle Identification Number (VIN), dealership's service manager or general manager. If you are dissatisfied with the Engine Number and Transmission decision made by the dealership's management, contact Acura Client Relations/ Number P. 334 Services. • Date of purchase •...
