T.A.C. 1000
Multi-Number Telephone Entry System
INSTALLATION
and

OPERATION INSTRUCTIONS

255 Glider Circle • Corona, CA 92880
(800) 842-7444• Info@trigonelectronics.com
www.TrigonElectronics.com
March 1, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T.A.C. 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Trigon T.A.C. 1000

Summary of Contents for Trigon T.A.C. 1000

  • Page 1: Operation Instructions

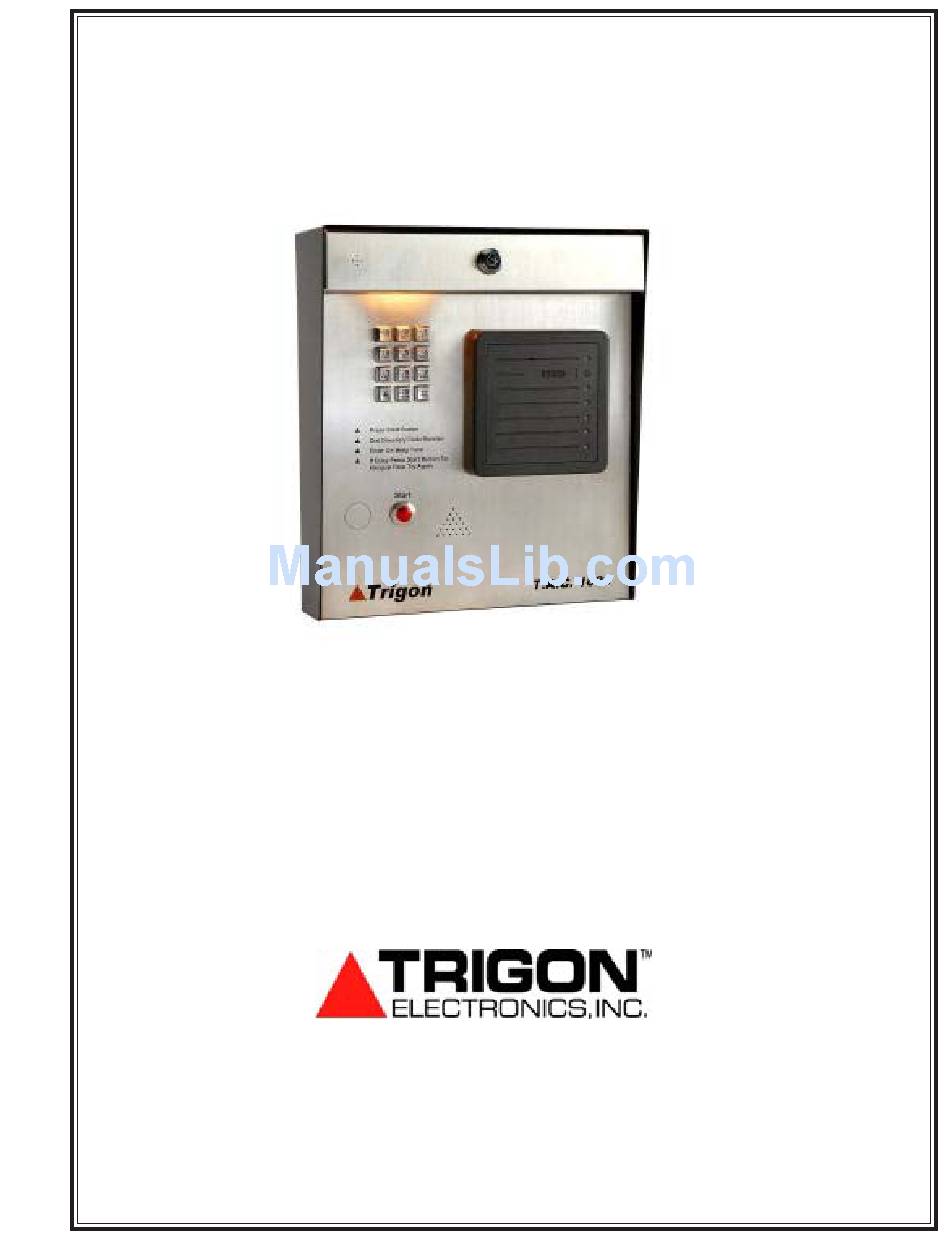

    T.A.C. 1000 Multi-Number Telephone Entry System INSTALLATION OPERATION INSTRUCTIONS 255 Glider Circle • Corona, CA 92880 (800) 842-7444• Info@trigonelectronics.com www.TrigonElectronics.com March 1, 2004...

  • Page 2: Table Of Contents

    T.A.C. 1000 TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ..................PRODUCT OVERVIEW ................MOUNTING ....................WIRING ..................... WIRING DIAGRAM ................SYSTEM SETUP Enter Program Mode Locally ..............Enter program Mode Remotely ...............

  • Page 3: Introduction

    The resident then grants or denies access. The T.A.C. 1000 has a capacity of up to 400 telephone 1 10 VA C numbers and up to 400 personal entry codes, and is PBX...

  • Page 4: Mounting

    10.(OPTIONAL) Connect printer wiring to the RS- 232 port (Printer IN to RS-232 OUT, Printer BUSY 5. Trigon recommends that an EMI filter (Cornell- to RS-232 DSR, Printer COM to RS-232 COM). Dubilier Model APF 1021 or equivalent) be mounted between the 12 VAC transformer output and the unit.

  • Page 5: Wiring Diagram

    T.A.C. 1000 WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM Alar m Shunt Input Main Relay Pow er Rel ay Telco 2 3 4 5 6 7 8 9 10 Figure 3 Page 5...

  • Page 6: System Setup

    Note: Adding TWO to the Dial Mode selection allows Enter Resident Code Length: the keypad of the T.A.C. 1000 to remain active for use This will be the number visible on the directory used by with voice-mail/automated attendant systems, after the a visitor to locate a resident.

  • Page 7: Programming

    2. Enter the Resident Code you wish to delete. Note: If you lose the ability to access the Program Mode You will hear one beep. after performing this step, call TRIGON service. We 3. Enter “#” . have the ability to remotely reset the Program Code back Two beeps indicate Erasure complete.

  • Page 8: Entering Access Cards

    Identification Code makes it possible for the party possible for the user to use an access card at the unit and receiving a call from a T.A.C. 1000 to identify which gain entry. Each card entered is converted to a standard “gate”...

  • Page 9: Programming Primary Relay "On" Time

    3. Enter Start Time (Use military format of This procedure allows selective or complete deletion of hours:minutes, i.e. “0600” , “1500”). Entry must be all data in the T.A.C. 1000’s memory. Also, it is possible four digits. to reset the T.A.C. 1000 back to its factory defaults 4.

  • Page 10: Operation

    Unlatch Door / Gate manual. To latch (hold closed) a relay, place a telephone (Optional) call to the T.A.C. 1000. The T.A.C. 1000 will auto- answer and you will hear a brief tone in the speaker. Latch secondary device (camera etc.) Refer to Fig.

  • Page 11: Remote Operation Time-Out

    Printer Operation: (Optional) If you call the unit to operate it remotely, you have 30 The T.A.C. 1000 can support an audit log output to a seconds until auto-termination. Any tone instruction remote serial printer up to 300 feet away.

  • Page 12: Trouble Shooting

    T.A.C. 1000 TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE LOSES MEMORY NO DIAL TONE 1. Electrical noise on power line. Install EMI/RFI 1. Check (check fuse) input power at unit. Should be filter.
  • Page 13 T.A.C. 1000 General: [ 4] Verify Relay One Schedule (hhmm hhmm d d) ( = not set) Data between [ ] is a mandatory program key stroke sequence. Data between { } is to be supplied by the [ 5} Verify Secondary relay schedule programmer.

  • Page 14: Specifications / Features

    T.A.C. 1000 SPECIFICATIONS / FEATURES SPECIFICATIONS / FEATURES SPECIFICATIONS / FEATURES SPECIFICATIONS / FEATURES SPECIFICATIONS / FEATURES Design- Handsfree telephone with programmable internal auto dial capability and remote control of relays. Capacity - 24, 50, 125, 300, or 400 residents.
