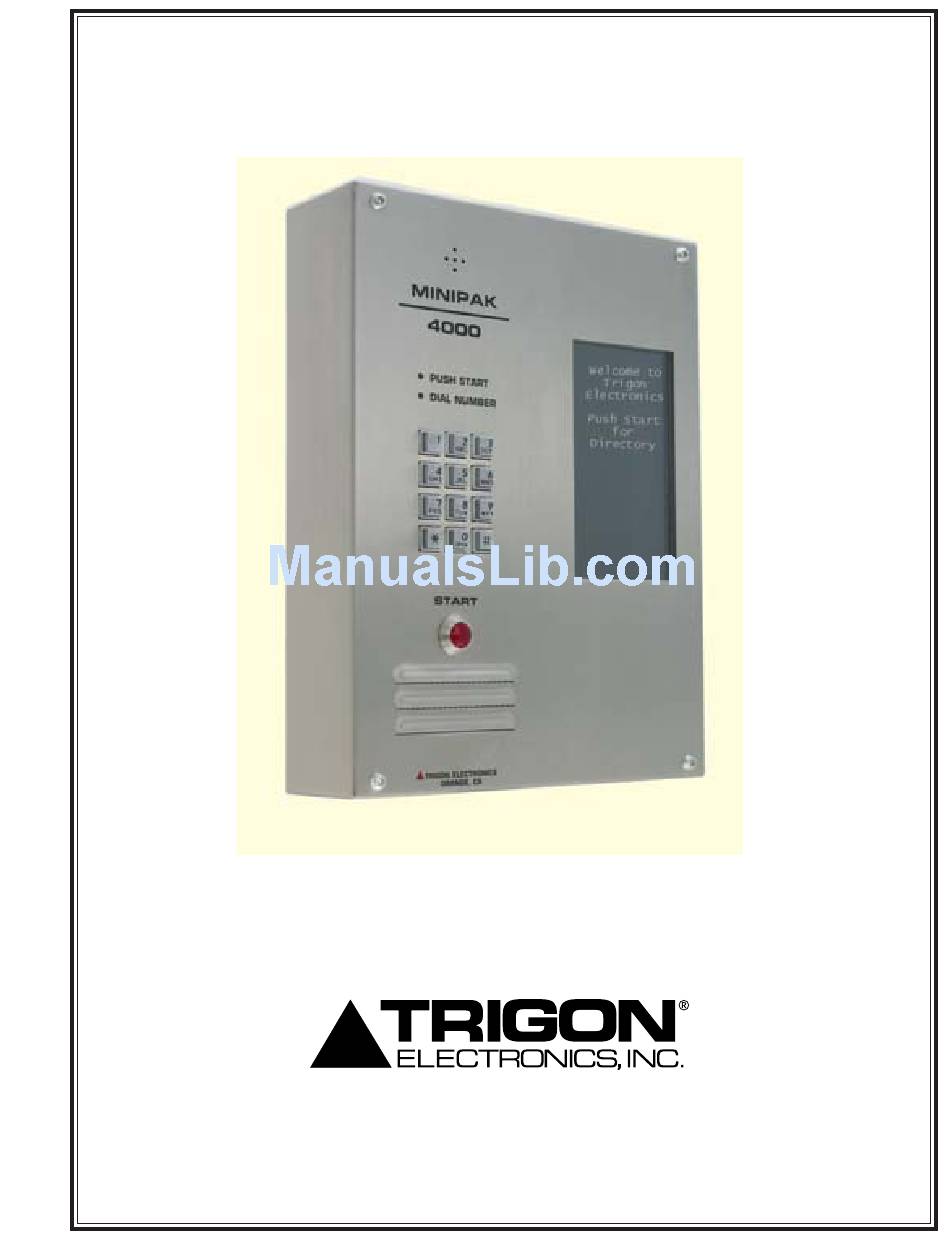

Page 1: Operation Instructions

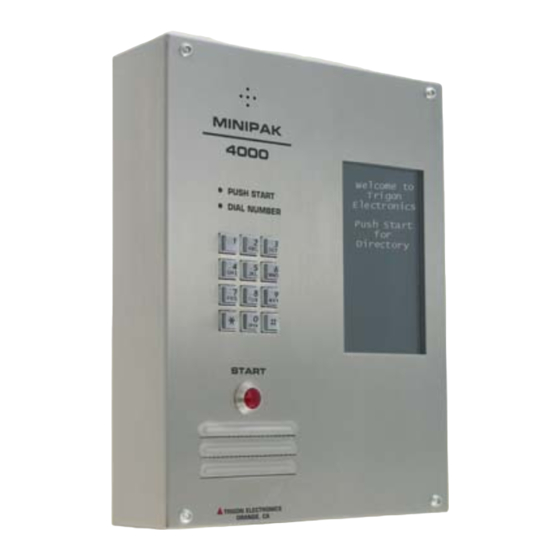

MP 4000 Minipak 4000 Multiple Resident Telephone Entry System INSTALLATION & OPERATION INSTRUCTIONS 255 Glider Circle • Corona, CA 92880 (951) 371-1730 • FAX (951) 371-2592 www.TrigonElectronics.com October 29, 2004 Page 1... -
Page 2: Table Of Contents
MP 4000 TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------- PRODUCT OVERVIEW ------------------------------------------------------------- MOUNTING --------------------------------------------------------------------------- WIRING -------------------------------------------------------------------------------- PROGRAMMING ENTER PROGRAM MODE ----------------------------------------------------- SETUP SCREEN Definitions ----------------------------------------------------------------------- Resident Code Length ---------------------------------------------------------- Ring Count ----------------------------------------------------------------------- Gate Time Duration ------------------------------------------------------------ Call Length ---------------------------------------------------------------------- Dial Mode. -
Page 3: Introduction
PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW The TRIGON MP4000 is in itself a complete Access Control Security System. It makes use of an ordinary telephone line to provide complete remote control of an entrance point and/or its monitoring equipment. It allows visitors to make contact inside the building they wish to enter. -
Page 4: Mounting
EMI/RFI filters are available from Trigon. Mount the filter as close to the unit as possible. Ground the 2. Do not power any other device from the Trigon’s 12 filter to the same point as unit ground. VAC transformer. If a substitute transformer is used, be sure it is rated 12 VAC, 20VA, UL Class 2 listed. - Page 5 MP 4000 WIRING (Continued) 9. The Shunt relay is a low-power (4 watt) reed relay. The logic board has three terminals marked: It can be used for temporary alarm switch bypass, 1. “COM” which goes to pin 7 (Com) of a printer video camera activation, etc.
-
Page 6: Programming
Screen 2. Model MP4000 directly from the unit's keypad. For If you press the ‘#’ key, you will move the Cursor (>) remote programming instructions, see Trigon's PSL4000 down one line. product support software and it's instructions. -
Page 7: Active Keypad
MP 4000 Programming (Continued) ACT. KEYPAD: CLOCK CONTROLS “Active Keypad” allows the keypad to be used for * = SKIP SCREEN stepping through “voice-mail”, paging systems, etc. # = CURSOR DOWN Select ‘N’ for NO, NOT Active Keypad or ‘Y’ for YES, 0-9 CHANGE Active Keypad. -
Page 8: Set Program Code
NOTE: If, after performing this step, you lose the ability letter 'Q' is 1, 2. The letter 'Z' is 1, 3. Press "#" to go to to access the Program Mode, call TRIGON service. We the next line. Press the star key (*) to go back. See the have the ability to reset the Program Code back to 5269 DISPLAY EDITING section for more information. -
Page 9: Resident Code
MP 4000 Programming (Continued) RESIDENT CODE use the desired card at the attached card reader. The card number will be read into the entry code location. To program a listing for the electronic directory, first assign a RESIDENT CODE for that tenant. Only ONE Press the ‘#’... -
Page 10: Display Editing
MP 4000 DISPLAY EDITING DISPLAY EDITING DISPLAY EDITING DISPLAY EDITING DISPLAY EDITING To EDIT is to REPLACE. Editing replaces blank spaces NOTES: on the Message Screen and periods on the Database Edit ‘Q’ and ‘Z’ are located on key ‘1’ (not seen). Screen with a desired letter, space, or period (as in Key in ‘11’... -
Page 11: Operation
MP 4000 OPERATION OPERATION OPERATION OPERATION OPERATION Calling a Tenant: Building Information and Guest Instructions are Denying Visitor Entry (disconnect): displayed on the MP4000 front panel and screen. To deny entry, enter “7” to force disconnect. Hang up Press the start button for dial tone. Enter the Resident telephone. -
Page 12: Troubleshooting
MP 4000 Troubleshooting Guide Troubleshooting Guide Troubleshooting Guide Troubleshooting Guide Troubleshooting Guide NO DIAL TONE No phone number programmed under that resident code. Check input power at unit. Should Reprogram and try again. be 12 VAC. Check fuse. Incorrect resident code length Check that unit is properly entered (see SETUP).
