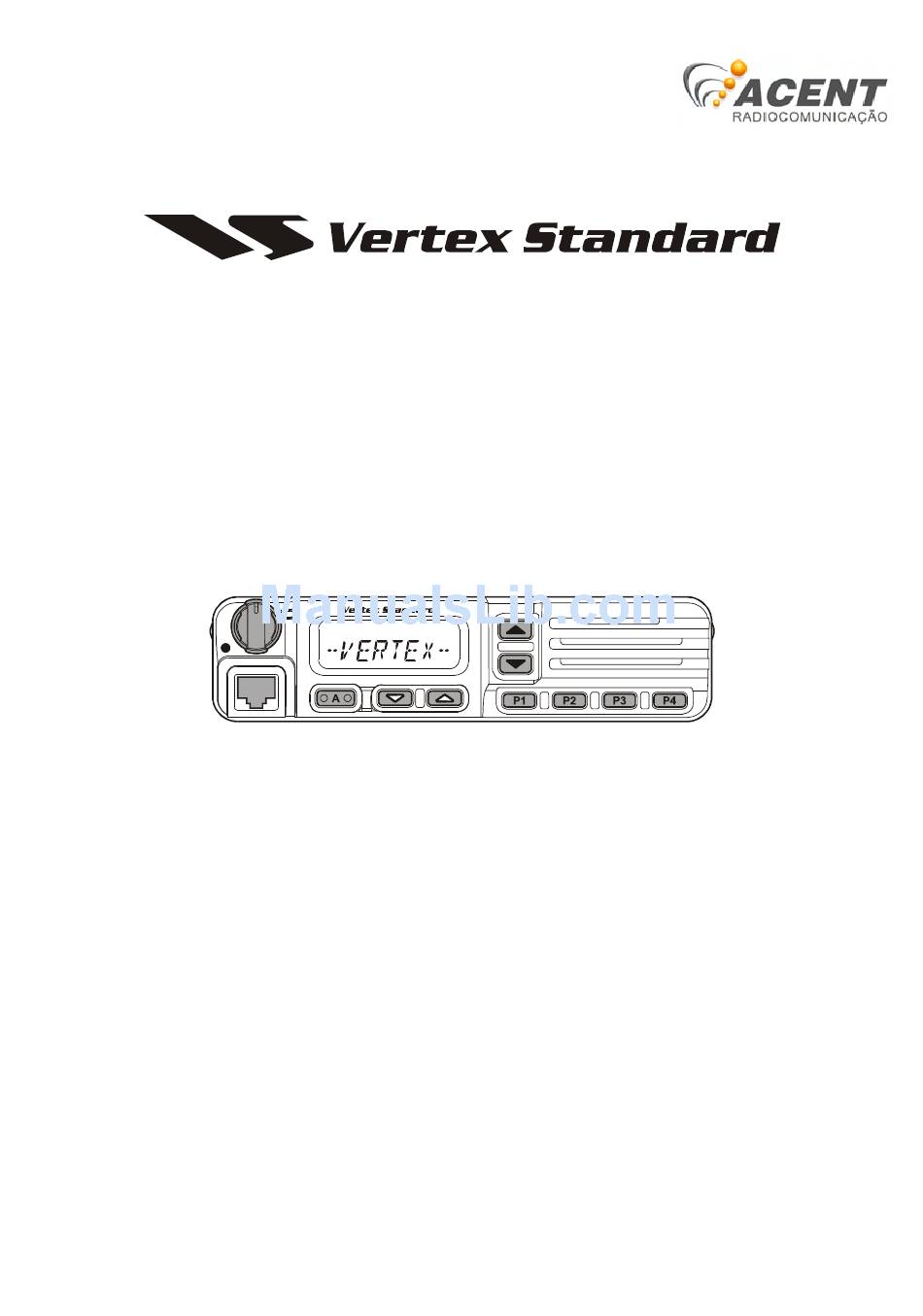

- Page 1 YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br...
- Page 2 AFETY ARNING NFORMATION WARNING - DO NOT operate the VX-2500 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd.
- Page 3 ACENT – Revenda Autorizada VERTEX | Locação | Vendas | Assistência Técnica | Acessórios ORIGINAIS. VENDAS: 0800 77-55-200 NTRODUCTION The VX-2500 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands.
-
Page 4: Controls And Connectors
Busy Channel Blinking Green: Tone Squelch in defeated condition LCD (Liquid Crystal Display) The display includes an 8-character alpha-numeric section showing Group and Channel names, status and identity information, and error messages. Page 2 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 5: Microphone Jack
Busy Channel (follows Green BUSY/TX indicator). Low TX Power Current Group on “Scan” List Horn Function Activate Transmission in progress, (follows Red BUSY/TX in- :Home System/Group dicator). :Priority Group 8-Character Alpha-Numeric Display Page 3 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 6: Rear Panel
External TX audio line input, PTT (Push To Talk), Squelch, and external RX audio line output signals may be obtained from this connector for use with acces- sories such as data transmission/reception modems, etc. Page 4 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 7: Switching Power On/Off
If CTCSS or Digital Coded Squelch (DCS) Lockout has been programmed on a channel, the radio can transmit only when there is no carrier being received or when the carrier being received includes the correct CTCSS tone or DCS code. Page 5 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 8: Automatic Time-Out Timer
PTT switch and wait for the “penalty timer” to expire (if you press the PTT switch before this timer expires, the timer restarts, and you will have to wait another “penalty” period) Page 6 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 9: Advanced Operation
PERATION Programmable Function ( ) Buttons The VX-2500 includes nine Programmable Function (PF) Buttons. The PF button functions can be customized, via programming by your VERTEX STANDARD dealer, to meet your communications/network requirements. Some features may require the purchase and installation of optional internal accessories. The possible PF button programming features are illustrated below, and these functions are explained on the pages to follow. -
Page 10: Description Of Operating Functions
ROUP ELECTION The VX-2500 is capable of separating its 128 memory channels into any of 10 groups. There is no limit as to the number of channels which may be assigned to each group. The Dealer will have made the group assignment at the time of channel program- ming. - Page 11 H The scanner will search the two channels; it will pause each time it finds a channel on which someone is speaking. To stop Dual Watch: H Press the assigned PF button. Page 9 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br...
- Page 12 Note that your dealer may have made provision for “Talk Around” channels by pro- gramming “repeater” and “Talk Around” frequencies on two adjacent channels. If so, the key may be used for one of the other Pre-Programmed Functions. Page 10 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br...
- Page 13 PF button to sent your radio’s identification code (ANI) to the dispatcher. MERGENCY The VX-2500 includes an “Emergency” feature which may be useful if you have someone monitoring on the same frequency as your transceiver’s channel. Press the assigned PF button to initiate an emergency call. For further details contact your VERTEX STANDARD dealer.
-
Page 14: Arts (Auto Range Transpond System)
When your radio is paged by a station bearing a tone sequence which matches yours, your radio’s squelch will open and the alert ringer will sound. The three-digit code of the station which paged you will be displayed on your radio’s LCD. Page 12 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... -
Page 15: Optional Accessories
Check with your VERTEX STANDARD Dealer for changes to this list. This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Page 13 VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br... - Page 16 ACENT – Revenda Autorizada VERTEX | Locação | Vendas | Assistência Técnica | Acessórios ORIGINAIS. VENDAS: 0800 77-55-200 Copyright 2003 Printed in Japan VERTEX STANDARD CO., LTD. All rights reserved. 0304V-0M No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD. VX-2500 O PERATING ANUAL www.radio-vertex.com.br | acent@radio-vertex.com.br...
